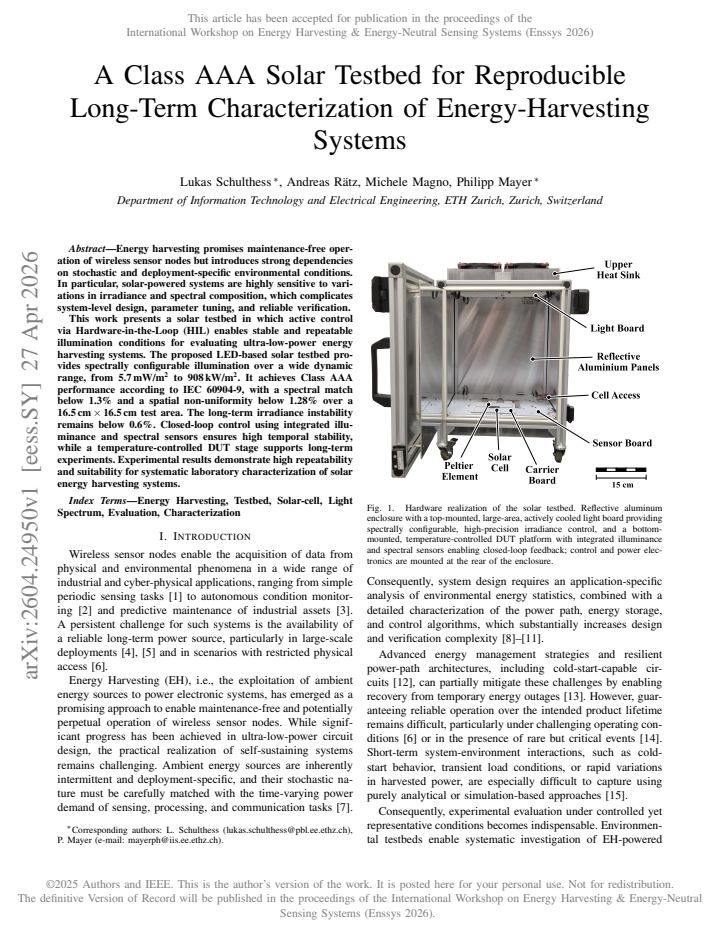

A Class AAA Solar Testbed for Reproducible Long-Term Characterization of Energy-Harvesting Systems

Lukas Schulthess , Andreas R\"atz , Michele Magno , Philipp Mayer This is my paper

Pith reviewed 2026-05-08 01:31 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords solar testbedenergy harvestingLED illuminationClass AAArepeatable characterizationirradiance stabilityspectral controlwireless sensor nodes
0
0 comments X

The pith

An LED-based solar testbed achieves Class AAA performance with spectral match below 1.3% and spatial non-uniformity below 1.28%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an LED-driven solar testbed that uses closed-loop control to deliver stable, spectrally tunable illumination across a wide range of intensities for testing energy-harvesting devices. It claims to meet the strict Class AAA criteria of the IEC 60904-9 standard while supporting long-duration experiments through temperature control. A reader would care because variable real-world sunlight makes it hard to reliably design or verify solar-powered wireless sensors, and a repeatable lab setup could simplify that process. The design enables systematic characterization by providing consistent conditions that mimic different environments.

Core claim

The proposed LED-based solar testbed provides spectrally configurable illumination over a wide dynamic range, from 5.7 mW/m2 to 908 kW/m2. It achieves Class AAA performance according to IEC 60904-9, with a spectral match below 1.3% and a spatial non-uniformity below 1.28% over a 16.5 cm x 16.5 cm test area. The long-term irradiance instability remains below 0.6%. Closed-loop control using integrated illuminance and spectral sensors ensures high temporal stability, while a temperature-controlled DUT stage supports long-term experiments.

What carries the argument

LED array combined with closed-loop control from illuminance and spectral sensors and a temperature-controlled stage for the device under test.

If this is right

  • High repeatability supports systematic laboratory characterization of solar energy harvesting systems.
  • Low temporal instability enables reliable long-term experiments.
  • Wide dynamic range allows simulation of diverse environmental irradiance levels.
  • Spectral configurability helps study the impact of different light compositions on harvester performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This setup could facilitate standardized testing protocols for comparing energy harvesters across different labs and studies.
  • The combination of wide range and precision might enable testing of systems intended for both indoor and outdoor deployments in the same apparatus.
  • Future work could explore coupling this illumination control with other simulated environmental variables like wind or humidity for more complete system testing.

Load-bearing premise

The LED array, sensors, and control system will sustain the specified spectral match, spatial uniformity, and temporal stability over extended durations without unaccounted drift or calibration problems.

What would settle it

A multi-month operation test measuring spectral match, spatial non-uniformity, and irradiance instability after prolonged use to confirm they remain within the claimed limits.

Figures

Figures reproduced from arXiv: 2604.24950 by Andreas R\"atz, Lukas Schulthess, Michele Magno, Philipp Mayer.

Figure 1
Figure 1. Figure 1: Hardware realization of the solar testbed. Reflective aluminum view at source ↗
Figure 2
Figure 2. Figure 2: High-level block diagram of the solar testbed integrated into the mea view at source ↗
Figure 3
Figure 3. Figure 3: Overview of the selected LED emission spectra. The six wavelength view at source ↗
Figure 4
Figure 4. Figure 4: Mean-normalized spatial non-uniformity of the testbed measured at view at source ↗
Figure 5
Figure 5. Figure 5: Over this period, the long-term irradiance instability view at source ↗
Figure 5
Figure 5. Figure 5: Measurements used for LTI calculation. TABLE V MEASURED IRRADIANCE OF THE INDIVIDUAL LED TYPES AT MINIMUM (0.01%) AND MAXIMUM (100%) INTENSITY. LED Type Number of LEDs Irradiance at 0.01% (mW/m2 ) Irradiance at 100% (W/m2 ) AREM-80C0-LM000 312 0.2501 74.111 AREM-90C0-KL000 648 0.4051 143.973 NE2B757GT 84 0.1267 38.376 NE2G757GT 72 0.3906 13.927 NE2R757GT-P6 120 0.4309 30.351 NF2L757GT-F1 420 3.0959 179.574… view at source ↗
read the original abstract

Energy harvesting promises maintenance-free operation of wireless sensor nodes but introduces strong dependencies on stochastic and deployment-specific environmental conditions. In particular, solar-powered systems are highly sensitive to variations in irradiance and spectral composition, which complicates system-level design, parameter tuning, and reliable verification. This work presents a solar testbed in which active control via Hardware-in-the-Loop (HIL) enables stable and repeatable illumination conditions for evaluating ultra-low-power energy harvesting systems. The proposed LED-based solar testbed provides spectrally configurable illumination over a wide dynamic range, from 5.7 mW/m2 to 908 kW/m2. It achieves Class AAA performance according to IEC 60904-9, with a spectral match below 1.3% and a spatial non-uniformity below 1.28% over a 16.5 cm x 16.5 cm test area. The long-term irradiance instability remains below 0.6%. Closed-loop control using integrated illuminance and spectral sensors ensures high temporal stability, while a temperature-controlled DUT stage supports long-term experiments. Experimental results demonstrate high repeatability and suitability for systematic laboratory characterization of solar energy harvesting systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript presents an LED-based solar testbed for reproducible long-term characterization of energy-harvesting systems. It claims spectrally configurable illumination over a wide dynamic range (5.7 mW/m² to 908 kW/m²), achieving Class AAA performance per IEC 60904-9 with spectral match below 1.3%, spatial non-uniformity below 1.28% over a 16.5 cm × 16.5 cm test area, and long-term irradiance instability below 0.6%, using closed-loop control via integrated illuminance and spectral sensors plus a temperature-controlled DUT stage. Experimental results are asserted to demonstrate high repeatability and suitability for systematic laboratory testing of solar-powered ultra-low-power systems.

Significance. If the performance claims hold after detailed validation, the testbed would be a useful contribution for the energy-harvesting community by enabling controlled, repeatable laboratory experiments that avoid the stochastic variability of natural sunlight, thereby supporting more reliable system-level design, parameter tuning, and verification of solar energy harvesters.

major comments (1)
  1. [Abstract and experimental results sections] Abstract and the experimental validation sections: the headline claims of spectral match below 1.3%, spatial non-uniformity below 1.28%, and long-term instability below 0.6% (meeting IEC 60904-9 Class AAA) are stated without any description of the measurement protocols. No details are supplied on the spectrometer or reference cell used for spectral match, the spatial sampling grid and number of measurement points across the 16.5 cm × 16.5 cm area, or the duration, sampling rate, temperature compensation, and data analysis applied to the 0.6% instability figure. This is load-bearing for the central claim because the Class AAA assertion and the suitability for long-term experiments rest entirely on these unelaborated experimental results; without the protocols the metrics cannot be reproduced or audited.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The feedback highlights an important gap in the presentation of our experimental methods. We address the major comment below and will revise the manuscript to incorporate the requested protocol details.

read point-by-point responses

  1. Referee: [Abstract and experimental results sections] Abstract and the experimental validation sections: the headline claims of spectral match below 1.3%, spatial non-uniformity below 1.28%, and long-term instability below 0.6% (meeting IEC 60904-9 Class AAA) are stated without any description of the measurement protocols. No details are supplied on the spectrometer or reference cell used for spectral match, the spatial sampling grid and number of measurement points across the 16.5 cm × 16.5 cm area, or the duration, sampling rate, temperature compensation, and data analysis applied to the 0.6% instability figure. This is load-bearing for the central claim because the Class AAA assertion and the suitability for long-term experiments rest entirely on these unelaborated experimental results; without the protocols the metrics cannot be reproduced or audited.

    Authors: We agree that the measurement protocols supporting the Class AAA performance metrics were not described in sufficient detail. This limits reproducibility and auditability of the central claims. In the revised manuscript we will add a dedicated subsection (within the experimental validation section) that explicitly documents: the spectrometer model and reference cell employed for spectral match evaluation; the spatial sampling grid, including the number and distribution of measurement points over the 16.5 cm × 16.5 cm area; and the duration, sampling rate, temperature compensation approach, and statistical analysis used to obtain the long-term irradiance instability figure. These additions will directly address the referee’s concern and allow independent verification of the reported metrics. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental metrics benchmarked to external IEC standard

full rationale

The paper reports hardware performance of an LED solar testbed (spectral match <1.3%, spatial non-uniformity <1.28%, long-term instability <0.6%) as measured against the external IEC 60904-9 Class AAA specification. No mathematical derivations, equations, fitted parameters, self-citations, or internal predictions appear in the abstract or description. Claims rest on empirical validation of physical hardware rather than any self-referential chain that reduces a result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on the external IEC 60904-9 standard for performance classification and standard engineering practices for LED control and sensing; no free parameters are fitted to data, no ad-hoc axioms are introduced, and no new physical entities are postulated.

axioms (1)
  • standard math IEC 60904-9 standard defines Class AAA criteria for spectral match, spatial non-uniformity, and temporal instability of solar simulators
    The paper directly claims compliance with these criteria to establish the testbed performance.
