arxiv: 2604.25217 · v1 · submitted 2026-04-28 · 📡 eess.SY · cs.SY

Dual-Polarized Massive MIMO Based on Precoding for Vehicle-To-Ground Communication in Urban Rail Transit

Zhengyuan Wu , Junhui Zhao , Qingmiao Zhang , Ming Zhang This is my paper

Pith reviewed 2026-05-07 15:28 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords dual-polarized MIMOvehicle-to-ground communicationurban rail transitprecodingcross-polarization correlationchannel estimationinterference cancellationmassive MIMO
0
0 comments X

The pith

Dual-polarized MIMO precoding enables high-rate vehicle-to-ground links in urban rail tunnels despite strong cross-polarization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a distributed dual-polarized massive MIMO architecture for vehicle-to-ground communication in urban rail transit tunnels. It relies on a three-dimensional non-stationary geometry-based stochastic channel model that incorporates tunnel geometry and cross-polarization effects between antennas. Polarized-aware sparse channel estimation and closed-form MMSE and MR precoding expressions are derived, followed by a dynamic interference cancellation algorithm to remove interference across polarization modes and users. Simulations indicate the approach maintains performance under high cross-polarization correlation and supports elevated data rates. A sympathetic reader would care because current urban rail systems cannot meet the data demands of intelligent services, and this targets that bottleneck directly in the tunnel environment.

Core claim

The proposed dual-polarized precoding algorithm, built on the polarized-aware sparse channel estimation method and the polarized-aware dynamic interference cancellation algorithm, can withstand high cross-polarization correlation and improve the efficiency of vehicle-to-ground communication to achieve high rates in urban rail transit scenarios.

What carries the argument

The polarized-aware dynamic interference cancellation (PADIC) algorithm, which removes interference between polarization modes and multiple users after applying MMSE or MR precoding in the dual-polarized setup.

If this is right

  • Higher data rates become feasible for vehicle-to-ground links in tunnels without requiring additional spectrum.
  • The system continues to deliver performance when cross-polarization correlation is high.
  • Closed-form precoding expressions reduce computational load for real-time implementation.
  • Polarized-aware channel estimation improves accuracy in the presence of dual-polarization effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same architecture might apply to other linear confined spaces such as road tunnels or underground mines where similar geometry and polarization challenges occur.
  • Real-world validation would require comparing measured bit-error rates or throughput against the simulated curves under varying train speeds.
  • Integration with existing rail signaling could be tested by checking whether the precoding overhead affects latency-critical control messages.

Load-bearing premise

The spatial three-dimensional non-stationary geometry-based stochastic channel model accurately represents real propagation conditions in urban rail transit tunnels, including cross-polarization effects and geometric distributions.

What would settle it

Field measurements in actual urban rail tunnels that show cross-polarization correlation levels or spatial statistics materially different from those assumed in the model would undermine the simulated rate improvements.

Figures

Figures reproduced from arXiv: 2604.25217 by Junhui Zhao, Ming Zhang, Qingmiao Zhang, Zhengyuan Wu.

Figure 1

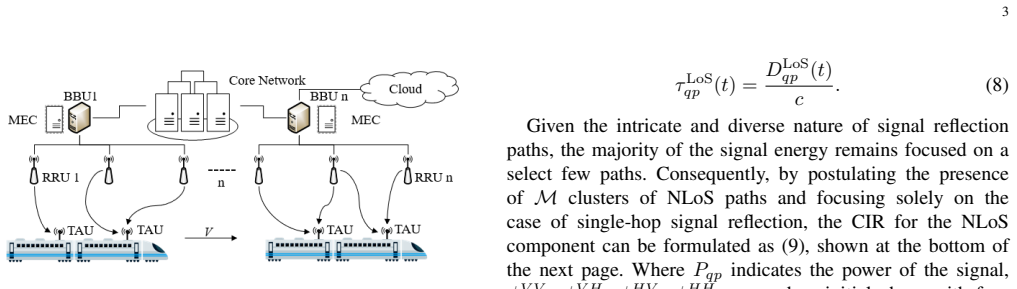

Figure 1. Figure 1: Distributed antenna system (DAS) for Vehicle-to-Ground (V2G) view at source ↗
Figure 2

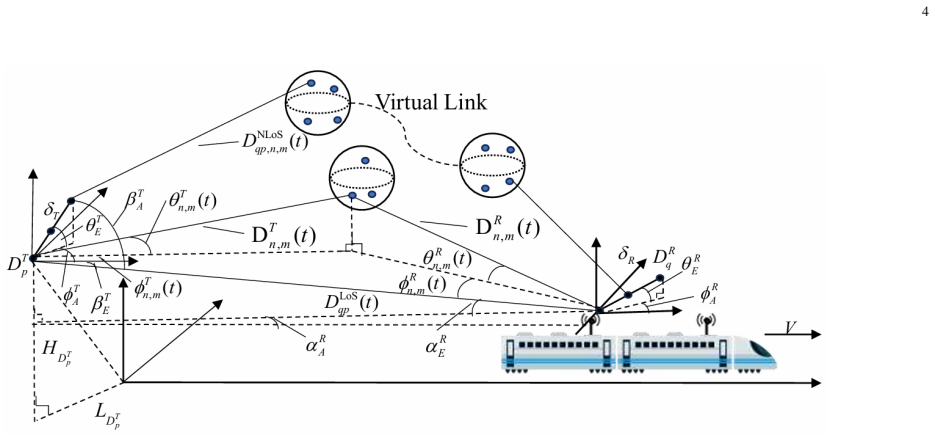

Figure 2. Figure 2: The proposed MIMO spatial non-stationary geometry channel model for AP-TAU. view at source ↗
Figure 3

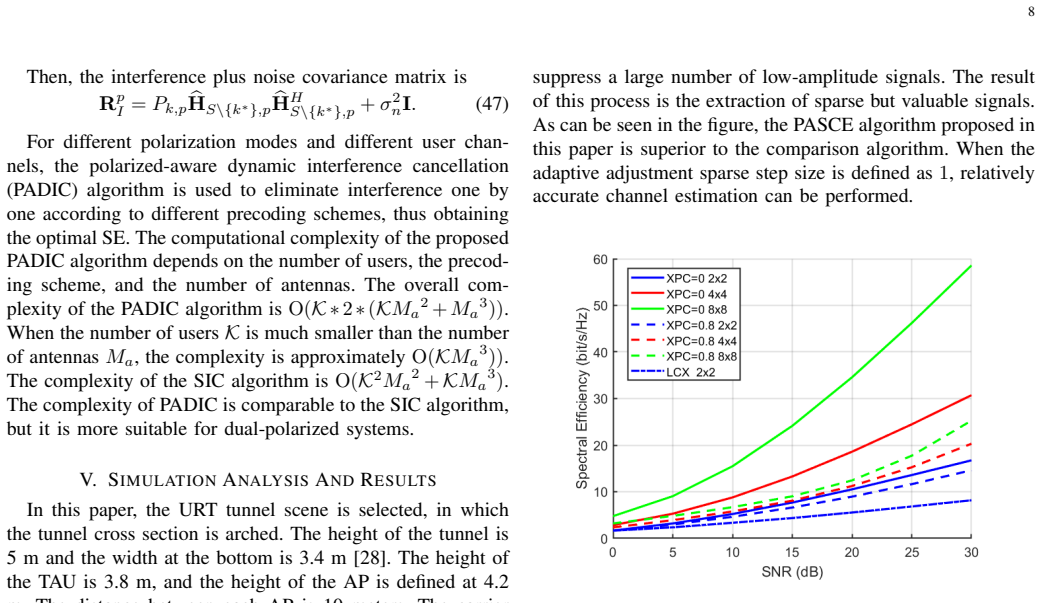

Figure 3. Figure 3: Comparison of system SE under different MIMO configurations and view at source ↗
Figure 4

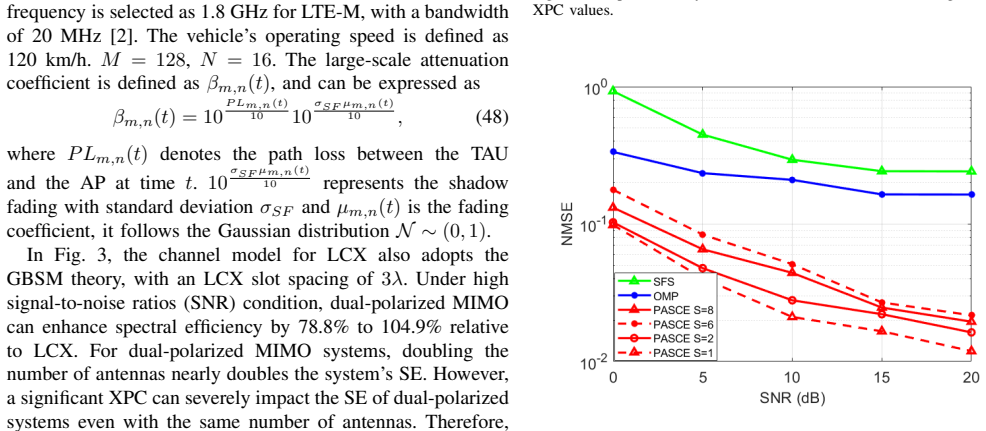

Figure 4. Figure 4: Comparison of NMSE performance of different algorithms for channel view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of the number of users and system SE under different view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of system SE performance for different precoding view at source ↗
Figure 7
Figure 7. Figure 7: System SE under different precoding schemes at different XPC values. view at source ↗
Figure 8

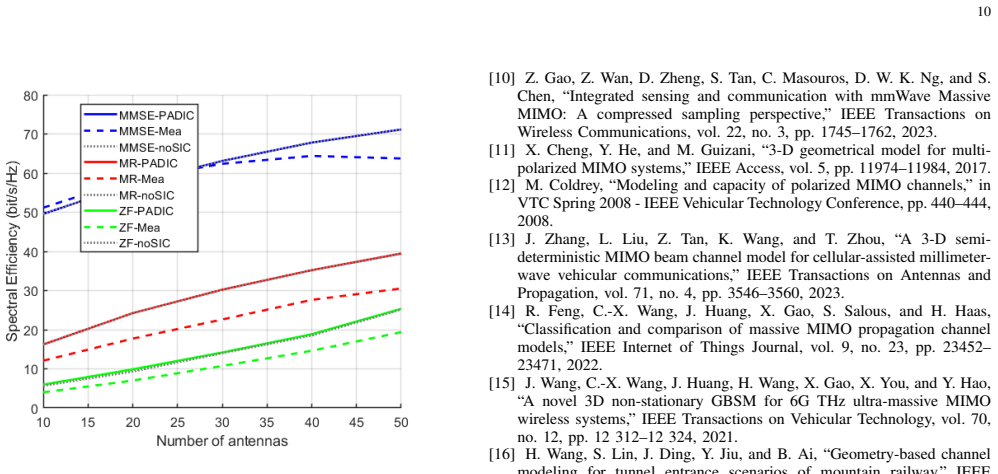

Figure 8. Figure 8: Comparison of system antenna numbers and SE for different precoding view at source ↗
read the original abstract

The development of intelligent and diversified ser vices in urban rail transit (URT) has resulted in an increasing de mand for high-rate communication between vehicles and ground equipment. However, existing URT communication systems strug gle to handle the massive data exchange required for vehicle-to ground (V2G) communication. To address this issue, we propose a distributed dual-polarized MIMO architecture suitable for URT tunnel scenarios. Specifically, the channel model is based on spatial three-dimensional (3D) non-stationary geometry-based stochastic model (GBSM), which takes into account the geometric distribution of URT tunnels and the cross-polarization effects between dual-polarized antennas. For dual-polarized MIMO systems, the polarized-aware sparse channel estimation (PASCE) method is proposed for effective channel estimation. Additionally, we derive closed-form expressions for the MMSE and MR precoding schemes. The polarized-aware dynamic interference cancellation (PADIC) algorithm is developed to eliminate in terference between different polarization modes and multiple users. The simulation results demonstrate that the proposed dual-polarized precoding algorithm can withstand high cross polarization correlation (XPC) and improve the efficiency of V2G communication to achieve high rates.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper proposes a distributed dual-polarized massive MIMO architecture for vehicle-to-ground (V2G) communication in urban rail transit (URT) tunnels. It develops a spatial 3D non-stationary geometry-based stochastic channel model (GBSM) incorporating tunnel geometry and cross-polarization effects, a polarized-aware sparse channel estimation (PASCE) method, closed-form expressions for MMSE and MR precoding, and a polarized-aware dynamic interference cancellation (PADIC) algorithm. Monte Carlo simulations are presented to demonstrate robustness to high cross-polarization correlation (XPC) and improved data rates.

Significance. If the GBSM accurately captures real URT tunnel propagation statistics and the simulation results generalize, the polarization-aware precoding and cancellation techniques could enable higher-rate V2G links in geometrically constrained environments. The closed-form precoding derivations represent a potential technical contribution for handling non-stationary dual-polarized channels.

major comments (1)
  1. [Channel Model and Simulation Results] The headline simulation claim that the dual-polarized precoding (PASCE + MMSE/MR + PADIC) withstands high XPC and delivers high rates rests entirely on Monte Carlo results generated from the authors' 3D non-stationary GBSM. No section compares the model's XPC coefficients, scatterer distributions, power angular spectra, or non-stationarity time scales against published measurement campaigns in URT tunnels. If these parameters deviate from reality, the reported interference-cancellation gains become simulator artifacts rather than evidence of practical performance.
minor comments (1)
  1. [Abstract] Abstract contains line-break artifacts ('ser vices', 'de mand', 'inter ference').

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript's technical contributions and for the constructive major comment. We address the concern regarding channel model validation point by point below.

read point-by-point responses

  1. Referee: [Channel Model and Simulation Results] The headline simulation claim that the dual-polarized precoding (PASCE + MMSE/MR + PADIC) withstands high XPC and delivers high rates rests entirely on Monte Carlo results generated from the authors' 3D non-stationary GBSM. No section compares the model's XPC coefficients, scatterer distributions, power angular spectra, or non-stationarity time scales against published measurement campaigns in URT tunnels. If these parameters deviate from reality, the reported interference-cancellation gains become simulator artifacts rather than evidence of practical performance.

    Authors: We acknowledge this valid concern. Our 3D non-stationary GBSM extends established geometry-based stochastic frameworks for tunnel propagation, with parameters (including XPC coefficients, scatterer distributions, power angular spectra, and non-stationarity timescales) selected to align with statistics reported in prior URT and confined-space measurement literature referenced in the manuscript. To make this grounding explicit, the revised manuscript will add a dedicated paragraph in Section II that directly compares our chosen model parameters against published URT tunnel measurement campaigns. This addition will clarify the link between the simulated performance gains and realistic propagation conditions, strengthening the evidence that the PASCE, MMSE/MR precoding, and PADIC results are not simulator artifacts. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations and simulations remain independent

full rationale

The paper proposes a 3D non-stationary GBSM incorporating tunnel geometry and XPC, derives closed-form MMSE/MR precoders, introduces PASCE and PADIC algorithms, and reports Monte Carlo results showing robustness to high XPC. No equations, parameter-fitting steps, or self-citations are quoted that reduce any claimed prediction or performance metric to the inputs by construction. The model serves as the evaluation environment rather than a fitted surrogate for outcomes, and all algorithmic steps are presented as independent derivations. This is standard simulation-based validation and does not trigger any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, preventing identification of any free parameters, axioms, or invented entities; the channel model and precoding derivations likely rest on standard assumptions from wireless literature but cannot be audited here.

pith-pipeline@v0.9.0 · 5521 in / 1271 out tokens · 49659 ms · 2026-05-07T15:28:49.100514+00:00 · methodology
