arxiv: 2604.25422 · v2 · submitted 2026-04-28 · 💻 cs.DC · cs.SY· eess.SY

Recognition: unknown

CUDA Kernel Optimization and Counter-Free Performance Analysis for Depthwise Convolution in Cloud Environments

Huriyeh Babak , Melanie Schaller
Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:21 UTC · model grok-4.3

classification 💻 cs.DC cs.SYeess.SY
keywords CUDA kernel optimizationdepthwise convolutioncounter-free performance analysiscloud environmentswarp-tiled kernelmemory reuseS4ConvDGPU roofline analysis
0
0 comments X

The pith

Warp-tiled CUDA kernels for depthwise convolution cut runtime by 3.26 times and allow performance analysis without hardware counters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that targeted CUDA kernel changes for depthwise convolution in structured state-space models deliver large speedups when everything else stays fixed. The authors compare four kernel styles—naive, coalesced, blocked, and warp-tiled—across forward, input-gradient, and weight-gradient paths during training. They pair the kernels with a timing-plus-modeling method that extracts architectural insights from ordinary CUDA events and analytical memory estimates. The approach matters for cloud users who lack privileged access to performance counters yet still need to tune GPU code. If correct, it shows that substantial kernel-level gains remain achievable and measurable even under restricted cloud conditions.

Core claim

The warp-tiled kernel reduces convolution runtime by 3.26× relative to the naive CUDA baseline, while end-to-end training speedup reaches 1.29×. Forward and input-gradient paths benefit substantially from improved locality and on-chip data reuse, whereas the reduction-dominated weight-gradient path remains the primary bottleneck. The results demonstrate that meaningful architecture-level GPU kernel analysis can be performed reproducibly in restricted cloud environments, even without access to hardware performance counters.

What carries the argument

The warp-tiled kernel variant that maximizes on-chip data reuse for depthwise convolution, together with the counter-free analysis pipeline that combines CUDA-event timing, execution-path decomposition, memory-traffic modeling, effective-bandwidth calculation, and roofline analysis.

If this is right

  • Forward and input-gradient paths improve when memory locality and on-chip reuse are increased.
  • The weight-gradient path stays limited by reduction operations regardless of tiling strategy.
  • End-to-end training time improves by 1.29× once only the convolution kernel is upgraded.
  • Architectural insights remain obtainable through timing and modeling when hardware counters are unavailable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same timing-based method could be applied to other memory-bound GPU operators where counter access is restricted.
  • Cloud training efficiency might improve further by redesigning the reduction step in weight gradients.
  • The observed speedups imply that many structured state-space models still have untapped headroom in their convolution layers.

Load-bearing premise

That fixing the operator, model, dataset, and training configuration while varying only the CUDA kernel isolates performance differences to the kernel optimizations alone.

What would settle it

Re-measuring convolution runtime on the identical cloud setup and finding that the warp-tiled kernel does not reduce time by a factor of 3.26 compared with the naive kernel.

Figures

Figures reproduced from arXiv: 2604.25422 by Huriyeh Babak, Melanie Schaller.

Figure 1
Figure 1. Figure 1: Conceptual overview of the study design and execution-path bot view at source ↗
Figure 2
Figure 2. Figure 2: Simplified memory hierarchy of the NVIDIA Tesla P100 used in the view at source ↗
Figure 3

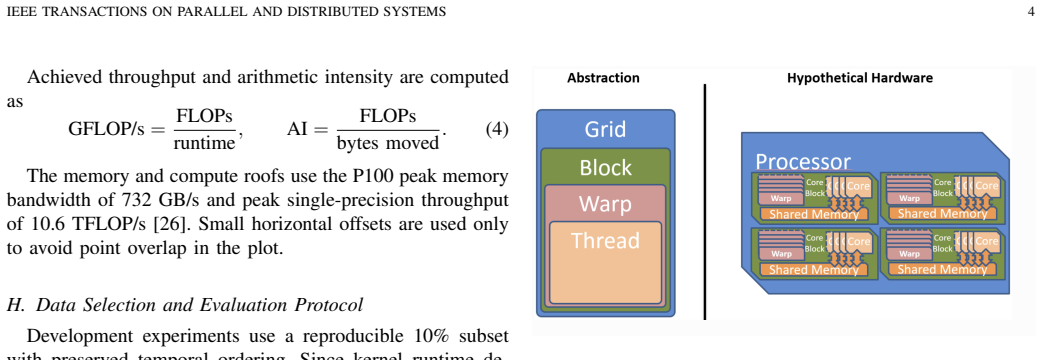

Figure 3. Figure 3: Conceptual relationship between the CUDA execution hierarchy and view at source ↗
Figure 5
Figure 5. Figure 5: Warp-level coalesced memory access. Consecutive threads access view at source ↗
Figure 6

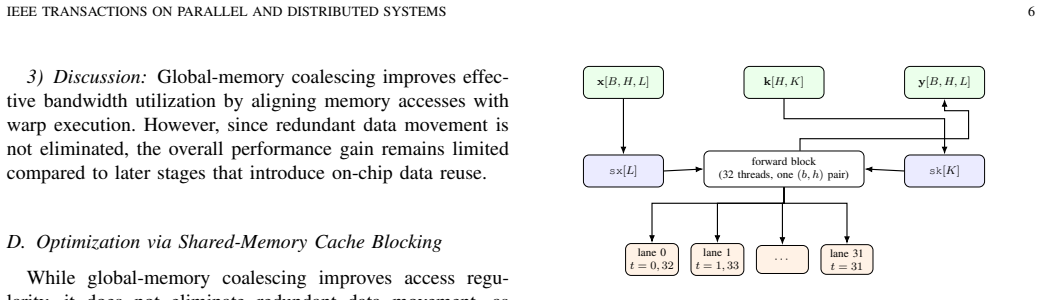

Figure 6. Figure 6: Warp-centric mapping with full on-chip data reuse. Each warp view at source ↗
Figure 7
Figure 7. Figure 7: Warp-level reduction for kernel-gradient computation. view at source ↗
Figure 8
Figure 8. Figure 8: Kernel runtime distribution and speedup across execution paths. The view at source ↗
Figure 9
Figure 9. Figure 9: Runtime bandwidth relationship for the optimized CUDA variants. The view at source ↗
Figure 10
Figure 10. Figure 10: Roofline analysis of CUDA kernel variants across forward, input view at source ↗
Figure 11
Figure 11. Figure 11: Maximum absolute difference between the warp-tiled implementation view at source ↗
read the original abstract

Efficient GPU execution of convolution operators is governed by memory-access efficiency, on-chip data reuse, and execution mapping rather than arithmetic throughput alone. This paper presents a controlled operator-level study of CUDA kernel optimization for the depthwise convolution used in Structured State Space Model Convolutional Diagonal (S4ConvD), together with a cloud-compatible, counter-free performance analysis methodology. The operator, model, dataset, and training configuration are fixed, and only the CUDA kernel implementation is varied. The evaluated CUDA kernels comprise naive, global-memory-coalesced, shared-memory cache-blocked, and warp-tiled variants, covering forward, input-gradient, and weight-gradient execution paths under steady-state training conditions. Performance is characterized using a counter-free methodology that combines CUDA-event timing, execution-path decomposition, analytically derived memory-traffic modeling, effective-bandwidth estimation, and roofline analysis. This enables profiling-like architectural insights without requiring hardware performance counters or privileged profiling access. The warp-tiled kernel reduces convolution runtime by $3.26\times$ relative to the naive CUDA baseline, while end-to-end training speedup reaches $1.29\times$. A PyTorch implementation is used separately for numerical validation and runtime context, but is not treated as a controlled architectural baseline. Forward and input-gradient paths benefit substantially from improved locality and on-chip data reuse, whereas the reduction-dominated weight-gradient path remains the primary bottleneck. The results demonstrate that meaningful architecture-level GPU kernel analysis can be performed reproducibly in restricted cloud environments, even without access to hardware performance counters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. This paper conducts a controlled operator-level study of CUDA kernel optimizations for depthwise convolution in the S4ConvD model. With the model, dataset, and training configuration fixed, the authors compare naive, global-memory-coalesced, shared-memory cache-blocked, and warp-tiled CUDA kernels for forward, input-gradient, and weight-gradient paths. Performance is evaluated using a counter-free approach combining CUDA-event timing, analytically derived memory-traffic models, effective-bandwidth estimation, and roofline analysis. The warp-tiled kernel achieves a 3.26× speedup in convolution runtime over the naive baseline, leading to 1.29× end-to-end training speedup. The work highlights that forward and input-gradient paths benefit from improved data reuse, while the weight-gradient path remains a bottleneck, and demonstrates the feasibility of architecture-level analysis in cloud environments without hardware performance counters.

Significance. The concrete speedups and the counter-free methodology are potentially significant for optimizing state-space model training on GPUs in restricted environments. The controlled experimental design isolates the effect of kernel implementation. However, the architectural insights depend on the fidelity of the memory models, which the stress-test notes lack independent validation. If validated, this could enable reproducible performance studies where profiling tools are unavailable.

major comments (1)
  1. [Abstract and Performance Analysis Methodology] The central claim that the methodology yields 'meaningful architecture-level GPU kernel analysis' without counters rests on the analytically derived memory-traffic models and roofline plots. These are constructed from timing and static assumptions about access patterns and reuse; the manuscript should demonstrate that dynamic effects such as L2 cache thrashing, warp divergence in the reduction path, or unmodeled instruction overhead do not invalidate the conclusions about why forward/input-gradient paths improve while weight-gradient remains bottlenecked. Without such validation or sensitivity analysis, the interpretation risks being an artifact of the modeling assumptions rather than true hardware behavior.
minor comments (2)
  1. [Abstract] The abstract states that a PyTorch implementation is used for numerical validation but not as a controlled baseline; the paper should clarify how numerical correctness was verified across all kernels and whether any discrepancies were observed.
  2. [Results] The reported 3.26× and 1.29× figures would benefit from explicit mention of the number of timing runs, standard deviation, or confidence intervals to allow assessment of measurement variance, as noted in the reader's soundness evaluation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment below, indicating where revisions have been made to strengthen the presentation of the counter-free analysis.

read point-by-point responses

  1. Referee: The central claim that the methodology yields 'meaningful architecture-level GPU kernel analysis' without counters rests on the analytically derived memory-traffic models and roofline plots. These are constructed from timing and static assumptions about access patterns and reuse; the manuscript should demonstrate that dynamic effects such as L2 cache thrashing, warp divergence in the reduction path, or unmodeled instruction overhead do not invalidate the conclusions about why forward/input-gradient paths improve while weight-gradient remains bottlenecked. Without such validation or sensitivity analysis, the interpretation risks being an artifact of the modeling assumptions rather than true hardware behavior.

    Authors: We agree that explicit validation of the memory-traffic models against potential dynamic effects is important. Our models are derived from static analysis of each kernel's access patterns and reuse, combined with CUDA-event timings. In the revised manuscript we have added a dedicated sensitivity analysis (new subsection 4.4) that perturbs key parameters—L2 hit rates, reduction overhead, and assumed instruction throughput—over ranges consistent with NVIDIA GPU behavior. The results show that the relative ordering of kernels and the identification of the weight-gradient path as the primary bottleneck remain stable. We also report that effective-bandwidth estimates from the models align closely with bandwidths implied by the measured runtimes across all variants. While hardware-counter validation is unavailable in the target cloud environment (the very setting that motivates the counter-free approach), the consistency between model predictions and observed 3.26× speedup provides supporting evidence. We have updated the abstract and methodology sections to qualify the claims accordingly and added an explicit limitations paragraph. revision: partial

Circularity Check

0 steps flagged

No significant circularity; speedups and analysis derive from direct timing and static analytical models.

full rationale

The paper's core results are empirical runtime ratios obtained from CUDA-event timing on fixed operator/model/dataset configurations, with only the kernel implementation varied. Analytically derived memory-traffic models and roofline plots are constructed from static assumptions about access patterns and reuse factors rather than fitted to the measured timings in a self-referential loop. No equations reduce a claimed prediction to a quantity defined by the same experiment, no parameters are fitted on a subset and then presented as out-of-sample predictions, and no load-bearing self-citations or uniqueness theorems are invoked. The methodology is therefore self-contained against the naive baseline and external PyTorch reference.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper rests on standard assumptions of CUDA memory hierarchy behavior and the validity of event-based timing as a proxy for architectural insight. No free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5579 in / 1241 out tokens · 42277 ms · 2026-05-07T15:21:12.230773+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

29 extracted references · 6 canonical work pages · 2 internal anchors

  1. [1]

    GPU computing,

    J. D. Owens, M. Houston, D. Luebke, S. Green, J. E. Stone, and J. C. Phillips, “GPU computing,”Proceedings of the IEEE, vol. 96, no. 5, pp. 879–899, 2008

    2008

  2. [2]

    Roofline: An insightful visual performance model for multicore architectures,

    S. Williams, A. Waterman, and D. Patterson, “Roofline: An insightful visual performance model for multicore architectures,”Communications of the ACM, vol. 52, no. 4, pp. 65–76, 2009

    2009

  3. [3]

    NVIDIA,CUDA C++ Programming Guide, NVIDIA, 2026, release 13.2

    2026

  4. [4]

    ——,CUDA C++ Best Practices Guide, NVIDIA, 2026, cUDA Toolkit Documentation

    2026

  5. [5]

    FlashAttention: Fast and memory-efficient exact attention with IO-awareness,

    T. Dao, D. Fu, S. Ermon, A. Rudra, and C. R ´e, “FlashAttention: Fast and memory-efficient exact attention with IO-awareness,”Advances in Neural Information Processing Systems, vol. 35, pp. 16 344–16 359, 2022

    2022

  6. [6]

    Mamba: Linear-time sequence modeling with selective state spaces,

    A. Gu and T. Dao, “Mamba: Linear-time sequence modeling with selective state spaces,” inFirst Conference on Language Modeling, 2024

    2024

  7. [7]

    Optimizing parallel reduction in CUDA,

    M. Harris, “Optimizing parallel reduction in CUDA,” 2007, nVIDIA Developer Technology, Technical Report

    2007

  8. [8]

    Scarpazza

    Z. Jia, M. Maggioni, B. Staiger, and D. P. Scarpazza, “Dissecting the NVIDIA volta GPU architecture via microbenchmarking,”arXiv preprint arXiv:1804.06826, 2018

    work page arXiv 2018

  9. [9]

    Nvidia tensor core programmability, performance & precision,

    S. Markidis, S. W. Der Chien, E. Laure, and I. B. Peng, “Nvidia tensor core programmability, performance & precision,” inIPDPSW, 2018

    2018

  10. [10]

    S4ConvD: Adaptive scaling and frequency adjustment for energy-efficient sensor networks in smart buildings,

    M. Schaller and B. Rosenhahn, “S4ConvD: Adaptive scaling and frequency adjustment for energy-efficient sensor networks in smart buildings,”arXiv preprint arXiv:2502.21035, 2025. [Online]. Available: https://arxiv.org/abs/2502.21035

    work page arXiv 2025

  11. [11]

    On the parameterization and initialization of diagonal state space models,

    A. Gu, K. Goel, A. Gupta, and C. R ´e, “On the parameterization and initialization of diagonal state space models,” inAdvances in Neural Information Processing Systems, vol. 35. Curran Associates, Inc., 2022, pp. 35 971–35 983. [Online]. Available: https://proceedings.neurips.cc/paper files/paper/ 2022/file/e9a32fade47b906de908431991440f7c-Paper-Conference.pdf

    2022

  12. [12]

    Kirk and W.-m

    D. Kirk and W.-m. Hwu,Programming Massively Parallel Processors: A Hands-on Approach. Morgan Kaufmann, 2016

    2016

  13. [13]

    Benchmarking GPUs to tune dense linear algebra,

    V . V olkov and J. W. Demmel, “Benchmarking GPUs to tune dense linear algebra,” inSC’08: Proceedings of the 2008 ACM/IEEE Conference on Supercomputing. IEEE, 2008, pp. 1–11

    2008

  14. [14]

    An introduction to optimizing CUDA applications,

    M. Harris, “An introduction to optimizing CUDA applications,” https: //developer.nvidia.com/blog/even-easier-introduction-cuda/, 2013

    2013

  15. [15]

    How to optimize a CUDA matmul kernel,

    S. Bøhm, “How to optimize a CUDA matmul kernel,” https://siboehm. com/articles/22/CUDA-MMM, 2022, accessed: 2025-01-10

    2022

  16. [16]

    cuDNN: Efficient primitives for deep learning,

    S. Chetlur, C. Woolley, P. Vandermersch, J. Cohen, J. Tran, B. Catanzaro, and E. Shelhamer, “cuDNN: Efficient primitives for deep learning,” arXiv preprint arXiv:1410.0759, 2014

    work page arXiv 2014

  17. [17]

    NVIDIA,Matrix Multiplication Background User’s Guide, NVIDIA, 2023, nVIDIA Documentation

    2023

  18. [18]

    Dissecting GPU memory hierarchy through microbenchmarking,

    X. Mei and X. Chu, “Dissecting GPU memory hierarchy through microbenchmarking,”IEEE Transactions on Parallel and Distributed Systems, vol. 28, no. 1, pp. 72–86, 2016

    2016

  19. [19]

    Shufflenet: An extremely effi- cient convolutional neural network for mobile devices,

    X. Zhang, X. Zhou, M. Lin, and J. Sun, “Shufflenet: An extremely effi- cient convolutional neural network for mobile devices,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2018, pp. 6848–6856

    2018

  20. [20]

    MobileNets: Efficient Convolutional Neural Networks for Mobile Vision Applications

    A. G. Howardet al., “Mobilenets: Efficient convolutional neural networks for mobile vision applications,” inarXiv preprint arXiv:1704.04861, 2017. [Online]. Available: https: //arxiv.org/abs/1704.04861

    work page internal anchor Pith review arXiv 2017

  21. [21]

    N. J. Higham,Accuracy and stability of numerical algorithms. SIAM, 2002

    2002

  22. [22]

    The ASHRAE great energy predictor III competition: Overview and results,

    C. Miller, P. Arjunan, A. Kathirgamanathan, C. Fu, J. Roth, J. Y . Park, C. Balbach, K. Gowri, Z. Nagy, A. D. Fontanini, and J. Haberl, “The ASHRAE great energy predictor III competition: Overview and results,”Science and Technology for the Built Environment, vol. 26, no. 10, pp. 1427–1447, 2020. [Online]. Available: https://doi.org/10.1080/23744731.2020.1795514

    work page doi:10.1080/23744731.2020.1795514 2020

  23. [23]

    Efficiently Modeling Long Sequences with Structured State Spaces

    A. Gu, K. Goel, and C. R ´e, “Efficiently modeling long sequences with structured state spaces. 10.48550,”arXiv preprint arXiv.2111.00396, 2022

    work page internal anchor Pith review arXiv 2022

  24. [24]

    PyTorch: An imperative style, high-performance deep learning library,

    A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, G. Chanan, T. Killeen, Z. Lin, N. Gimelshein, L. Antigaet al., “PyTorch: An imperative style, high-performance deep learning library,”Advances in Neural Information Processing Systems, vol. 32, 2019

    2019

  25. [25]

    Deep learning,

    Y . LeCun, Y . Bengio, and G. Hinton, “Deep learning,”Nature, vol. 521, no. 7553, pp. 436–444, 2015

    2015

  26. [26]

    [Online]

    NVIDIA,Tesla P100 for PCIe Data Sheet, NVIDIA, 2016, tesla P100 PCIe 16GB datasheet. [Online]. Available: https://images.nvidia.com/ content/tesla/pdf/nvidia-tesla-p100-PCIe-datasheet.pdf

    2016

  27. [27]

    [Online]

    ——,NVIDIA Tesla P100: The Most Advanced Datacenter Accelerator Ever Built, NVIDIA, 2016, pascal GP100 architecture whitepaper. [Online]. Available: https://images.nvidia.com/content/pdf/ tesla/whitepaper/pascal-architecture-whitepaper.pdf

    2016

  28. [28]

    CUDA refresher: The CUDA programming model,

    NVIDIA Corporation, “CUDA refresher: The CUDA programming model,” https://developer.nvidia.com/blog/ cuda-refresher-cuda-programming-model/, 2020, accessed: 2025- 12-10

    2020

  29. [29]

    Warp abstraction,

    Alpaka Developers, “Warp abstraction,” https://alpaka.readthedocs.io/en/ 0.5.0/usage/abstraction/warp.html, 2023, accessed: 2025-01-22. Huriyeh BabakHuriyeh Babak is currently pursuing the M.Sc. degree in computer science at Leibniz-University Hannover, Hannover, Germany. Her research interests include high-performance computing, GPU programming, and deep...

    2023
