arxiv: 2604.25583 · v1 · submitted 2026-04-28 · 🧮 math.NA · cs.NA

A quantitative direct sampling method for inhomogeneities from multi-frequency backscattering measurements

Yukun Guo , XiaoDong Liu This is my paper

Pith reviewed 2026-05-07 15:41 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords inverse scatteringdirect sampling methodmulti-frequency backscatteringlocal uniquenessinhomogeneity reconstructionnumerical method
0
0 comments X

The pith

A direct sampling method quantitatively reconstructs unknown inhomogeneities from multi-frequency backscattering data after proving local uniqueness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the inverse scattering problem of recovering unknown objects from wave measurements. It proves a local uniqueness result showing that multi-frequency backscattering data can distinguish inhomogeneities locally. The authors introduce a direct sampling method that uses these data to compute the location and quantitative properties of the inhomogeneities. Numerical experiments demonstrate that the method is robust, accurate, and computationally efficient.

Core claim

The authors prove a local uniqueness result for the inverse scattering problem from multi-frequency backscattering data. They introduce a direct sampling method for quantitatively reconstructing unknown inhomogeneities. Comprehensive numerical experiments validate the robustness, accuracy, and computational effectiveness of the proposed quantitative direct sampling method.

What carries the argument

The sampling indicator function constructed from multi-frequency backscattering measurements, which locates the inhomogeneities and provides quantitative contrast information.

If this is right

  • Reconstruction proceeds directly from the data without iterative optimization.
  • Local uniqueness ensures the inhomogeneities are determined in a neighborhood by the measurements.
  • The method supplies quantitative values for both the support and the contrast of the inhomogeneities.
  • Computational cost stays low because the indicator function requires only direct evaluations.
  • Accuracy and robustness hold across the tested configurations of inhomogeneities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The direct sampling approach could be tested on data with added noise to assess practical limits.
  • Similar indicator functions might apply to other wave scattering regimes beyond the current setting.
  • The local uniqueness result opens the possibility of extending the method to global recovery under extra constraints.

Load-bearing premise

The backscattering measurements must satisfy the scattering model such as the Helmholtz equation and the inhomogeneities must lie in a regime where the sampling indicator function remains stable.

What would settle it

Numerical reconstruction experiments on synthetic multi-frequency backscattering data from a known inhomogeneity that fail to recover the correct location or contrast values would falsify the quantitative accuracy claim.

Figures

Figures reproduced from arXiv: 2604.25583 by XiaoDong Liu, Yukun Guo.

Figure 1
Figure 1. Figure 1: The ground-truth contrast of Example 5.1. 5.1 Two-dimensional examples We first specify some more details regarding the data generation in 2D. We assume that the Nθ incident directions {θj} Nθ j=1 are uniformly distributed on [0, 2π), that is, θj = (cos tj , sin tj ) with incident angles tj = (j − 1)∆θ, j = 1, 2, · · · , Nθ, where ∆θ = 2π/Nθ. Under the above settings, the forward solver produces the noisy … view at source ↗
Figure 2

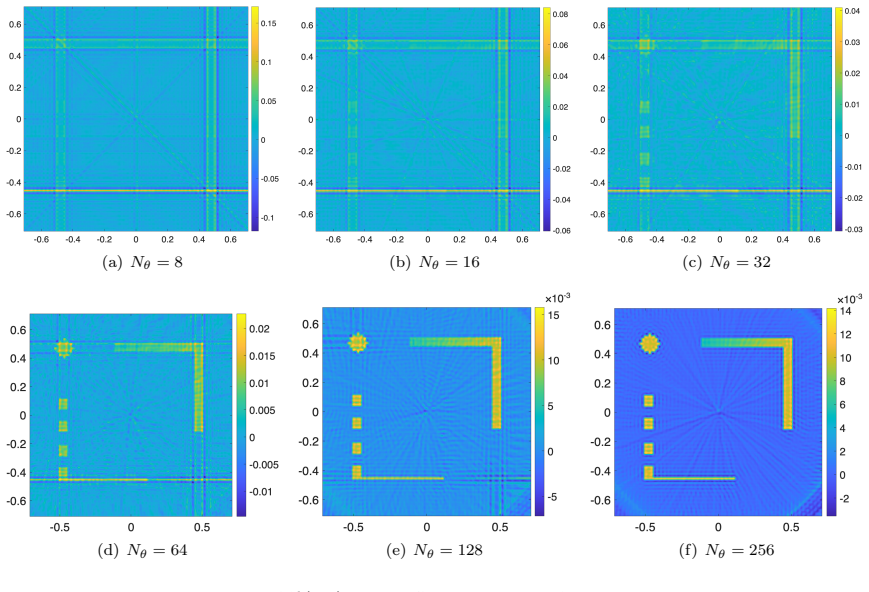

Figure 2. Figure 2: Imaging of ℜ(I∞) with different number of incident directions Nθ. (a) R = 5 (b) R = 10 (c) R = 20 view at source ↗
Figure 3

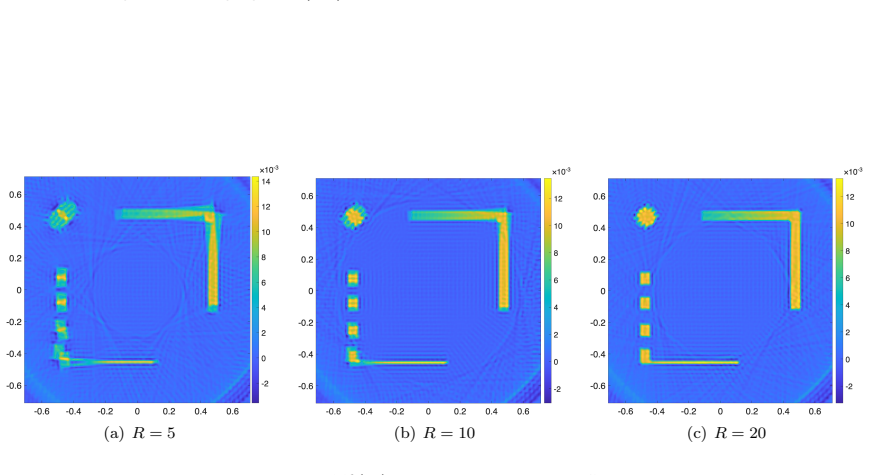

Figure 3. Figure 3: Imaging of ℜ(I s ) with Nθ = 256 and different radii R. 9 view at source ↗
Figure 4
Figure 4. Figure 4: The ground-truth contrast of Example 5.2. (a) ∆k = 2, kmin = 1, kmax = 121 (b) ∆k = 2, kmin = 1, kmax = 61 (c) ∆k = 2, kmin = 61, kmax = 121 (d) ∆k = 0.5, kmin = 1, kmax = 121 (e) ∆k = 0.5, kmin = 1, kmax = 61 (f) ∆k = 0.5, kmin = 61, kmax = 121 view at source ↗
Figure 5

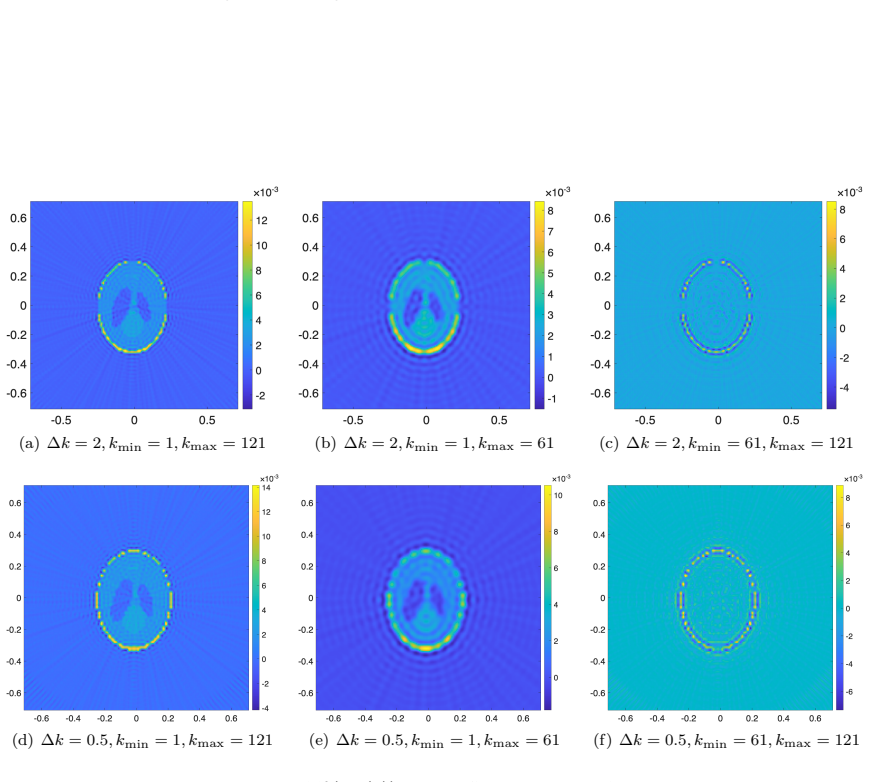

Figure 5. Figure 5: Imaging of ℜ(I∞(z)) with different choices of wavenumbers. 10 view at source ↗
Figure 6
Figure 6. Figure 6: Imaging of ℜ(I s (z)) with R = 5 and different choices of wavenumbers view at source ↗
Figure 7

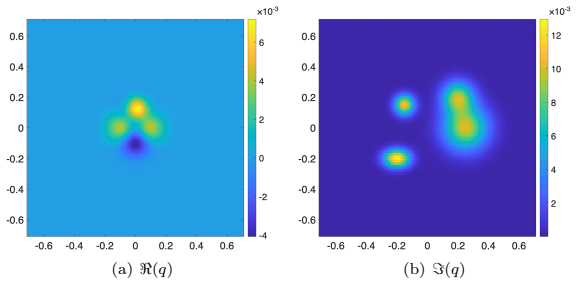

Figure 7. Figure 7: The ground-truth contrast q of Example 5.3. We refer to view at source ↗
Figure 8

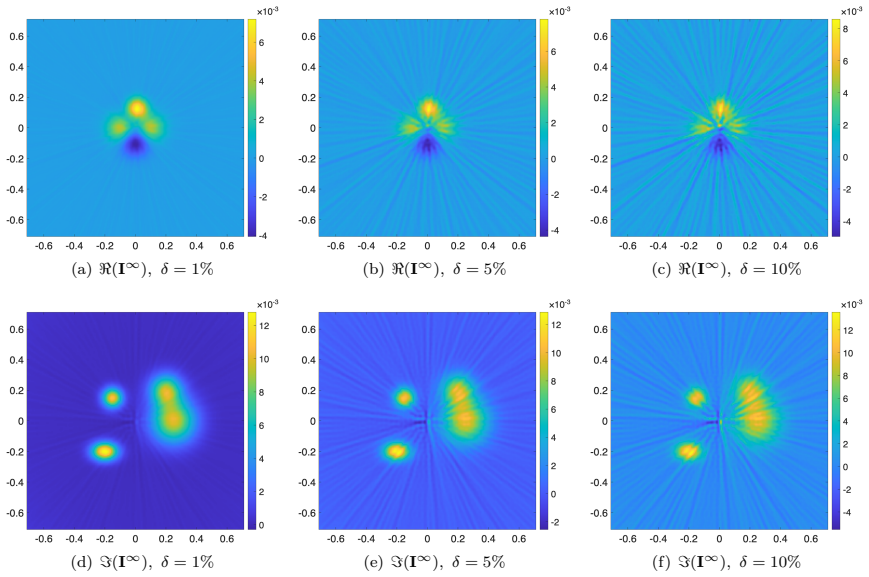

Figure 8. Figure 8: Imaging the complex contrast by I∞ with different noise levels. where Cs > 0 denotes the scaling factor and ℜ(q ∗ (x1, x2, x3)) = 3(1 − x1) 2 e −500x 2 1−800(x2−0.1)2−600x 2 3 − 10  x 5 − x 3 1 − x 5 2  e −400(x1−0.1)2−300x 2 2−500x 2 3 − 1 3 e −450(x1−0.1)2−600x 2 2−700x 2 3 , ℑ(q ∗ (x1, x2, x3)) = 3e −300x 2 1−200(x2+0.05)2−350x 2 3 + 5e −180(x1−0.1)2−350x 2 2−250x 2 3 view at source ↗
Figure 9

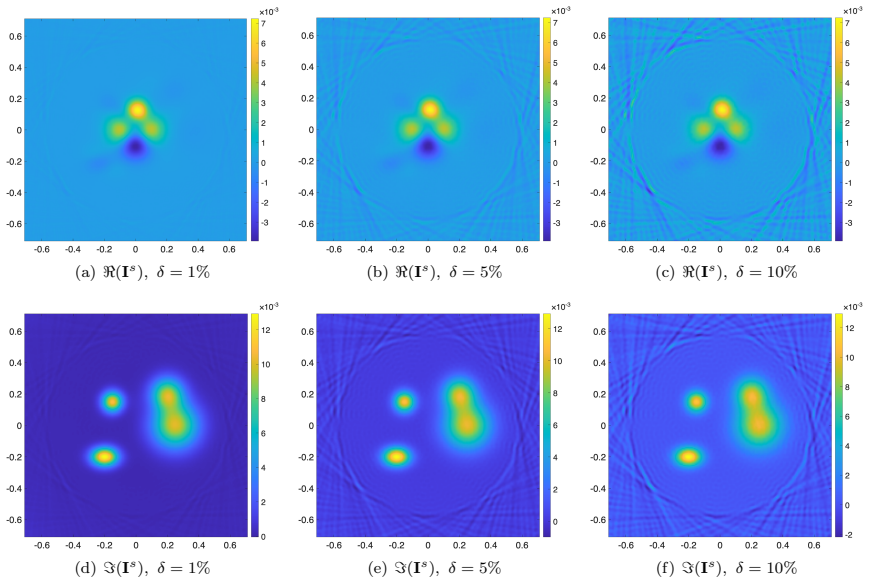

Figure 9. Figure 9: Imaging the complex contrast by I s with R = 10 and different noise levels view at source ↗
Figure 10

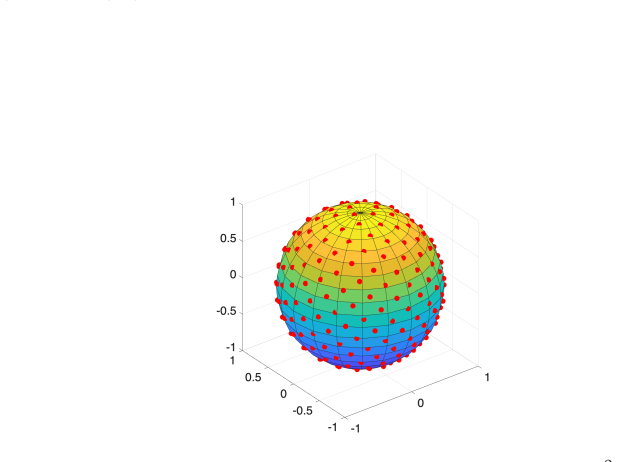

Figure 10. Figure 10: The 256 incident directions on the unit sphere view at source ↗
Figure 11
Figure 11. Figure 11: Contour plots of the ground-truth contrast view at source ↗
Figure 12
Figure 12. Figure 12: Contour plots of I s in slice planes (Cs = 10−2 ). 15 view at source ↗
Figure 13

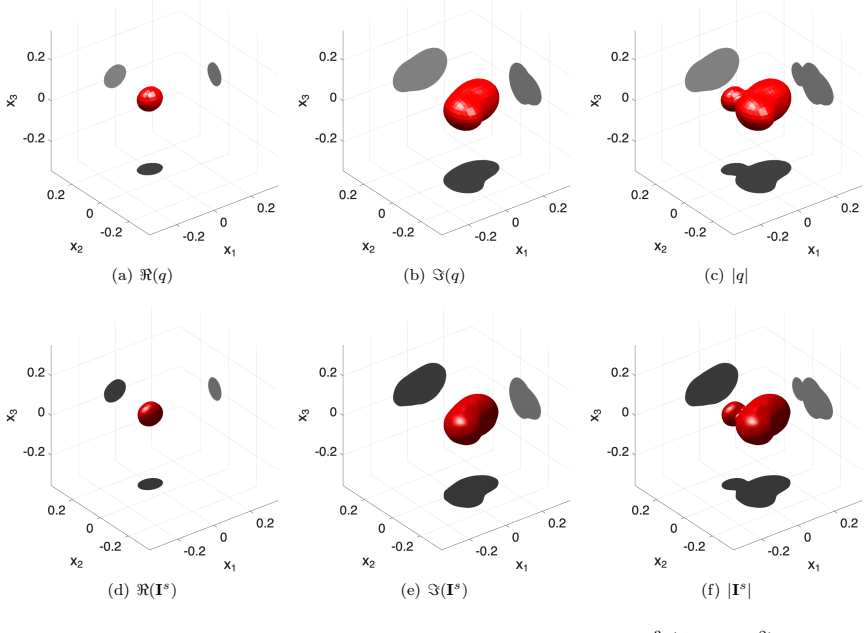

Figure 13. Figure 13: Iso-surface plots with iso-surface value view at source ↗
Figure 14
Figure 14. Figure 14: Contour plots of I s in slice planes (Cs = 10−1 ). (a) ℜ(I s ) (b) ℑ(I s ) (c) |I s | view at source ↗
Figure 15
Figure 15. Figure 15: Iso-surface plots with iso-surface value view at source ↗
Figure 16
Figure 16. Figure 16: The ground-truth cross-shaped contrast. to view at source ↗
Figure 17
Figure 17. Figure 17: Contour plots of ℜ(I∞) at different slice positions. (a) Ciso = 10−2 (b) Ciso = 8 × 10−3 (c) Ciso = 6 × 10−3 view at source ↗
Figure 18
Figure 18. Figure 18: Iso-surface plots of ℜ(I∞) with iso-surface value Ciso. (a) x1 = 0 (b) x2 = 0 (c) x3 = 0 view at source ↗
Figure 19
Figure 19. Figure 19: Contour plots of ℜ(I∞) for imaging the hollow-center cross at different slice positions. 19 view at source ↗
Figure 20
Figure 20. Figure 20: Iso-surface plots of ℜ(I∞) with iso-surface value Ciso for the hollow-center cross. 6 Conclusion This paper investigates the quantitative reconstruction of inhomogeneous media from multi-frequency backscat￾tering data, a long-standing open problem in inverse medium scattering. We prove a local uniqueness result for the contrast function under the assumption that the difference of two contrasts is at most … view at source ↗
read the original abstract

The inverse scattering problem from the multi-frequency backscattering data is a long-standing open problem. We advance the theory by proving a local uniqueness result. Moreover, we introduce a direct sampling method for quantitatively reconstructing unknown inhomogeneities. Comprehensive numerical experiments validate the robustness, accuracy, and computational effectiveness of the proposed quantitative direct sampling method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proves a local uniqueness result for the inverse scattering problem from multi-frequency backscattering data and introduces a direct sampling method for quantitatively reconstructing unknown inhomogeneities, with comprehensive numerical experiments validating robustness, accuracy, and efficiency.

Significance. A local uniqueness theorem combined with a non-iterative quantitative sampling method would be a useful contribution to inverse scattering theory and computation, especially given the numerical validation. However, the significance is limited by the lack of explicit stability or error bounds for the indicator function when the contrast is not small, as multiple-scattering effects may prevent the indicator from remaining quantitatively proportional to the unknown contrast.

major comments (2)
  1. The quantitative claim for the direct sampling method requires that the indicator function remain proportional to the contrast; no explicit stability estimate or Born-error bound is provided to control the deviation caused by multiple scattering for general contrasts. This is load-bearing for the central claim of 'quantitative' reconstruction.
  2. The local uniqueness result is stated for the nonlinear Helmholtz model, yet the sampling indicator is constructed via an inner product against test functions that is linear in the backscattered data; the manuscript does not show that this linearity persists uniformly outside the perturbative regime.
minor comments (2)
  1. Notation for the multi-frequency data and the contrast function should be introduced with explicit dependence on frequency to avoid ambiguity in the indicator definition.
  2. The numerical section would benefit from a table comparing reconstruction errors across contrast sizes to demonstrate the range where quantitative accuracy holds.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and valuable feedback on our manuscript. The comments highlight important aspects regarding the theoretical foundations of the quantitative direct sampling method. We address each major comment below and outline the revisions we plan to make.

read point-by-point responses

  1. Referee: The quantitative claim for the direct sampling method requires that the indicator function remain proportional to the contrast; no explicit stability estimate or Born-error bound is provided to control the deviation caused by multiple scattering for general contrasts. This is load-bearing for the central claim of 'quantitative' reconstruction.

    Authors: We agree that an explicit stability estimate or Born-error bound for general contrasts would strengthen the theoretical justification of the quantitative aspect. Our current analysis focuses on the local uniqueness for the nonlinear problem and derives the sampling indicator from the multi-frequency backscattering data. The proportionality is exact in the Born approximation (small contrast), but for general cases, we rely on numerical evidence showing that the indicator function still provides accurate quantitative reconstructions. To address this concern, we will revise the manuscript by adding a remark in the discussion section acknowledging the absence of such bounds and emphasizing that the quantitative performance is validated through extensive numerical experiments for contrasts where multiple scattering effects are non-negligible. revision: yes

  2. Referee: The local uniqueness result is stated for the nonlinear Helmholtz model, yet the sampling indicator is constructed via an inner product against test functions that is linear in the backscattered data; the manuscript does not show that this linearity persists uniformly outside the perturbative regime.

    Authors: The local uniqueness theorem applies to the full nonlinear Helmholtz equation, establishing that the contrast is uniquely determined locally from the multi-frequency backscattering data. The direct sampling indicator is indeed linear in the measured data, which is a key feature for its computational efficiency and stability. This linearity holds by construction of the method, independent of the contrast size, as it involves an inner product with test functions derived from the background Green's function. However, the interpretation of the indicator as being proportional to the contrast is more accurate in the small-contrast regime. Outside this regime, the method still yields good reconstructions as demonstrated numerically. We will update the manuscript to clarify this distinction and include a short explanation of the indicator's construction to highlight that the linearity in data is preserved, while the quantitative accuracy for larger contrasts is supported empirically. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The provided abstract states that the paper proves a local uniqueness result for the multi-frequency inverse scattering problem and introduces a direct sampling method for quantitative reconstruction, with numerical experiments validating robustness and accuracy. No equations, definitions, or self-citations are quoted that reduce a claimed prediction or uniqueness result to a fitted input or ansatz defined from the same data by construction. The local uniqueness and sampling indicator are presented as separate theoretical and algorithmic advances, with no evidence that the indicator amplitude is forced by the uniqueness proof or vice versa. This is the most common honest finding for papers that separate theory from numerics without load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions from scattering theory (well-posedness of the forward Helmholtz problem and properties of the far-field pattern) plus the implicit assumption that the direct sampling indicator function can be stably computed from noisy multi-frequency data.

axioms (1)
  • standard math The scattering problem is governed by the Helmholtz equation with compactly supported contrast.
    Invoked implicitly when stating the inverse problem and the direct sampling indicator.
