arxiv: 2604.25852 · v1 · submitted 2026-04-28 · 🧮 math.NA · cs.NA

Efficient boundary elements for the Smoluchowski diffusion equation

Ignacio Labarca-Figueroa , Heiko Gimperlein This is my paper

Pith reviewed 2026-05-07 15:01 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords boundary element methodSmoluchowski diffusion equationOrnstein-Uhlenbeck operatorexterior domainfrequency domainGalerkin matrixrheological quantitiessoft matter
0
0 comments X

The pith

Boundary element methods solve the frequency-domain Smoluchowski equation accurately and efficiently for rheological calculations in soft matter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces boundary element methods to handle the Smoluchowski diffusion equation when external forces like shear act on soft materials. This leads to a boundary value problem with an Ornstein-Uhlenbeck operator that has non-constant, unbounded coefficients in an exterior domain. The central technical advance is a way to assemble the Galerkin matrix by approximating the fundamental solution as a Fourier integral while resolving near-field singularities. Numerical experiments confirm that the resulting schemes are both accurate and fast, and they directly support the computation of rheological quantities that describe material response.

Core claim

The authors establish efficient and highly accurate boundary element methods in the frequency domain for the Smoluchowski diffusion equation. Their approach assembles the Galerkin matrix by approximating the fundamental solution of the Ornstein-Uhlenbeck operator as a Fourier integral and by systematically treating near-field singularities, allowing reliable solutions in exterior domains with non-constant unbounded coefficients; numerical tests demonstrate that these methods deliver the accuracy and speed needed for computing rheological quantities in soft matter physics.

What carries the argument

Accurate assembly of the Galerkin matrix by combining a Fourier integral approximation of the fundamental solution with explicit resolution of near-field singularities.

If this is right

  • The methods directly enable computation of rheological quantities for soft materials under linear forces such as shear.
  • They remain stable and accurate for exterior domains whose coefficients are non-constant and unbounded.
  • The frequency-domain formulation supports analysis of time-harmonic forcing relevant to oscillatory mechanical tests.
  • Assembly cost is controlled by the Fourier integral representation, leading to observed computational efficiency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same assembly strategy could be tested on related diffusion operators that appear in other soft-matter or biological transport problems.
  • If the methods scale well to three-dimensional geometries, they might support routine parameter studies of material microstructure under flow.
  • Frequency-domain results could be inverted to recover time-domain relaxation moduli, providing a bridge to experimental rheology data.
  • Refinements to the Fourier integral cutoff or singularity correction might further reduce the number of quadrature points needed.

Load-bearing premise

The Fourier integral approximation of the fundamental solution accurately captures the behavior of the Ornstein-Uhlenbeck operator with non-constant unbounded coefficients in the exterior domain.

What would settle it

Direct numerical comparison with an independent high-fidelity reference solution or alternative discretization for the same shear-driven rheological quantity would falsify the claim if the boundary element results deviate beyond the reported error tolerances.

Figures

Figures reproduced from arXiv: 2604.25852 by Heiko Gimperlein, Ignacio Labarca-Figueroa.

Figure 1
Figure 1. Figure 1: Left: dilute colloidal suspension with several particles. Center: two-particle view at source ↗
Figure 2
Figure 2. Figure 2: Meshes used in numerical experiments. weakly singular operators V, V −1 . Here, V denotes the weakly singular operator based on the fundamental solution for (−∆ + 1), given by exp(−|x−y|) 4π|x−y| . Then (6.2) error(λref, λh) := ⟨λh − λref, V(λh − λref)⟩ 1/2 Γ ⟨λref, Vλref⟩ 1/2 Γ , for λh, λref ∈ H−1/2 (Γ), and (6.3) error(φref, φh) := ⟨φh − φref, V −1 (φh − φref)⟩ 1/2 Γ ⟨φref, V−1φref⟩ 1/2 Γ , for φh, φref… view at source ↗
Figure 3
Figure 3. Figure 3: Error of BEM matrix quadrature for continuous integrand. view at source ↗
Figure 4

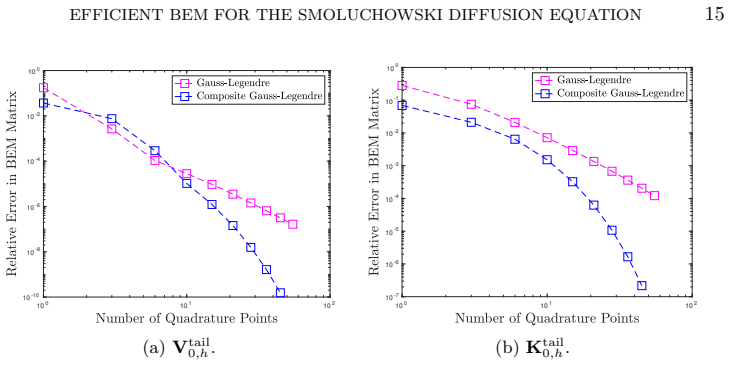

Figure 4. Figure 4: Error of BEM matrix quadrature over unbounded interval. view at source ↗
Figure 5

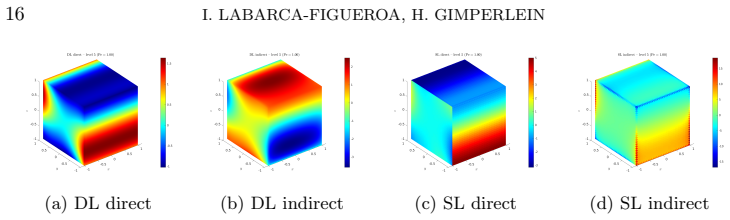

Figure 5. Figure 5: Snapshots of surface solutions of DL and SL configurations in Section view at source ↗
Figure 6
Figure 6. Figure 6: Error of solution for interior problem, Section view at source ↗
Figure 7
Figure 7. Figure 7: Error of solution for interior problem, Section view at source ↗
Figure 8
Figure 8. Figure 8: Error of solution for interior problem, Section view at source ↗
Figure 9
Figure 9. Figure 9: Error of approximations of integral (4.16): sharp, resp. windowed truncation. (a) Relative pointwise error of G. (b) Relative pointwise error of |∇G| view at source ↗
Figure 10

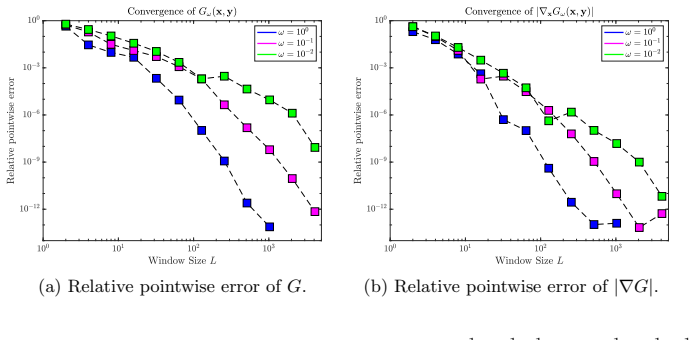

Figure 10. Figure 10: Windowed approximations of G and ∇G in x = ( 1 2 , − 1 10 , 1 5 ), y = ( 1 4 , − 1 20 , 1 10 ). at τ = L (see Section 4.1.2 and (4.15)). We study the approximation of the Galerkin matrices as the window size L increases, using the approach of Section 6.2.1 view at source ↗
Figure 11

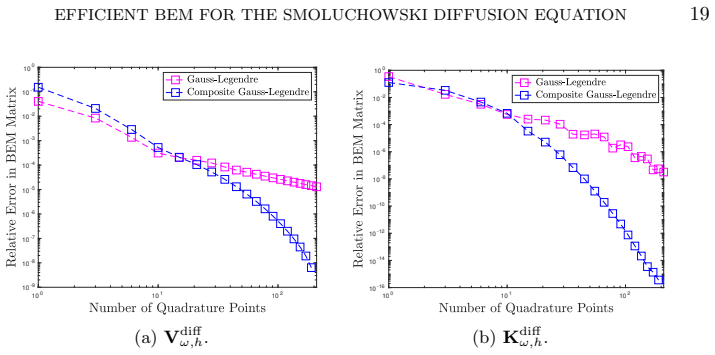

Figure 11. Figure 11: Error of BEM matrix quadrature for continuous integrand ( view at source ↗
Figure 12
Figure 12. Figure 12: Error of BEM matrix quadrature over unbounded interval ( view at source ↗
Figure 13

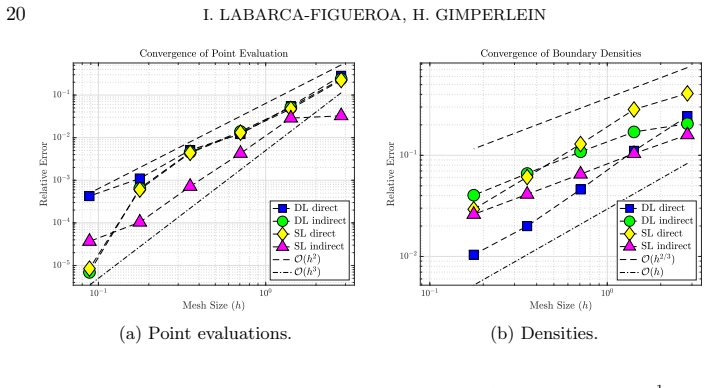

Figure 13. Figure 13: Error of solution for interior problem, Section view at source ↗
Figure 14
Figure 14. Figure 14: Error of solution for interior problem, Section view at source ↗
Figure 15
Figure 15. Figure 15: Error of solution for interior problem, Section view at source ↗
Figure 16
Figure 16. Figure 16: Solution to the exterior Neumann problem from ( view at source ↗
Figure 17

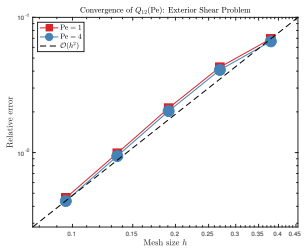

Figure 17. Figure 17: Error in component Q12 of shear stress tensor. [13] M. Costabel, Boundary integral operators on Lipschitz domains: elementary results, SIAM Journal on Mathematical Analysis, 19 (1988), pp. 613–626. [14] J. K. Dhont, An introduction to dynamics of colloids, Elsevier, 1996. [15] D. Elrick, Source functions for diffusion in uniform shear flow, Australian Journal of Physics, 15 (1962), p. 283. [16] T. Franosc… view at source ↗
read the original abstract

The Smoluchowski diffusion equation describes diffusion in the presence of external forces. Studying the mechanical response of soft materials to linear forces, such as shear, results in a boundary value problem involving an Ornstein-Uhlenbeck operator in an exterior domain with non-constant, unbounded coefficients. In this article, we present efficient and highly accurate boundary element methods in the frequency domain, motivated by applications in soft matter physics. Our key contributions concern the accurate assembly of the Galerkin matrix, combining the approximation of the fundamental solution as a Fourier integral with the resolution of near-field singularities. Numerical experiments demonstrate the accuracy and efficiency of the proposed methods and show their relevance for the computation of rheological quantities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper develops boundary element methods for the frequency-domain Smoluchowski diffusion equation, specifically addressing the Ornstein-Uhlenbeck operator in exterior domains with non-constant, unbounded coefficients. The central contribution is an efficient Galerkin matrix assembly that approximates the fundamental solution via a Fourier integral representation while resolving near-field singularities. Numerical experiments are presented to demonstrate accuracy, efficiency, and utility for computing rheological quantities in soft matter applications.

Significance. If the Fourier-based assembly proves reliable, the methods would supply a practical, high-accuracy tool for exterior boundary-value problems arising in soft-material rheology, where standard BEM kernels are unavailable. The approach combines established boundary-element theory with Fourier analysis in a parameter-free manner and supplies reproducible numerical validation, which strengthens its potential impact in computational physics.

major comments (1)
  1. [Fundamental-solution approximation and Galerkin assembly] The Fourier-integral approximation of the fundamental solution (central to Galerkin matrix assembly for the Ornstein-Uhlenbeck operator) is asserted to remain accurate throughout the exterior domain, yet the manuscript supplies no explicit error bounds, truncation analysis, or uniform estimates that control the approximation error for non-constant unbounded coefficients as |x| grows. This assumption is load-bearing for the accuracy claims in the numerical experiments and for the rheological computations.
minor comments (1)
  1. [Abstract] The abstract states that the methods are 'highly accurate' but does not quantify observed convergence rates or maximum errors from the reported experiments; adding these figures would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of our work and the constructive comment. We address the major concern below and will revise the manuscript to strengthen the presentation of the approximation.

read point-by-point responses

  1. Referee: The Fourier-integral approximation of the fundamental solution (central to Galerkin matrix assembly for the Ornstein-Uhlenbeck operator) is asserted to remain accurate throughout the exterior domain, yet the manuscript supplies no explicit error bounds, truncation analysis, or uniform estimates that control the approximation error for non-constant unbounded coefficients as |x| grows. This assumption is load-bearing for the accuracy claims in the numerical experiments and for the rheological computations.

    Authors: We agree that the current manuscript does not supply explicit analytical error bounds or uniform estimates controlling the approximation error for large |x|. Deriving such bounds is technically challenging given the non-constant and unbounded coefficients of the Ornstein-Uhlenbeck operator in exterior domains. The approximation is based on the exact Fourier integral representation of the fundamental solution, which holds in the limit of infinite integration range, with practical truncation chosen to balance accuracy and efficiency. The paper instead provides extensive numerical validation demonstrating that the assembled matrices yield accurate solutions even at large distances, consistent with the requirements of the rheological applications. To address the referee's point, we will add a dedicated subsection on truncation error analysis together with additional far-field numerical tests that quantify the observed convergence behavior. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper develops boundary element methods for the Smoluchowski diffusion equation with an Ornstein-Uhlenbeck operator in exterior domains. Its central contributions involve approximating the fundamental solution as a Fourier integral for Galerkin matrix assembly and resolving near-field singularities, followed by numerical experiments for validation. No derivation step reduces by construction to its inputs via self-definition, fitted parameters renamed as predictions, or load-bearing self-citations. The approach relies on standard BEM theory and Fourier analysis with external numerical checks, remaining independent of the target rheological quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on mathematical properties of the Smoluchowski equation and standard assumptions in boundary integral methods.

axioms (1)
  • domain assumption The fundamental solution of the Ornstein-Uhlenbeck operator can be represented as a Fourier integral
    This is central to the accurate assembly of the Galerkin matrix as per the key contribution.
