Mode-realigned pointwise interpolation (MRPWI) for efficient POD-Galerkin parametric reduced-order models

Lei Du , Shengqi Zhang This is my paper

Pith reviewed 2026-05-08 05:35 UTC · model grok-4.3

classification 🧮 math.NA cs.NAphysics.flu-dyn
keywords mode realignmentPOD-Galerkinparametric reduced-order modelspointwise interpolationGrassmann manifold interpolationproper orthogonal decompositioncylinder flow
0
0 comments X

The pith

A two-step sign and rotation alignment of POD modes lets pointwise interpolation build parametric reduced-order models that match Grassmann accuracy at far lower cost.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces mode-realigned pointwise interpolation to construct POD-Galerkin parametric reduced-order models. It first aligns the signs of POD modes computed at different parameter values and then applies a rotation to synchronize them further, after which direct pointwise interpolation supplies the modes at new parameter values. On the cylinder-flow test case the resulting models reach accuracy comparable to Grassmann-manifold interpolation while running substantially faster and still remain close to direct numerical simulation. A reader would care because many engineering studies need repeated high-fidelity solutions across a range of parameters, and any reliable speed-up without loss of fidelity makes such studies more feasible.

Core claim

The central claim is that POD modes obtained at sampled parameter values can be synchronized by a two-step realignment consisting of sign alignment followed by rotation alignment. Once synchronized, the modes admit accurate pointwise interpolation to unseen parameters, producing POD-Galerkin parametric reduced-order models whose accuracy is comparable to models built with Grassmann manifold interpolation yet whose construction cost is markedly lower, as shown by the high-fidelity cylinder-flow results.

What carries the argument

The two-step mode realignment procedure (sign alignment followed by rotation alignment) inside MRPWI, which synchronizes POD modes across parameter values so that ordinary pointwise interpolation becomes reliable.

If this is right

  • PROMs built with MRPWI exhibit accuracy comparable to those built with GMI.
  • MRPWI construction cost is significantly lower than GMI construction cost.
  • The resulting models maintain high fidelity to direct numerical simulation on the cylinder-flow example.
  • The approach replaces manifold operations with simple algebraic steps while preserving the POD-Galerkin structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same realignment steps might be applied to other snapshot-based bases such as dynamic mode decomposition or reduced-basis methods.
  • Once the modes are synchronized, the resulting parametric ROMs could be embedded inside outer-loop tasks such as optimization or uncertainty quantification without repeated manifold projections.
  • If the alignment cost remains negligible for large numbers of modes, the method could scale to three-dimensional flow problems where GMI becomes prohibitive.

Load-bearing premise

POD modes at different parameter values differ from one another only by a sign flip and an orthogonal rotation that can be removed without discarding essential information or creating artifacts that degrade interpolation at unseen parameters.

What would settle it

A parameter value where the MRPWI-interpolated modes, after sign and rotation alignment, produce reduced-order solutions whose error relative to direct numerical simulation exceeds the error obtained with Grassmann manifold interpolation.

Figures

Figures reproduced from arXiv: 2604.25955 by Lei Du, Shengqi Zhang.

Figure 1

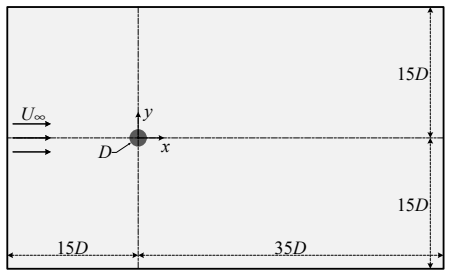

Figure 1. Figure 1: Flow over a cylinder: computational domain with cylinder diameter doubled for visualization. the inlet (𝑥 = −15𝐷), corresponding to a Dirichlet boundary condition. A natural boundary condition is enforced at the outlet (𝑥 = +35𝐷), given by [−𝑝𝑰 + 𝜈∇𝒖] ⋅ 𝒏 = 0, where 𝒏 is the unit normal vector. For the top (𝑦 = +15𝐷) and bottom (𝑦 = −15𝐷) boundaries, periodic boundary conditions are applied. On the cylinde… view at source ↗
Figure 2
Figure 2. Figure 2: RLEs with respect to number of modes 𝑁𝑟 for (a) velocity and (b) pressure. (2-point: 𝑅𝑒 ∈ {120, 140}; 4-point: 𝑅𝑒 ∈ {100, 120, 140, 160}). ROMs 2-point GMI 4-point GMI 2-point MRPWI 4-point MRPWI 10 20 30 40 "Re 0 0.5 1 1.5 2 7" u (%) (a) 10 20 30 40 "Re 0 2 4 6 8 10 7"p (%) (b) view at source ↗
Figure 3
Figure 3. Figure 3: RLEs with respect to system parameter interval Δ𝑅𝑒 for (a) velocity and (b) pressure. (2-point: 𝑅𝑒 ∈ {125,135}, {120,140}, {115,145}, {110,150}; 4-point: 𝑅𝑒 ∈ {115,125,135,145}, {100,120,140,160}, {85,115,145,175}, {70,110,150,190}). ROMs GMI MRPWI 2 3 4 5 Np 0.1 0.2 0.3 0.4 0.5 7" u (%) (a) 2 3 4 5 Np 0 0.5 1 1.5 2 2.5 7"p (%) (b) view at source ↗
Figure 4
Figure 4. Figure 4: RLEs with respect to number of neighbors 𝑁𝑝 for (a) velocity and (b) pressure. (𝑅𝑒 ∈ {120,140},{100,120,140}, {100,120,140,160}, {80,100,120,140,160}). : Preprint submitted to Elsevier Page 7 of 9 view at source ↗
read the original abstract

As a cornerstone of reduced-order modeling, the POD-Galerkin framework has garnered widespread attention and remains one of the most widely adopted approaches. Constructing POD-Galerkin PROMs involves integrating this framework with advanced interpolation techniques to obtain POD modes at target (unseen) parameters. While Grassmann manifold interpolation (GMI) serves as an accurate baseline, mode-realigned pointwise interpolation (MRPWI) is proposed to develop highly efficient PROMs that maintain comparable accuracy. Notably, the MRPWI employs a two-step mode realignment procedure, consisting of sign alignment and rotation alignment, to effectively synchronize the POD modes. Demonstration and evaluation of the constructed POD-Galerkin PROMs are conducted by examining flow over a cylinder. These models exhibit high fidelity in comparison to direct numerical simulation and standard POD-Galerkin ROMs. PROMs constructed via MRPWI achieve accuracy comparable to those using GMI, while providing significantly higher computational efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes mode-realigned pointwise interpolation (MRPWI) as an efficient alternative to Grassmann manifold interpolation (GMI) for constructing parametric POD-Galerkin reduced-order models (PROMs). It introduces a two-step mode realignment procedure (sign alignment followed by rotation alignment) to synchronize POD modes across parameter values, enabling direct pointwise interpolation. The approach is demonstrated on cylinder flow, where the resulting PROMs are reported to achieve high fidelity relative to DNS and standard POD-Galerkin ROMs, with accuracy comparable to GMI-based models but significantly higher computational efficiency.

Significance. If the central claims hold, MRPWI would offer a lightweight procedural alternative to manifold interpolation for parametric ROM construction, which could be valuable in applications such as parametric studies of fluid flows where repeated mode interpolation is required. The method's emphasis on avoiding manifold operations while preserving accuracy addresses a practical bottleneck in reduced-order modeling.

major comments (3)
  1. Abstract: the claims of 'accuracy comparable to those using GMI' and 'significantly higher computational efficiency' are presented without any quantitative error metrics (e.g., L2 or H1 norms), CPU timings, or tabulated comparisons between MRPWI, GMI, and full-order solutions, leaving the efficiency-accuracy tradeoff unsupported by data.
  2. The two-step realignment procedure (sign alignment + rotation alignment) implicitly assumes that all parametric variation in the POD basis is captured by sign changes and orthogonal transformations within a fixed subspace. No analysis or test is provided for cases of mode crossing, energy redistribution across singular values, or non-rotational distortions, which would violate this assumption and potentially degrade interpolation accuracy at unseen parameters.
  3. Cylinder-flow demonstration: the evaluation reports 'high fidelity' and 'comparable accuracy' but supplies no convergence data with respect to the number of retained modes, no error tables versus parameter values, and no explicit quantification of how the realignment step affects interpolation error relative to unaligned pointwise interpolation or GMI.
minor comments (2)
  1. Notation for the realignment operators (sign flip and rotation matrix) should be defined explicitly with equations rather than described only procedurally.
  2. The manuscript would benefit from a clear statement of the parameter range and sampling strategy used for the cylinder-flow training set, as well as the specific unseen parameter values used for testing.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below, proposing specific revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract: the claims of 'accuracy comparable to those using GMI' and 'significantly higher computational efficiency' are presented without any quantitative error metrics (e.g., L2 or H1 norms), CPU timings, or tabulated comparisons between MRPWI, GMI, and full-order solutions, leaving the efficiency-accuracy tradeoff unsupported by data.

    Authors: We agree that the abstract would be strengthened by including specific quantitative support. In the revised manuscript we will add concise statements of key metrics (e.g., relative L2 errors and wall-clock timings) drawn from the cylinder-flow results already presented in Section 4. revision: yes

  2. Referee: The two-step realignment procedure (sign alignment + rotation alignment) implicitly assumes that all parametric variation in the POD basis is captured by sign changes and orthogonal transformations within a fixed subspace. No analysis or test is provided for cases of mode crossing, energy redistribution across singular values, or non-rotational distortions, which would violate this assumption and potentially degrade interpolation accuracy at unseen parameters.

    Authors: The referee correctly identifies the core modeling assumption. MRPWI is intended for regimes in which the POD subspace remains stable and parametric changes manifest primarily as sign flips and orthogonal transformations, as occurs in the cylinder example. We will insert a dedicated paragraph (new subsection 3.4) that explicitly states this assumption, discusses the conditions under which it may fail (mode crossing, singular-value reordering), and illustrates the expected behavior with a short synthetic test case. revision: yes

  3. Referee: Cylinder-flow demonstration: the evaluation reports 'high fidelity' and 'comparable accuracy' but supplies no convergence data with respect to the number of retained modes, no error tables versus parameter values, and no explicit quantification of how the realignment step affects interpolation error relative to unaligned pointwise interpolation or GMI.

    Authors: We acknowledge that the current presentation of results is insufficiently quantitative. In the revised Section 4 we will add: (i) a convergence study of PROM error versus number of retained modes, (ii) tabulated L2/H1 errors for each tested parameter value, and (iii) an ablation table that isolates the contribution of the sign-alignment and rotation-alignment steps relative to plain pointwise interpolation and to GMI. revision: yes

Circularity Check

0 steps flagged

No circularity: MRPWI is a direct procedural alternative to GMI

full rationale

The paper defines MRPWI via an explicit two-step realignment (sign alignment followed by rotation alignment) applied to POD modes computed at sampled parameters, then performs pointwise interpolation on the aligned modes. Accuracy and efficiency claims rest on numerical comparison against DNS and GMI on the cylinder-flow example, without any fitted parameter being relabeled as a prediction, without self-definitional loops, and without load-bearing self-citations that close the argument. The central derivation therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the domain assumption that POD modes at different parameters are alignable by sign and rotation without loss of fidelity for subsequent pointwise interpolation.

axioms (1)
  • domain assumption POD modes computed at different parameter values share a common structure that can be synchronized via sign alignment followed by rotation alignment.
    Invoked directly in the description of the two-step realignment procedure that enables pointwise interpolation.

pith-pipeline@v0.9.0 · 5469 in / 1195 out tokens · 62767 ms · 2026-05-08T05:35:13.921123+00:00 · methodology
