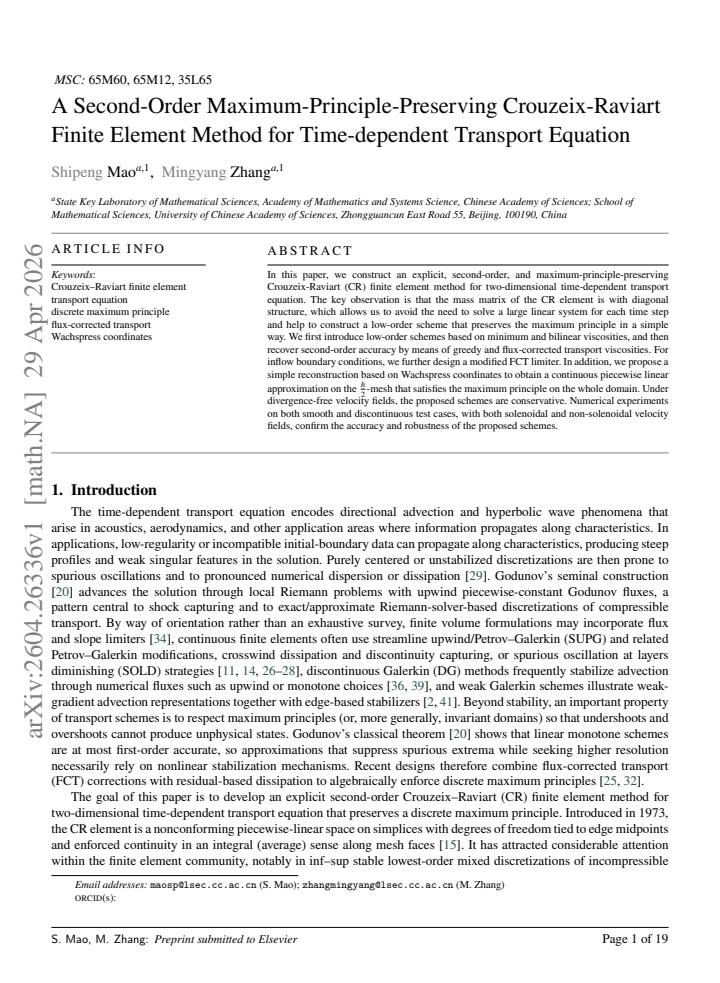

A Second-Order Maximum-Principle-Preserving Crouzeix-Raviart Finite Element Method for Time-dependent Transport Equation

Shipeng Mao , Mingyang Zhang This is my paper

Pith reviewed 2026-05-07 12:56 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords Crouzeix-Raviart elementmaximum principletransport equationfinite element methodflux-corrected transportexplicit time steppingviscosity method
0
0 comments X

The pith

A Crouzeix-Raviart finite element method for the time-dependent transport equation is made explicit, second-order accurate, and maximum-principle-preserving through its diagonal mass matrix and controlled viscosity additions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a finite element discretization for the two-dimensional time-dependent transport equation that remains explicit in time, reaches second-order accuracy, and never produces values outside the initial range of the data. The central device is the Crouzeix-Raviart element whose mass matrix is diagonal on triangular meshes; this property removes the need to solve linear systems at each step and lets the authors add simple viscosity terms that enforce the maximum principle. Low-order schemes are built first with minimum or bilinear viscosities, then lifted to second order by greedy or flux-corrected-transport corrections, with a special limiter added at inflow boundaries. A Wachspress-coordinate reconstruction produces a continuous piecewise-linear field on a refined mesh that obeys the bound everywhere. When the velocity is divergence-free the schemes are also conservative, and tests on both smooth and discontinuous data confirm the claimed properties.

Core claim

We construct an explicit, second-order, and maximum-principle-preserving Crouzeix-Raviart finite element method for the two-dimensional time-dependent transport equation. The key observation is that the mass matrix of the CR element has diagonal structure, which allows us to avoid solving a large linear system at each time step and helps to construct a low-order scheme that preserves the maximum principle in a simple way. We first introduce low-order schemes based on minimum and bilinear viscosities, then recover second-order accuracy by means of greedy and flux-corrected transport viscosities. For inflow boundary conditions we further design a modified FCT limiter. In addition we propose a

What carries the argument

The diagonal mass matrix of the Crouzeix-Raviart element on triangular meshes, which permits fully explicit time stepping and direct construction of minimum or bilinear viscosity terms that enforce the maximum principle.

If this is right

  • The method steps forward in time without solving linear systems at each step.
  • Solutions remain bounded by the initial data range even when discontinuities are present.
  • The scheme is conservative whenever the velocity field is divergence-free.
  • A continuous piecewise-linear reconstruction that also obeys the maximum principle is obtained on the refined mesh.
  • Both solenoidal and non-solenoidal velocities are handled without loss of the stated properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same diagonal-mass-matrix property may allow similar explicit maximum-principle schemes for other linear hyperbolic problems on triangular meshes.
  • The reconstruction step could be replaced by other averaging techniques if the goal is only nodal bounds rather than a globally continuous field.
  • Extension to three space dimensions would require checking whether an analogous diagonal mass matrix exists for the three-dimensional Crouzeix-Raviart element.

Load-bearing premise

The mass matrix of the Crouzeix-Raviart element on the triangular mesh used is exactly diagonal.

What would settle it

A run on a smooth test problem with known exact solution in which the computed field at any node exceeds the maximum or minimum value attained by the exact initial data, or in which the observed convergence rate falls below two.

Figures

Figures reproduced from arXiv: 2604.26336 by Mingyang Zhang, Shipeng Mao.

Figure 1
Figure 1. Figure 1: The CR interpolation attains a value of −3 at the lower-left vertex of the blue triangle. 𝐲6 𝐲1 𝐲2 𝐲3 𝐲4 𝐲5 𝐲0 view at source ↗
Figure 3
Figure 3. Figure 3: Solid body rotation at 𝑡 = 1: CR method with global FCT viscosity. Mesh sizes ℎ = 0.05, 0.025, 0.0125 (left to right). Reconstruction via Wachspress coordinates. S. Mao, M. Zhang: Preprint submitted to Elsevier Page 20 of 19 view at source ↗
Figure 4
Figure 4. Figure 4: Solid body rotation at 𝑡 = 1: continuous 𝑃1 (left) vs. CR method (right), both with global FCT viscosity, ℎ = 0.0125 view at source ↗
Figure 5
Figure 5. Figure 5: Numerical solutions for the non-solenoidal compressive rotational test at 𝑡 = 2. The left and right panels show the CR and continuous 𝑃1 solutions, respectively, both with global FCT viscosity on the mesh with 𝑁 = 80. The CR method produces a more robust solution with less dispersion compared to the continuous 𝑃1 method. S. Mao, M. Zhang: Preprint submitted to Elsevier Page 21 of 19 view at source ↗
read the original abstract

In this paper, we construct an explicit, second-order, and maximum-principle-preserving Crouzeix-Raviart (CR) finite element method for two-dimensional time-dependent transport equation. The key observation is that the mass matrix of the CR element is with diagonal structure, which allows us to avoid the need to solve a large linear system for each time step and help to construct a low-order scheme that preserves the maximum principle in a simple way. We first introduce low-order schemes based on minimum and bilinear viscosities, and then recover second-order accuracy by means of greedy and flux-corrected transport viscosities. For inflow boundary conditions, we further design a modified FCT limiter. In addition, we propose a simple reconstruction based on Wachspress coordinates to obtain a continuous piecewise linear approximation on the $\frac{h}2$-mesh that satisfies the maximum principle on the whole domain. Under divergence-free velocity fields, the proposed schemes are conservative. Numerical experiments on both smooth and discontinuous test cases, with both solenoidal and non-solenoidal velocity fields, confirm the accuracy and robustness of the proposed schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper constructs an explicit, second-order, maximum-principle-preserving Crouzeix-Raviart finite element method for the two-dimensional time-dependent transport equation. It relies on the claimed diagonal structure of the CR mass matrix to enable explicit forward-Euler stepping without solving linear systems at each step. Low-order schemes are built using minimum and bilinear artificial viscosities that preserve the maximum principle; second-order accuracy is recovered via greedy and flux-corrected transport (FCT) viscosities, with a modified FCT limiter for inflow boundaries. A Wachspress-coordinate reconstruction produces a continuous piecewise-linear approximation satisfying the maximum principle on the refined mesh. The schemes are conservative for divergence-free velocities. Numerical experiments on smooth and discontinuous solutions with solenoidal and non-solenoidal fields are reported to confirm accuracy and robustness.

Significance. If the diagonal-mass-matrix property and the accompanying proofs hold, the work supplies a practical explicit high-order MP-preserving discretization for hyperbolic transport that avoids implicit solves while retaining second-order accuracy. The combination of CR elements with FCT and the boundary reconstruction is a reasonable extension of existing viscosity and limiter techniques, and the conservation property under divergence-free advection is a useful feature for long-time simulations.

major comments (3)
  1. [Introduction] Introduction (key observation paragraph): The assertion that 'the mass matrix of the CR element is with diagonal structure' is load-bearing for the explicit stepping and the simple viscosity construction, yet no proof, mesh restriction, or quadrature rule is supplied. On a general triangulation the local mass matrix for standard CR basis functions (edge-midpoint degrees of freedom) has nonzero off-diagonal entries; the global matrix is therefore not diagonal. This directly affects whether the low-order scheme remains explicit and whether the discrete maximum principle proof carries over without additional lumping arguments.
  2. [Low-order schemes] Section on low-order schemes (viscosity definitions): The minimum and bilinear viscosity constructions are presented as preserving the maximum principle, but the proofs appear to invoke the diagonal mass matrix at the algebraic level. If the mass matrix is not diagonal, the algebraic maximum-principle argument must be re-established after any lumping or quadrature is introduced; the current derivation does not address this case.
  3. [Numerical experiments] Numerical experiments section: While the abstract states that experiments confirm accuracy and robustness, the manuscript provides no tabulated L^∞ or L^2 errors versus mesh size, no explicit values for the viscosity parameters or limiter thresholds, and no mesh-quality metrics. Without these data it is impossible to verify the claimed second-order convergence or the strict satisfaction of the discrete maximum principle on the reported test cases.
minor comments (2)
  1. [Abstract] The phrase 'is with diagonal structure' is grammatically awkward; 'has a diagonal structure' or 'is diagonal' would be clearer.
  2. [Reconstruction] The reconstruction step using Wachspress coordinates is described only briefly; a short algorithmic outline or pseudocode would improve reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments provided. We address each of the major comments in detail below and outline the revisions we intend to make.

read point-by-point responses

  1. Referee: [Introduction] Introduction (key observation paragraph): The assertion that 'the mass matrix of the CR element is with diagonal structure' is load-bearing for the explicit stepping and the simple viscosity construction, yet no proof, mesh restriction, or quadrature rule is supplied. On a general triangulation the local mass matrix for standard CR basis functions (edge-midpoint degrees of freedom) has nonzero off-diagonal entries; the global matrix is therefore not diagonal. This directly affects whether the low-order scheme remains explicit and whether the discrete maximum principle proof carries over without additional lumping arguments.

    Authors: We appreciate the referee's identification of this critical point. The manuscript's claim refers to the use of a lumped mass matrix via a suitable quadrature rule (specifically, the midpoint quadrature on edges for CR elements), which renders the mass matrix diagonal. This is a standard technique for obtaining explicit schemes with nonconforming elements. However, we acknowledge that the current version lacks a detailed explanation and proof of this property. In the revised manuscript, we will include a new subsection detailing the quadrature rule, proving the diagonal structure, and showing how it preserves the algebraic conditions for the discrete maximum principle without additional arguments beyond lumping. revision: yes

  2. Referee: [Low-order schemes] Section on low-order schemes (viscosity definitions): The minimum and bilinear viscosity constructions are presented as preserving the maximum principle, but the proofs appear to invoke the diagonal mass matrix at the algebraic level. If the mass matrix is not diagonal, the algebraic maximum-principle argument must be re-established after any lumping or quadrature is introduced; the current derivation does not address this case.

    Authors: We agree that the proofs should explicitly account for the lumping procedure. The minimum and bilinear viscosities are designed such that, when combined with the lumped diagonal mass matrix, the scheme satisfies the discrete maximum principle through positive coefficients and row-sum unity. We will revise the relevant section to first introduce the lumping, then derive the viscosity terms, and provide a complete proof that incorporates these steps, ensuring the maximum principle holds for the explicit scheme. revision: yes

  3. Referee: [Numerical experiments] Numerical experiments section: While the abstract states that experiments confirm accuracy and robustness, the manuscript provides no tabulated L^∞ or L^2 errors versus mesh size, no explicit values for the viscosity parameters or limiter thresholds, and no mesh-quality metrics. Without these data it is impossible to verify the claimed second-order convergence or the strict satisfaction of the discrete maximum principle on the reported test cases.

    Authors: We concur that additional quantitative information would strengthen the numerical section. In the revised version, we will add tables with L^∞ and L^2 error norms for successive mesh refinements to demonstrate the second-order accuracy, list the specific viscosity coefficients and limiter parameters employed in each test case, and include mesh quality measures such as the minimum angle in the triangulations. This will facilitate verification of the convergence rates and the maximum principle preservation. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses standard element property and FCT techniques without self-referential reduction

full rationale

The paper's central construction begins from the asserted diagonal mass-matrix property of the CR element (used to enable explicit stepping and simple viscosity), then applies standard minimum/bilinear viscosity for a low-order scheme, followed by greedy/FCT correction for second-order accuracy and a Wachspress-based reconstruction for continuity. None of these steps define the target properties (second-order accuracy or DMP) in terms of themselves, nor rename fitted quantities as predictions, nor rely on self-citation chains for uniqueness. The mass-matrix claim is presented as an observation rather than derived from the method's outputs, so no self-definitional loop exists. The overall chain remains independent of the final claims.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Reviewed from abstract only; full derivation, parameter choices, and mesh assumptions are not visible.

axioms (1)
  • domain assumption The mass matrix of the Crouzeix-Raviart element is diagonal
    Stated as the key observation that enables explicit time stepping and simple viscosity construction.
