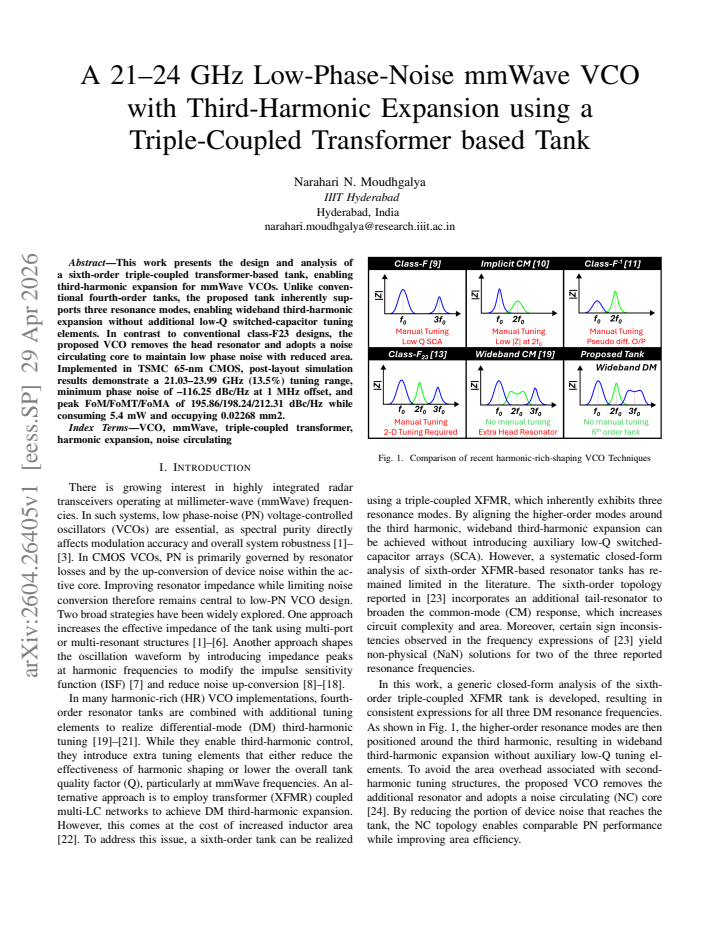

A 21-24 GHz Low-Phase-Noise mmWave VCO with Third-Harmonic Expansion using a Triple-Coupled Transformer based Tank

Narahari N. Moudhgalya This is my paper

Pith reviewed 2026-05-07 11:42 UTC · model grok-4.3

classification 📡 eess.SP
keywords mmWave VCOtriple-coupled transformerthird-harmonic expansionlow phase noisetransformer-based tankCMOS oscillatorclass-F designwideband tuning
0
0 comments X

The pith

A triple-coupled transformer tank enables third-harmonic expansion over 21-24 GHz in a compact low-noise VCO.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs a sixth-order tank based on a triple-coupled transformer for use in millimeter-wave voltage-controlled oscillators. This tank naturally resonates at three frequencies, which supports expanding the third harmonic across a wide frequency band without adding lossy tuning capacitors. The design skips the usual head resonator and uses a noise-circulating core instead to keep phase noise low while shrinking the circuit area. Post-layout simulations in 65-nanometer CMOS confirm a 13.5 percent tuning range with phase noise down to minus 116 decibels per hertz and strong efficiency metrics at 5.4 milliwatts power.

Core claim

The proposed sixth-order triple-coupled transformer-based tank inherently supports three resonance modes, enabling wideband third-harmonic expansion without additional low-Q switched-capacitor tuning elements. In contrast to conventional class-F23 designs, the proposed VCO removes the head resonator and adopts a noise circulating core to maintain low phase noise with reduced area.

What carries the argument

Sixth-order triple-coupled transformer-based tank supporting three resonance modes for third-harmonic expansion.

If this is right

  • The VCO achieves a 13.5 percent tuning range from 21.03 to 23.99 GHz.
  • Minimum phase noise reaches -116.25 dBc/Hz at 1 MHz offset.
  • Peak FoM, FoMT, and FoMA reach 195.86, 198.24, and 212.31 dBc/Hz respectively.
  • The circuit consumes 5.4 mW while occupying 0.02268 mm2.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The three-mode resonance approach could be adapted to harmonic-expansion oscillators at higher mmWave or sub-THz bands.
  • Removing switched capacitors may preserve tank quality factor in integrated systems where layout parasitics are a concern.
  • The compact area and noise circulation might allow denser integration in full mmWave transceivers.

Load-bearing premise

Post-layout electromagnetic simulations and device models in TSMC 65-nm CMOS accurately predict the triple-coupled tank resonances and phase-noise performance at 21-24 GHz without unmodeled parasitics or process variations dominating.

What would settle it

Fabricated measurements of the VCO showing a tuning range narrower than 13.5 percent or phase noise worse than -116.25 dBc/Hz at 1 MHz offset due to unmodeled effects.

Figures

Figures reproduced from arXiv: 2604.26405 by Narahari N. Moudhgalya.

Figure 1
Figure 1. Figure 1: Comparison of recent harmonic-rich-shaping VCO Techniques view at source ↗
Figure 2
Figure 2. Figure 2: (a) Conventional fourth-order XFMR tank and (b) proposed sixth view at source ↗
Figure 3
Figure 3. Figure 3: (a) Transformer layout and Cadence EMX simulation results - (b) view at source ↗
Figure 4
Figure 4. Figure 4: Variation of frequency ratios with (a)-(b) k12 and (c)-(d) k13 branches leads to (1) and (2). For simplicity of the analysis, the tank is assumed to be lossless (ri = 0). Solving (1) and (2) for the input impedance Zin results in the expression given in (3), where the effective impedance Zeff is defined in (4). Equation (3) is the generic Zin equation for a triple-coupled XFMR tank, and it reveals that the… view at source ↗
Figure 6
Figure 6. Figure 6: Layout of the proposed triple-coupled XFMR tank based VCO view at source ↗
Figure 7
Figure 7. Figure 7: Transient waveforms of (a) Vout and (b) Vout, (c) Spectrum of Vout and (d) Phase Noise profile suppression.N1,2 and P1,2 on each side switch simultaneously within each half-cycle, enabling NC operation view at source ↗
Figure 8
Figure 8. Figure 8: Post-layout simulation results summarizing TR and PN performance of the proposed VCO: (a) frequency vs view at source ↗
read the original abstract

This work presents the design and analysis of a sixth-order triple-coupled transformer-based tank, enabling third-harmonic expansion for mmWave VCOs. Unlike conventional fourth-order tanks, the proposed tank inherently supports three resonance modes, enabling wideband third-harmonic expansion without additional low-Q switched-capacitor tuning elements. In contrast to conventional class-F23 designs, the proposed VCO removes the head resonator and adopts a noise circulating core to maintain low phase noise with reduced area. Implemented in TSMC 65-nm CMOS, post-layout simulation results demonstrate a 21.03-23.99 GHz (13.5%) tuning range, minimum phase noise of -116.25 dBc/Hz at 1 MHz offset, and peak FoM/FoMT/FoMA of 195.86/198.24/212.31 dBc/Hz while consuming 5.4 mW and occupying 0.02268 mm2.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper claims to introduce a sixth-order triple-coupled transformer-based tank for a mmWave VCO that inherently supports three resonance modes, enabling wideband third-harmonic expansion without low-Q switched-capacitor tuning elements. By removing the head resonator and using a noise circulating core, it aims to maintain low phase noise with reduced area. Post-layout simulations in TSMC 65-nm CMOS report a 13.5% tuning range from 21.03 to 23.99 GHz, phase noise as low as -116.25 dBc/Hz at 1 MHz offset, peak FoM of 195.86 dBc/Hz, FoMT 198.24, FoMA 212.31, with 5.4 mW power and 0.02268 mm2 area.

Significance. If the simulation results hold in silicon, this would represent a meaningful advance in mmWave VCO design by demonstrating a tank topology that provides inherent multi-mode resonance for third-harmonic expansion, offering a path to wider tuning ranges and competitive phase noise without additional lossy tuning components or head resonators, while achieving small area and good FoM.

major comments (1)
  1. Post-layout simulation results: The central claims of three distinct resonance modes enabling wideband third-harmonic expansion and the reported phase noise of -116.25 dBc/Hz rest entirely on post-layout EM simulations in TSMC 65 nm. No fabricated silicon measurements are provided to confirm that the sixth-order tank resonances remain well-separated and high-Q across 21-24 GHz under real parasitics, interconnect inductance, or process variation, which directly impacts the asserted advantage over conventional class-F23 designs.
minor comments (1)
  1. Abstract and title: The title states a 21-24 GHz range while the abstract gives the more precise 21.03-23.99 GHz; align these for consistency.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential significance of the triple-coupled transformer tank. We address the major comment point by point below.

read point-by-point responses

  1. Referee: Post-layout simulation results: The central claims of three distinct resonance modes enabling wideband third-harmonic expansion and the reported phase noise of -116.25 dBc/Hz rest entirely on post-layout EM simulations in TSMC 65 nm. No fabricated silicon measurements are provided to confirm that the sixth-order tank resonances remain well-separated and high-Q across 21-24 GHz under real parasitics, interconnect inductance, or process variation, which directly impacts the asserted advantage over conventional class-F23 designs.

    Authors: We agree that the results are based entirely on post-layout simulations, as stated in the abstract and throughout the manuscript. The simulations incorporate full electromagnetic extraction of the sixth-order tank using industry-standard tools, along with parasitic extraction of the active core and interconnects in the TSMC 65 nm process. The theoretical analysis of the three resonance modes is validated against these simulations, showing clear separation and high Q across the 21-24 GHz range. While silicon measurements would provide definitive confirmation under real process variation, this work focuses on the novel tank topology and its analysis; fabrication is beyond the current scope. In the revised manuscript we will add Monte Carlo simulations and corner-case analysis of the resonance frequencies and Q factors to further address robustness concerns. revision: partial

Circularity Check

0 steps flagged

No significant circularity; claims rest on circuit equations and EM simulations.

full rationale

The paper derives the triple-coupled tank's three resonance modes from sixth-order network analysis and validates tuning range, phase noise, and FoM via post-layout EM simulations in TSMC 65 nm. No load-bearing step reduces to a self-definition, fitted parameter renamed as prediction, or self-citation chain. Performance numbers are direct simulation outputs, not forced by construction from the input assumptions. The design choices (noise-circulating core, removal of head resonator) are justified by standard circuit theory rather than circular re-labeling of known results.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard assumptions of CMOS process modeling and EM simulation accuracy for mmWave frequencies; no new physical entities or ad-hoc constants are introduced beyond conventional circuit design parameters.

axioms (1)
  • domain assumption TSMC 65-nm CMOS device models and electromagnetic simulation tools accurately capture mmWave behavior of coupled transformers
    Invoked implicitly to support all post-layout results and resonance mode claims.
