arxiv: 2604.26475 · v1 · submitted 2026-04-29 · ⚛️ physics.flu-dyn · physics.ao-ph

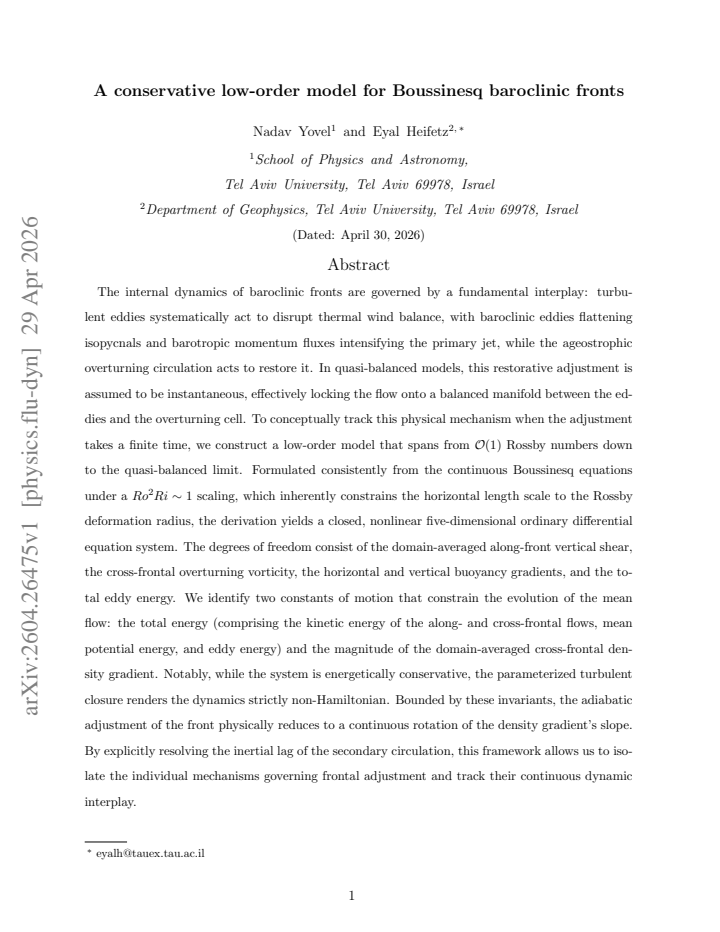

A conservative low-order model for Boussinesq baroclinic fronts

Nadav Yovel , Eyal Heifetz This is my paper

Pith reviewed 2026-05-07 11:29 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.ao-ph
keywords baroclinic frontsBoussinesq equationslow-order modelRossby numberthermal wind balanceeddy energyfrontal adjustmentageostrophic circulation
0
0 comments X

The pith

A five-dimensional model reduces baroclinic front adjustment to rotation of the density gradient slope.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper derives a closed nonlinear five-dimensional system of ordinary differential equations from the Boussinesq equations for baroclinic fronts under a specific scaling. The model conserves total energy and the magnitude of the cross-frontal density gradient, so that the front's adjustment appears as a continuous rotation of the gradient's slope. By resolving the finite-time lag in the ageostrophic circulation, the system isolates how turbulent eddies and momentum fluxes interact with the restoring flow. This approach matters because it provides a tractable way to study frontal dynamics at Rossby numbers of order one without assuming instantaneous balance restoration.

Core claim

Formulated from the continuous Boussinesq equations under a Ro² Ri ∼ 1 scaling, the derivation yields a closed, nonlinear five-dimensional ODE system. The degrees of freedom consist of the domain-averaged along-front vertical shear, the cross-frontal overturning vorticity, the horizontal and vertical buoyancy gradients, and the total eddy energy. Two constants of motion constrain the evolution: the total energy and the magnitude of the domain-averaged cross-frontal density gradient. The adiabatic adjustment of the front physically reduces to a continuous rotation of the density gradient's slope.

What carries the argument

The closed nonlinear five-dimensional ODE system obtained under the Ro² Ri ∼ 1 scaling, closed by a parameterized turbulent term.

Load-bearing premise

The Ro² Ri ∼ 1 scaling that fixes the horizontal length scale to the Rossby deformation radius, together with the specific form of the parameterized turbulent closure.

What would settle it

High-resolution numerical simulations of the full Boussinesq equations initialized as a baroclinic front that verify whether total energy and cross-frontal density gradient magnitude remain exactly constant while the gradient slope rotates continuously.

Figures

Figures reproduced from arXiv: 2604.26475 by Eyal Heifetz, Nadav Yovel.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic of the cross-frontal density structure in the meridional-vertical ( view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 view at source ↗
read the original abstract

The internal dynamics of baroclinic fronts are governed by a fundamental interplay: turbulent eddies systematically act to disrupt thermal wind balance, with baroclinic eddies flattening isopycnals and barotropic momentum fluxes intensifying the primary jet, while the ageostrophic overturning circulation acts to restore it. In quasi-balanced models, this restorative adjustment is assumed instantaneous, locking the flow onto a balanced manifold. To conceptually track this mechanism when the adjustment takes a finite time, we construct a low-order model that spans from $\mathcal{O}(1)$ Rossby numbers down to the quasi-balanced limit. Formulated from the continuous Boussinesq equations under a $Ro^2 Ri \sim 1$ scaling, which constrains the horizontal length scale to the Rossby deformation radius, the derivation yields a closed, nonlinear five-dimensional ODE system. The degrees of freedom consist of the domain-averaged along-front vertical shear, the cross-frontal overturning vorticity, the horizontal and vertical buoyancy gradients, and the total eddy energy. We identify two constants of motion that constrain the evolution of the mean flow: the total energy (kinetic energy of the along- and cross-frontal flows, mean potential energy, and eddy energy) and the magnitude of the domain-averaged cross-frontal density gradient. Notably, while the system is energetically conservative, the parameterized turbulent closure renders the dynamics strictly non-Hamiltonian. Bounded by these invariants, the adiabatic adjustment of the front physically reduces to a continuous rotation of the density gradient's slope. By explicitly resolving the inertial lag of the secondary circulation, this framework isolates the individual mechanisms governing frontal adjustment and tracks their continuous dynamic interplay.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper claims to formulate a conservative low-order model for Boussinesq baroclinic fronts from the continuous equations under a Ro² Ri ∼ 1 scaling. This yields a closed nonlinear five-dimensional ODE system with degrees of freedom being the domain-averaged along-front vertical shear, the cross-frontal overturning vorticity, the horizontal and vertical buoyancy gradients, and the total eddy energy. Two constants of motion are identified: the total energy and the magnitude of the domain-averaged cross-frontal density gradient. The system is energetically conservative but non-Hamiltonian due to the turbulent closure, and the adiabatic adjustment is interpreted as a continuous rotation of the density gradient's slope.

Significance. If valid, the model allows tracking the interplay of mechanisms in frontal adjustment with finite time lag, from O(1) Rossby numbers to the quasi-balanced limit. The two invariants provide strong constraints on the mean flow evolution, and the non-Hamiltonian aspect is explicitly attributed to the closure choice. This could be significant for conceptual understanding of baroclinic front dynamics.

minor comments (3)
  1. The abstract is dense and would benefit from a brief mention of the specific variables or a schematic of the model.
  2. Notation for the five degrees of freedom should be introduced with symbols early in the text for clarity.
  3. The manuscript would be strengthened by including at least one numerical integration example or comparison to the full Boussinesq system to illustrate the rotation interpretation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for recommending minor revision. The referee's summary accurately captures the derivation of the five-dimensional conservative ODE system, the two invariants, and the interpretation of adiabatic adjustment as rotation of the density gradient slope under the Ro² Ri ∼ 1 scaling. We are pleased that the potential significance for conceptual understanding of baroclinic front dynamics, including the finite-time-lag adjustment from O(1) Rossby numbers to the quasi-balanced limit, is recognized.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper starts from the continuous Boussinesq equations, applies the stated Ro² Ri ∼ 1 scaling to constrain the horizontal scale to the Rossby deformation radius, and reduces to a closed nonlinear 5D ODE system whose variables are explicitly listed. The two invariants (total energy and domain-averaged cross-frontal density-gradient magnitude) are identified as conserved quantities of the resulting equations once the turbulent closure is inserted; this conservation follows directly from the structure of the reduced system rather than being imposed by redefinition. The non-Hamiltonian character is attributed solely to the explicit form of the parameterized closure, which is presented as a modeling choice. The central claim that adiabatic adjustment reduces to continuous rotation of the density-gradient slope is a geometric consequence of the phase-space constraints imposed by the two invariants on the mean-flow variables. No load-bearing step reduces to its own inputs by construction, no fitted parameters are relabeled as predictions, and no self-citation or uniqueness theorem is invoked to force the result. The model is therefore an honest low-order approximation whose outputs are independent of the inputs beyond the transparent scaling assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central construction rests on the Boussinesq equations and the Ro² Ri ~1 scaling assumption; the turbulent closure is introduced as a parameterization without further specification in the abstract.

axioms (2)
  • standard math Boussinesq approximation for incompressible stratified flow
    Standard starting point for geophysical fluid models invoked in the derivation statement.
  • domain assumption Ro² Ri ∼ 1 scaling that sets horizontal scale to Rossby deformation radius
    Explicitly stated as the regime that yields the closed five-dimensional system.

pith-pipeline@v0.9.0 · 5605 in / 1335 out tokens · 46975 ms · 2026-05-07T11:29:41.107012+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages

  1. [1]

    G. K. Vallis,Atmospheric and Oceanic Fluid Dynamics: Fundamentals and Large-Scale Cir- culation(Cambridge University Press, 2017)

    work page 2017

  2. [2]

    B. J. Hoskins, I. Draghici, and H. C. Davies, A new look at the w-equation, Quarterly Journal of the Royal Meteorological Society104, 31 (1978). 22

    work page 1978

  3. [3]

    J. C. McWilliams, Submesoscale currents in the ocean, Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences472, 20160117 (2016)

    work page 2016

  4. [4]

    L. N. Thomas, A. Tandon, and A. Mahadevan, Submesoscale processes and dynamics, inOcean Modeling in an Eddying Regime(American Geophysical Union (AGU), 2008) pp. 17–38

    work page 2008

  5. [5]

    Fox-Kemper, R

    B. Fox-Kemper, R. Ferrari, and R. Hallberg, Parameterization of mixed layer eddies. part i: Theory and diagnosis, Journal of Physical Oceanography38, 1145 (2008)

    work page 2008

  6. [6]

    I. N. James, Suppression of baroclinic instability in horizontally sheared flows, Journal of the Atmospheric Sciences44, 3710 (1987)

    work page 1987

  7. [7]

    J. S. Sawyer, The vertical circulation at meteorological fronts and its relation to frontogenesis, Proceedings of the Royal Society of London. Series A. Mathematical and Physical Sciences 234, 346 (1956)

    work page 1956

  8. [8]

    Eliassen, On the vertical circulation in frontal zones, Geofysiske Publikasjoner24, 147 (1962)

    A. Eliassen, On the vertical circulation in frontal zones, Geofysiske Publikasjoner24, 147 (1962)

    work page 1962

  9. [9]

    H. L. Kuo, Forced and free meridional circulations in the atmosphere, Journal of Meteorology 13, 561 (1956)

    work page 1956

  10. [10]

    B. J. Hoskins, The geostrophic momentum approximation and the semi-geostrophic equations, Journal of the Atmospheric Sciences32, 233 (1975)

    work page 1975

  11. [11]

    O’Sullivan and T

    D. O’Sullivan and T. J. Dunkerton, Generation of inertia-gravity waves in a simulated life cycle of baroclinic instability, Journal of the Atmospheric Sciences52, 3695 (1995)

    work page 1995

  12. [12]

    Plougonven and C

    R. Plougonven and C. Snyder, Inertia-gravity waves spontaneously generated by jets and fronts. part i: Different baroclinic life cycles, Journal of the Atmospheric Sciences64, 3953 (2007)

    work page 2007

  13. [13]

    L. R. M. Maas and E. Heifetz, Hamiltonian structure of inviscid rotating horizontal convection, Physical Review Fluids11, 013506 (2026)

    work page 2026

  14. [14]

    Boccaletti, R

    G. Boccaletti, R. Ferrari, and B. Fox-Kemper, Mixed layer instabilities and macroturbulence, Journal of Physical Oceanography37, 2228 (2007)

    work page 2007

  15. [15]

    B. J. Hoskins, I. James, and G. White, The shape and propagation of middle latitude cyclones, Journal of the Atmospheric Sciences40, 1595 (1983)

    work page 1983

  16. [16]

    S. H. Strogatz,Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chem- istry, and Engineering, 2nd ed. (CRC Press, 2015)

    work page 2015

  17. [17]

    Goldstein, C

    H. Goldstein, C. P. Poole, and J. L. Safko,Classical Mechanics, 3rd ed. (Addison Wesley, 23 2002)

    work page 2002

  18. [18]

    D. G. Andrews and M. E. McIntyre, Planetary waves in horizontal and vertical shear: The generalized eliassen-palm relation and the mean zonal acceleration, Journal of the Atmospheric Sciences33, 2031 (1976)

    work page 2031

  19. [19]

    E. N. Lorenz, Irregularity: A fundamental property of the atmosphere, Tellus A: Dynamic Meteorology and Oceanography36, 98 (1984)

    work page 1984

  20. [20]

    M. H. Ambaum and L. Novak, A nonlinear oscillator describing storm track variability, Quar- terly Journal of the Royal Meteorological Society140, 2680 (2014)

    work page 2014

  21. [21]

    Boccaletti, R

    G. Boccaletti, R. Ferrari, and B. Fox-Kemper, Mixed layer instabilities and macroturbulence, Journal of Physical Oceanography37, 2780 (2007)

    work page 2007

  22. [22]

    B. J. Hoskins and F. P. Bretherton, Atmospheric frontogenesis models: Mathematical formu- lation and solution, Journal of the Atmospheric Sciences29, 11 (1972)

    work page 1972

  23. [23]

    B. J. Hoskins, The mathematical theory of frontogenesis, Annual Review of Fluid Mechanics 14, 131 (1982)

    work page 1982

  24. [24]

    L. N. Thomas, Destruction of potential vorticity by friction in the ocean, Journal of Physical Oceanography35, 2457 (2005)

    work page 2005

  25. [25]

    J. C. McWilliams, P. P. Sullivan, and C.-H. Moeng, Langmuir turbulence in the ocean, Journal of Fluid Mechanics334, 1 (1997)

    work page 1997

  26. [26]

    S. E. Belcher, A. Grant, K. Hanley, B. Fox-Kemper, L. Van Roekel, P. Sullivan, W. Large, A. Brown, A. Hines, D. Calvert,et al., A global perspective on langmuir turbulence in the ocean surface boundary layer, Geophysical Research Letters39(2012). 24 FIG. 1: Schematic of the cross-frontal density structure in the meridional-vertical (y, z) plane. The domai...

    work page 2012
