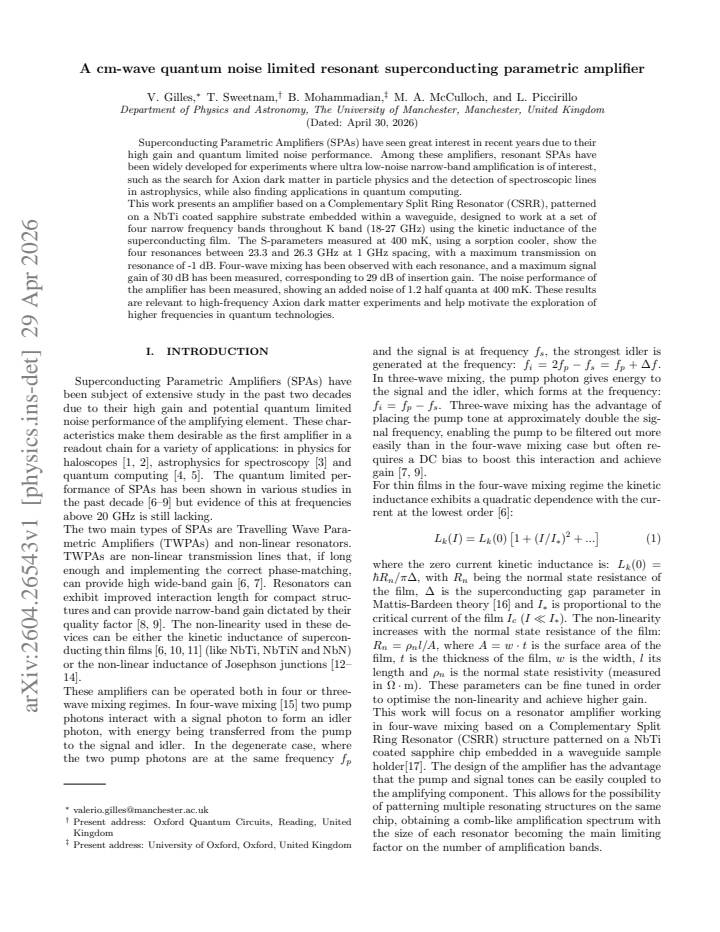

A cm-wave quantum noise limited resonant superconducting parametric amplifier

V. Gilles , T. Sweetnam , B. Mohammadian , M. A. McCulloch , L. Piccirillo

Authors on Pith no claims yet

Pith reviewed 2026-05-07 11:49 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords superconducting parametric amplifiercomplementary split ring resonatorfour-wave mixingquantum limited noiseK-band amplifieraxion dark mattercryogenic measurement

0 comments

The pith

A CSRR-based superconducting parametric amplifier achieves 30 dB gain and 1.2 half-quanta added noise at 23-26 GHz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates a resonant superconducting parametric amplifier designed for narrow-band amplification in the K-band. The device uses a complementary split ring resonator on a superconducting film to create four closely spaced resonances. At 400 mK, it shows four-wave mixing leading to high signal gain and low added noise near the quantum limit. Such performance supports applications in axion dark matter detection and quantum information processing at higher frequencies.

Core claim

The authors have fabricated and tested an amplifier based on a Complementary Split Ring Resonator patterned on NbTi coated sapphire within a waveguide. It operates at four frequencies between 23.3 and 26.3 GHz, exhibits four-wave mixing with each resonance, reaches a maximum signal gain of 30 dB, and adds only 1.2 half quanta of noise when measured at 400 mK using a sorption cooler.

What carries the argument

The Complementary Split Ring Resonator (CSRR) that uses the kinetic inductance of the NbTi superconducting film to enable parametric amplification through four-wave mixing.

If this is right

Four narrow frequency bands allow simultaneous or selectable amplification for multi-frequency experiments.
29 dB insertion gain makes the amplifier suitable for low-signal detection in astrophysics and particle physics.
The low added noise of 1.2 half quanta approaches the quantum limit, minimizing information loss in sensitive measurements.
Operation at cm-wave frequencies extends quantum amplification techniques beyond typical lower bands.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Further optimization could push operation to even higher frequencies for broader quantum technology use.
Combining this with existing axion search setups might improve sensitivity by reducing amplifier noise contributions.
Multi-resonance design suggests potential for compact, multi-band quantum sensors.

Load-bearing premise

The cryogenic calibration at 400 mK accurately separates the amplifier's intrinsic noise from any contributions by the measurement chain or thermal fluctuations.

What would settle it

A recalibration of the full readout system using a known thermal noise source at the same temperature that measures added noise significantly higher than 1.2 half quanta.

Figures

Figures reproduced from arXiv: 2604.26543 by B. Mohammadian, L. Piccirillo, M. A. McCulloch, T. Sweetnam, V. Gilles.

**Figure 2.** Figure 2: FIG. 2: (a) A fabricated resonator under the view at source ↗

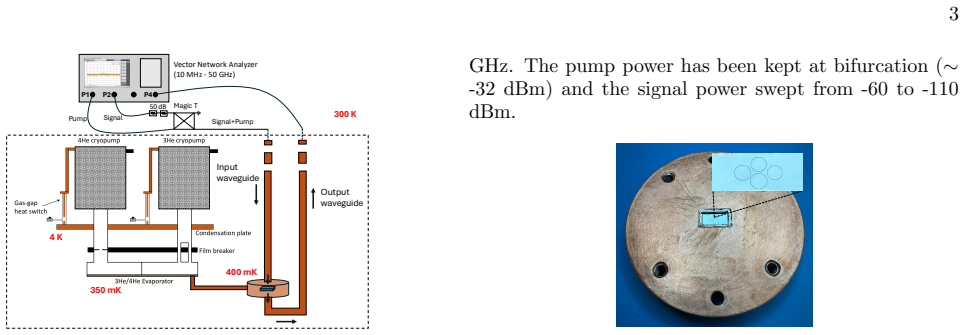

**Figure 4.** Figure 4: FIG. 4: The amplifying chip inside the sample holder. view at source ↗
