Data assimilation for slightly compressible flow

Aytekin \c{C}{\i}b{\i}k , Rui Fang This is my paper

Pith reviewed 2026-05-07 11:18 UTC · model grok-4.3

classification 🧮 math.NA cs.NAphysics.flu-dyn
keywords continuous data assimilationslightly compressible flowincompressible Navier-Stokesvelocity pressure nudgingmodel error decayobservation resolution
0
0 comments X

The pith

Nudging both velocity and pressure observations into incompressible Navier-Stokes equations recovers slightly compressible flows with exponentially decaying error to O(H).

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a continuous data assimilation scheme that adds nudging terms for both velocity and pressure data taken from a slightly compressible flow into the incompressible Navier-Stokes equations. This corrects for the model mismatch that occurs when incompressible equations are used as a proxy for flows with small but nonzero compressibility. The analysis establishes that the difference between the assimilated incompressible solution and the true slightly compressible solution decays exponentially in time from any initial discrepancy, approaching a residual that scales linearly with the observation grid spacing H. The work identifies the required scaling for the pressure nudging strength to make this decay effective and confirms the rates through numerical tests on vortex flows and acoustic waves.

Core claim

The central claim is that velocity-plus-pressure nudging into the incompressible Navier-Stokes equations produces exponential decay of the model error measured in the initial error, with an asymptotic residual of order O(H) where H is the observation resolution. The pressure nudging parameter must be chosen of order O(1/H²) to guarantee effective assimilation. This is shown by rigorous estimates on the difference between the assimilated solution and the reference slightly compressible flow, together with convergence studies, Taylor-Green vortex benchmarks that track energy and enstrophy synchronization, and acoustic-wave tests that isolate a 97.9 percent reduction in pressure error relative.

What carries the argument

The combined velocity and pressure nudging terms added to the incompressible Navier-Stokes equations, with the pressure coefficient scaled as O(1/H²).

If this is right

  • The assimilated solution synchronizes its kinetic energy, enstrophy, and pressure fields with those of the true flow.
  • Optimal convergence rates with respect to observation resolution are observed in controlled tests.
  • Acoustic-wave propagation isolates the contribution of pressure nudging and achieves nearly two orders of magnitude error reduction.
  • The framework supplies the analytic basis needed to derive discrete error estimates for practical implementations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The O(H) residual bound implies that simply refining the observation grid yields direct accuracy gains without changing the nudging structure.
  • The same nudging construction may apply to other small model mismatches, such as slight viscosity variations or boundary-layer approximations.
  • Practical weather or ocean models that already ingest pressure measurements could adopt this scaling to reduce systematic bias from compressibility assumptions.

Load-bearing premise

The incompressible Navier-Stokes equations with velocity-plus-pressure nudging serve as a stable proxy for slightly compressible flow, with the only persistent discrepancy coming from finite observation resolution.

What would settle it

A numerical test in which the long-time error fails to approach a value proportional to the observation spacing H, or in which adding the pressure nudging term produces no measurable reduction in pressure mismatch compared with velocity-only nudging.

Figures

Figures reproduced from arXiv: 2604.26896 by Aytekin \c{C}{\i}b{\i}k, Rui Fang.

Figure 1

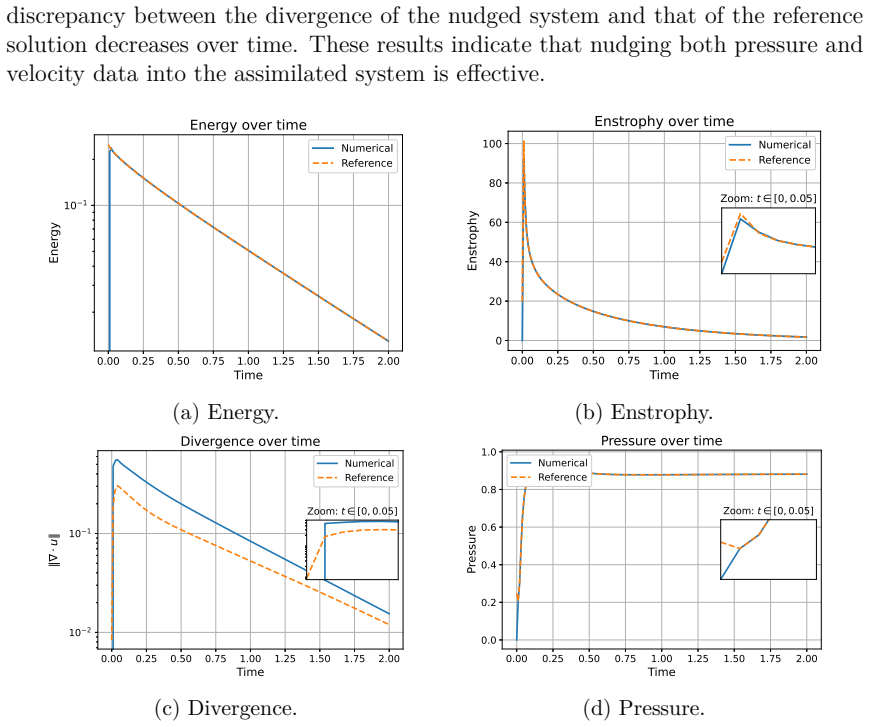

Figure 1. Figure 1: (Modified Taylor-Green) Time evolution of energy, enstrophy, divergence, view at source ↗
Figure 2

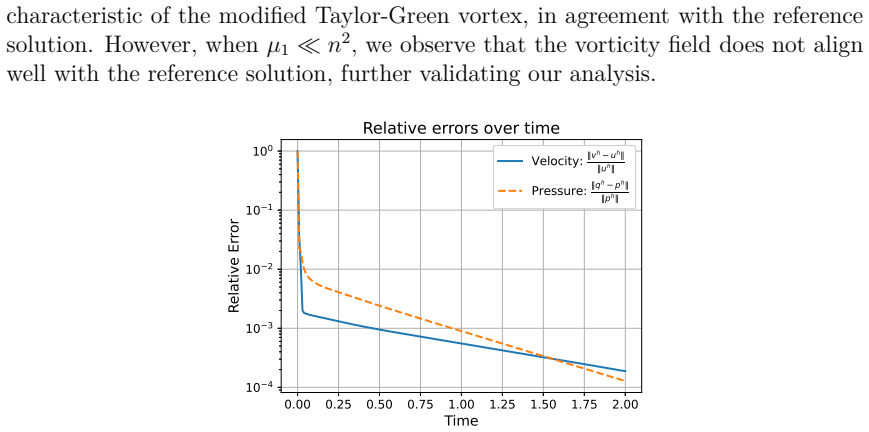

Figure 2. Figure 2: (Modified Taylor-Green) Relative velocity and pressure errors over time, view at source ↗
Figure 3

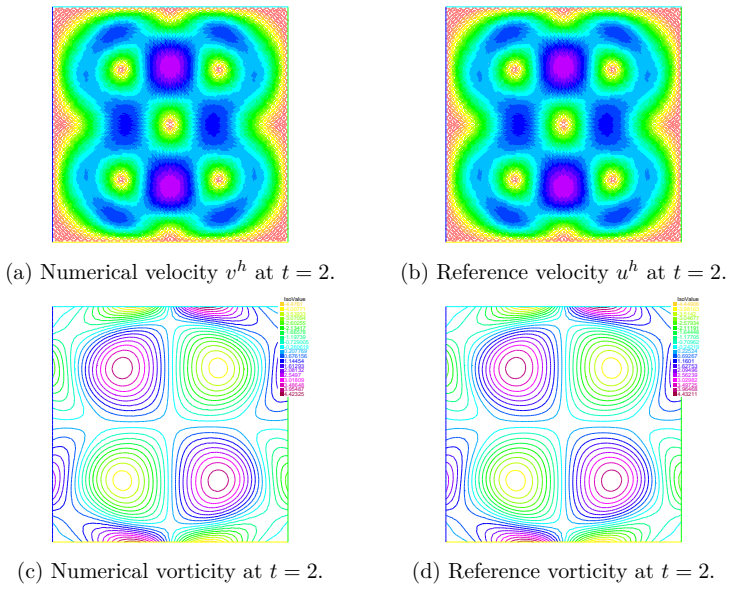

Figure 3. Figure 3: (Modified Taylor-Green) Comparison of velocity and vorticity fields at view at source ↗
Figure 4

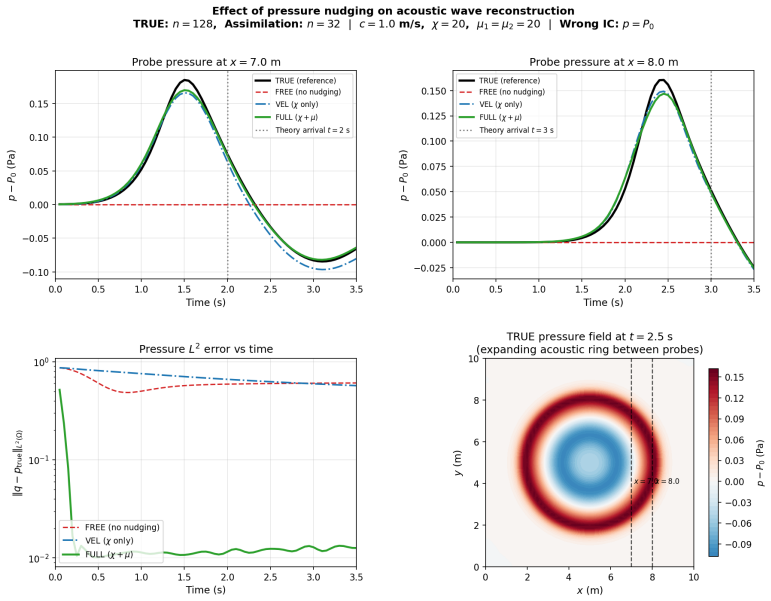

Figure 4. Figure 4: (Acoustic wave propagation) Acoustic wave reconstruction from wrong view at source ↗

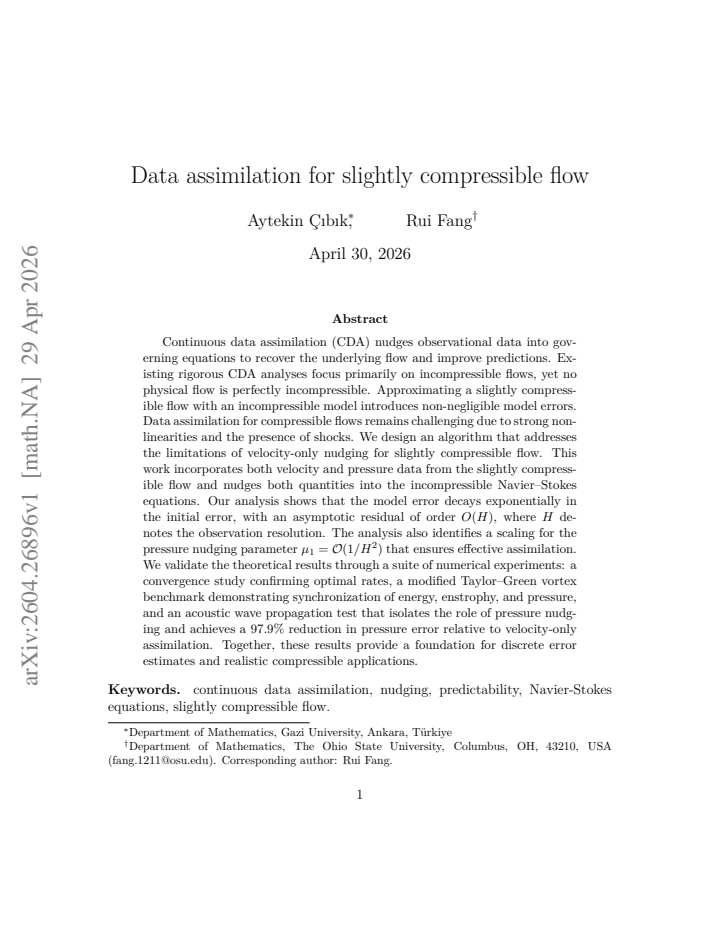

read the original abstract

Continuous data assimilation (CDA) nudges observational data into governing equations to recover the underlying flow and improve predictions. Existing rigorous CDA analyses focus primarily on incompressible flows, yet no physical flow is perfectly incompressible. Approximating a slightly compressible flow with an incompressible model introduces non-negligible model errors. Data assimilation for compressible flows remains challenging due to strong nonlinearities and the presence of shocks. We design an algorithm that addresses the limitations of velocity-only nudging for slightly compressible flow. This work incorporates both velocity and pressure data from the slightly compressible flow and nudges both quantities into the incompressible Navier--Stokes equations. Our analysis shows that the model error decays exponentially in the initial error, with an asymptotic residual of order $\mathcal{O}(H)$, where H denotes the observation resolution. The analysis also identifies a scaling for the pressure nudging parameter $\mu_1 = O(1/H^2)$ that ensures effective assimilation. We validate the theoretical results through a suite of numerical experiments: a convergence study confirming optimal rates, a modified Taylor--Green vortex benchmark demonstrating synchronization of energy, enstrophy, and pressure, and an acoustic wave propagation test that isolates the role of pressure nudging and achieves a $97.9\%$ reduction in pressure error relative to velocity-only assimilation. Together, these results provide a foundation for discrete error estimates and realistic compressible applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a continuous data assimilation (CDA) method for slightly compressible flows by nudging both velocity and pressure data into the incompressible Navier-Stokes equations. The central claims are that the model error decays exponentially in the initial error to an asymptotic residual of order O(H) (H = observation resolution) and that the pressure nudging parameter must scale as μ₁ = O(1/H²) for effective assimilation. These are supported by analysis plus numerical tests: a convergence study, modified Taylor-Green vortex (synchronization of energy/enstrophy/pressure), and an acoustic-wave test showing 97.9% pressure-error reduction versus velocity-only nudging.

Significance. If the error estimates hold, the work supplies a rigorous extension of incompressible CDA theory to the practically relevant regime of slightly compressible flows, together with an explicit, resolution-dependent scaling for the pressure nudging coefficient. The targeted numerical experiments isolate the contribution of pressure nudging and demonstrate concrete error reduction, providing a foundation for discrete estimates and compressible applications. The combination of analysis and reproducible benchmarks is a clear strength.

major comments (1)
  1. [§3] §3 (error analysis): the energy estimate for the difference between the true slightly compressible solution and the nudged incompressible solution must explicitly absorb or bound all compressibility remainder terms (non-zero divergence, equation-of-state mismatch, acoustic propagation) by the combined velocity-plus-pressure nudging operators at the stated μ₁ = O(1/H²) scaling. If these terms are not controlled, the claimed O(H) residual may retain an additional H-independent component; the abstract asserts the bound but the derivation steps that close the estimate need to be shown in detail.
minor comments (2)
  1. [Abstract] The abstract and introduction should state the Mach-number range or smallness assumption under which the incompressible proxy is justified.
  2. [Numerical experiments] Figure captions for the acoustic-wave test should report the exact grid resolution H and the precise definition of the 97.9% pressure-error reduction (L² norm, time-averaged, etc.).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading, positive assessment, and recommendation for minor revision. The single major comment identifies a need for greater explicitness in the error analysis, which we address below by expanding the derivation.

read point-by-point responses

  1. Referee: [§3] §3 (error analysis): the energy estimate for the difference between the true slightly compressible solution and the nudged incompressible solution must explicitly absorb or bound all compressibility remainder terms (non-zero divergence, equation-of-state mismatch, acoustic propagation) by the combined velocity-plus-pressure nudging operators at the stated μ₁ = O(1/H²) scaling. If these terms are not controlled, the claimed O(H) residual may retain an additional H-independent component; the abstract asserts the bound but the derivation steps that close the estimate need to be shown in detail.

    Authors: We agree that the steps closing the energy estimate in §3 should be written out in full. The proof begins from the difference equations between the true slightly compressible solution and the nudged incompressible model. The compressibility remainder terms (non-zero divergence, equation-of-state mismatch, and acoustic propagation) are estimated in the appropriate norms using the observation resolution H; these estimates are then absorbed directly into the dissipation provided by the velocity nudging (standard scaling) and the pressure nudging operator scaled as μ₁ = O(1/H²). The resulting differential inequality for the error energy yields exponential decay to an O(H) residual with no additional H-independent component. In the revised manuscript we will insert the complete chain of inequalities between the remainder estimates and the nudging absorption, making every step explicit while preserving the existing structure and length of the section. revision: yes

Circularity Check

0 steps flagged

No circularity: error decay and nudging scaling derived from governing equations

full rationale

The paper performs a mathematical analysis on the nudged incompressible Navier-Stokes equations as a proxy for slightly compressible flow. The exponential decay to an O(H) residual and the μ1 = O(1/H²) scaling are obtained via energy estimates that bound the model discrepancy terms (including compressibility effects) under the stated nudging. No step reduces to a fitted parameter renamed as prediction, self-definition, or load-bearing self-citation; the derivation is self-contained against the PDEs and observation operator. Numerical experiments serve only as validation, not as input to the claimed rates.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on the domain assumption that slightly compressible flows can be effectively approximated by nudged incompressible equations and on standard mathematical assumptions required for PDE error analysis.

axioms (2)
  • domain assumption Slightly compressible flow can be approximated by the incompressible Navier-Stokes equations with appropriate nudging
    This is the modeling premise stated in the abstract as the foundation for the algorithm.
  • standard math Existence, uniqueness, and sufficient regularity of solutions to the governing PDEs
    Implicitly required for the exponential decay and residual estimates in the analysis.

pith-pipeline@v0.9.0 · 5551 in / 1345 out tokens · 63145 ms · 2026-05-07T11:18:45.054514+00:00 · methodology
