The Complex Structure of the Abell 548 - Abell 3367 Region
Pith reviewed 2026-05-07 07:22 UTC · model grok-4.3
The pith
X-ray observations indicate Abell 548 and Abell 3367 are part of a supercluster with three clusters at redshifts 0.04 to 0.06.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We use archival XMM and ROSAT X-ray data together with kinematic data of counterpart galaxies to address the connection between Abell 3367 and Abell 548 and to determine the structure in this region. The region is particularly rich in X-ray structure elongated along a SW-NE axis consisting of numerous extended X-ray sources. In general, the structure consists of many galaxy groups and clusters which appear segregated in X-ray luminosity with the least luminous toward the outer region of the clusters, possibly tracing a filament. We find evidence to suggest a supercluster of 3 clusters at redshifts ∼0.04, 0.045, and 0.06. Some of the X-ray sources coincident with Abell 3367 have counterpart 0
What carries the argument
X-ray imaging of extended sources paired with galaxy redshift data to establish physical associations and trace filaments in the cosmic web.
Load-bearing premise
That the positional coincidence of X-ray sources with galaxy clusters and the matching of their redshifts indicate a true physical association rather than projection effects or chance alignments.
What would settle it
Spectroscopic measurements of many more galaxies showing inconsistent redshifts or velocities between the X-ray sources and the proposed cluster members would challenge the supercluster interpretation.
Figures
read the original abstract

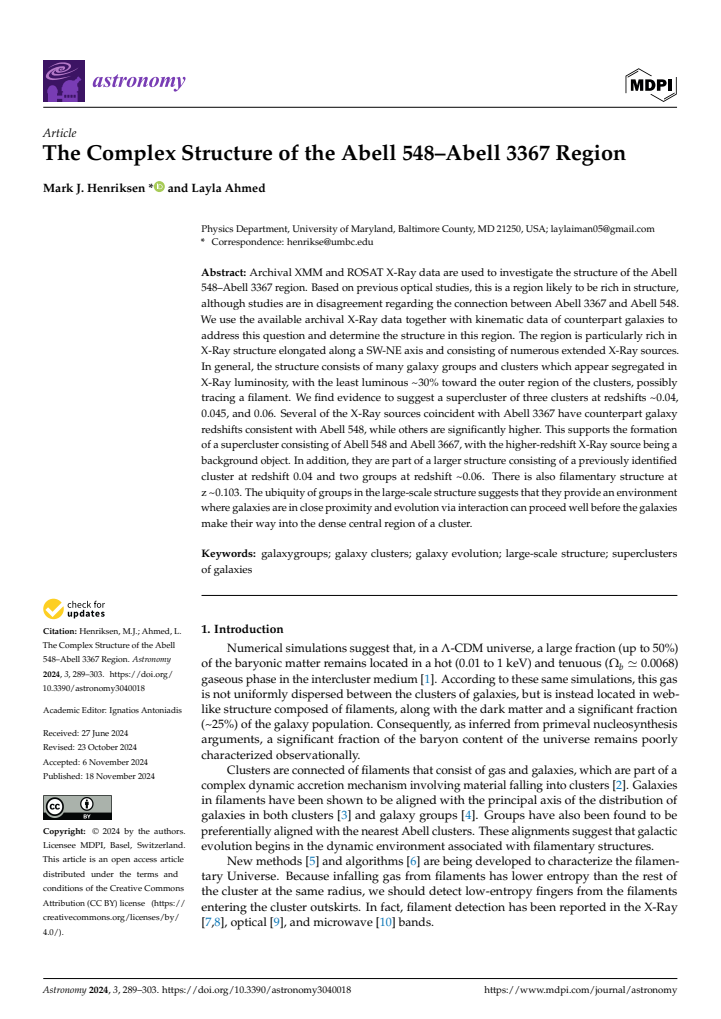

Archival XMM and ROSAT X-ray data are used to investigate the structure of the Abell 548 - Abell 3367 region. Based on previous optical studies, this is a region likely to be rich in structure though studies are in disagreement regarding the connection between Abell 3367 and Abell 548. We use the available archival X-ray data together with kinematic data of counterpart galaxies to address this question and to determine the structure in this region. The region is particularly rich in X-ray structure elongated along a SW-NE axis consisting of numerous extended X-ray sources. In general, the structure consists of many galaxy groups and clusters which appear segregated in X-ray luminosity with the least luminous $\sim$ 30% toward the outer region of the clusters, possibly tracing a filament. We find evidence to suggest a supercluster of 3 clusters at redshifts: $\sim$ 0.04, 0.045, and 0.06. Some of the X-ray sources coincident with Abell 3367 have counterpart galaxy redshifts consistent with Abell 548 and others are significantly higher. This supports that Abell 548 and Abell 3667, form a supercluser and the higher redshift X-ray source is a background object. They are part of a larger structure consisting of a previously identified cluster at redshift 0.04, and two groups at redshift $\sim$ 0.06. In addition, there is a filamentary structure at z $\sim$ 0.103. The ubiquity of groups in the large scale structure suggests that they provide an environment where galaxies are in close proximity and evolution via interaction can proceed well before the galaxies make their way into the dense central region of a cluster.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes archival XMM-Newton and ROSAT X-ray observations of the Abell 548–Abell 3367 region together with available galaxy redshift data. It identifies an elongated complex of extended X-ray sources along a SW-NE axis, interprets many as galaxy groups and clusters, and uses positional coincidences plus redshift matches to argue that Abell 548, Abell 3367, and a third system at z ≈ 0.06 form a supercluster, with some X-ray sources being background objects; an additional filament at z ≈ 0.103 is noted. The work concludes that groups are ubiquitous in large-scale structure and provide sites for galaxy interactions prior to cluster assembly.
Significance. If the reported associations prove physical, the results would supply a concrete multi-wavelength case study of supercluster assembly and filamentary structure in a nearby region, reinforcing the role of galaxy groups as early sites of galaxy evolution. The archival approach demonstrates the continuing value of re-analyzing existing X-ray and optical data for complex fields, though the largely qualitative nature of the associations limits immediate broader impact on cosmological simulations or statistical studies of the cosmic web.
major comments (2)
- [Section on X-ray sources coincident with Abell 3367 and redshift matches] The headline claim that Abell 548, Abell 3367 and a third system at z ≈ 0.06 constitute a supercluster rests on positional matches between X-ray sources and optically identified galaxies whose redshifts fall near the cluster values. No Monte-Carlo simulation, Poisson probability calculation, or other chance-alignment test is presented that folds in the observed surface density of X-ray detections, the redshift distribution of galaxies with measured velocities, and the adopted positional tolerance. This omission is load-bearing because the field is described as elongated and rich in both extended X-ray sources and galaxies with redshifts; without the test the physical-association step remains unquantified (see the paragraphs discussing X-ray sources coincident with Abell 3367 and the redshift matches).
- [Paragraph describing X-ray luminosity segregation and filament tracing] The statement that galaxy groups and clusters “appear segregated in X-ray luminosity with the least luminous ∼30% toward the outer region of the clusters, possibly tracing a filament” lacks any description of the parent sample, the precise luminosity threshold used to define the “least luminous 30%,” the method of background subtraction or flux measurement, or the uncertainties on the X-ray luminosities. Without these details the filamentary interpretation cannot be evaluated and the claim is not reproducible from the data presented.
minor comments (3)
- [Abstract] Abstract contains two typographical errors: “Abell 3667” should read “Abell 3367” and “supercluser” should read “supercluster.”
- [Throughout the text] Redshift values are given inconsistently (∼0.04 versus 0.045 versus ∼0.06); a uniform notation and explicit listing of the exact redshift values and uncertainties for each identified system would improve clarity.
- [Tables and figures] Any tables or figures that list X-ray source positions, fluxes, or associated galaxy redshifts should include detection significances, positional uncertainties, and the number of galaxies contributing to each redshift.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive report on our manuscript. We address the major comments point by point below, providing clarifications and indicating where revisions will be made to strengthen the paper.
read point-by-point responses
-
Referee: [Section on X-ray sources coincident with Abell 3367 and redshift matches] The headline claim that Abell 548, Abell 3367 and a third system at z ≈ 0.06 constitute a supercluster rests on positional matches between X-ray sources and optically identified galaxies whose redshifts fall near the cluster values. No Monte-Carlo simulation, Poisson probability calculation, or other chance-alignment test is presented that folds in the observed surface density of X-ray detections, the redshift distribution of galaxies with measured velocities, and the adopted positional tolerance. This omission is load-bearing because the field is described as elongated and rich in both extended X-ray sources and galaxies with redshifts; without the test the physical-association step remains unquantified (see the paragraphs discussing X-ray sources coincident with Abell 3367 and the redshift matches).
Authors: We agree that a quantitative test for the probability of chance alignments would strengthen the physical-association argument. Our conclusions draw on the joint evidence of extended X-ray morphology, positional coincidence with galaxy overdensities, and redshift matches within narrow slices around the known cluster redshifts (z ≈ 0.04, 0.045, 0.06). Nevertheless, to address the referee’s concern we will add a Monte Carlo or Poisson probability calculation in the revised manuscript that incorporates the observed surface density of X-ray sources, the redshift distribution of galaxies with measured velocities, and the adopted positional tolerance. This will provide a numerical measure of the significance of the reported associations. revision: yes
-
Referee: [Paragraph describing X-ray luminosity segregation and filament tracing] The statement that galaxy groups and clusters “appear segregated in X-ray luminosity with the least luminous ∼30% toward the outer region of the clusters, possibly tracing a filament” lacks any description of the parent sample, the precise luminosity threshold used to define the “least luminous 30%,” the method of background subtraction or flux measurement, or the uncertainties on the X-ray luminosities. Without these details the filamentary interpretation cannot be evaluated and the claim is not reproducible from the data presented.
Authors: We acknowledge that the current description of the X-ray luminosity segregation is insufficiently detailed for reproducibility. In the revised manuscript we will expand the relevant paragraph to specify: (i) the parent sample of extended X-ray sources, (ii) the exact luminosity threshold that isolates the least luminous 30 %, (iii) the background-subtraction and flux-measurement procedures (including the assumed spectral model and any aperture corrections), and (iv) the estimated uncertainties on the derived luminosities. We will also clarify how the “outer region” of the clusters was defined for the segregation analysis, thereby allowing readers to assess the filamentary interpretation directly from the data. revision: yes
Circularity Check
No significant circularity in observational structure mapping
full rationale
The manuscript is a purely observational analysis of archival XMM/ROSAT X-ray imaging combined with existing galaxy redshift catalogs. Structure identification proceeds by direct positional coincidence of extended X-ray sources with optically identified clusters plus redshift matching; no equations, fitted parameters, ansatzes, or uniqueness theorems are introduced. The central claim (supercluster at z ≈ 0.04–0.06) is therefore an empirical interpretation of the data rather than a derived quantity that reduces to its own inputs by construction. No self-citation chains or renamings of known results appear in the provided text, so the derivation chain is self-contained and scores 0.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Extended X-ray emission traces the hot intracluster medium in galaxy groups and clusters
- domain assumption Galaxy redshifts can be used to determine physical association and distance in the expanding universe
Reference graph
Works this paper leans on
-
[1]
Where are the Baryons? Astrophys
Cen, R.; Ostriker, J.P . Where are the Baryons? Astrophys. J. 1999, 514, 1. [CrossRef]
work page 1999
-
[2]
Linking cluster formation to large-scale structure
Colberg, J.M.; White, S.D.M.; Jenkins, A.; Pearce, F.R. Linking cluster formation to large-scale structure. Mon. Not. R. Astron. Soc. 1999, 308, 593. [CrossRef]
work page 1999
-
[3]
Alignments of Brightest Cluster Galaxies with Large-Scale Structures.Astron
Lambas, D.; Groth, E.; Peebles, P .J.E. Alignments of Brightest Cluster Galaxies with Large-Scale Structures.Astron. J. 1988, 95, 996. [CrossRef]
work page 1988
-
[4]
Alignments of the Dominant Galaxies in Poor Clusters
Fuller, T.; West, M.J.; Bridges, T. Alignments of the Dominant Galaxies in Poor Clusters. Astrophys. J. 1999, 519, 22. [CrossRef]
work page 1999
-
[5]
The Challenge of Detecting Intracluster Filaments with Faraday Rotation
Locatelli, N.; Vazza, F.; Domínguez-Fernández, P . The Challenge of Detecting Intracluster Filaments with Faraday Rotation. Galaxies 2018, 6, 128. [CrossRef]
work page 2018
-
[6]
Probing the cosmic web: Intercluster filament detection using gravitational lensing
Mead, J.M.G.; King, L.J.; McCarthy, I.G. Probing the cosmic web: Intercluster filament detection using gravitational lensing. Mon. Not. R. Astron. Soc. 2010, 401, 2257–2267. [CrossRef]
work page 2010
-
[7]
Detection of hot gas in the filament connecting the clusters of galaxies Abell 222 and Abell 223
Werner, N.; Finoguenov, A.; Kaastra, J.S.; Simionescu, A.; Dietrich, J.P .; Vink, J.; Böhringer, H. Detection of hot gas in the filament connecting the clusters of galaxies Abell 222 and Abell 223. Astron. Astrophys. 2008, 482, L29.:200809599. [CrossRef] Astronomy 2024, 3 302
work page 2008
-
[8]
First detection of stacked X-Ray emission from cosmic web filaments
Tanimura, H.; Aghanim, N.; Kolodzig, A.; Douspis, M.; Malavasi, N. First detection of stacked X-Ray emission from cosmic web filaments. Astron. Astrophys. 2020, 643, L2. [CrossRef]
work page 2020
-
[9]
Santiago-Bautista, I.; Caretta, C.A.; Bravo-Alfaro, H.; Pointecouteau, E.; Andernach, H. Identification of filamentary structures in the environment of superclusters of galaxies in the Local Universe. Astron. Astrophys. 2020, 637, A31. [CrossRef]
work page 2020
-
[10]
Planck Collaboration, Planck intermediate results
Ade, P .A.R.; Aghanim, N.; Arnaud, M.; Ashdown, M.; Atrio-Barandela, F.; Aumont, J.; Baccigalupi, C.; Balbi, A.; Banday, A.J.; Barreiro, R.B.; et al. Planck Collaboration, Planck intermediate results. VIII. Filaments between interacting clusters. Astron. Astrophys. 2013, 550, A134. [CrossRef]
work page 2013
-
[11]
Galaxy Cluster Baryon Fractions Revisited.Astrophys
Gonzalez, A.H.; Sivanandam, S.; Zabludoff, A.I.; Zaritsky , D. Galaxy Cluster Baryon Fractions Revisited.Astrophys. J. 2013, 778, 14. [CrossRef]
work page 2013
-
[12]
Nicastro, F.; Krongold, Y .; Fang, T.; Fraternali, F.; Mathur, S.; Bianchi, S.; Rosa, A.D.; Piconcelli, E.; Zappacosta1, L.; Bischetti, M.; et al. X-Ray Detection of the Galaxy’s Missing Baryons in the Circumgalactic Medium of L* Galaxies.Astrophys. J. Lett. 2023, 955, L1. [CrossRef]
work page 2023
-
[13]
The Distribution of Nearby Rich Clusters of Galaxies.Astrophys
Postman, M.; Huchra, J.P .; Geller, M.J. The Distribution of Nearby Rich Clusters of Galaxies.Astrophys. J. 1992, 384, 404. [CrossRef]
work page 1992
-
[14]
Zucca, E.; Zamorani, G.; Scaramella, R. Vettolani, G. All-Sky Catalogs of Superclusters of Abell-ACO Clusters. Astrophys. J. 1993, 407, 470. [CrossRef]
work page 1993
-
[15]
A redshift survey between the clusters of galaxies A 548 and A 3367
Andreuzzi, G.; Bardelli, S.; Scaramella, R.; Zucca, E. A redshift survey between the clusters of galaxies A 548 and A 3367. Astron. Astrophys. 1998, 337, 17
work page 1998
-
[16]
Brightest Cluster Galaxies as Standard Candles
Postman, M.; Lauer, T. Brightest Cluster Galaxies as Standard Candles. Astrophys. J. 1995, 440, 28. [CrossRef]
work page 1995
-
[17]
The XMM-Newton Serendipitous Survey
Webb, N.A.; Coriat, M.; Traulsen, I.; Ballet, J.; Motch, C.; Carrera, F.J.; Koliopanos, F.; Authier, J.; de Calle, I.; Ceballos, M.T.; et al. The XMM-Newton Serendipitous Survey. Astron. Astrophys. 2020, 641, 136. [CrossRef]
work page 2020
-
[18]
HI4PI: A full-sky Hi survey based on EBHIS and GASS
Bekhti, N.B.; Flöer, L.; Keller, R.; Kerp, J.; Lenz, D.; Winkel, B.; Bailin, J.; Calabretta, M.R.; Dedes, L.; Ford, H.A.; et al. HI4PI: A full-sky Hi survey based on EBHIS and GASS. Astron. Astrophys. 2016, 594, 116. [CrossRef]
work page 2016
-
[19]
A Compilation of Redshifts and Velocity Dispersions for ACO Clusters.Astrophys
Struble, M.F.; Rood, H.J. A Compilation of Redshifts and Velocity Dispersions for ACO Clusters.Astrophys. J. Suppl. Ser. 1999, 125, 35. [CrossRef]
work page 1999
-
[20]
A Cosmology Calculator for the World Wide Web
Wright, E.L. A Cosmology Calculator for the World Wide Web. Publ. Astron. Soc. Pac. 2006, 118, 1711. [CrossRef]
work page 2006
- [21]
-
[22]
Second ROSAT all-sky survey (2RXS) source catalogue
Boller, T.; Freyberg, M.J.; Trümper, J.; Haberl, F.; Voges, W.; Nandra, K. Second ROSAT all-sky survey (2RXS) source catalogue. Astron. Astrophys. 2016, 588, A103. . [CrossRef]
work page 2016
-
[23]
Galaxy Cluster Baryon Fractions Revisited
Ebeling, H.; Voges, W.; Bohringer, H. Galaxy Cluster Baryon Fractions Revisited. Astrophys. J. 1994, 436, 44. [CrossRef]
work page 1994
-
[24]
X-Ray observations of the edge-on star-forming galaxy NGC 891 and its supernova SN1986J
Temple, R.F.; Raychaudhury, S.; Stevens, I.R. X-Ray observations of the edge-on star-forming galaxy NGC 891 and its supernova SN1986J. Mon. Not. R. Astron. Soc. 2005, 362, 581. [CrossRef]
work page 2005
- [25]
- [26]
-
[27]
High density of active galactic nuclei in the outskirts of distant galaxy clusters
Koulouridis, E.; Bartalucci, I. High density of active galactic nuclei in the outskirts of distant galaxy clusters. Astron. Astrophys. 2019, 623, L10. [CrossRef]
work page 2019
-
[28]
The Intragroup Medium in Poor Groups of Galaxies.Astrophys
Mulchaey, J.S.; Davis, D.S.; Mushotzky, R.F.; Burstein, D. The Intragroup Medium in Poor Groups of Galaxies.Astrophys. J. 1996, 456, 80. [CrossRef]
work page 1996
-
[29]
A Catalog of 1268 Radial Velocities in 15 Rich Clusters
Dressler, A.; Schectman, S.A. A Catalog of 1268 Radial Velocities in 15 Rich Clusters. Astron. J. 1988, 95, 284. [CrossRef]
work page 1988
-
[30]
The Morphology-Density Relation in the Sloan Digital Sky Survey
Goto, T.; Yamauchi, C.; Fujita, Y.; Okamura, S.; Sekiguchi, M.; Smail, I.; Bernardi, M.; Gomez, P .L. The Morphology-Density Relation in the Sloan Digital Sky Survey. Mon. Not. R. Astron. Soc. 2003, 346, 601. [CrossRef]
work page 2003
-
[31]
The galaxy morphology–density relation in the EAGLE simulation
Pfeffer, J.; Cavanagh, M.; Bekki, K.; Couch, W.J.; Drinkwater, M.J.; Forbes, D.A.; Koribalski, B. The galaxy morphology–density relation in the EAGLE simulation. Mon. Not. R. Astron. Soc. 2023, 518, 5260–5278. [CrossRef]
work page 2023
-
[32]
Georgakakis, A.; Georgantopoulos, I.; Stewart, G.C.; Shanks, T.; Boyle, B.J. The XMM-Newton 2dF Survey—I. X-Ray Properties of Normal Galaxies. Mon. Not. R. Astron. Soc. 2003. 344, 161. [CrossRef]
work page 2003
-
[33]
Optically selected fossil groups; X-Ray observations and galaxy properties
Khosroshahi, H.G.; Gozaliasl, G.; Rasmussen, J.; Molaeinezhad, A.; Ponman, T.; Dariush, A.A.S.; Sanderson, A.J. Optically selected fossil groups; X-Ray observations and galaxy properties. Mon. Not. R. Astron. Soc. 2014, 443, 318. [CrossRef]
work page 2014
-
[34]
A Filament between Galaxy Clusters A3391 and A3395
Tittley Eric, R.; Henriksen Mark, J. A Filament between Galaxy Clusters A3391 and A3395. Astrophys. J. 2001, 563, 673. [CrossRef]
work page 2001
-
[35]
Chandra and XMM-Newton Observations of the Abell 3395/Abell 3391 Intercluster Filament
Alvarez, G.E.; R.; Randall, S.W.; Bourdin, H.; Jones, C.; Holley-Bockelmann, K. Chandra and XMM-Newton Observations of the Abell 3395/Abell 3391 Intercluster Filament. Astrophys. J. 2018, 858, 44. [CrossRef]
work page 2018
-
[36]
Sugawara, Y.; Takizawa, M.; Itahana, M.; Akamatsu, H.; Fujita, Y.; Ohashi, T.; Ishisaki, Y. Suzaku observations of the outskirts of the galaxy cluster Abell 3395, including a filament toward Abell 3391. Publ. Astron. Soc. Jpn. 2017, 69, 93. [CrossRef]
work page 2017
-
[37]
The Assembly of Galaxy Clusters.Astrophys
Berrier, J.C.; Stewart, K.R.; Bullock, J.S.; Purcell, C.W.; Barton, E.J.; Wechsler, R.H. The Assembly of Galaxy Clusters.Astrophys. J. 2009, 690, 1292. [CrossRef]
work page 2009
-
[38]
The accretion of galaxies into groups and clusters
McGee, S.L.; Balogh, M.L.; Bower, R.G.; Font, A.S.; McCarthy, I.G. The accretion of galaxies into groups and clusters. Mon. Not. R. Astron. Soc. 2009, 400, 937. [CrossRef]
work page 2009
-
[39]
Knobel, C.; Lilly, S.J.; Woo, J.; Kovaˇ c, K. Quenching of Star Formation in Sloan Digital Sky Survey Groups: Centrals, Satellites, and Galactic Conformity. Astrophys. J. 2015, 800, 24. [CrossRef] Astronomy 2024, 3 303
work page 2015
-
[40]
The Origin of Intergalactic Light in Compact Groups of Galaxies
Henriksen, M.J. The Origin of Intergalactic Light in Compact Groups of Galaxies. Universe 2021, 7, 303. [CrossRef]
work page 2021
-
[41]
A Fast Radio Burst in a Compact Galaxy Group at z~1
Gordon, A.; Fong, We.; Simha, S.; Dong, Y.; Kilpatrick, C.D.; Deller, A.T.; Ryder, S.D.; Eftekhari, T.; Glowacki, M.; Marnoch, L.; et al. A Fast Radio Burst in a Compact Galaxy Group at z~1. arXiv 2023, arXiv:2311.10815v1. [CrossRef] Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the indivi...
