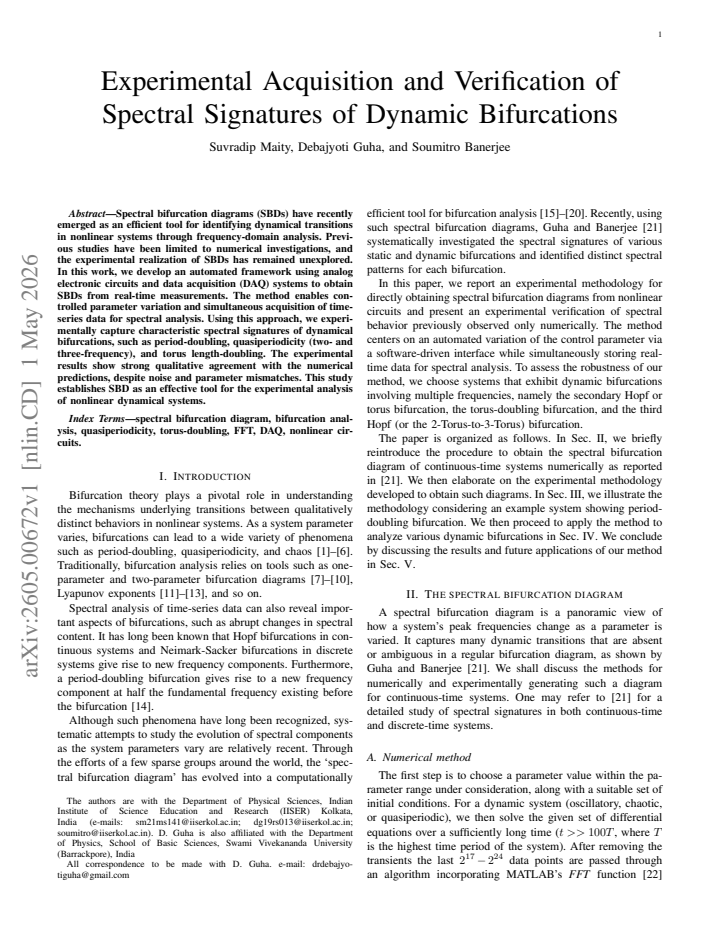

Experimental Acquisition and Verification of Spectral Signatures of Dynamic Bifurcations

Suvradip Maity , Debajyoti Guha , Soumitro Banerjee This is my paper

Pith reviewed 2026-05-09 15:06 UTC · model grok-4.3

classification 🌊 nlin.CD
keywords spectral bifurcation diagramsdynamical bifurcationsperiod-doublingquasiperiodicitytorus length-doublinganalog circuitsnonlinear dynamicsexperimental verification
0
0 comments X

The pith

An automated analog circuit setup obtains spectral bifurcation diagrams that reveal frequency signatures of dynamical transitions matching numerical models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a real-time experimental system using analog electronic circuits and data acquisition hardware to generate spectral bifurcation diagrams. It demonstrates the capture of distinctive spectral features for bifurcations including period-doubling cascades, two- and three-frequency quasiperiodicity, and torus length-doubling. These experimental diagrams agree qualitatively with prior numerical simulations even in the presence of noise and small parameter deviations. The work positions spectral bifurcation diagrams as a viable experimental tool for detecting dynamical transitions in nonlinear systems.

Core claim

Using an automated framework of analog circuits with controlled parameter variation and simultaneous time-series acquisition, the authors generate spectral bifurcation diagrams that display characteristic frequency-domain signatures of period-doubling, quasiperiodicity, and torus length-doubling, showing strong qualitative agreement with numerical predictions.

What carries the argument

Spectral bifurcation diagrams produced by frequency analysis of time series from parameter-swept analog circuits implementing the nonlinear system.

If this is right

  • Spectral bifurcation diagrams become usable for identifying bifurcations directly from physical hardware measurements.
  • The method works for multiple bifurcation types including period-doubling and multi-frequency quasiperiodicity.
  • Qualitative agreement persists despite real-world noise and parameter mismatches.
  • Automated parameter sweeps and simultaneous spectral computation enable systematic experimental mapping of transitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may apply to other physical realizations such as mechanical or optical nonlinear systems where time series can be measured.
  • Real-time spectral diagrams could support online detection of instability onset in engineering devices.
  • Quantitative measures of spectral agreement between experiment and simulation could be developed to assess model fidelity.

Load-bearing premise

The physical analog circuit implements the target nonlinear equations without significant unmodeled distortions from component tolerances, noise, or parasitic effects, and the data acquisition accurately records the true frequency content.

What would settle it

Experimental diagrams from the circuit that repeatedly fail to exhibit the expected subharmonic lines for period-doubling or the additional incommensurate frequency peaks for quasiperiodicity after circuit recalibration and filtering.

Figures

Figures reproduced from arXiv: 2605.00672 by Debajyoti Guha, Soumitro Banerjee, Suvradip Maity.

Figure 2
Figure 2. Figure 2: Circuit for obtaining the Poincare section. A and C are comparator ´ blocks, and B is a differentiator block. The reference voltages V1 and V2 are suitable voltage values applied to obtain the Poincare section. To enhance ´ differentiation, R and C are chosen such that RC ≪ T ′ , where T ′ is the smallest time period of the input signal. LM311P IC is used as the comparator, and TL084CN IC as the op-amp. Th… view at source ↗
Figure 3
Figure 3. Figure 3: Electronic circuit implementation of the rescaled R view at source ↗

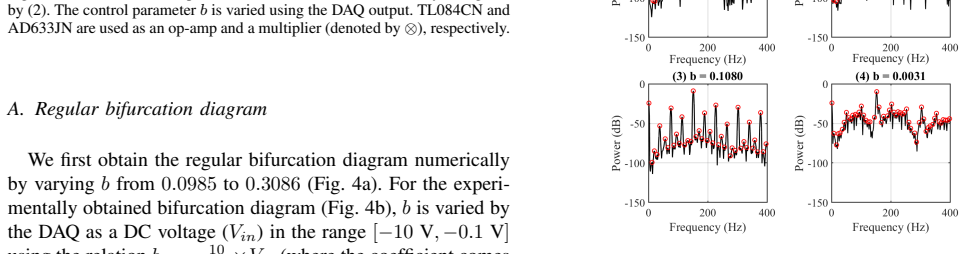

Figure 5
Figure 5. Figure 5: FFT spectra of system 2 obtained from experimental data as view at source ↗

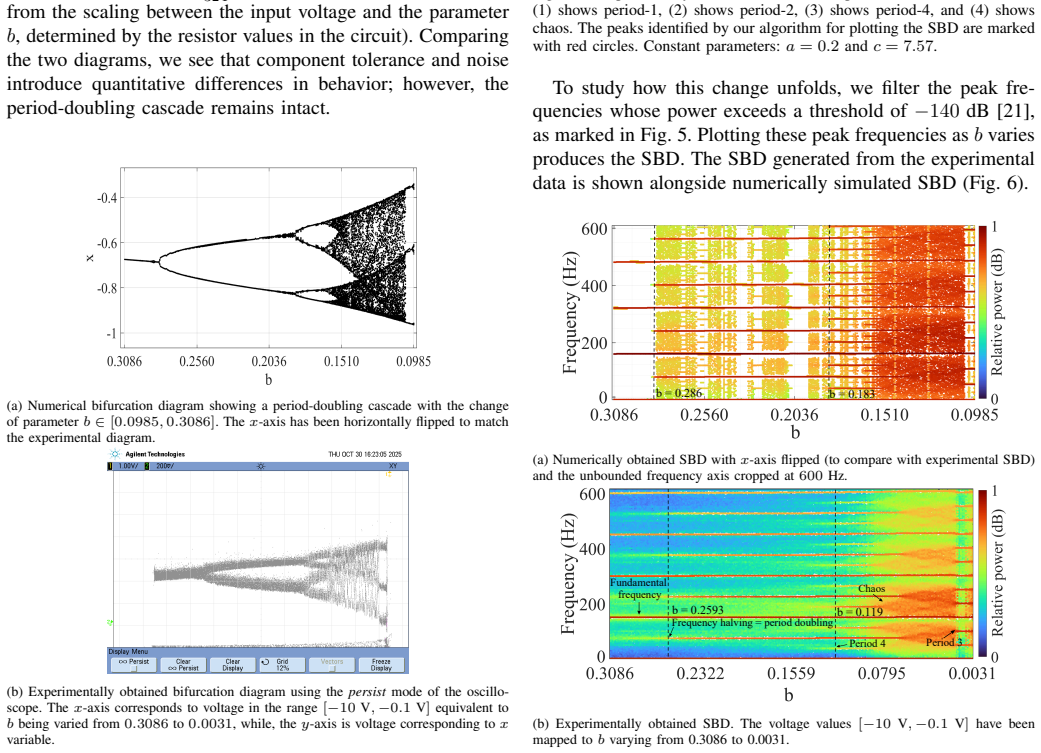

Figure 6
Figure 6. Figure 6: Comparison of experimental and numerical SBDs of system (2). view at source ↗
Figure 8
Figure 8. Figure 8: Experimentally obtained phase portrait (plotted view at source ↗
Figure 9
Figure 9. Figure 9: Qualitative comparison between the numerically obtained and the view at source ↗

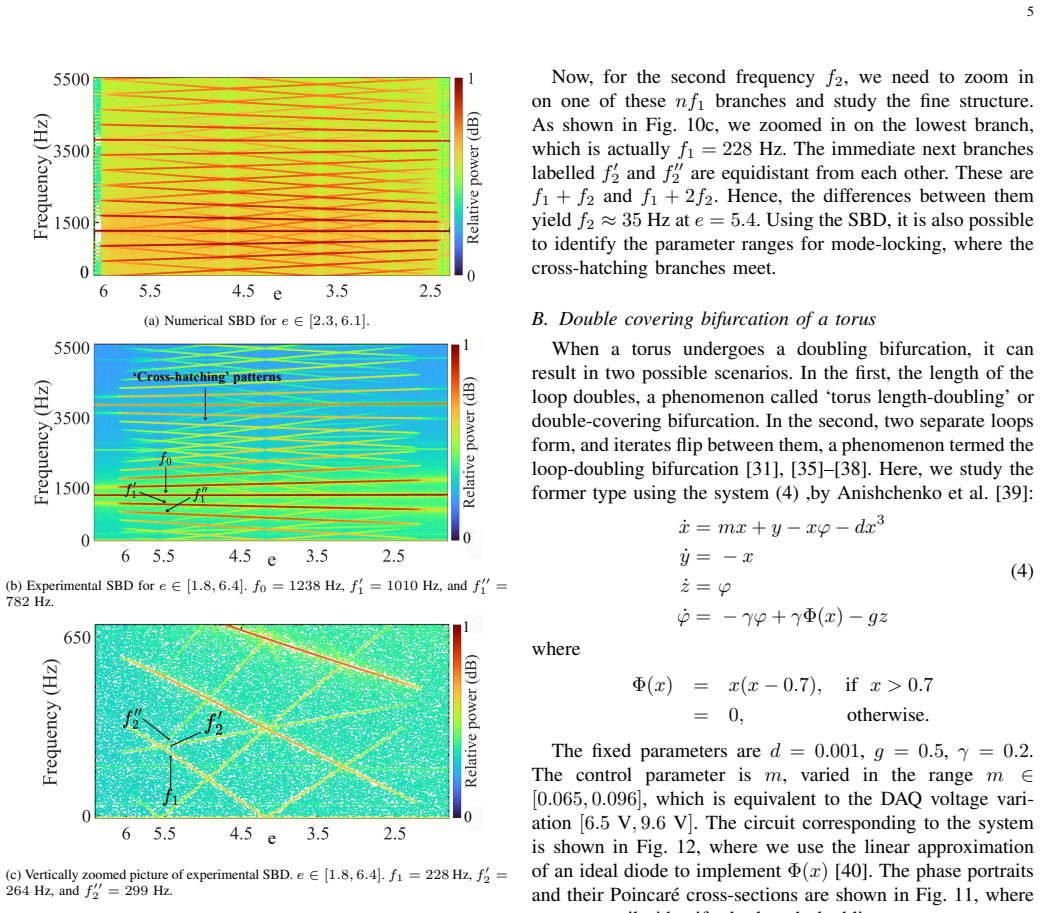

Figure 10
Figure 10. Figure 10: Comparison of numerical and experimental SBDs for quasiperiodic view at source ↗

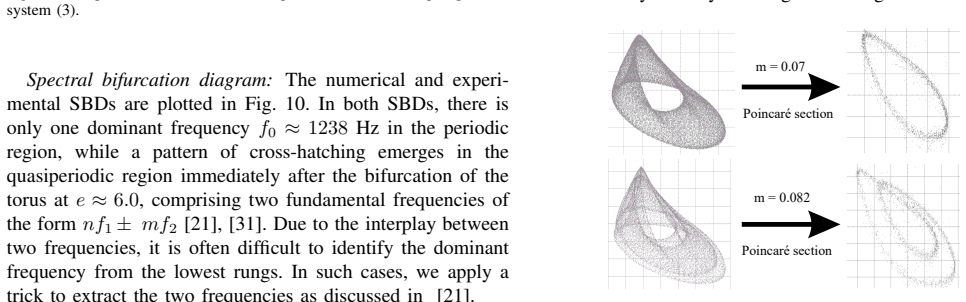

Figure 11
Figure 11. Figure 11: Experimental phase portraits (y vs z) and their Poincare sections ´ showing the length-doubling of the loop as m is varied in (4). Regular bifurcation diagram: In view at source ↗
Figure 12
Figure 12. Figure 12: Circuit corresponding to system (4). Control parameter view at source ↗
Figure 14
Figure 14. Figure 14: Comparison of numerical and experimental SBDs for torus-doubling view at source ↗
Figure 17
Figure 17. Figure 17: Comparison of numerical and experimental bifurcation diagrams of view at source ↗
Figure 15
Figure 15. Figure 15: Circuit diagram for driven coupled Van der Pol oscillator (5). Control view at source ↗
Figure 16
Figure 16. Figure 16: The orbit in phase space and the Poincar view at source ↗
Figure 18
Figure 18. Figure 18: Comparison of numerical and experimental SBDs for three frequency view at source ↗
read the original abstract

Spectral bifurcation diagrams (SBDs) have recently emerged as an efficient tool for identifying dynamical transitions in nonlinear systems through frequency-domain analysis. Previous studies have been limited to numerical investigations, and the experimental realization of SBDs has remained unexplored. In this work, we develop an automated framework using analog electronic circuits and data acquisition (DAQ) systems to obtain SBDs from real-time measurements. The method enables controlled parameter variation and simultaneous acquisition of time-series data for spectral analysis. Using this approach, we experimentally capture characteristic spectral signatures of dynamical bifurcations, such as period-doubling, quasiperiodicity (two- and three-frequency), and torus length-doubling. The experimental results show strong qualitative agreement with the numerical predictions, despite noise and parameter mismatches. This study establishes SBD as an effective tool for the experimental analysis of nonlinear dynamical systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents an experimental framework using analog electronic circuits and data acquisition (DAQ) systems to generate spectral bifurcation diagrams (SBDs) in real time. It demonstrates the capture of characteristic spectral signatures for period-doubling, two- and three-frequency quasiperiodicity, and torus length-doubling routes, reporting strong qualitative agreement with independent numerical simulations despite the presence of noise and parameter mismatches. Circuit schematics, parameter values, and side-by-side experimental/numerical diagrams are provided.

Significance. If the central claim holds, this constitutes the first experimental realization of SBDs, extending prior numerical work into hardware and offering a practical frequency-domain tool for identifying bifurcations in nonlinear systems. The inclusion of full circuit details, DAQ settings, and reproducible side-by-side comparisons is a clear strength that supports verification by others. The approach could be useful for experimentalists working with analog or electronic realizations of nonlinear oscillators where time-series data is directly accessible.

major comments (2)
  1. [Results section] Results section: The repeated claim of 'strong qualitative agreement' between experimental and numerical SBDs is based solely on visual inspection of diagrams; no quantitative metrics (e.g., spectral correlation, L2 distance, or overlap measures) or error bars on frequency locations are reported. This makes the assessment of agreement subjective and potentially sensitive to post-processing choices or frequency-range selection.
  2. [Experimental setup] Experimental setup: While component tolerances and noise are acknowledged, there is no quantitative sensitivity analysis showing how realistic variations in resistor/capacitor values shift the observed bifurcation parameters or spectral lines relative to the ideal mathematical model. This directly bears on whether the analog circuit faithfully reproduces the target dynamics without unmodeled distortions.
minor comments (2)
  1. [Figures] Figure captions would benefit from explicit statements of the parameter sweep range, number of averaged spectra per SBD, and frequency axis scaling used for each panel to aid direct comparison.
  2. Clarify the precise definition and measurement protocol for 'torus length-doubling' in the text, as the term appears in both abstract and results without a dedicated equation or procedural description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation of minor revision. The comments highlight opportunities to strengthen the objectivity of our claims and the robustness discussion. We address each major comment below.

read point-by-point responses

  1. Referee: [Results section] Results section: The repeated claim of 'strong qualitative agreement' between experimental and numerical SBDs is based solely on visual inspection of diagrams; no quantitative metrics (e.g., spectral correlation, L2 distance, or overlap measures) or error bars on frequency locations are reported. This makes the assessment of agreement subjective and potentially sensitive to post-processing choices or frequency-range selection.

    Authors: We agree that visual inspection alone leaves room for subjectivity. In the revised manuscript we will supplement the figures with a quantitative metric: the average Pearson correlation coefficient computed between the normalized spectral power maps of the experimental and numerical SBDs over the displayed frequency bands for each route. We will also report standard deviations on the measured frequencies of prominent spectral lines where peaks can be reliably identified above the noise floor. These additions will make the degree of agreement more objective while preserving the experimental character of the work. revision: yes

  2. Referee: [Experimental setup] Experimental setup: While component tolerances and noise are acknowledged, there is no quantitative sensitivity analysis showing how realistic variations in resistor/capacitor values shift the observed bifurcation parameters or spectral lines relative to the ideal mathematical model. This directly bears on whether the analog circuit faithfully reproduces the target dynamics without unmodeled distortions.

    Authors: A full Monte-Carlo sensitivity study with varied physical components would require new experimental runs that exceed the scope of the present demonstration. In the revision we will instead add a first-order analytic estimate in the discussion section: using the circuit equations we propagate typical 1 % resistor and 5 % capacitor tolerances to obtain bounds on the expected shifts of the bifurcation parameters and the locations of spectral lines. These bounds are shown to be consistent with the small mismatches observed between experiment and ideal numerics, thereby quantifying the fidelity of the analog realization without additional hardware measurements. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

This experimental paper develops an automated framework for acquiring spectral bifurcation diagrams from analog electronic circuits and compares the measured spectra directly to independent numerical simulations of the target nonlinear system. No mathematical derivation chain exists that reduces a claimed prediction or first-principles result to its own inputs by construction; the central results consist of hardware schematics, parameter values, DAQ settings, and side-by-side experimental/numerical spectral diagrams whose agreement is assessed qualitatively. Prior numerical work on SBDs is cited only as motivation, not as a load-bearing uniqueness theorem or ansatz that the present experiment merely renames. The study is therefore self-contained against external benchmarks (circuit measurements) and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the physical analog circuit implements the target nonlinear dynamics with sufficient fidelity for spectral signatures to be observable and comparable to numerics; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption The analog electronic circuit accurately realizes the intended nonlinear dynamical system without significant unmodeled effects
    Invoked to justify direct comparison between measured SBDs and numerical predictions
