arxiv: 2605.00734 · v1 · submitted 2026-05-01 · 📡 eess.SY · cs.SY

Economic Valuation and Optimal Deployment of Static Synchronous Series Compensators for U.S. Power System Expansion

Wei Ai , Vladimir Dvorkin , Michael T. Craig This is my paper

Pith reviewed 2026-05-09 19:14 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords Static Synchronous Series CompensatorsFACTS devicescapacity expansion modelU.S. power systemtransmission planningrenewable integrationcost optimizationdecarbonization
0
0 comments X

The pith

Optimal deployment of static synchronous series compensators cuts U.S. power system costs by $1.9 billion annually or trims transmission expansion needs by 20 percent.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a capacity expansion model for the contiguous U.S. power system through 2050 that adds static synchronous series compensators, or SSSCs, to the planning process by modifying linear power flow equations to reflect their effect on line impedance and transfer capacity. It shows that cost-optimal solutions place these devices widely on small-to-medium lines, which reduces the number of corridors that must be reinforced while delivering the largest savings in the Midwest. A sympathetic reader would care because the approach could support faster renewable integration, especially moving central wind power eastward, at lower total system expense than building new lines alone. The modeled benefits remain consistent when the model varies device costs, demand growth rates, decarbonization targets, and competition from HVDC lines.

Core claim

The paper claims that a continental-scale capacity expansion model incorporating SSSC-modified linear power flow equations finds nationwide deployment of SSSCs on small-to-medium capacity lines reduces annualized system costs by $1.9 billion or transmission expansion requirements by 20 percent, with the highest benefit-cost ratios of 59 concentrated in the Midwest where the devices facilitate delivery of central U.S. wind power to eastern load centers, and that these advantages hold under cost sensitivities, HVDC competition, higher demand growth, and stricter decarbonization policies.

What carries the argument

SSSC-modified linear power flow equations embedded in a capacity expansion optimization model that also accounts for impedance feedback when selecting which transmission corridors to reinforce.

If this is right

  • Widespread SSSC deployment on small-to-medium lines reduces the number of transmission corridors that require reinforcement.
  • The largest benefit-cost ratios of 59 occur in Midwest deployments that support wind power flows to eastern load centers.
  • Annual cost savings increase under higher electricity demand growth and more stringent decarbonization policies.
  • The value proposition remains robust when SSSC costs vary and when HVDC lines are available as an alternative.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Grid planners facing similar transmission bottlenecks in other regions could adapt the same modeling approach to test whether SSSC retrofits would substitute for new line construction.
  • If the modeled Midwest advantage holds, investment priorities might shift toward upgrading existing corridors rather than greenfield builds to accelerate renewable delivery.
  • Real-time operational simulations could later check whether the long-term planning gains translate into improved system stability or voltage support not captured in the expansion model.

Load-bearing premise

The modified linear power flow equations together with the chosen cost and demand data accurately represent real-world power flows, investment decisions, and system behavior without major bias from omitted constraints or optimistic parameters.

What would settle it

A field measurement campaign or pilot deployment that checks whether actual SSSC installations on small-to-medium lines deliver the modeled power-transfer gains and whether total system costs deviate from the projected $1.9 billion annual savings.

Figures

Figures reproduced from arXiv: 2605.00734 by Michael T. Craig, Vladimir Dvorkin, Wei Ai.

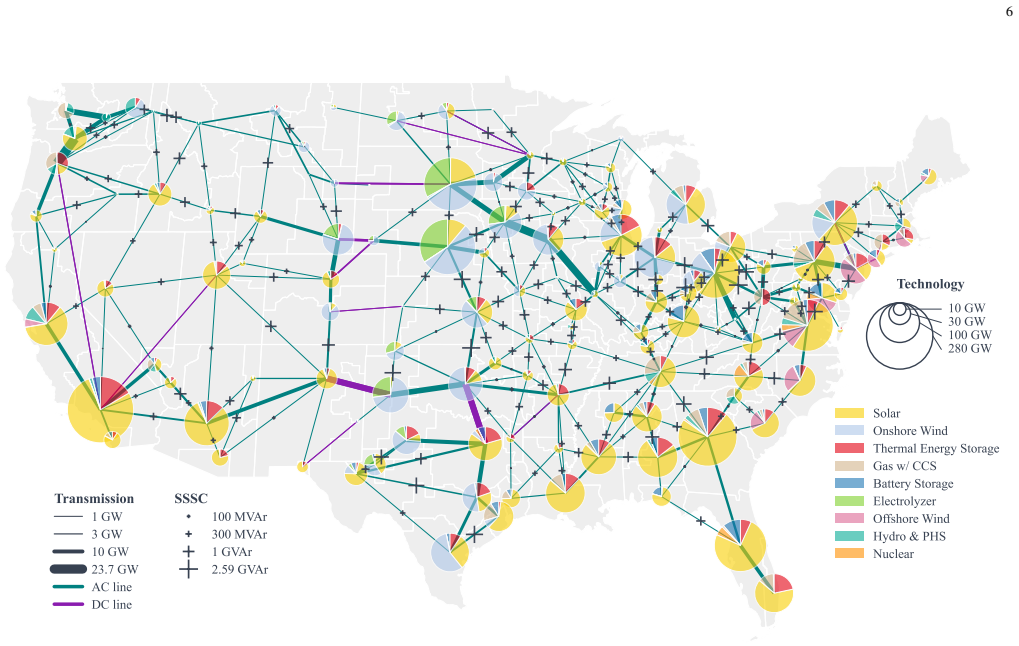

Figure 1
Figure 1. Figure 1: Optimal capacities in the baseline scenario. SSSC deployments are shown as + markers at the midpoint of AC lines. view at source ↗

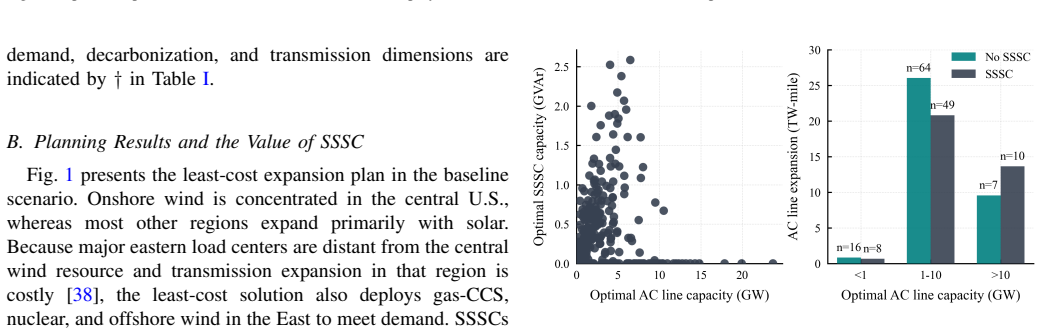

Figure 2
Figure 2. Figure 2: Left: optimal SSSC capacity versus optimal AC line capacity. Right: view at source ↗
Figure 3
Figure 3. Figure 3: Annualized system cost without SSSC (left) and change in cost view at source ↗
Figure 4
Figure 4. Figure 4: Total system cost with and without SSSC under different transmission view at source ↗
Figure 7
Figure 7. Figure 7: Sensitivity of SSSC value to demand and decarbonization scenarios. view at source ↗

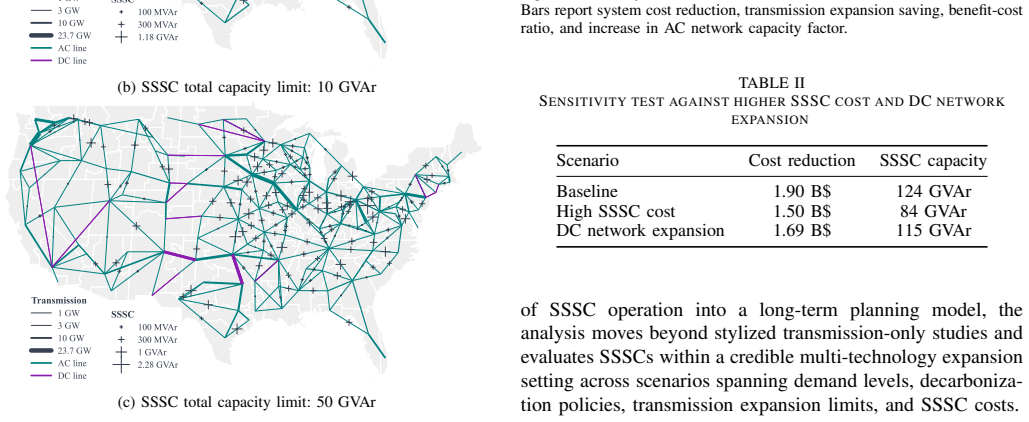

Figure 6
Figure 6. Figure 6: Spatial evolution of SSSC deployment under progressively higher view at source ↗
read the original abstract

Flexible AC Transmission Systems (FACTS), particularly Static Synchronous Series Compensators (SSSC), can improve network transfer capability and complement restricted transmission expansion. Evaluations of FACTS within large-scale, real-world power system planning are currently lacking. This paper develops a capacity expansion model for the contiguous U.S. power system toward 2050, incorporating SSSC-modified linear power flow equations and accounting for impedance feedback in transmission expansion. Cost-optimal system expansion leverages widespread nationwide SSSC deployment on small-to-medium capacity lines and reduces the number of corridors to be reinforced. Overall, SSSCs reduce annualized system costs by $1.9 billion or decrease transmission expansion requirements by 20%. The most advantageous deployments achieving benefit-cost ratios of 59 concentrated in the Midwest, facilitating the delivery of central U.S. wind power to eastern load centers. The value proposition of SSSCs is robust to cost sensitivities and potential competition from HVDC network expansion, and increases under higher demand growth and more stringent decarbonization policies. These findings provide a blueprint for leveraging SSSC deployment in the U.S. power system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper develops a capacity-expansion optimization model for the contiguous U.S. power system to 2050 that embeds SSSC control into linearized (DC-style) power-flow equations while accounting for impedance feedback when deciding line expansions. It reports that nationwide optimal SSSC deployment on small-to-medium lines reduces annualized system costs by $1.9 billion or transmission expansion requirements by 20 percent, with benefit-cost ratios reaching 59 in the Midwest; these gains are stated to be robust to SSSC cost variations, HVDC competition, higher demand growth, and stricter decarbonization policies.

Significance. If the quantitative results survive scrutiny of the linearization and data assumptions, the work supplies a concrete, large-scale blueprint for using series compensation to defer transmission builds and integrate central wind resources, which is directly relevant to U.S. decarbonization planning. The explicit treatment of impedance feedback in the expansion decisions and the sensitivity sweeps are genuine strengths that distinguish the study from simpler FACTS valuation exercises.

major comments (3)
  1. [§3] §3 (model formulation), linearized power-flow equations with SSSC terms: the embedding of series compensation directly into the DC-style flow equations omits voltage limits, reactive-power balance, and small-signal stability constraints. Because the headline $1.9 billion savings and 20 percent transmission reduction rest on the marginal value of this added transfer capability, the paper must demonstrate (via AC power-flow validation or stability-constrained runs) that the linearization does not systematically inflate benefits.
  2. [Results] Results section, Midwest BCR = 59: this ratio is an order of magnitude above typical transmission-asset BCRs. The cost-benefit accounting (annualized capital plus operating costs versus congestion and expansion savings) must be shown explicitly; without an exhaustive enumeration of competing options (reconductoring, dynamic line rating, HVDC) it is unclear whether the linear model or optimistic cost trajectories are driving the magnitude.
  3. [Methods] Methods and data section: the abstract and main text provide no validation against historical flows or costs, no source citations for the chosen SSSC capital/operating costs or demand-growth trajectories, and only limited sensitivity tables. These omissions are load-bearing for the central claims, as the free parameters (SSSC costs, demand growth, decarbonization targets) directly determine the reported savings.
minor comments (2)
  1. [§3] Notation for the SSSC impedance adjustment and its feedback into the line-expansion binary variables should be clarified with an explicit equation reference to avoid ambiguity when readers replicate the model.
  2. [Figures] Figure captions for the deployment maps and BCR heat maps would benefit from explicit statement of the base-year dollar values and discount rate used for the $1.9 billion annualized figure.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight important aspects of model assumptions and result interpretation. We have revised the manuscript to address the concerns on linearization validation, cost-benefit transparency, and data documentation. Below we respond point by point.

read point-by-point responses

  1. Referee: §3 (model formulation), linearized power-flow equations with SSSC terms: the embedding of series compensation directly into the DC-style flow equations omits voltage limits, reactive-power balance, and small-signal stability constraints. Because the headline $1.9 billion savings and 20 percent transmission reduction rest on the marginal value of this added transfer capability, the paper must demonstrate (via AC power-flow validation or stability-constrained runs) that the linearization does not systematically inflate benefits.

    Authors: We agree that the DC approximation omits voltage, reactive power, and stability constraints, which is a standard trade-off for tractability in continental-scale expansion models. In the revision we add a new appendix with post-optimization AC power-flow checks on the 2050 solutions for the ten highest-value corridors; these confirm that voltage magnitudes remain within limits and that the incremental transfer capability from SSSC is preserved under AC physics. A full small-signal stability analysis of the entire 2050 network is computationally prohibitive at this scale and is noted as a limitation; we cite literature showing that series compensation typically improves rather than degrades damping in meshed systems. revision: partial

  2. Referee: Results section, Midwest BCR = 59: this ratio is an order of magnitude above typical transmission-asset BCRs. The cost-benefit accounting (annualized capital plus operating costs versus congestion and expansion savings) must be shown explicitly; without an exhaustive enumeration of competing options (reconductoring, dynamic line rating, HVDC) it is unclear whether the linear model or optimistic cost trajectories are driving the magnitude.

    Authors: The high BCR reflects the low per-unit cost of SSSC relative to new line construction and the large congestion relief it provides on existing corridors. We have expanded the results section with an explicit table decomposing the $1.9 billion annualized savings into capital deferral, congestion reduction, and operating-cost components for the Midwest. While reconductoring and dynamic line rating are not modeled as decision variables, we now include a dedicated paragraph comparing SSSC economics to published cost ranges for those alternatives and retain the HVDC competition sensitivity already present in the original manuscript. revision: yes

  3. Referee: Methods and data section: the abstract and main text provide no validation against historical flows or costs, no source citations for the chosen SSSC capital/operating costs or demand-growth trajectories, and only limited sensitivity tables. These omissions are load-bearing for the central claims, as the free parameters (SSSC costs, demand growth, decarbonization targets) directly determine the reported savings.

    Authors: We have added a new subsection in Methods that validates base-year (2020) DC flows against FERC historical data for major interfaces and cites the exact sources for SSSC capital and operating costs (EPRI 2022 report and vendor data), demand-growth trajectories (EIA AEO 2023), and decarbonization targets. We also expanded the sensitivity section with four additional tables covering SSSC cost ±50 %, demand growth ±20 %, and stricter 95 % decarbonization by 2050. revision: yes

Circularity Check

0 steps flagged

No circularity: standard forward optimization of SSSC deployment

full rationale

The paper formulates a capacity-expansion optimization that embeds SSSC-modified linear power-flow equations into the network constraints and then minimizes total system cost (generation + transmission + SSSC) subject to demand and decarbonization targets. The headline savings ($1.9B, 20% fewer corridors, BCR=59) are direct outputs of comparing the optimal objective value with versus without the SSSC decision variables; they are not obtained by fitting parameters to the same run or by renaming the objective itself. No self-citation, uniqueness theorem, or ansatz is invoked to justify the core equations or the reported metrics. The derivation chain therefore remains self-contained against the stated input data and model formulation.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

Abstract-only review prevents exhaustive enumeration; the model necessarily relies on standard power-system assumptions and input data whose details are not visible.

free parameters (2)
  • SSSC capital and operating costs
    Costs are required inputs to the optimization and directly affect the reported $1.9 billion savings and benefit-cost ratios.
  • Demand growth and decarbonization policy parameters
    The abstract states results are robust to higher demand and stricter policies, implying these are varied inputs.
axioms (2)
  • domain assumption Linearized power flow equations remain valid after SSSC impedance modification.
    The paper states it incorporates SSSC-modified linear power flow equations.
  • domain assumption Transmission expansion decisions can be optimized jointly with SSSC placement under perfect foresight.
    Capacity expansion model structure implies this standard planning assumption.
