HyperCertificates: Verification of Discrete-time Dynamical Systems against HyperLTL Specifications
Pith reviewed 2026-05-09 19:09 UTC · model grok-4.3
The pith
HyperCertificates enable inductive verification of HyperLTL hyperproperties for discrete-time dynamical systems.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors introduce a functional inductive framework to verify discrete-time dynamical systems against HyperLTL formulae via HyperCertificates consisting of a pair of functions, where the first models the lookahead and the second relies on a combination of barrier and ranking functions. Closure certificates act as the model for this lookahead, allowing barrier and ranking function arguments to provide guarantees against the HyperLTL formulae. The approach is automatable via sum-of-squares optimization and satisfiability modulo theories solvers, and is demonstrated on case studies.
What carries the argument
HyperCertificates, a pair of functions in which the first models lookahead via closure certificates and the second uses barrier and ranking functions to discharge inductive obligations for HyperLTL specifications.
If this is right
- Hyperproperties such as opacity and privacy can be verified for discrete-time systems by reducing the problem to inductive conditions modulo a lookahead model.
- Sum-of-squares optimization and SMT solvers become applicable tools for discharging the verification obligations.
- The separation of lookahead modeling from the barrier-ranking step allows the same framework to handle a range of HyperLTL formulae.
- Case studies show the method applies directly to concrete dynamical systems without manual trace enumeration.
Where Pith is reading between the lines
- The separation into lookahead and inductive components may suggest similar decompositions for other temporal logics that quantify over multiple traces.
- If closure certificate construction can be automated further, the overall procedure could scale to larger state spaces than direct model checking.
- The reliance on barrier and ranking functions opens the possibility of importing synthesis techniques already developed for safety and termination proofs.
Load-bearing premise
That closure certificates can be constructed to capture the lookahead needed for arbitrary HyperLTL formulae and that barrier and ranking functions exist which can be found by SOS or SMT solvers for the given system.
What would settle it
A discrete-time system and HyperLTL formula for which the system satisfies the property yet no HyperCertificate pair exists, or an SOS/SMT solver returns no solution even though such functions are known to exist.

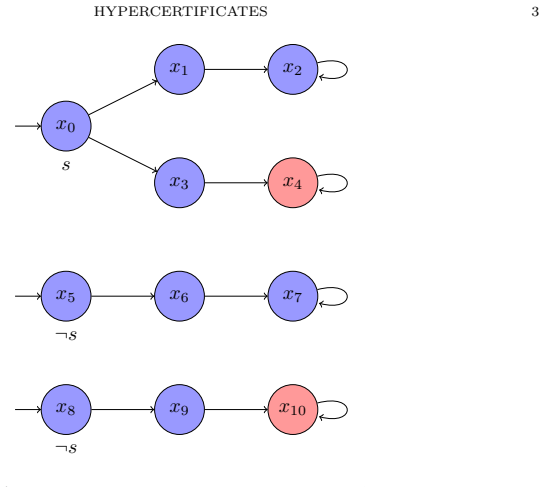

Figures

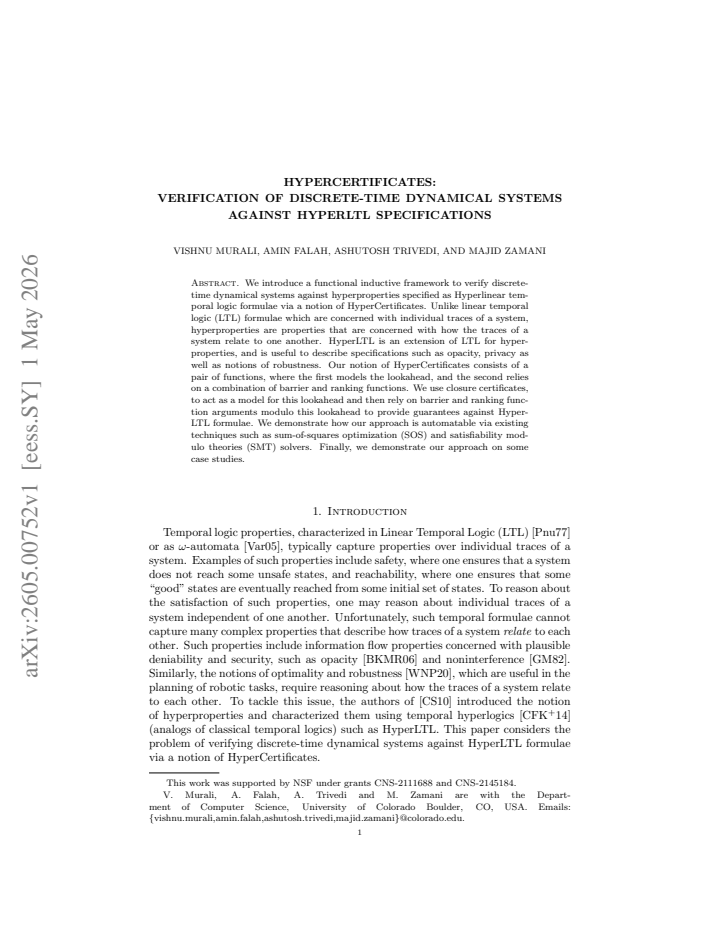

read the original abstract
We introduce a functional inductive framework to verify discrete-time dynamical systems against hyperproperties specified as Hyperlinear temporal logic formulae via a notion of HyperCertificates. Unlike linear temporal logic (LTL) formulae which are concerned with individual traces of a system, hyperproperties are properties that are concerned with how the traces of a system relate to one another. HyperLTL is an extension of LTL for hyperproperties, and is useful to describe specifications such as opacity, privacy as well as notions of robustness. Our notion of HyperCertificates consists of a pair of functions, where the first models the lookahead, and the second relies on a combination of barrier and ranking functions. We use closure certificates, to act as a model for this lookahead and then rely on barrier and ranking function arguments modulo this lookahead to provide guarantees against HyperLTL formulae. We demonstrate how our approach is automatable via existing techniques such as sum-of-squares optimization (SOS) and satisfiability modulo theories (SMT) solvers. Finally, we demonstrate our approach on some case studies.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a functional inductive framework to verify discrete-time dynamical systems against HyperLTL specifications using HyperCertificates, defined as a pair of functions where the first models lookahead via closure certificates and the second combines barrier and ranking functions. The approach is claimed to be automatable via sum-of-squares optimization and SMT solvers, with illustrations on case studies.
Significance. If the framework correctly discharges inductive obligations for a non-trivial class of HyperLTL formulae, it would extend classical barrier/ranking techniques to hyperproperties such as opacity and robustness, with the automation route via SOS/SMT offering a practical strength for control-system verification.
major comments (2)
- [Section introducing HyperCertificates and closure certificates] The central claim that closure certificates suffice to model lookahead for arbitrary HyperLTL formulae is load-bearing but unsupported in general. For formulae containing 'eventually' operators under trace quantifiers, the required lookahead can be unbounded or state-dependent, so the inductive step using barrier/ranking functions may not be dischargeable; this needs an explicit restriction on the supported fragment or a proof that finite closure certificates always exist.
- [Section on automation via SOS/SMT] No theorem or proof sketch is supplied showing that the HyperCertificate obligations reduce to SOS or SMT problems for the claimed class of formulae; without this, the automation claim cannot be evaluated and the soundness of the inductive framework remains open.
minor comments (2)
- [Abstract] The abstract states that the method is demonstrated on case studies but supplies no quantitative metrics, specific HyperLTL formulae, or system dimensions, which weakens the reader's ability to assess practical utility.
- [Preliminaries and definitions] Notation for the pair of functions in a HyperCertificate and the precise inductive obligations should be introduced with a small running example before the general case.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. The comments highlight important points regarding the scope of the HyperCertificate framework and the automation claims. We address each major comment below and will incorporate clarifications and additions in the revised manuscript.
read point-by-point responses
-
Referee: [Section introducing HyperCertificates and closure certificates] The central claim that closure certificates suffice to model lookahead for arbitrary HyperLTL formulae is load-bearing but unsupported in general. For formulae containing 'eventually' operators under trace quantifiers, the required lookahead can be unbounded or state-dependent, so the inductive step using barrier/ranking functions may not be dischargeable; this needs an explicit restriction on the supported fragment or a proof that finite closure certificates always exist.
Authors: We agree that the general claim for arbitrary HyperLTL is not supported, as unbounded or state-dependent lookahead can arise with 'eventually' operators. The manuscript's examples and definitions target a fragment consisting of safety hyperproperties and bounded-lookahead specifications (e.g., opacity and certain robustness notions) for which finite closure certificates suffice. We will revise the introduction, the HyperCertificate definition, and the main theorem to explicitly restrict to this fragment and state that we do not claim finite closure certificates exist for all HyperLTL formulae. Within the supported fragment the inductive step with barrier and ranking functions is valid. revision: yes
-
Referee: [Section on automation via SOS/SMT] No theorem or proof sketch is supplied showing that the HyperCertificate obligations reduce to SOS or SMT problems for the claimed class of formulae; without this, the automation claim cannot be evaluated and the soundness of the inductive framework remains open.
Authors: The HyperCertificate conditions are implications over the system dynamics and the certificate functions; for polynomial dynamics these become polynomial inequalities that reduce to SOS programs, while for general dynamics they become first-order formulas amenable to SMT solvers, consistent with standard barrier-certificate encodings. We will add a new theorem in the automation section that formally states this reduction for the supported HyperLTL fragment, together with a concise proof sketch showing how each inductive obligation maps to an SOS constraint or SMT query. This will make both the automation route and the overall soundness explicit. revision: yes
Circularity Check
No circularity: HyperCertificate definition and verification obligations are independently constructed
full rationale
The paper introduces HyperCertificates as an explicit pair of functions (lookahead modeled by closure certificates, verification via barrier/ranking functions) and discharges the resulting inductive obligations using standard SOS/SMT solvers on the given system dynamics. No equation or claim reduces by construction to a fitted parameter, self-definition, or prior self-citation; the framework extends existing LTL barrier techniques to HyperLTL without renaming known results or smuggling ansatzes. The derivation chain remains self-contained against external benchmarks such as HyperLTL semantics and sum-of-squares programming.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Discrete-time dynamical systems admit transition functions that can be analyzed inductively.
invented entities (1)
-
HyperCertificates
no independent evidence
