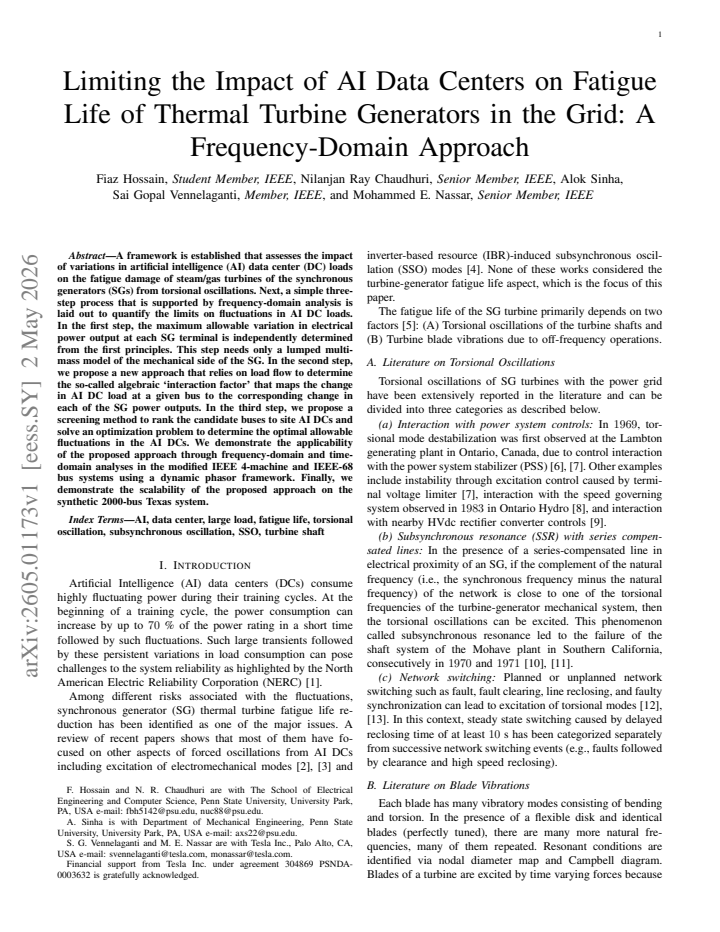

Limiting the Impact of AI Data Centers on Fatigue Life of Thermal Turbine Generators in the Grid: A Frequency-Domain Approach

Fiaz Hossain , Nilanjan Ray Chaudhuri , Alok Sinha , Sai Gopal Vennelaganti , Mohammed E. Nassar This is my paper

Pith reviewed 2026-05-09 18:37 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords AI data centerstorsional fatiguesynchronous generatorsfrequency-domain analysisload flowpower system stabilityfatigue lifegrid integration
0
0 comments X

The pith

A three-step frequency-domain method sets safe limits on AI data center load fluctuations to avoid excess torsional fatigue in grid turbine generators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out a framework to evaluate how rapid changes in artificial intelligence data center electricity demand create torsional oscillations that shorten the fatigue life of steam and gas turbines attached to synchronous generators. It presents a three-step procedure: first calculate the largest safe power swing at each generator using only its mechanical multi-mass model, then compute an algebraic interaction factor from ordinary load-flow studies that converts a load change at any data center bus into the resulting power change at every generator, and finally screen possible siting locations and solve an optimization to find the largest allowable fluctuations that keep every generator inside its safe mechanical limits. The approach relies on frequency-domain analysis rather than repeated full time-domain simulations, and the authors show it works on standard test systems up to the 2000-bus Texas model. A reader would care because data centers are growing quickly and their load swings could otherwise reduce the operating life of expensive grid assets without operators noticing until damage accumulates.

Core claim

The impact of AI data center load variations on synchronous-generator torsional fatigue can be quantified and limited by first deriving per-generator mechanical power limits from first principles, then using load-flow-derived algebraic interaction factors to translate bus-level load changes into generator-level power changes, and finally applying frequency-domain screening plus optimization to set safe fluctuation bounds at candidate data-center sites.

What carries the argument

The algebraic interaction factor derived from load-flow analysis, which directly maps a change in AI data center load at a given bus to the corresponding change in electrical power output at each synchronous generator for use in torsional fatigue assessment.

If this is right

  • Each synchronous generator receives an explicit upper bound on allowable electrical power variation that keeps its turbine within safe torsional fatigue life.
  • Buses can be ranked by their interaction factors so that data centers are preferentially sited where their load swings affect the fewest or least vulnerable generators.
  • An optimization problem yields the largest permissible fluctuation amplitude for every data center bus while satisfying all generator-level mechanical limits simultaneously.
  • The entire procedure scales to systems the size of the synthetic 2000-bus Texas grid without requiring exhaustive dynamic simulation of every candidate site.
  • Frequency-domain analysis supplies the necessary screening information once the mechanical limits and interaction factors are known.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the interaction factor remains stable across operating conditions, the same mapping could support real-time curtailment signals to data centers when grid stress is high.
  • The method could be extended to other fast-varying loads such as large-scale battery storage or electric-vehicle fast-charging hubs by substituting their power profiles into the same three steps.
  • Operators might combine the ranking step with economic incentives to encourage data centers to locate near generators that have greater mechanical damping or spare torsional margin.

Load-bearing premise

The steady-state algebraic interaction factor obtained from load flow accurately predicts the dynamic mapping from AI data center load changes to each generator's electrical power output under the conditions relevant to torsional fatigue.

What would settle it

Run time-domain simulations on the IEEE 68-bus system with the optimized AI data center fluctuation limits from the three-step method and observe whether the resulting torsional stresses at any synchronous generator exceed the fatigue thresholds calculated from the first step.

Figures

Figures reproduced from arXiv: 2605.01173 by Alok Sinha, Fiaz Hossain, Mohammed E. Nassar, Nilanjan Ray Chaudhuri, Sai Gopal Vennelaganti.

Figure 1
Figure 1. Figure 1: (a) The rth shaft section; (b) A single-frequency stress variation with time. electromagnetic torque; δr is the angular displacement of mass r in a synchronously rotating frame in elect. rad.; ωr is the angular speed of mass r in elect. rad/s; and ωs is the synchronous speed in elect. rad/s. Note that Te is present only in the generator mass, and Tm is not present in both the generator and the exciter mass… view at source ↗
Figure 3
Figure 3. Figure 3: “Augmented” modified Goodman diagram [27]. Step 1.a: Find maximum allowable single-frequency power variation at SG terminal considering torsional oscillations and blade vibrations in subsynchronous zone Step 1.b: Determine maximum allowable multi-frequency power variation at SG terminal using the minimum of the values in step 1.a Step 2: Calculate algebraic interaction factors Step 3: Find maximum allowabl… view at source ↗
Figure 4

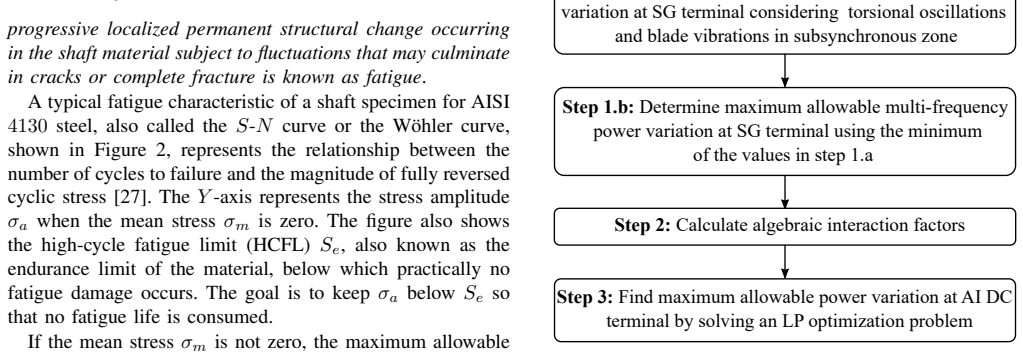

Figure 4. Figure 4: Flowchart of the proposed approach for determining power variation limits of AI DC loads. of no SG in the system is negatively affected. The overall approach is summarized in view at source ↗
Figure 5

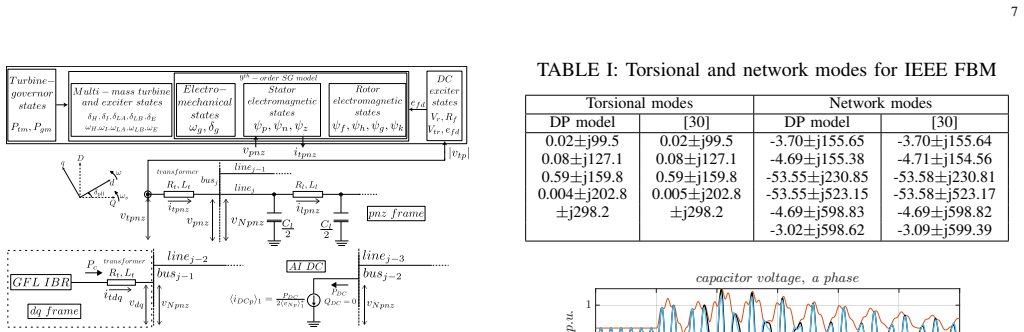

Figure 5. Figure 5: Generalized DP-based modeling framework for multi-mass SGs, transmission system, AI DC loads, and GFL IBRs. Exc Gen LPB LPA IP HP Turbine Infinite bus A B C view at source ↗
Figure 6

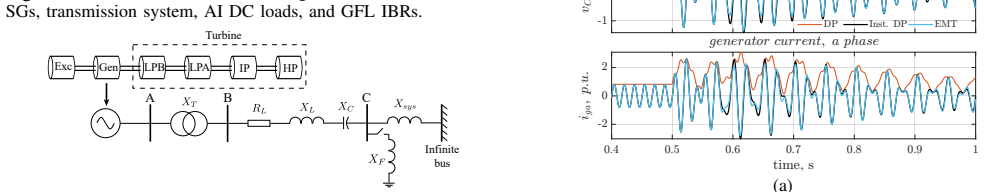

Figure 6. Figure 6: IEEE First benchmark model for SSR [29]. properties of DPs: (1) view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of responses from DP model and EMT model of IEEE FBM. Inst. DP: x(τ ) ≈ P k∈U ⟨x⟩k (t)e jkωsτ . G3 G4 GFL IBR1 AI DC GFL IBR2 view at source ↗
Figure 8

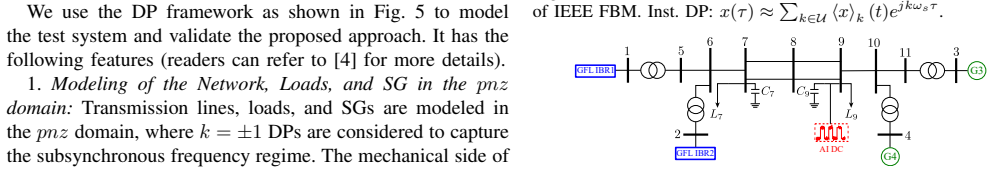

Figure 8. Figure 8: Modified IEEE 4-machine system [32]. the eigenvalues presented in [30]. Moreover, a three phase￾to-ground (LLL-G) fault is applied at bus C in both the DP and a publicly available EMT model of the system in Matlab/Simscape [31]. The simulation results are compared in view at source ↗
Figure 9
Figure 9. Figure 9: Step 1.a for modified IEEE 4-machine system (p.u. on SG base). Notches correspond to torsional mode frequencies. time, s 0 0.5 1 1.5 2 Pd c;t o t al, M W 1740 1760 1780 1800 AI DC load power (a) Pd c , M W 0 10 20 30 40 FFT of AI DC load power variation frequency, Hz 0 10 20 30 40 50 60 X 20.2276 Y 32.3915 (b) time, s 0 20 40 60 80 100 < G E, p.u. -0.5 0 0.5 1 stress at shaft section G ! E of G4 -0.5 0 0.5… view at source ↗
Figure 10
Figure 10. Figure 10: (a) AI DC load power in MW in bus 9; (b) FFT of (a); (c) p.u. stress (cyan) in generator-exciter (G-E) shaft section of G4 with the maximum allowable value (orange) obtained from view at source ↗
Figure 13

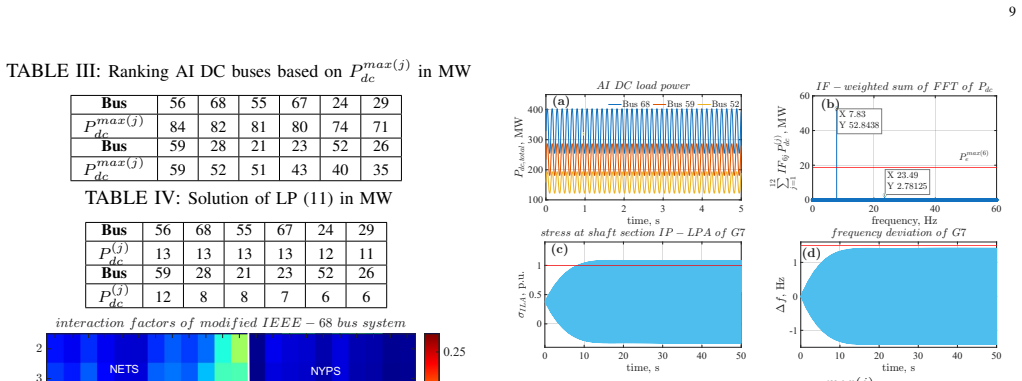

Figure 13. Figure 13: AI DC load variation equaling P max(j) dc with twelve NETS candidate buses: (a) AI DC load variation in three representative buses; (b) P12 j=1 IF6jP (j) dc overlapped with P max(6) e ; (c) p.u. stress (cyan) in shaft section IP-LPA of G7 with maximum allowable value (orange) as base; and (d) frequency deviation (cyan) overlapped with maximum allowed (orange). heatmap of normalized variables generator G2 … view at source ↗
Figure 12

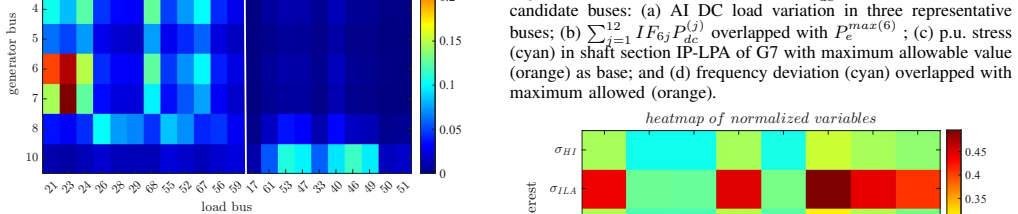

Figure 12. Figure 12: Algebraic IFs of modified IEEE-68 bus system. and not the whole system; therefore, we consider only the buses in NETS as candidates, which are ranked based on p.u. P max(j) dc in Table III. The values of P max(j) dc obtained from algebraic IFs are conservative and their ratios with P max(j) dc,actual range between 0.75 and 1. Suppose that we consider all of the twelve buses with AI DC loads in NETS (since… view at source ↗
Figure 14

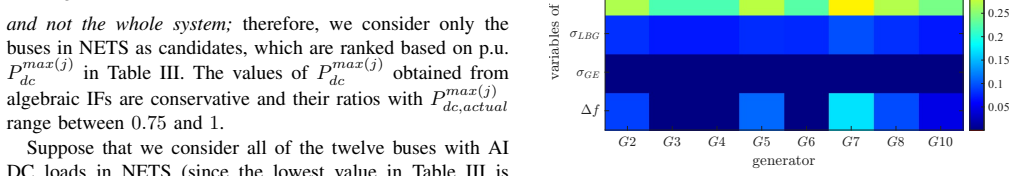

Figure 14. Figure 14: Fluctuations in AI DC loads respect limits obtained from LP: Heatmap of the resulting transient peak stresses and deviations in frequency normalized with respect to corresponding limits in eight SGs in modified IEEE-68 bus system. 1123 loads is considered. We solve the LP focusing on the 39 generators in Zone 1 assumed as thermal units (P max(i) e assumed as 1% of generator rating) and take all load buses… view at source ↗
Figure 15
Figure 15. Figure 15: Algebraic IFs of 2000-bus Texas system. no. of AI DC loads 14 13 limit o n s u m o f F F T c o m p o n e n t s P (j) d c , M W 10 15 20 25 30 35 box plot of solution of (11) view at source ↗
Figure 16

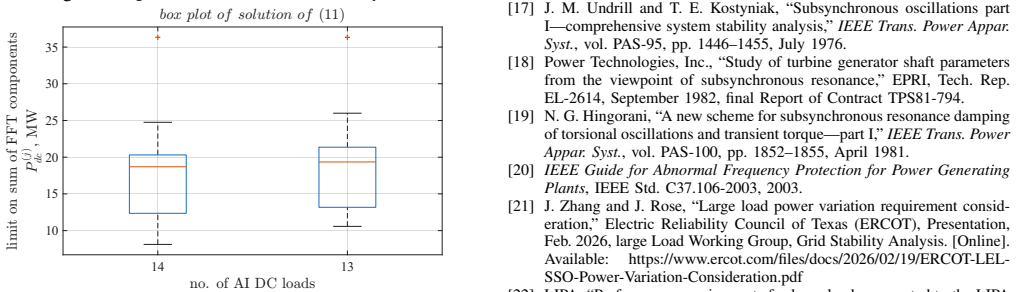

Figure 16. Figure 16: Box plots of LP solutions for 2000-bus Texas system. scalable and easily accessible approach that helps to determine reasonably conservative optimal variations in AI DC loads in the frequency domain without impacting turbine fatigue life. The optimum limit is on the sum of the amplitudes of the subsynchronous frequency components of each AI DC load. An FFT can be performed on the AI DC power consumption t… view at source ↗
