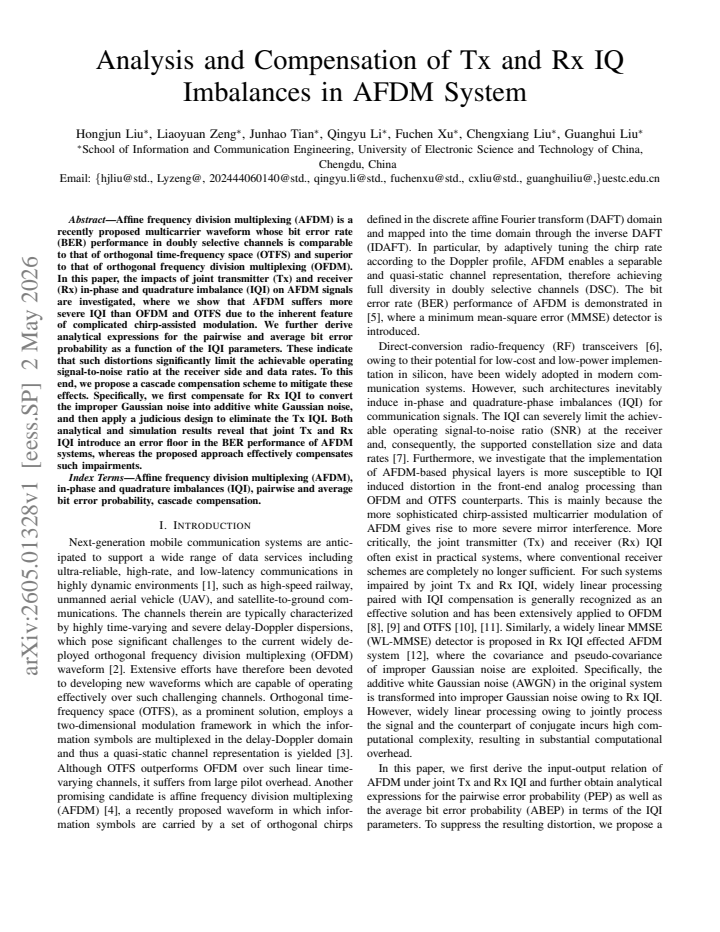

Analysis and Compensation of Tx and Rx IQ Imbalances in AFDM System

Hongjun Liu , Liaoyuan Zeng , Junhao Tian , Qingyu Li , Fuchen Xu , Chengxiang Liu , Guanghui Liu This is my paper

Pith reviewed 2026-05-09 18:43 UTC · model grok-4.3

classification 📡 eess.SP
keywords AFDMIQ imbalancetransmitter receiver impairmentsBER analysiscompensation schemechirp modulationimproper noise
0
0 comments X

The pith

Joint Tx and Rx IQ imbalances create an error floor in AFDM bit error rates that a cascade compensation scheme removes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how in-phase and quadrature imbalances at the transmitter and receiver distort affine frequency division multiplexing signals. It establishes that AFDM experiences stronger effects than OFDM or OTFS because its chirp-assisted modulation turns the imbalances into improper noise and residual signal terms. The authors derive closed-form pairwise and average bit error probabilities that show these distortions cap the usable signal-to-noise ratio and achievable rates. They then introduce a cascade compensation method that first removes receiver imbalance to restore additive white Gaussian noise statistics and afterward cancels transmitter imbalance through a specific signal design. If the approach holds, AFDM can deliver its promised performance in real radio hardware without the error floors that otherwise appear at moderate to high SNR.

Core claim

Joint transmitter and receiver IQ imbalance in AFDM produces an irreducible error floor in bit error rate because the chirp-assisted modulation converts the impairments into improper Gaussian noise and inter-symbol interference that standard receivers cannot eliminate; the proposed cascade scheme first compensates receiver IQ imbalance to convert the noise back to proper additive white Gaussian noise and then applies a judicious precoding design to null the transmitter IQ imbalance, restoring the bit error rate curve to its ideal slope.

What carries the argument

The cascade compensation scheme that first corrects receiver IQ imbalance to convert improper Gaussian noise into additive white Gaussian noise and then eliminates transmitter IQ imbalance through a judicious signal design.

If this is right

  • AFDM can reach the same high-SNR bit error rates as ideal balanced hardware when the cascade scheme is used.
  • The derived pairwise error probability expressions give exact predictions of the operating SNR limits imposed by any given level of IQ imbalance.
  • The compensation steps preserve the doubly selective channel robustness that distinguishes AFDM from OFDM.
  • Data-rate targets that were previously unreachable because of the error floor become attainable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers of future multicarrier systems for high-mobility links may need to embed similar IQI-aware preprocessing as a standard block rather than an optional add-on.
  • The comparison of AFDM severity against OTFS and OFDM suggests a practical test: measure which waveform shows the lowest error floor in the same hardware before choosing one for deployment.
  • Extending the cascade idea to joint estimation of both IQ parameters and channel coefficients in one receiver stage could reduce overhead in fast-fading scenarios.

Load-bearing premise

The IQ imbalance parameters must be known exactly or estimated without error at the receiver so the cascade steps can be applied perfectly.

What would settle it

A high-SNR simulation or over-the-air test in which the bit error rate continues to fall after the cascade compensation is applied, rather than flattening into a visible floor, would confirm the claim.
