Doppler Tomography Using Rydberg Sensors

Peter Vouras , Bariscan Yonel , Alexandra Artusio-Glimpse This is my paper

Pith reviewed 2026-05-09 18:07 UTC · model grok-4.3

classification 📡 eess.SP
keywords Rydberg sensorsDoppler tomographyelectromagnetically induced transparencylocal oscillator modulationimage deblurringquantum sensingelectromagnetic field imaging
0
0 comments X

The pith

Rydberg sensors perform Doppler tomography by modulating the local oscillator to place nulls and applying a deblurring algorithm.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models Rydberg atom sensors that use electromagnetically induced transparency to measure the magnitude of impinging electric fields and shows how these can be arranged for tomographic imaging of electromagnetic sources. The authors introduce a technique that modulates the radiated local oscillator signal to introduce controlled nulls at chosen locations in the reconstructed image while recovering phase information from the atomic response. They also describe an algorithm that reduces blurring in the resulting images. A sympathetic reader would care because Rydberg sensors provide high sensitivity to weak fields in a compact vapor cell, potentially allowing imaging applications where conventional antennas are impractical. If the approach works as modeled, it supplies both a mechanism for directing image features and a way to restore sharpness after the sensing process.

Core claim

Within a modeled set of system dynamics for Rydberg sensors under electromagnetically induced transparency, modulating the radiated local oscillator places nulls in the Doppler tomographic image while an accompanying algorithm deblurs the reconstruction, enabling recovery of both magnitude and phase information from the electric field measurements.

What carries the argument

Modulation of the radiated local oscillator that controls phase recovery and thereby places nulls at selected image locations.

If this is right

  • Tomographic images gain the ability to suppress contributions from chosen directions through engineered nulls.
  • Deblurring restores resolution after the sensing and reconstruction steps.
  • Rydberg sensors become usable for phase-sensitive mapping of propagating electromagnetic fields.
  • The combination of amplitude and phase recovery supports full-field tomographic reconstruction rather than magnitude-only imaging.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The null-placement technique might extend to tracking moving sources by adjusting modulation in real time.
  • Similar modulation ideas could apply to other quantum sensors that recover phase through a reference signal.
  • Field tests in cluttered environments would show whether atomic interactions or external noise limit the predicted null depth.
  • The deblurring step could be adapted to correct for sensor-specific artifacts beyond the modeled dynamics.

Load-bearing premise

The mathematical models of how Rydberg sensors respond to the electric field under EIT and to the modulated local oscillator match real physical behavior closely enough that the predicted nulls and deblurred images appear in practice.

What would settle it

A side-by-side comparison of a physical Rydberg sensor array imaging a known source against the model's predicted null positions and deblurred resolution; failure of the nulls to appear at the modeled locations or of the deblurring to improve clarity would disprove the central claim.

Figures

Figures reproduced from arXiv: 2605.01499 by Alexandra Artusio-Glimpse, Bariscan Yonel, Peter Vouras.

Figure 1
Figure 1. Figure 1: Measurement configuration for coherent Doppler view at source ↗

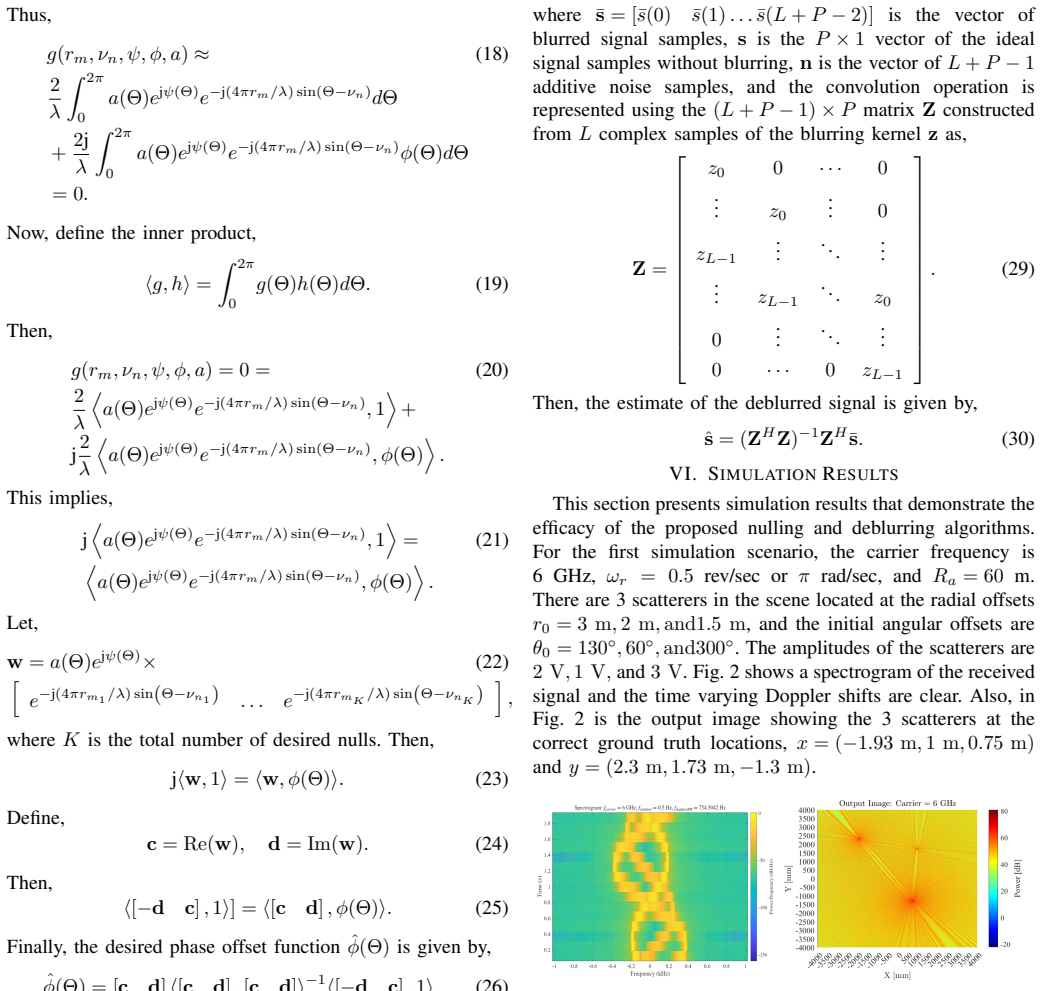

Figure 2
Figure 2. Figure 2: (Left) Spectrogram of received signal. (Right) view at source ↗
Figure 3
Figure 3. Figure 3: (Left) Range to scatterers versus time. (Right) Scatterer view at source ↗
Figure 7
Figure 7. Figure 7: (Left) Radial cut through the adapted image. (Right) view at source ↗
Figure 8
Figure 8. Figure 8: (Left) Blurred image due to distortion from the Rydberg view at source ↗
read the original abstract

Novel sensors that leverage the quantum properties of atoms for measuring propagating electromagnetic fields are becoming increasingly practical for a variety of applications. These sensors rely on the phenomenon of electromagnetically induced transparency (EIT), which is induced in a confined vapor of alkali atoms when the atoms are excited to a high-energy quantum state, known as a Rydberg state, with multiple resonant optical fields. In this state, the atoms are highly sensitive to electromagnetic radiation and yield a measurement output proportional to the magnitude of an impinging electric field when resonant with a Rydberg-Rydberg transition. In this paper, we consider the use of Rydberg sensors for a tomographic imaging application through a set of modeled system dynamics. Our contribution includes a novel method for placing nulls in the image by modulating the radiated local oscillator (LO) that is used to recover phase information from the received signal. We also present an algorithm for deblurring the image.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper proposes a Doppler tomography imaging technique that employs Rydberg-atom sensors operating under electromagnetically induced transparency (EIT). It introduces a method to place nulls in the reconstructed image by modulating the radiated local oscillator (LO) used for phase recovery and presents a deblurring algorithm, with all results obtained from a set of modeled sensor dynamics.

Significance. If the modeled EIT/LO dynamics accurately capture real sensor behavior, the LO-modulation null-placement technique and deblurring algorithm could enable controlled image features and improved resolution in quantum electromagnetic sensing. The work supplies an analytical derivation from the system model, which is a strength, but the complete absence of experimental data or robustness checks against unmodeled effects limits its current applicability and falsifiability.

major comments (1)
  1. [Abstract and modeled system dynamics] Abstract and modeled system dynamics: the headline claims of null placement by LO modulation and successful deblurring are generated entirely from the authors' own EIT/LO model. This is load-bearing for the tomographic result because the manuscript provides no experimental validation, error bars, or analysis of omitted effects (e.g., modulation-induced Doppler shifts, atomic collisions, or EIT decoherence) that could displace the nulls or prevent convergence of the deblurring step.
minor comments (1)
  1. Add an explicit limitations subsection that quantifies the sensitivity of null locations and deblurring convergence to the listed unmodeled effects.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review of our manuscript. We address the major comment on the modeled system dynamics below, noting that the work is explicitly presented as a modeling study.

read point-by-point responses

  1. Referee: [Abstract and modeled system dynamics] Abstract and modeled system dynamics: the headline claims of null placement by LO modulation and successful deblurring are generated entirely from the authors' own EIT/LO model. This is load-bearing for the tomographic result because the manuscript provides no experimental validation, error bars, or analysis of omitted effects (e.g., modulation-induced Doppler shifts, atomic collisions, or EIT decoherence) that could displace the nulls or prevent convergence of the deblurring step.

    Authors: We agree that the headline results for null placement and deblurring follow directly from our EIT/LO model, as stated throughout the manuscript including the abstract. This modeling framework enables the analytical derivations that form the core contribution. The absence of experimental validation is a genuine limitation for assessing real-world applicability, and we do not claim otherwise. To address the concern, we will revise the manuscript by adding a new subsection in the discussion that examines the potential influence of the listed omitted effects (modulation-induced Doppler shifts, atomic collisions, and EIT decoherence). This addition will include qualitative reasoning on how each effect might shift null locations or affect deblurring convergence, supported by order-of-magnitude estimates drawn from established Rydberg-EIT literature, thereby providing robustness bounds without altering the modeled results. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper develops a novel LO modulation technique for null placement and a deblurring algorithm within a set of modeled Rydberg sensor dynamics under EIT. No equations, self-citations, or derivation steps are exhibited in the provided text that reduce the claimed contributions to tautological inputs by construction (e.g., no fitted parameters renamed as predictions or ansatzes smuggled via self-reference). The model functions as an independent physical basis for proposing and simulating the method, which is standard for simulation-driven sensor papers and does not force the results to be equivalent to the inputs. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper rests on a domain model of Rydberg EIT dynamics and LO modulation; no free parameters, new entities, or ad-hoc axioms are enumerated in the abstract.

axioms (1)
  • domain assumption Modeled system dynamics accurately represent Rydberg sensor response to modulated LO and impinging fields for tomographic purposes.
    Invoked to justify the null-placement method and deblurring results.

pith-pipeline@v0.9.0 · 5456 in / 1124 out tokens · 39017 ms · 2026-05-09T18:07:24.942770+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

38 extracted references · 38 canonical work pages

  1. [1]

    Quantum shot noise limit in a Rydberg RF receiver compared to thermal noise limit in a conventional receiver,

    L. W. Bussey, F. A. Burton, K. Bongs, J. Goldwin, and T Whitley, “Quantum shot noise limit in a Rydberg RF receiver compared to thermal noise limit in a conventional receiver,”IEEE Sensors Letters, vol. 6, pp. 1–4, Sep 2022

    work page 2022

  2. [2]

    Quantum-limited atomic receiver in the electrically small regime,

    K. C. Cox, D. H. Meyer, F. K. Fatemi, and P. D. Kunz, “Quantum-limited atomic receiver in the electrically small regime,”Phys. Rev. Lett., vol. 121, pp. 1–7, Sep 2018

    work page 2018

  3. [3]

    A multiple-band Rydberg atom-based receiver: AM/FM stereo reception,

    C. L. Holloway, M. Simons, A. H. Haddab, J. A. Gordon, D. A. Anderson, G. Raithel, and S. V oran, “A multiple-band Rydberg atom-based receiver: AM/FM stereo reception,”IEEE Antennas and Propagation Magazine, vol. 63, pp. 63–76, Jun 2021

    work page 2021

  4. [4]

    Determining the angle-of-arrival of a radio-frequency source with a Rydberg atom-based sensor,

    A. K. Robinson, N. Prajapati, D. Senic, M. T. Simons, and C. L. Holloway, “Determining the angle-of-arrival of a radio-frequency source with a Rydberg atom-based sensor,”Applied Physics Letters, vol. 118, pp. 1–4, Mar 2021

    work page 2021

  5. [5]

    Closed-loop quantum interferometry for phase-resolved Rydberg-atom field sensing,

    S. Berweger, A. B. Artusio-Glimpse, A. P. Rotunno, N. Prajapati, J. D. Christesen, K. R. Moore, M. T. Simons, and C. L. Holloway, “Closed-loop quantum interferometry for phase-resolved Rydberg-atom field sensing,”Phys. Rev. Appl., vol. 20, pp. 1–8, Nov 2023

    work page 2023

  6. [6]

    Enhancement of electromagnetically induced transparency based Rydberg-atom electrometry through population repumping,

    N. Prajapati, A. K. Robinson, S. Berweger, M. T. Simons, A. B. Artusio-Glimpse, and C. L. Holloway, “Enhancement of electromagnetically induced transparency based Rydberg-atom electrometry through population repumping,”Applied Physics Letters, vol. 119, pp. 1–8, Nov 2023

    work page 2023

  7. [7]

    Data capacity scaling of a distributed Rydberg atomic receiver array,

    J. S. Otto, M. K. Hunter, N. Kjaergaard, and A. B. Deb, “Data capacity scaling of a distributed Rydberg atomic receiver array,”Journal of Applied Physics, vol. 129, pp. 1–11, Apr 2021

    work page 2021

  8. [8]

    Modern RF measurements with hot atoms: A technology review of Rydberg atom-based radio frequency field sensors,

    A. B. Artusio-Glimpse, M. T. Simons, N. Prajapati, and C. L. Holloway, “Modern RF measurements with hot atoms: A technology review of Rydberg atom-based radio frequency field sensors,”IEEE Microwave Magazine, vol. 23, pp. 44–56, May 2022

    work page 2022

  9. [9]

    Highly excited atoms,

    D. Kleppner, M. G. Littman, and M. L. Zimmerman, “Highly excited atoms,”Sci. Am., vol. 244, pp. 1–20, May 1981

    work page 1981

  10. [10]

    Rydberg states of alkali atoms in atomic vapour as SI-traceable field probes and communications receivers,

    N. Schlossberger, N. Prajapati, S. Berweger, A. P. Rotunno, A. B. Artusio-Glimpse, M. T. Simons, A. A. Sheikh, E. B. Norrgard, S. P. Eckel, and C. L. Holloway, “Rydberg states of alkali atoms in atomic vapour as SI-traceable field probes and communications receivers,”Nat Rev Phys, vol. 6, pp. 606–620, Sep 2024

    work page 2024

  11. [11]

    Response analysis of four-level heterodyne Rydberg atom receiver,

    Yu Tang, Siyuan Wang, Shuang Ren, Chuang Yang, Hanbin Zhou, and Chenxi Lu, “Response analysis of four-level heterodyne Rydberg atom receiver,”IEEE Transactions on Antennas and Propagation, pp. 1–16, 2026

    work page 2026

  12. [12]

    Rubidium 85 D line data,

    Daniel A. Steck, “Rubidium 85 D line data,” available online at http: //steck.us/alkalidata, 2025, revision 2.3.4, 8 August 2025

    work page 2025

  13. [13]

    CODATA recommended values of the fundamental physical constants: 2018,

    Eite Tiesinga, Peter J. Mohr, David B. Newell, and Barry N. Taylor, “CODATA recommended values of the fundamental physical constants: 2018,”Rev. Mod. Phys., vol. 93, pp. 025010, Jun 2021

    work page 2018

  14. [14]

    Quantum superhet based on microwave-dressed Rydberg atoms,

    Jing M. and Hu Y ., “Quantum superhet based on microwave-dressed Rydberg atoms,” inNat. Phys., 2020, vol. 16, pp. 911–915

    work page 2020

  15. [15]

    A Rydberg atom-based mixer: Measuring the phase of a radio frequency wave,

    Holloway C. L., Simons M. T., Haddab A. H., and Gordon J. A., “A Rydberg atom-based mixer: Measuring the phase of a radio frequency wave,” inApplied Physics Letters, 2019, vol. 114

    work page 2019

  16. [16]

    Coherent Doppler tomography for microwave imaging,

    D. L. Mensa, S. Halevy, and G. Wade, “Coherent Doppler tomography for microwave imaging,” inProceedings of the IEEE, 1983, vol. 71, pp. 254–261

    work page 1983

  17. [17]

    High resolution radar tomographic imaging using single-tone CW signals,

    Hongbo Sun, Hongchuan Feng, and Yilong Lu, “High resolution radar tomographic imaging using single-tone CW signals,” in2010 IEEE Radar Conference, 2010, pp. 975–980

    work page 2010

  18. [18]

    Bistatic synthetic aperture radar imaging using ultranarrowband continuous waveforms,

    Ling Wang and Birsen Yazici, “Bistatic synthetic aperture radar imaging using ultranarrowband continuous waveforms,”IEEE Transactions on Image Processing, vol. 21, no. 8, pp. 3673–3686, 2012

    work page 2012

  19. [19]

    Mapping of planetary surfaces by radar,

    T. Hagfors and D.B. Campbell, “Mapping of planetary surfaces by radar,”Proceedings of the IEEE, vol. 61, no. 9, pp. 1219–1225, 1973

    work page 1973

  20. [20]

    Introduction to computer aided tomography,

    H.J. Scudder, “Introduction to computer aided tomography,” Proceedings of the IEEE, vol. 66, no. 6, pp. 628–637, 1978

    work page 1978

  21. [21]

    Coherent Doppler tomography-a technique for narrow band SAR,

    J.W. McCoy, N. Magotra, and B.K. Chang, “Coherent Doppler tomography-a technique for narrow band SAR,” in9th IEEE/AIAA/NASA Conference on Digital Avionics Systems, 1990, pp. 200–204

    work page 1990

  22. [22]

    A new fast method for the reconstruction of 2-D microwave images of rotating objects,

    F. Berizzi and G. Corsini, “A new fast method for the reconstruction of 2-D microwave images of rotating objects,”IEEE Transactions on Image Processing, vol. 8, no. 5, pp. 679–687, 1999

    work page 1999

  23. [23]

    Coherent ultrasonic Doppler tomography,

    C. S. L. Tsui, H-D. Liang, M. Halliwell, M. Shere, J. P. Braybrooke, E. Whipp, and P. N. T. Wells, “Coherent ultrasonic Doppler tomography,”Ultrasound in Medicine and Biology, vol. 37, no. 4, pp. 642–650, 2011

    work page 2011

  24. [24]

    Depth perception in wideband coherent Doppler tomography using the dual-layer peak matching technique,

    Brent R. Crawley, Thomas C. Baum, Kelvin J. Nicholson, and Kamran Ghorbani, “Depth perception in wideband coherent Doppler tomography using the dual-layer peak matching technique,”IEEE Transactions on Microwave Theory and Techniques, vol. 68, no. 5, pp. 1954–1963, 2020

    work page 1954

  25. [25]

    A new polar Fourier transform for computer-aided tomography and spotlight synthetic aperture radar,

    W. Lawton, “A new polar Fourier transform for computer-aided tomography and spotlight synthetic aperture radar,”IEEE Transactions on Acoustics, Speech, and Signal Processing, vol. 36, no. 6, pp. 931–933, 1988

    work page 1988

  26. [26]

    Time-frequency transform used in radar Doppler tomography,

    Ewa Swiercz, “Time-frequency transform used in radar Doppler tomography,” in2014 15th International Radar Symposium (IRS), 2014, pp. 1–5

    work page 2014

  27. [27]

    Target imaging with bistatic Doppler radar tomography,

    Emma Heading and Hai-Tan Tran, “Target imaging with bistatic Doppler radar tomography,” in2014 1st Australian Microwave Symposium (AMS), 2014, pp. 45–46

    work page 2014

  28. [28]

    Multi-bistatic Doppler radar tomography for non-cooperative target imaging,

    Hai-Tan Tran, Emma Heading, and Brian Ng, “Multi-bistatic Doppler radar tomography for non-cooperative target imaging,” in2018 International Conference on Radar (RADAR), 2018, pp. 1–6

    work page 2018

  29. [29]

    Phase compensation using multipeak PSVT algorithm in coherent Doppler tomography,

    Brent R. Crawley, Thomas C. Baum, Kelvin J. Nicholson, and Kamran Ghorbani, “Phase compensation using multipeak PSVT algorithm in coherent Doppler tomography,”IEEE Microwave and Wireless Components Letters, vol. 31, no. 8, pp. 969–972, 2021

    work page 2021

  30. [30]

    Application of the reassignment of time-frequency distributions to Doppler radar tomography imaging of a rotating multi-point object,

    Ewa Swiercz, “Application of the reassignment of time-frequency distributions to Doppler radar tomography imaging of a rotating multi-point object,” in2016 17th International Radar Symposium (IRS), 2016, pp. 1–5

    work page 2016

  31. [31]

    Resolution analyses of radar tomographic imaging for arbitrary angle aperture,

    Xizhang Wei, Xiaofeng Ding, Zhen Liu, and Meimei Fan, “Resolution analyses of radar tomographic imaging for arbitrary angle aperture,” IEEE Geoscience and Remote Sensing Letters, vol. 10, no. 4, pp. 957–961, 2013

    work page 2013

  32. [32]

    Range-Doppler imaging of rotating objects,

    Jack L. Walker, “Range-Doppler imaging of rotating objects,”IEEE Transactions on Aerospace and Electronic Systems, vol. AES-16, no. 1, pp. 23–52, 1980

    work page 1980

  33. [33]

    Tomographic radar imaging techniques,

    S. Halevy, “Tomographic radar imaging techniques,” inTwenty-Second Asilomar Conference on Signals, Systems and Computers, 1988, vol. 2, pp. 668–672

    work page 1988

  34. [34]

    Developments in radar imaging,

    Dale A. Ausherman, Adam Kozma, Jack L. Walker, Harrison M. Jones, and Enrico C. Poggio, “Developments in radar imaging,”IEEE Transactions on Aerospace and Electronic Systems, vol. AES-20, no. 4, pp. 363–400, 1984

    work page 1984

  35. [35]

    Spectral nulling on transmit via nonlinear FM radar waveforms,

    Karl Gerlach, Michael R. Frey, Michael J. Steiner, and Aaron Shackelford, “Spectral nulling on transmit via nonlinear FM radar waveforms,”IEEE Transactions on Aerospace and Electronic Systems, vol. 47, no. 2, pp. 1507–1515, 2011

    work page 2011

  36. [36]

    Observation of asymmetric sideband generation in strongly driven Rydberg atoms,

    Dangka Shylla, Nikunjkumar Prajapati, Andrew P. Rotunno, Noah Schlossberger, Dixith Manchaiah, William J. Watterson, Alexandra Artusio-Glimpse, Samuel Berweger, Matthew T. Simons, and Christopher L. Holloway, “Observation of asymmetric sideband generation in strongly driven Rydberg atoms,”Phys. Rev. A, vol. 111, pp. 033115, Mar 2025

    work page 2025

  37. [37]

    ADMM in Krylov subspace and its application to total variation restoration of spatially variant blur,

    J. D. Yun and S. Yang, “ADMM in Krylov subspace and its application to total variation restoration of spatially variant blur,”SIAM Journal on Imaging Sciences, vol. 10, no. 2, pp. 484–507, 2017

    work page 2017

  38. [38]

    Iterative algorithms based on decoupling of deblurring and denoising for image restoration,

    Y-W. Wen, M. K. Ng, and W-K. Ching, “Iterative algorithms based on decoupling of deblurring and denoising for image restoration,”SIAM Journal on Computing, vol. 30, no. 5, pp. 2655–2674, 2008

    work page 2008
