A Miniaturized In-Mouth pH Sensing System for Real-Time Intraoral Telemetry

Lukas Schulthess , Philipp Schilk , Julian Moosmann , Andrea Gubler , Christian Vogt , Florian J. Wegehaupt , Michele Magno

Authors on Pith no claims yet

Pith reviewed 2026-05-09 17:57 UTC · model grok-4.3

classification 📡 eess.SP

keywords intraoral pH monitoringglass electrodeswireless telemetrydental carieswearable sensorBluetooth Low Energyreal-time sensingdental prosthesis

0 comments

The pith

Miniaturized wireless system measures mouth pH in real time with glass electrodes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes a compact battery-powered device that tracks acidity levels inside the mouth during normal eating and drinking. It mounts glass electrodes in a dental prosthesis to record pH shifts from bacterial activity and food, which relate directly to tooth decay risk. The design digitizes the signal right at the source to cut noise, then sends readings over Bluetooth to software that calibrates data, compensates for drift, and produces reports. This replaces heavy lab equipment that previously limited how long and comfortably such measurements could be taken.

Core claim

The authors present the first battery-powered, low-power wireless and wearable pH telemetry system for real-time intraoral monitoring with glass electrodes. The system comprises an 8.6 by 3.3 mm, 0.2 g pH front-end integrated into a custom dental prosthesis for direct digitization of the high-impedance signal in the mouth, a 37.6 g neck-worn Bluetooth Low Energy node, and software tools for calibration, drift compensation, region marking, visualization, and PDF report generation. The full setup consumes 8.89 mW while transmitting data at 10 Hz.

What carries the argument

The miniaturized pH telemetry frontend that integrates with a dental prosthesis to directly digitize the high-impedance glass electrode signal in the mouth before wireless transmission, thereby minimizing noise and interference.

If this is right

Studies of cariogenic and erosive effects of foods can extend beyond one hour with greater participant comfort and natural movement.
Real-time 10 Hz data transmission supports immediate visualization and marking of pH changes during eating or drinking.
Built-in calibration and drift compensation in the software allow reliable long-term recording and automated reporting.
Integration into a dental prosthesis keeps electrodes in contact with plaque, preserving the biologically relevant measurement environment.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The low-power wireless approach could support extended home monitoring of oral pH to guide personal dietary choices.
Similar direct-digitization techniques might adapt to other high-impedance intraoral signals for combined health tracking.
Real-time telemetry in natural settings could reveal pH patterns missed in short lab sessions.

Load-bearing premise

The small frontend can accurately digitize and transmit the high-impedance pH signal from glass electrodes without excessive noise or interference inside the mouth.

What would settle it

A side-by-side test during the same consumption event that compares pH traces from the new wireless system against a traditional large analog amplifier and recorder to verify matching accuracy.

Figures

Figures reproduced from arXiv: 2605.01545 by Andrea Gubler, Christian Vogt, Florian J. Wegehaupt, Julian Moosmann, Lukas Schulthess, Michele Magno, Philipp Schilk.

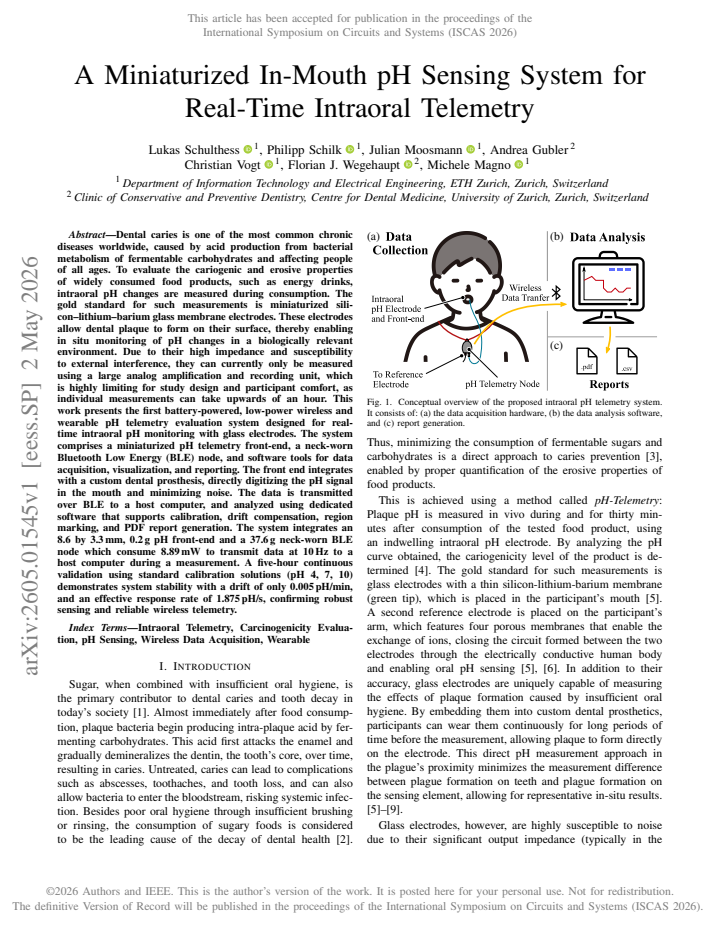

**Figure 1.** Figure 1: Conceptual overview of the proposed intraoral pH telemetry system. view at source ↗

**Figure 2.** Figure 2: System overview: (a) High-level block diagram of the high impedance pH telemetry front-end located in the mouth, (b) High-level block diagram of view at source ↗

**Figure 3.** Figure 3: Results of the 5-hour evaluation using the pH sequence view at source ↗

read the original abstract

Dental caries is one of the most common chronic diseases worldwide, caused by acid production from bacterial metabolism of fermentable carbohydrates and affecting people of all ages. To evaluate the cariogenic and erosive properties of widely consumed food products, such as energy drinks, intraoral pH changes are measured during consumption. The gold standard for such measurements is miniaturized silicon-lithium-barium glass membrane electrodes. These electrodes allow dental plaque to form on their surface, thereby enabling in situ monitoring of pH changes in a biologically relevant environment. Due to their high impedance and susceptibility to external interference, they can currently only be measured using a large analog amplification and recording unit, which is highly limiting for study design and participant comfort, as individual measurements can take upwards of an hour. This work presents the first battery-powered, low power wireless and wearable pH telemetry evaluation system designed for real time intraoral pH monitoring with glass electrodes. The system comprises a miniaturized pH telemetry frontend, a neck-worn Bluetooth Low Energy (BLE) node, and software tools for data acquisition, visualization, and reporting. The front end integrates with a custom dental prosthesis, directly digitizing the pH signal in the mouth and minimizing noise. The data is transmitted over BLE to a host computer, and analyzed using dedicated software that supports calibration, drift compensation, region marking, and PDF report generation. The system integrates an 8.6 by 3.3 mm, 0.2 g pH front-end and a 37.6 g neck-worn BLE node which consume 8.89 mW to transmit data at 10 Hz to a host computer during a measurement.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a concrete working prototype for a low-power wireless in-mouth pH system with glass electrodes, but supplies almost no measured accuracy or validation data to back the performance claims.

read the letter

The paper's main contribution is a full end-to-end hardware system that moves pH digitization inside the mouth. They describe an 8.6 by 3.3 mm, 0.2 g frontend mounted in a custom dental prosthesis that directly digitizes the high-impedance glass electrode signal, then sends it over BLE from a 37.6 g neck-worn node at 8.89 mW while sampling at 10 Hz. The software side includes calibration, drift compensation, and report generation. That integration is new relative to the usual tethered analog boxes, and the specific size, weight, and power numbers are useful for anyone trying to replicate or improve on it. The design choices around prosthesis mounting and on-mouth digitization to reduce noise make sense on paper and address the comfort and study-duration limits mentioned in the introduction. For an engineering system description, those details are the solid part. The weak point is the missing evidence. There are no reported pH readings, no comparison to a reference electrode, no noise or drift measurements in actual mouth conditions, and no participant data. The abstract and description stop at the hardware specs and power draw. That leaves the central claim—that the system works for real-time intraoral monitoring—resting on the implementation story rather than results. For a system paper this is common but still a gap, especially since glass electrodes are sensitive to interference. The work is aimed at dental researchers who run pH studies on food effects and at engineers building intraoral wearables. It is worth sending to peer review because the hardware integration is specific and reproducible from the details given, and referees can ask for the validation measurements that are currently absent. A revised version with even basic bench or in-mouth test data would be stronger.

Referee Report

1 major / 0 minor

Summary. The manuscript presents a miniaturized, battery-powered wireless pH telemetry system for real-time intraoral monitoring using glass electrodes. The system includes an 8.6 × 3.3 mm, 0.2 g pH frontend integrated into a dental prosthesis for direct digitization of the high-impedance pH signal, a 37.6 g neck-worn BLE node consuming 8.89 mW at 10 Hz sampling rate, and software for data acquisition, calibration, drift compensation, visualization, and report generation. It claims to be the first such wearable system to overcome the limitations of bulky analog recording units for extended intraoral pH studies related to dental caries.

Significance. If validated with performance data, this system would enable more comfortable and extended intraoral pH monitoring studies, advancing research on dental caries by allowing naturalistic measurements of acid production from food consumption. The concrete hardware specifications (dimensions, weights, and power figures) and end-to-end integration details provide clear evidence of successful miniaturization and low-power BLE telemetry feasibility.

major comments (1)

Abstract and overall manuscript: The paper states system specifications such as the 8.6×3.3 mm frontend size, 0.2 g weight, 37.6 g neck-worn node, and 8.89 mW power at 10 Hz but supplies no measured performance data, validation against reference electrodes, error analysis, noise characterization in the oral environment, or participant study results. This directly impacts the central claim of a functional real-time intraoral telemetry system, as the assumption that the miniaturized frontend accurately digitizes the high-impedance glass electrode signal while minimizing noise remains untested.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of the work's significance and for the constructive feedback. We address the major comment below.

read point-by-point responses

Referee: [—] Abstract and overall manuscript: The paper states system specifications such as the 8.6×3.3 mm frontend size, 0.2 g weight, 37.6 g neck-worn node, and 8.89 mW power at 10 Hz but supplies no measured performance data, validation against reference electrodes, error analysis, noise characterization in the oral environment, or participant study results. This directly impacts the central claim of a functional real-time intraoral telemetry system, as the assumption that the miniaturized frontend accurately digitizes the high-impedance glass electrode signal while minimizing noise remains untested.

Authors: We agree that empirical validation is essential to substantiate the functionality claims. The manuscript as submitted emphasizes the hardware design, miniaturization achievements, and end-to-end integration (including the 8.6 × 3.3 mm, 0.2 g frontend and 8.89 mW BLE node), with specifications obtained from circuit design and power measurements. To directly address the concern, the revised manuscript will incorporate a dedicated validation section containing: (i) benchtop accuracy and linearity tests against a commercial reference pH electrode in standard buffers, (ii) noise characterization under simulated oral conditions (including electrode impedance and interference), (iii) error analysis including drift compensation performance, and (iv) preliminary participant data demonstrating real-time intraoral telemetry. These additions will confirm the frontend's ability to accurately digitize the high-impedance signal while minimizing noise, thereby strengthening the central claim without altering the paper's primary focus on system miniaturization and wireless integration. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript is an engineering description of a hardware prototype (miniaturized frontend, BLE node, software pipeline) whose central claim is the existence of a working, low-power intraoral pH telemetry system. No equations, fitted parameters, or derivation steps appear in the provided text. Power, size, and sampling figures are presented as direct implementation outcomes rather than predictions derived from prior fits or self-citations. The work relies on standard glass-electrode and BLE electronics principles without redefining inputs as outputs or importing uniqueness theorems from the authors' prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on established domain knowledge in pH electrode behavior and low-power wireless electronics rather than new postulates.

axioms (1)

domain assumption Glass membrane pH electrodes produce high-impedance signals susceptible to external interference, requiring close-proximity digitization for accurate measurement.
Invoked in the abstract to explain limitations of current gold-standard setups.
