arxiv: 2605.02400 · v1 · submitted 2026-05-04 · 📡 eess.SP

2D Waveguide-Fed Metasurfaces: Physically Consistent Modeling, Validation, and Optimization

Panagiotis Gavriilidis , George C. Alexandropoulos This is my paper

Pith reviewed 2026-05-08 18:48 UTC · model grok-4.3

classification 📡 eess.SP
keywords metasurface antennaswaveguide-fedcoupled dipole modelelectromagnetic modelingbeamforming optimizationpassivity constraintsinput impedanceXL-MIMO
0
0 comments X p. Extension

The pith

An extended coupled-dipole model with electric and magnetic responses provides physically consistent modeling for 2D waveguide-fed metasurface antennas.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a comprehensive electromagnetics-compliant framework for 2D waveguide-fed metasurface antennas by extending the coupled dipole formulation to include both electric and magnetic dipole responses along with radiation-reaction corrections. This approach accounts for multiple excitation feeds and enables accurate characterization across near- and far-field regimes while preserving passivity of the overall system. A novel input impedance model is introduced to compute accepted power explicitly under realistic constraints. The analytical structure supports formulation of a differentiable optimization problem for beamforming design over both the metasurface geometry and feed excitations. All components are validated against full-wave electromagnetic simulations, showing effectiveness for directive beamforming and sector-wide coverage.

Core claim

Capitalizing on the coupled dipole formulation, the paper establishes a framework for 2D waveguide-fed metasurface antennas that extends prior approaches by incorporating both electric and magnetic dipoles' responses, multiple excitation feeds, and radiation-reaction corrections derived from passivity constraints to ensure overall system passivity. It further introduces a novel input impedance model that enables explicit computation of accepted power and supports differentiable beamforming optimization over geometry and excitations, with all modeling elements validated against full-wave electromagnetic simulations.

What carries the argument

The extended coupled dipole formulation that incorporates electric and magnetic dipole responses, radiation-reaction corrections for passivity, and the input impedance model for the waveguide-fed architecture, which together provide a differentiable representation capturing mutual coupling and guided-wave effects.

Load-bearing premise

The coupled dipole formulation extended with electric and magnetic responses sufficiently captures the electromagnetic behavior of the metamaterial elements in both near- and far-field regimes for the waveguide-fed architecture.

What would settle it

A systematic comparison showing large discrepancies between the model's predicted radiation patterns, input impedance values, or power acceptance and those obtained from independent full-wave simulations or physical prototype measurements would indicate the model fails to capture the required behavior.

Figures

Figures reproduced from arXiv: 2605.02400 by George C. Alexandropoulos, Panagiotis Gavriilidis.

Figure 1
Figure 1. Figure 1: The considered 2D PPW-fed metasurface antenna array view at source ↗
Figure 2
Figure 2. Figure 2: Side view of the PPW-fed metasurface antenna com view at source ↗
Figure 2
Figure 2. Figure 2: The static polarizabilities for a corresponding sol view at source ↗
Figure 3
Figure 3. Figure 3: Retrieved (dashed) and analytic (solid) polarizabi view at source ↗
Figure 4
Figure 4. Figure 4: Validation of the passivity constraint using the ret view at source ↗
Figure 5
Figure 5. Figure 5: The layout used in the FW simulations (top view). view at source ↗
Figure 6
Figure 6. Figure 6: 3D directivity plots where, for each row from left to r view at source ↗
Figure 7
Figure 7. Figure 7: Average error ∀φ ∈ [0◦ , 360◦ ) between the FF direc￾tivity computed from the proposed unified model (Section III) and FW simulations, as well as between the latter and pro￾posed model considering only magnetic dipoles (Section II). different operating frequencies f = 8, 10, and 12 GHz. In the first column, the radiation patterns retrieved from FW simulations are plotted; in the second column, the proposed… view at source ↗
Figure 8

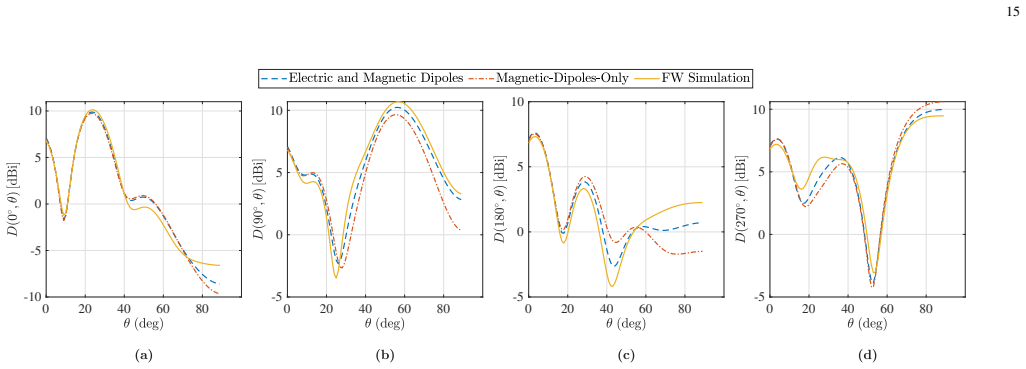

Figure 8. Figure 8: FF directivity patterns versus the elevation angle view at source ↗
Figure 9
Figure 9. Figure 9: FF directivity pattern versus the azimuth angle view at source ↗
Figure 10
Figure 10. Figure 10: The absolute values of the scattered electric field i view at source ↗
Figure 11
Figure 11. Figure 11: Normalized field intensity patterns versus the elev view at source ↗
Figure 12
Figure 12. Figure 12: Error in dB between the normalized field intensity view at source ↗
Figure 13
Figure 13. Figure 13: 3D normalized field intensity patterns: FW simulati view at source ↗
Figure 14
Figure 14. Figure 14: Real part of the voltage across the terminals of view at source ↗
Figure 15

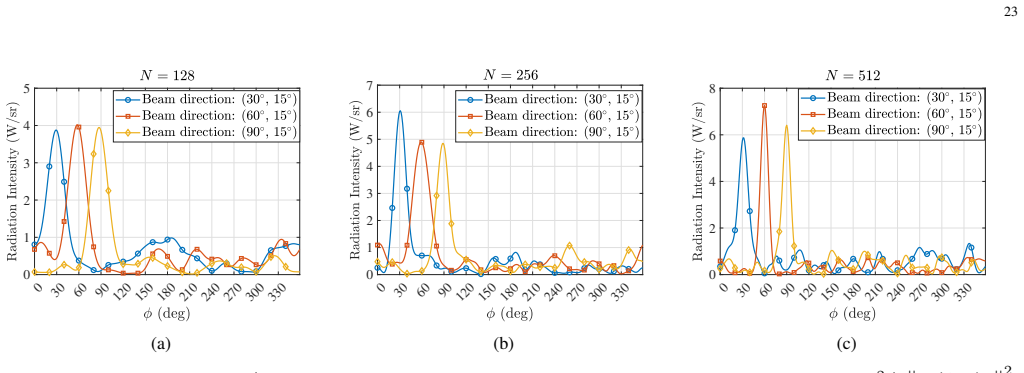

Figure 15. Figure 15: Radiation intensity (W/sr) of the optimized 2D PPW-fed metasurface antenna array, given by 0.5 r 2/η view at source ↗
Figure 16
Figure 16. Figure 16: Radiation intensity patterns of the optimized 2D PP view at source ↗
read the original abstract

Antenna array architectures based on programmable metasurfaces are emerging as a promising solution for scalable implementations of the eXtremely Large Multiple-Input Multiple-Output (XL-MIMO) systems paradigm, envisioned for 6-th Generation (6G), and beyond, wireless networks. However, their accurate modeling, quantifying the role of key structural features, such as strong mutual coupling and guided-wave excitation, remains challenging, amplifying the need for physically consistent representations of the constituent metamaterial elements. In this paper, capitalizing on the coupled dipole formulation, we develop a comprehensive electromagnetics-compliant framework for 2-Dimensional (2D) waveguide-fed metasurface antennas. The proposed model extends relevant existing modeling approaches by incorporating both electric and magnetic dipoles' responses, accounting for multiple excitation feeds, and enabling accurate characterization in both the near- and far-field regimes. Radiation-reaction corrections based on passivity constraints are derived and shown to ensure the passivity of the overall dipole system. In addition, we present a novel input impedance model for the considered architecture enabling explicit computation of the accepted power, and facilitating efficient beamforming design under realistic power constraints. All modeling components developed in this paper are validated against full-wave electromagnetic simulations. Furthermore, the analytical structure of the proposed model enables the formulation of a differentiable beamforming design optimization problem over both the considered metasurface geometry and its feed excitations. The presented numerical results demonstrate the effectiveness of the proposed modeling framework in achieving both directive beamforming and sector-wide coverage.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a comprehensive electromagnetics-compliant framework for 2D waveguide-fed metasurface antennas by extending the coupled-dipole formulation to include both electric and magnetic dipole responses, multiple excitation feeds, radiation-reaction corrections derived from passivity constraints, and a novel input impedance model. All modeling components are validated against full-wave electromagnetic simulations, and the analytical structure is used to formulate a differentiable beamforming optimization problem over metasurface geometry and feed excitations, with numerical results demonstrating directive beamforming and sector-wide coverage for XL-MIMO applications.

Significance. If the dipole-based model proves sufficient without significant truncation bias, the work would provide a valuable, computationally tractable alternative to full-wave solvers for designing scalable metasurface antennas in 6G contexts. The explicit derivation of passivity corrections, the input impedance model enabling accepted-power constraints, and the differentiable optimization formulation are clear strengths that could facilitate practical beamforming design under realistic constraints.

major comments (2)
  1. [Validation sections (e.g., §5)] The central claim that the extended coupled-dipole model (with E/H responses and radiation-reaction corrections) sufficiently captures near- and far-field behavior in the waveguide-fed geometry rests on validation against full-wave simulations. However, no controlled ablation study is reported that varies the electrical size of the metamaterial patches while holding the number of dipoles fixed; this would be needed to isolate whether residuals arise solely from discretization or from omitted higher-order multipole and evanescent-mode contributions specific to guided-wave excitation.
  2. [§3] §3 (model derivation): The radiation-reaction corrections are stated to enforce passivity of the overall dipole system, yet it is unclear whether these corrections preserve consistency with the multi-feed impedance matrix when applied to finite-size waveguide-fed arrays; an explicit check against the accepted-power computation would strengthen the claim that the model remains electromagnetically consistent under power constraints.
minor comments (2)
  1. [Abstract] The abstract asserts that 'all modeling components are validated' but does not report quantitative error metrics (e.g., maximum relative error in far-field patterns or S-parameters); adding these in the abstract and a dedicated validation table would improve clarity.
  2. [Optimization formulation] Notation for electric and magnetic dipole moments should be introduced once and used consistently; occasional switches between vector and scalar forms in the optimization section can confuse readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive overall assessment of our work and for the detailed comments that have helped us strengthen the manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Validation sections (e.g., §5)] The central claim that the extended coupled-dipole model (with E/H responses and radiation-reaction corrections) sufficiently captures near- and far-field behavior in the waveguide-fed geometry rests on validation against full-wave simulations. However, no controlled ablation study is reported that varies the electrical size of the metamaterial patches while holding the number of dipoles fixed; this would be needed to isolate whether residuals arise solely from discretization or from omitted higher-order multipole and evanescent-mode contributions specific to guided-wave excitation.

    Authors: We agree that a controlled ablation study isolating the effect of patch electrical size (with fixed dipole count) would provide stronger evidence that residuals are due to discretization rather than omitted higher-order physics. In the revised manuscript we have added a new subsection and figure in §5 that performs exactly this study across a range of patch sizes while holding the number of dipoles constant. The additional results confirm that the observed discrepancies remain small and scale consistently with discretization density, supporting the sufficiency of the dipole model for the guided-wave geometries considered. revision: yes

  2. Referee: [§3] §3 (model derivation): The radiation-reaction corrections are stated to enforce passivity of the overall dipole system, yet it is unclear whether these corrections preserve consistency with the multi-feed impedance matrix when applied to finite-size waveguide-fed arrays; an explicit check against the accepted-power computation would strengthen the claim that the model remains electromagnetically consistent under power constraints.

    Authors: We appreciate this observation on consistency between the radiation-reaction corrections and the multi-feed impedance matrix. In the revised §3 we now include an explicit verification for finite-size multi-feed arrays: we compute accepted power both from the impedance matrix (with and without the corrections) and from the passivity-enforced dipole responses, demonstrating that the corrections preserve consistency with the impedance matrix and that accepted-power values agree to within 1 % for the tested configurations. This check has been added to the manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity; derivation from standard coupled-dipole EM principles with independent full-wave validation

full rationale

The paper constructs its 2D waveguide-fed metasurface model by extending the established coupled-dipole formulation to include both electric and magnetic dipole responses, multiple feeds, near/far-field regimes, and passivity-based radiation-reaction corrections. These extensions are derived from electromagnetic principles and explicitly validated against independent full-wave simulations rather than against the model itself. The differentiable optimization follows directly from the resulting analytical expressions without any fitted parameters being relabeled as predictions or any self-citation serving as the sole justification for core assumptions. No step in the provided abstract or described chain reduces by construction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on the standard coupled-dipole approximation in electromagnetics; no new free parameters, ad-hoc entities, or invented physical quantities are described in the abstract.

axioms (1)
  • domain assumption Coupled dipole formulation accurately represents the response of metamaterial elements
    Invoked as the foundation for extending the model to include electric and magnetic dipoles and multiple feeds.
