arxiv: 2605.02441 · v1 · submitted 2026-05-04 · 💻 cs.SI · stat.AP

A Behavioral Micro-foundation for Cross-sectional Network Models

Carter T. Butts , Alexander Murray-Watters This is my paper

Pith reviewed 2026-05-08 02:26 UTC · model grok-4.3

classification 💻 cs.SI stat.AP
keywords cross-sectionalmodelsnetworkbehavioralmicro-foundationreflectingtermaccommodate
0
0 comments X

The pith

A continuous-time behavioral process yields equilibrium network distributions in exponential family form, enabling preference estimation from cross-sectional data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Agents in a network make choices over time according to a stochastic rule that depends on their preferences and the current state of ties. Under suitable conditions the long-run distribution of the entire network takes the exponential family shape used in many statistical network models. The potential function splits into one part that encodes what each agent wants and another part that encodes the rules for how ties can form. The authors apply this to friendship data in a workplace and to small-group phase transitions.

Core claim

The equilibrium behavior of this process under appropriate conditions can be expressed in exponential family form, allowing estimation of individual preferences using existing methods; the graph potential separates naturally into a preference-based term reflecting agent utilities, and an entropic term reflecting the rules of tie formation.

Load-bearing premise

That the continuous-time stochastic choice mechanism reaches an equilibrium whose distribution is exactly exponential family under the stated conditions, including cases with agents outside the network and multilateral edge control.

Figures

Figures reproduced from arXiv: 2605.02441 by Alexander Murray-Watters, Carter T. Butts.

Figure 1
Figure 1. Figure 1: The Lazega friendship network; vertex colors indicate office. view at source ↗
Figure 2
Figure 2. Figure 2: Model adequacy checks for the Lazega model; dotted lines indicate 95% simulation view at source ↗
Figure 3
Figure 3. Figure 3: The distribution of sociality effects in the fitted model. view at source ↗
Figure 4
Figure 4. Figure 4: (Left) Representative draw from the friendship model with negative sociality terms re view at source ↗
Figure 5
Figure 5. Figure 5: Typical realizations for networks under the model with sign flipped cyclical tie (left) and view at source ↗
Figure 6
Figure 6. Figure 6: Consequences of shifting relational norms from symphonic to epibolic, while holding view at source ↗
Figure 7
Figure 7. Figure 7: A simple simulation of a potential game ERGM, where the network is determined by two view at source ↗
Figure 8
Figure 8. Figure 8: (left) Centralization by partial utilities in the epibolic cult model; locally stable region for view at source ↗
Figure 9
Figure 9. Figure 9: Four example networks produced by different pairs of coefficients in Figure 8. In order view at source ↗

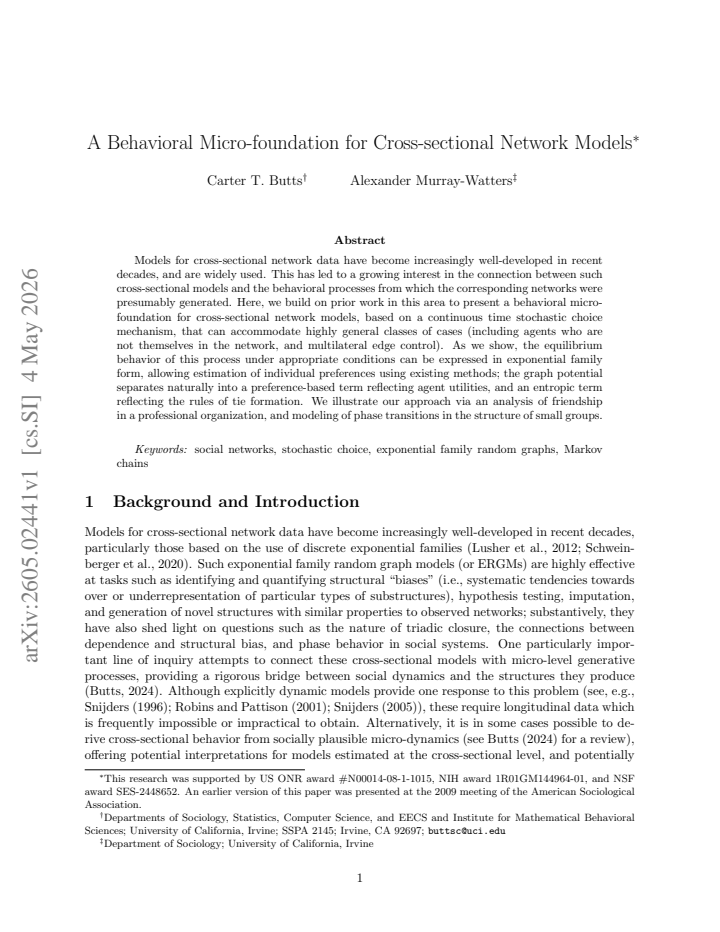

read the original abstract

Models for cross-sectional network data have become increasingly well-developed in recent decades, and are widely used. This has led to a growing interest in the connection between such cross-sectional models and the behavioral processes from which the corresponding networks were presumably generated. Here, we build on prior work in this area to present a behavioral micro-foundation for cross-sectional network models, based on a continuous time stochastic choice mechanism, that can accommodate highly general classes of cases (including agents who are not themselves in the network, and multilateral edge control). As we show, the equilibrium behavior of this process under appropriate conditions can be expressed in exponential family form, allowing estimation of individual preferences using existing methods; the graph potential separates naturally into a preference-based term reflecting agent utilities, and an entropic term reflecting the rules of tie formation. We illustrate our approach via an analysis of friendship in a professional organization, and modeling of phase transitions in the structure of small groups.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the existence of an equilibrium for the continuous-time process and on the conditions that make its stationary distribution exactly exponential family. No free parameters or invented entities are mentioned in the abstract.

axioms (2)
  • domain assumption The continuous-time stochastic choice process possesses a unique stationary distribution under the stated conditions.
    Invoked to guarantee that equilibrium behavior can be expressed in exponential family form.
  • domain assumption The process accommodates agents outside the network and multilateral edge control without breaking the exponential-family property.
    Required for the claimed generality.

pith-pipeline@v0.9.0 · 5455 in / 1208 out tokens · 67265 ms · 2026-05-08T02:26:30.317356+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

76 extracted references · 76 canonical work pages

  1. [1]

    Barndorff-Nielsen, O. (1978). Information and Exponential Families in Statistical Theory . John Wiley and Sons, New York

    work page 1978

  2. [2]

    Besag, J. (1974). Spatial interaction and the statistical analysis of lattice systems. Journal of the Royal Statistical Society, Series B , 36(2):192--236

    work page 1974

  3. [3]

    Brown, L. D. (1986). Fundamentals of Statistical Exponential Families, with Applications in Statistical Decision Theory . Institute of Mathematical Statistics, Hayward, CA

    work page 1986

  4. [4]

    Butts, C. T. (2007). Statistical mechanical models for social systems. In Bejan, A. and Merkx, G. W., editors, Constructal Theory of Social Dynamics , pages 197--224. Springer, New York

    work page 2007

  5. [5]

    Butts, C. T. (2008a). network: a package for managing relational data in R . Journal of Statistical Software , 24(2)

    work page

  6. [6]

    Butts, C. T. (2008b). A relational event framework for social action. Sociological Methodology , 38(1):155--200

    work page

  7. [7]

    Butts, C. T. (2008c). Social network analysis with sna. Journal of Statistical Software , 24(6)

    work page

  8. [8]

    Butts, C. T. (2011). B ernoulli graph bounds for general random graphs. Sociological Methodology , 41:299--345

    work page 2011

  9. [9]

    Butts, C. T. (2015). A novel simulation method for binary discrete exponential families, with application to social networks. Journal of Mathematical Sociology , 39(3):174--202

    work page 2015

  10. [10]

    Butts, C. T. (2018). A perfect sampling method for exponential family random graph models. Journal of Mathematical Sociology , 42(1):17--36

    work page 2018

  11. [11]

    Butts, C. T. (2019). A dynamic process interpretation of the sparse ERGM reference model. Journal of Mathematical Sociology , 43(1):40--57

    work page 2019

  12. [12]

    Butts, C. T. (2021). Phase transitions in the edge/concurrent vertex model. Journal of Mathematical Sociology , 43(3):135--147

    work page 2021

  13. [13]

    Butts, C. T. (2022). A dynamic process reference model for sparse networks with reciprocity. Journal of Mathematical Sociology , 46(1):1--27

    work page 2022

  14. [14]

    Butts, C. T. (2024). Continuous time graph processes with known ERGM equilibria: Contextual review, extensions, and synthesis. Journal of Mathematical Sociology , 48(2):129--171

    work page 2024

  15. [15]

    Butts, C. T. and Carley, K. M. (2007). Structural change and homeostasis in organizations: A decision-theoretic approach. Journal of Mathematical Sociology , 31(4):295--321

    work page 2007

  16. [16]

    Carley, K. M. (1991). A theory of group stability. American Sociological Review , 56(3):331--354

    work page 1991

  17. [17]

    Crouch, B., Wasserman, S., and Trachtenburg, F. (1998). M arkov chain M onte C arlo maximum likelihood estimation for p* social network models

    work page 1998

  18. [18]

    M., Freites, J

    Diesser, E. M., Freites, J. A., Tobias, D. J., and Butts, C. T. (2023). Network H amiltonian models for unstructured protein aggregates, with application to D -crystallin. Journal of Physical Chemistry, B , 127(3):685--697

    work page 2023

  19. [19]

    M., Thomas, L

    Diessner, E. M., Thomas, L. J., and Butts, C. T. (2024). Production of distinct fibrillar, oligomeric, and other aggregation states from network models of multibody interaction. Journal of Chemical Theory and Computation , 20(18):7829--7840

    work page 2024

  20. [20]

    Dunbar, R. I. (1992). Neocortex size as a constraint on group size in primates. Journal of Human Evolution , 22(6):469--493

    work page 1992

  21. [21]

    Fararo, T. J. (1978). An introduction to catastrophes. Behavioral Science , 23:291--317

    work page 1978

  22. [22]

    Fararo, T. J. (1984). Critique and comment: Catastrophe analysis of the S imon- H omans model. Behavioral Science , 29:212--216

    work page 1984

  23. [23]

    and Strauss, D

    Frank, O. and Strauss, D. (1986). M arkov graphs. Journal of the American Statistical Association , 81:832--842

    work page 1986

  24. [24]

    Freidkin, N. (1998). A Structural Theory of Social Influence . Cambridge University Press, Cambridge

    work page 1998

  25. [25]

    and Mele, A

    Gaonkar, S. and Mele, A. (2021). A model of inter-organizational network formation. arXiv preprint arXiv:2105.00458

    work page arXiv 2021

  26. [26]

    R., Richardson, S., and Spiegelhalter, D

    Gilks, W. R., Richardson, S., and Spiegelhalter, D. J. (1996). Intoducing M arkov chain M onte C arlo. In Gilks, W. R., Richardson, S., and Spiegelhalter, D. J., editors, Markov Chain Monte Carlo in Practice , pages 1--20. Chapman and Hall, London

    work page 1996

  27. [27]

    M., Handcock, M

    Goodreau, S. M., Handcock, M. S., Hunter, D. R., Butts, C. T., and Morris, M. (2008). A statnet tutorial. Journal of Statistical Software , 24(9)

    work page 2008

  28. [28]

    Granovetter, M. (1973). The strength of weak ties. American Journal of Sociology , 78(6):1369--1380

    work page 1973

  29. [29]

    H., Martin, R

    Grazioli, G., Yu, Y., Unhelkar, M. H., Martin, R. W., and Butts, C. T. (2019). Network-based classification and modeling of amyloid fibrils. Journal of Physical Chemistry, B , 123(26):5452--5462

    work page 2019

  30. [30]

    a ggstr\

    H\" a ggstr\" o m, O. and Jonasson, J. (1999). Phase transition in the random triangle model. Journal of Applied Probability , 36:1101--1115

    work page 1999

  31. [31]

    Handcock, M. S. (2003). Statistical models for social networks: Inference and degeneracy. In Breiger, R., Carley, K. M., and Pattison, P., editors, Dynamic Social Network Modeling and Analysis , pages 229--240. National Academies Press, Washington, DC

    work page 2003

  32. [32]

    S., Hunter, D

    Handcock, M. S., Hunter, D. R., Butts, C. T., Goodreau, S. M., and Morris, M. (2008). statnet : Software tools for the representation, visualization, analysis and simulation of network data. Journal of Statistical Software , 24(1):1--11

    work page 2008

  33. [33]

    Holland, P. W. and Leinhardt, S. (1981). An exponential family of probability distributions for directed graphs (with discussion). Journal of the American Statistical Association , 76(373):33--50

    work page 1981

  34. [34]

    Hummon, N. P. and Fararo, T. J. (1995). Actors and networks as objects. Social Networks , 17:1--26

    work page 1995

  35. [35]

    Hunter, D. R. and Handcock, M. S. (2006). Inference in curved exponential family models for networks. Journal of Computational and Graphical Statistics , 15:565--583

    work page 2006

  36. [36]

    R., Handcock, M

    Hunter, D. R., Handcock, M. S., Butts, C. T., Goodreau, S. M., and Morris, M. (2008). ergm: A package to fit, simulate and diagnose exponential-family models for networks. Journal of Statistical Software , 24(3)

    work page 2008

  37. [37]

    R., Krivitsky, P

    Hunter, D. R., Krivitsky, P. N., and Schweinberger, M. (2012). Computational statistical methods for social network analysis. Journal of Computational and Graphical Statistics , 21:856--882

    work page 2012

  38. [38]

    and Lomi, A

    Koskinen, J. and Lomi, A. (2013). The local structure of globalization: The network dynamics of foreign direct investments in the international electricity industry. Journal of Statistical Physics , 151:523--548

    work page 2013

  39. [39]

    Krackhardt, D. (1988). Predicting with networks: Nonparametric multiple regression analyses of dyadic data. Social Networks , 10:359--382

    work page 1988

  40. [40]

    Krackhardt, D. (1992). The strength of strong ties: the importance of philos in organizations. In Nohria, N. and Eccles, R., editors, Networks and Organizations: Structures, Form, and Action , pages 216--239. Harvard Business Press, Boston, MA

    work page 1992

  41. [41]

    N., Handcock, M

    Krivitsky, P. N., Handcock, M. S., and Morris, M. (2011). Adjusting for network size and composition effects in exponential-family random graph models. Statistical Methodology , 8(4):319--339

    work page 2011

  42. [42]

    N., Hunter, D

    Krivitsky, P. N., Hunter, D. R., Morris, M., and Klumb, C. (2023). ergm 4: New features for analyzing exponential-family random graph models. Journal of Statistical Software , 105(6):1--44

    work page 2023

  43. [43]

    Lazega, E. (1992). Analyse de r \'e seaux d'une organisation coll \'e giale: les avocats d'affaires. Revue fran c aise de sociologie , pages 559--589

    work page 1992

  44. [44]

    and Butts, C

    Lee, F. and Butts, C. T. (2018). Mutual assent or unilateral nomination? a performance comparison of intersection and union rules for integrating self-reports of social relationships

    work page 2018

  45. [45]

    Lerner, J., Indlekofer, N., Nick, B., and Brandes, U. (2013). Conditional independence in dynamic networks. Journal of Mathematical Psychology , 57(6):275 -- 283

    work page 2013

  46. [46]

    Lusher, D., Koskinen, J., and Robins, G. (2012). Exponential Random Graph Models for Social Networks: Theory, Methods, and Applications . Cambridge University Press, Cambridge

    work page 2012

  47. [47]

    Macy, M. W. and Willer, R. (2002). From factors to actors: Computational sociology and agent-based modeling. Annual Review of Sociology , 21:143--166

    work page 2002

  48. [48]

    H., McPherson, J

    Mayhew, B. H., McPherson, J. M., Rotolo, M., and Smith-Lovin, L. (1995). Sex and race homogeneity in naturally occurring groups. Social Forces , 74(1):15--52

    work page 1995

  49. [49]

    McFadden, D. (1973). Conditional logit analysis of qualitative choice behavior. In Zarembka, P., editor, Frontiers in Econometrics . Academic Press

    work page 1973

  50. [50]

    M., Smith-Lovin, L., and Cook, J

    McPherson, J. M., Smith-Lovin, L., and Cook, J. M. (2001). Birds of a feather: Homophily in social networks. Annual Review of Sociology , 27:415--444

    work page 2001

  51. [51]

    Mele, A. (2017). A structural model of dense network formation. Econometrica , 85(3):825--850

    work page 2017

  52. [52]

    Mele, A. (2022). A structural model of homophily and clustering in social networks. Journal of Business & Economic Statistics , 40(3):1377--1389

    work page 2022

  53. [53]

    and Shapley, L

    Monderer, D. and Shapley, L. S. (1996). Potential games. Games and Economic Behavior , 14:124--143

    work page 1996

  54. [54]

    Pattison, P. E. and Robins, G. L. (2002). Neighborhood-based models for social networks. Sociological Methodology , 32:301--337

    work page 2002

  55. [55]

    Pattison, P. E. and Wasserman, S. (1999). Logit models and logistic regressions for social networks: II . multivariate relations. British Journal of Mathematical and Statistical Psychology , 52:169--193

    work page 1999

  56. [56]

    R: A Language and Environment for Statistical Computing

    R Core Team (2026). R: A Language and Environment for Statistical Computing . R Foundation for Statistical Computing, Vienna, Austria

    work page 2026

  57. [57]

    and Yin, M

    Radin, C. and Yin, M. (2013). Phase transitions in exponential random graphs. Annals of Applied Probability , 23(6):2458--2471

    work page 2013

  58. [58]

    Robins, G. L. and Pattison, P. E. (2001). Random graph models for temporal processes in social networks. Journal of Mathematical Sociology , 25:5--41

    work page 2001

  59. [59]

    L., Pattison, P

    Robins, G. L., Pattison, P. E., and Wasserman, S. (1999). Logit models and logistic regressions for social networks, III . valued relations. Psychometrika , 64:371--394

    work page 1999

  60. [60]

    L., Pattison, P

    Robins, G. L., Pattison, P. E., and Woolcock, J. (2005). Small and other worlds: Network structures from local processes. American Journal of Sociology , 110(4):894--936

    work page 2005

  61. [61]

    Schweinberger, M. (2011). Instability, sensitivity, and degeneracy of discrete exponential families. Journal of the American Statistical Association , 106:1361--1370

    work page 2011

  62. [62]

    N., Butts, C

    Schweinberger, M., Krivitsky, P. N., Butts, C. T., and Stewart, J. (2020). Exponential-family models of random graphs: Inference in finite-, super-, and infinite-population scenarios. Statistical Science , 35(4):627--662

    work page 2020

  63. [63]

    Skvoretz, J., Faust, K., and Fararo, T. (1996). Social structure, networks, and e -state structuralism models. Journal of Mathematical Sociology , 21:57--76

    work page 1996

  64. [64]

    Snijders, T. A. B. (1996). Stochastic actor-oriented models for network change. Journal of Mathematical Sociology , 23:149--172

    work page 1996

  65. [65]

    Snijders, T. A. B. (2001). The statistical evaluation of social network dynamics. Sociological Methodology , 31:361--395

    work page 2001

  66. [66]

    Snijders, T. A. B. (2002). M arkov chain M onte C arlo estimation of exponential random graph models. Journal of Social Structure , 3(2)

    work page 2002

  67. [67]

    Snijders, T. A. B. (2005). Models for longitudinal network data. In Carrington, P. J., Scott, J., and Wasserman, S., editors, Models and Methods in Social Network Analysis , pages 215--247. Cambridge University Press, New York

    work page 2005

  68. [68]

    Snijders, T. A. B., Pattison, P. E., Robins, G. L., and Handcock, M. S. (2006). New specifications for exponential random graph models. Sociological Methodology , 36:99 -- 154

    work page 2006

  69. [69]

    Strauss, D. (1986). On a general class of models for interaction. SIAM Review , 28(4):513--527

    work page 1986

  70. [70]

    and Ikeda, M

    Strauss, D. and Ikeda, M. (1990). Pseudolikelihood estimation for social networks. Journal of the American Statistical Association , 85(409):204--212

    work page 1990

  71. [71]

    A., Gile, K

    van Duijn , M. A., Gile, K. J., and Handcock, M. S. (2009). A framework for the comparison of maximum pseudo-likelihood and maximum likelihood estimation of exponential family random graph models. Social Networks , 31(1):52--62

    work page 2009

  72. [72]

    G., Slaughter, A., and de la Haye , K

    Vega Yon , G. G., Slaughter, A., and de la Haye , K. (2021). Exponential random graph models for little networks. Social Networks , 64:225--238

    work page 2021

  73. [73]

    and Pattison, P

    Wasserman, S. and Pattison, P. E. (1996). Logit models and logistic regressions for social networks: I . an introduction to M arkov graphs and p* . Psychometrika , 60:401--426

    work page 1996

  74. [74]

    and Robins, G

    Wasserman, S. and Robins, G. L. (2005). An introduction to random graphs, dependence graphs, and p* . In Carrington, P. J., Scott, J., and Wasserman, S., editors, Models and Methods in Social Network Analysis , chapter 10, pages 192--214. Cambridge University Press, Cambridge

    work page 2005

  75. [75]

    and Cook, K

    Yamagishi, T. and Cook, K. (1993). Generalized exchange and social dilemmas. Social Psychology Quarterly , 56:235--248

    work page 1993

  76. [76]

    E., and Butts, C

    Yu, Y., Grazioli, G., Phillips, N. E., and Butts, C. T. (2021). Local graph stability in exponential family random graph models. SIAM Journal on Applied Mathematics , 81(4):1389--1415

    work page 2021
