arxiv: 2605.02602 · v1 · submitted 2026-05-04 · 📡 eess.SY · cs.SY

PowerSINDy: Identifying Nonlinear Time-Dependent Dynamics in Power Grid Frequency

Xinyi Wen , Xiao Li , Leonardo Rydin Gorj\~ao , Veit Hagenmeyer , Benjamin Sch\"afer This is my paper

Pith reviewed 2026-05-08 18:13 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords system identificationpower grid frequencynonlinear dynamicssparse regressiontime-dependent modelsSINDyempirical datafrequency dynamics
0
0 comments X

The pith

PowerSINDy recovers governing equations for real power grid frequency from noisy measurements by adding time-dependent terms to the sparse identification library.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PowerSINDy to extract the active nonlinear and time-varying terms that drive frequency behavior directly from recorded data in two large synchronous grids. It applies the method to Continental Europe and South Korea measurements and compares three regression techniques that enforce sparsity. LASSO produces the smallest stable prediction errors while STLSQ maintains consistent term selection across runs. A reader would care because frequency swings affect grid reliability and because traditional models require exhaustive knowledge of every generator and line. If the approach holds, system operators could obtain usable dynamical descriptions from existing sensors without building full physics-based replicas.

Core claim

PowerSINDy augments the standard SINDy library with explicit time-dependent basis functions and uses sparsity-promoting regression on empirical frequency time series from the Continental Europe and South Korea grids. The framework selects a small number of active terms that best reproduce the observed dynamics. Benchmarks demonstrate that LASSO yields the lowest stable root-mean-square errors, reaching 0.0101 on Continental Europe data, while STLSQ achieves the most reliable balance between accuracy and robustness across repeated trials.

What carries the argument

PowerSINDy, an extension of sparse nonlinear identification that augments the candidate library with time-dependent functions and applies regression to isolate the active terms in frequency data.

If this is right

  • The selected terms can be integrated forward to simulate future frequency trajectories in the studied grids.
  • LASSO regression supplies the most accurate one-step predictions when stability is required.
  • STLSQ regression supplies models whose active terms remain consistent under small changes in the data window.
  • Time-dependent coefficients are required to capture variations that constant-coefficient nonlinearities alone cannot explain.
  • The same workflow can be repeated on additional real-world frequency recordings from other synchronous areas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Identified models could support real-time monitoring tools that flag deviations from normal dynamics without requiring a full network model.
  • The framework might be extended by enlarging the library with known physical terms to improve both accuracy and physical interpretability.
  • Similar sparse identification with time dependence could be tested on other oscillatory systems such as voltage angles or inter-area modes.
  • Direct comparison of the discovered terms against classical swing-equation models would show which physical effects the data-driven selection recovers or adds.

Load-bearing premise

The observed frequency changes can be expressed as a sparse linear combination of a preselected set of nonlinear and time-dependent functions, with noise and missing effects not preventing reliable selection of the correct terms.

What would settle it

Re-running PowerSINDy on held-out segments of the same frequency recordings produces markedly different active terms or yields prediction errors that grow beyond the reported stable RMSE levels.

Figures

Figures reproduced from arXiv: 2605.02602 by Benjamin Sch\"afer, Leonardo Rydin Gorj\~ao, Veit Hagenmeyer, Xiao Li, Xinyi Wen.

Figure 1

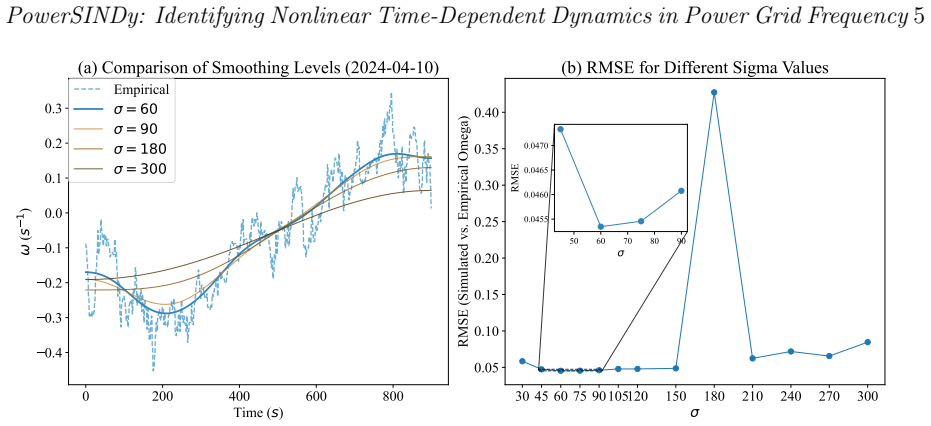

Figure 1. Figure 1: Comparison of smoothing levels and corresponding model performance. (a) view at source ↗
Figure 2

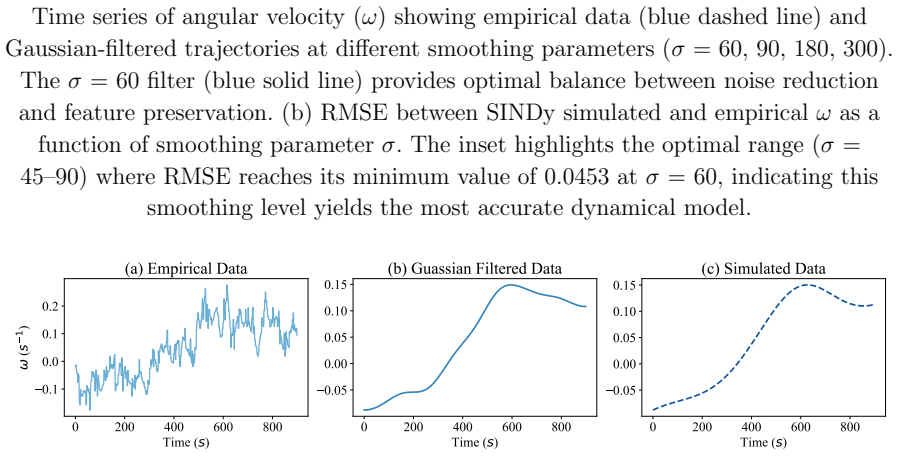

Figure 2. Figure 2: Schematic of the dynamics discovery pipeline. (a) Raw empirical frequency view at source ↗
Figure 3

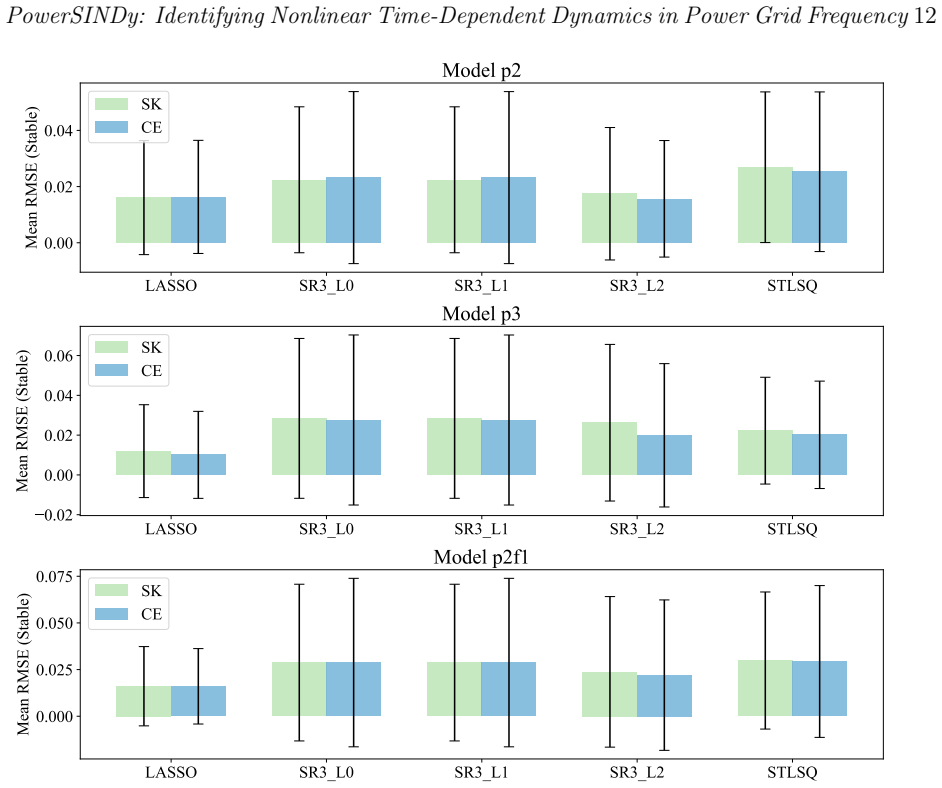

Figure 3. Figure 3: Comparison of mean stable RMSE with standard deviation error bars across view at source ↗
Figure 4

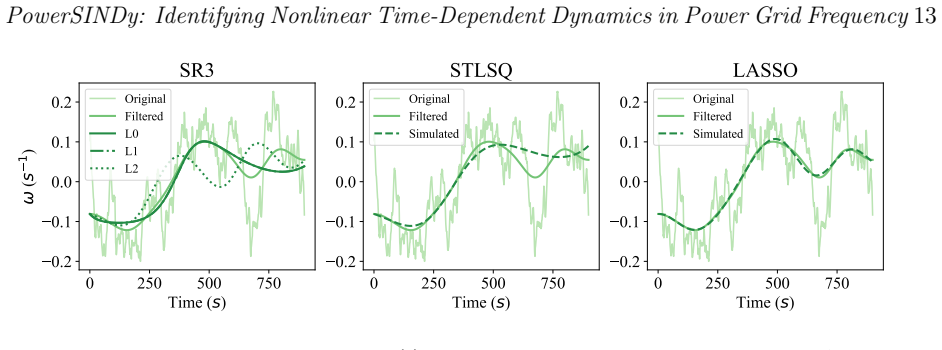

Figure 4. Figure 4: Comparison of simulated ω(t) trajectories using SR3, STLSQ, and LASSO. SR3 results are shown for different regularization norms, illustrating the effect of regularization choice. STLSQ and LASSO reconstructions demonstrate higher agreement with the filtered signal, particularly LASSO, which achieves the closest alignment to the original dynamics. LASSO SR3_L0 SR3_L1 SR3_L2 STLSQ 0.4 0.5 0.6 0.7 0.8 0.9 1.0… view at source ↗
Figure 5
Figure 5. Figure 5: Comparative analysis of model stability and feature selection: (a) Stability view at source ↗
read the original abstract

System identification plays a crucial role in physics and machine learning for discovering governing equations directly from data. A powerful approach is the Sparse Identification of Nonlinear Dynamics (SINDy) method, which assumes that only a few dominant terms drive the essential behavior of a nonlinear dynamical system. While SINDy methods have shown excellent results, they are most often illustrated on synthetic or simulated systems, leaving open the question of how well they perform on complex, noisy, real-world data. Power grid frequency dynamics provide a highly relevant and challenging environment for advancing system identification methods. In this work, we propose PowerSINDy as a framework for empirical power system data. We apply this framework to empirical frequency data from the Continental Europe (CE) and South Korea (SK) synchronous grids, two major power systems with distinct dynamical characteristics. PowerSINDy, which also includes time-dependent terms, can identify the dynamics of these complex real-world systems. Furthermore, we benchmark three sparsity-promoting regression strategies: Sequentially Thresholded Least Squares (STLSQ), Least Absolute Shrinkage and Selection Operator (LASSO), and Sparse Relaxed Regularized Regression (SR3) to evaluate trade-offs between accuracy, sparsity, and robustness. Results show that LASSO consistently achieves the lowest stable RMSEs, reaching 0.0101 for the CE, while STLSQ provides the best balance between accuracy and stability. SR3 exhibits higher variability and sensitivity to regularization, with L0 and L1 producing nearly indistinguishable outcomes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces PowerSINDy, an extension of the SINDy framework that augments the candidate library with explicit time-dependent basis functions, and applies it to empirical frequency measurements from the Continental Europe (CE) and South Korea (SK) synchronous areas. Three sparsity-promoting regressors (STLSQ, LASSO, SR3) are benchmarked on these real-world datasets; the authors report that LASSO attains the lowest stable RMSE (0.0101 on CE data) while STLSQ offers the most favorable accuracy-stability trade-off.

Significance. If the identified models can be shown to generalize temporally and remain stable under numerical integration, the work would constitute a concrete advance in data-driven discovery for noisy, high-stakes infrastructure systems. The use of two distinct real grids and the systematic comparison of three regressors are positive features that move beyond typical synthetic SINDy illustrations.

major comments (2)
  1. [Results section] Results section: All reported performance is confined to in-sample RMSE on training segments. No forward integration of the discovered ODEs on held-out intervals is presented to demonstrate that the selected models reproduce observed trajectories without rapid divergence or error accumulation. This validation step is load-bearing for the central claim that PowerSINDy 'identifies the governing dynamics' rather than fitting short-term correlations or measurement noise.
  2. [Method and experimental setup] Method and experimental setup: The regularization strengths (threshold for STLSQ, lambda for LASSO, and the corresponding SR3 parameters) are free parameters whose selection procedure is not described with respect to cross-validation, pre-specification, or sensitivity analysis. Consequently, the reported RMSE ordering and term-selection consistency may depend on post-hoc tuning rather than robust generalization.
minor comments (1)
  1. [Abstract] Abstract: The phrasing 'PowerSINDy, which also includes time-dependent terms, can identify the dynamics of these complex real-world systems' is imprecise; it would be clearer to state the specific empirical outcome (e.g., 'recovers sparse models with low in-sample RMSE').

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which identify key areas for strengthening the validation and reproducibility of PowerSINDy. We address each major comment below and have revised the manuscript to incorporate the suggested improvements.

read point-by-point responses

  1. Referee: [Results section] All reported performance is confined to in-sample RMSE on training segments. No forward integration of the discovered ODEs on held-out intervals is presented to demonstrate that the selected models reproduce observed trajectories without rapid divergence or error accumulation. This validation step is load-bearing for the central claim that PowerSINDy 'identifies the governing dynamics' rather than fitting short-term correlations or measurement noise.

    Authors: We agree that in-sample RMSE alone does not fully establish that the identified models capture the governing dynamics rather than noise or transient correlations, and that forward integration on held-out data is a necessary validation step. In the revised manuscript we have added a new subsection to the Results section that reports numerical integration of the discovered ODEs on temporally held-out intervals from both the CE and SK datasets. The LASSO- and STLSQ-selected models remain numerically stable over these intervals and track the observed frequency trajectories with bounded error accumulation (additional RMSE values reported). These results are now presented alongside the original in-sample metrics to support the central claim. revision: yes

  2. Referee: [Method and experimental setup] The regularization strengths (threshold for STLSQ, lambda for LASSO, and the corresponding SR3 parameters) are free parameters whose selection procedure is not described with respect to cross-validation, pre-specification, or sensitivity analysis. Consequently, the reported RMSE ordering and term-selection consistency may depend on post-hoc tuning rather than robust generalization.

    Authors: We acknowledge that a transparent account of regularization-parameter selection is required for reproducibility and to demonstrate robustness. The revised Methods section now includes an explicit description of the selection procedure: a grid search was performed over a pre-specified range of values for each regressor, with the final parameters chosen according to an elbow criterion balancing sparsity and RMSE on the training segments. We have also added a sensitivity-analysis subsection that quantifies how small perturbations around the selected values affect both the retained terms and the resulting RMSE, confirming that the dominant terms and performance ordering remain stable. These additions address the concern regarding post-hoc tuning. revision: yes

Circularity Check

0 steps flagged

No circularity: standard sparse regression applied to external data

full rationale

The paper extends the established SINDy algorithm by including explicit time-dependent basis functions in the library and applies it to measured frequency time series from the CE and SK grids. Term selection and coefficient fitting are performed via off-the-shelf regressors (STLSQ, LASSO, SR3) on the observed data; the reported RMSE values and selected terms are direct outputs of this fitting process. No equation in the derivation reduces to a fitted parameter by construction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled via self-citation. The central result is therefore an empirical identification whose validity rests on the data and the standard SINDy assumptions rather than on any tautological reduction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The method inherits the standard SINDy sparsity assumption and adds the domain-specific premise that time-dependent basis functions are needed for grid frequency; no new physical entities are postulated.

free parameters (1)
  • regularization strength (lambda or threshold)
    Chosen for each of LASSO, STLSQ, and SR3 to trade off sparsity against fit quality on the frequency time series.
axioms (1)
  • domain assumption System dynamics admit a sparse representation in a pre-specified library of nonlinear and time-dependent functions.
    Core modeling assumption of the SINDy family, invoked when the regression is performed on the frequency data.
