Valley-locked Optical Spin Skyrmions in Valley Photonic Crystal Waveguides

Lan Zhang; Lipeng Wan; Lvjin He; Shanshan Chen; Tianbao Yu; Weimin Deng; Ziyang Chen

arxiv: 2605.02676 · v3 · submitted 2026-05-04 · ⚛️ physics.optics

Valley-locked Optical Spin Skyrmions in Valley Photonic Crystal Waveguides

Lvjin He , Shanshan Chen , Ziyang Chen , Lan Zhang , Lipeng Wan , Weimin Deng , Tianbao Yu This is my paper

Pith reviewed 2026-05-13 06:16 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords optical skyrmionsvalley photonic crystalstopological edge statesspin-orbit couplingevanescent fieldon-chip transportvalley locking

0 comments

The pith

Valley photonic crystal waveguides carry valley-locked optical spin skyrmions as protected eigenstates of topological edge states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that optical spin skyrmions can be transported directionally on a chip by embedding them as eigenstates within topologically protected valley edge states of photonic crystal waveguides. These skyrmions form through spin-orbit coupling in the evanescent field at the waveguide surface. The valley degree of freedom further locks the skyrmions, allowing control of their polarity while preserving unidirectional propagation and topological protection. This addresses the prior absence of reliable on-chip methods for moving and manipulating skyrmions, which had limited their use in integrated photonic systems for metrology and information processing.

Core claim

Optical spin skyrmions originate from spin-orbit coupling in the evanescent field at the valley photonic crystal surface and exist as eigenstates of the topologically protected edge state, ensuring robust unidirectional propagation; the valley degree of freedom then produces valley-locked spin skyrmions that enable flexible control over polarity.

What carries the argument

The topologically protected valley edge state in photonic crystal waveguides, which supports optical spin skyrmions as eigenstates arising from spin-orbit coupling in the surface evanescent field.

Load-bearing premise

That the skyrmions form from spin-orbit coupling in the evanescent field and remain eigenstates of the valley edge state, keeping topological protection and valley locking intact during propagation.

What would settle it

Numerical simulation or fabricated device measurement showing backscattering or loss of valley locking for the skyrmions along the edge state would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.02676 by Lan Zhang, Lipeng Wan, Lvjin He, Shanshan Chen, Tianbao Yu, Weimin Deng, Ziyang Chen.

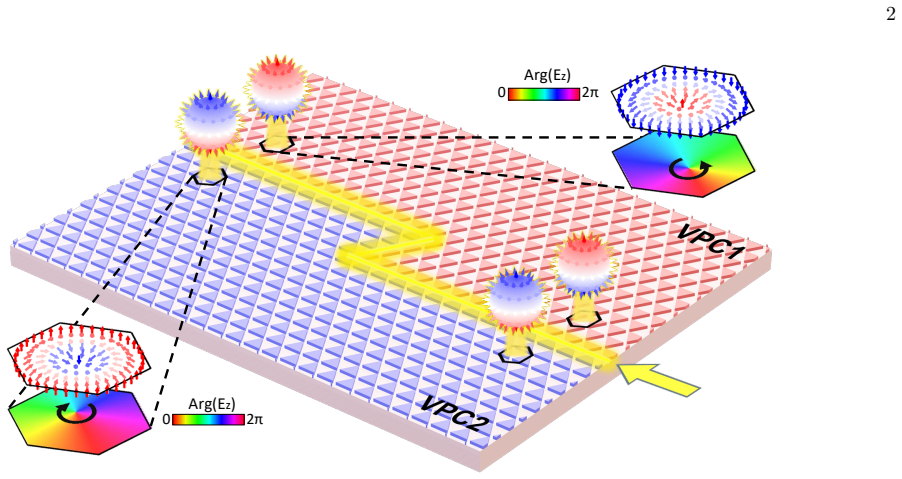

**Figure 1.** Figure 1: FIG. 1. Schematic illustration of the formation and topologically protected transport of optical spin skyrmions in a valley view at source ↗

**Figure 1.** Figure 1: Schematic illustration of the formation and topologically protected [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

**Figure 2.** Figure 2: FIG. 2. (a) Schematic diagram of valley photonic crystal1 (VPC1) and VPC2. The black (gray) lines represent the bulk bands view at source ↗

**Figure 3.** Figure 3: FIG. 3. Directional transport of spin skyrmion textures in the valley photonic crystal waveguide (VPCW). (a) Spatial distribu view at source ↗

**Figure 4.** Figure 4: FIG. 4. Robust transport of spin skyrmions in the VPCW. (a-c) Schematic diagram of a VPCW with (a) Z-shaped bend, (b) view at source ↗

read the original abstract

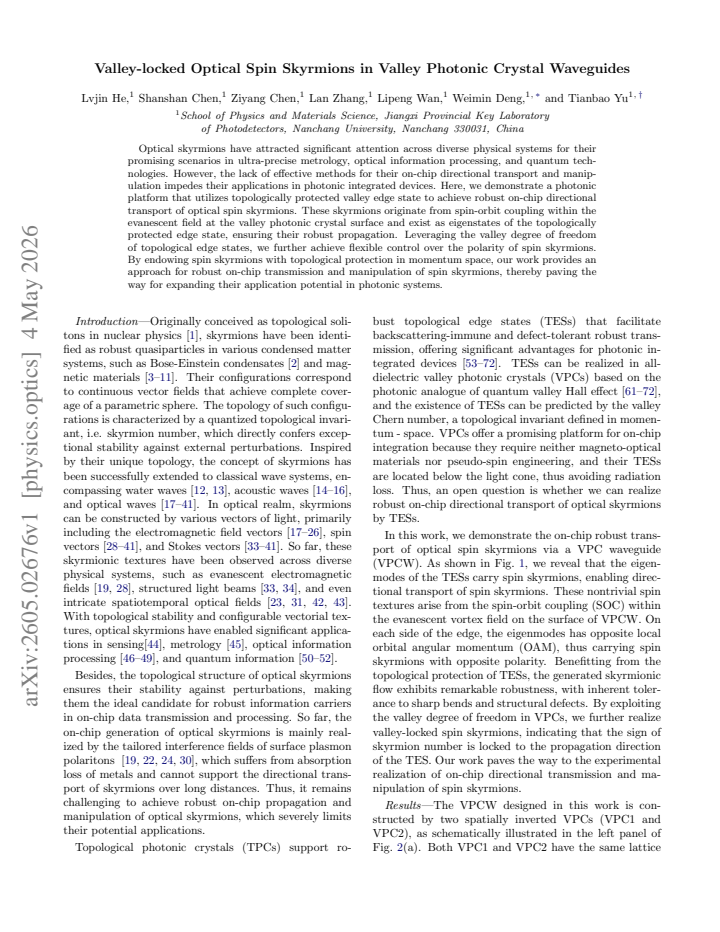

Optical skyrmions have attracted significant attention across diverse physical systems for their promising scenarios in ultra-precise metrology, optical information processing, and quantum technologies. However, the lack of effective method for their on-chip directional transport and manipulation impedes their applications in photonic integrated devices. Here, we demonstrate a photonic platform that utilizes topologically protected valley edge state to achieve robust on-chip directional transport of optical spin skyrmions. These skyrmions originate from spin-orbit coupling within the evanescent field at the valley photonic crystal surface and exist as eigenstates of the topologically protected edge state, ensuring their robust unidirectional propagation. Leveraging the valley degree of freedom of topological edge states, we further achieve valley-locked spin skyrmions, enabling flexible control over the polarity of spin skyrmions. By endowing spin skyrmions with topological protection in momentum space, our work provides an approach for robust on-chip transport and manipulation of spin skyrmions, thereby paving the way for expanding their application potential in photonic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The abstract sketches a valley-locked spin skyrmion transport platform in photonic crystal waveguides but supplies no calculations or profiles to check whether the texture actually survives as an eigenmode.

read the letter

The main point is that this work proposes using topologically protected valley edge states in photonic crystals to carry optical spin skyrmions directionally on chip, with valley index controlling their polarity through spin-orbit coupling in the evanescent field. The claim is that the skyrmions form eigenstates of those edge modes so the texture propagates without scattering. That combination is presented as new for on-chip applications in metrology or information processing. The abstract does a clear job laying out the logic from established valley photonics and skyrmion ideas, and it avoids obvious circularity by resting on standard spin-orbit and topological edge concepts. The soft spot is exactly what the stress-test note flags: nothing shows that the spin vector actually wraps the sphere in a way that stays invariant along the guide or satisfies the eigenmode equation once the interface is introduced. With only the abstract available there are no dispersion diagrams, spin-density maps, or propagation simulations to verify the skyrmion number holds or that valley locking survives without breaking protection. This leaves the central robustness claim untested. The paper would interest people already working on topological photonics and optical skyrmions who want to think about new transport schemes. A reader looking for concrete platforms would get limited value until the full calculations appear. I would send the full manuscript to peer review because the idea is worth checking with proper mode analysis, even though the current version is too thin to rely on.

Referee Report

1 major / 0 minor

Summary. The manuscript claims to demonstrate a photonic platform utilizing topologically protected valley edge states in valley photonic crystal waveguides for robust on-chip directional transport of optical spin skyrmions. These skyrmions are asserted to originate from spin-orbit coupling in the evanescent field at the surface, to exist as eigenstates of the edge state (ensuring unidirectional propagation without loss of topological protection), and to be valley-locked to enable control over spin polarity.

Significance. If the central claims are substantiated with explicit calculations and simulations, the result would be significant for photonic integrated circuits, as it would combine topological protection with spin skyrmion textures to enable scattering-free, valley-controlled transport and manipulation of optical skyrmions, with potential implications for metrology, information processing, and quantum technologies.

major comments (1)

[Abstract] Abstract: The central claim that optical spin skyrmions exist as eigenstates of the topologically protected valley edge state (with invariant skyrmion number and valley locking) is asserted without any supporting evidence such as dispersion diagrams, mode profiles, spin-density vector fields, or numerical verification that the texture satisfies the eigenmode equation and remains invariant along the waveguide.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback. We address the single major comment below.

read point-by-point responses

Referee: [Abstract] Abstract: The central claim that optical spin skyrmions exist as eigenstates of the topologically protected valley edge state (with invariant skyrmion number and valley locking) is asserted without any supporting evidence such as dispersion diagrams, mode profiles, spin-density vector fields, or numerical verification that the texture satisfies the eigenmode equation and remains invariant along the waveguide.

Authors: The abstract is intended as a concise summary of the principal results. The full manuscript contains the supporting evidence requested: dispersion diagrams of the valley edge states, transverse mode profiles of the evanescent field, spin-density vector fields that explicitly display the skyrmion texture, and numerical calculations confirming both that the texture satisfies the eigenmode equation and that the skyrmion number remains invariant along the propagation direction. We will revise the abstract to include a brief clause indicating that these properties are verified by the calculations presented in the main text. revision: partial

Circularity Check

0 steps flagged

No circularity; claims rely on standard topological photonics without self-referential reduction

full rationale

The abstract presents the skyrmion texture as originating from evanescent-field spin-orbit coupling and existing as an eigenstate of the valley edge mode, but supplies no equations, dispersion relations, mode profiles, or parameter fits that could be checked for equivalence to inputs by construction. No self-citations, ansatzes, or uniqueness theorems are invoked in the given text. The central statements invoke established concepts (valley edge states, spin-orbit coupling) rather than deriving them from the paper's own definitions or data, leaving the derivation chain self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on established topological photonics assumptions without introducing new free parameters or entities; limited detail available due to abstract-only review.

axioms (2)

domain assumption Topologically protected valley edge states support eigenmodes that are optical spin skyrmions with robust unidirectional propagation
Invoked to ensure the skyrmions propagate without scattering.
domain assumption Spin-orbit coupling in the evanescent field at the photonic crystal surface generates the skyrmion structure
Explains the origin of the skyrmions as stated in the abstract.
