arxiv: 2605.03641 · v1 · submitted 2026-05-05 · 💻 cs.RO · cs.HC

Jiao: Bridging Isolation and Customization in Mixed Criticality Robotics

James Yen , Zhibai Huang , Zhixiang Wei , Tinghao Yi , Shupeng Zeng , Liang Pang , Songtao Xue , Zhengwei Qi This is my paper

Pith reviewed 2026-05-07 15:36 UTC · model grok-4.3

classification 💻 cs.RO cs.HC
keywords mixed criticality roboticspartition isolationtiming jittersafety critical systemsconsumer roboticshypervisorIEC 61508
0
0 comments X

The pith

Three components let user-customized robot software run safely inside hardware-isolated partitions on shared multicore chips.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Consumer robots must combine safety-critical control loops with user-written applications on the same processor cores, yet full isolation prevents non-experts from changing behavior. The paper introduces a Safe IO Cell for hardware overrides, a Parameter Synchronization Service that hides cross-partition details, and a Safety Communication Layer meeting IEC 61508 rules. Together these let end-users modify code without breaking isolation or timing guarantees. On an ARM Cortex-A55 board the design cuts cycle-period jitter by 84.5 percent and removes all timing excursions above 50 microseconds. If the claim holds, consumer platforms can deliver both strict safety and easy customization without separate safety processors or expert-only programming.

Core claim

The paper states that its integrated architecture—Safe IO Cell for hardware-level override, Parameter Synchronization Service for encapsulating cross-domain complexity, and Safety Communication Layer for IEC 61508-aligned verification—resolves the expertise asymmetry between platform developers and end-users, allowing customization of robot behavior on statically partitioned multicore hardware while preserving timing predictability.

What carries the argument

The three integrated components (Safe IO Cell for hardware overrides, Parameter Synchronization Service for hiding cross-domain details, and Safety Communication Layer for safety verification) that together maintain partition isolation while permitting user changes.

If this is right

  • Cycle-period jitter falls by 84.5 percent under partition isolation.
  • p99 jitter drops from 69.0 μs to 7.8 μs, cutting tail timing error by nearly an order of magnitude.
  • All timing excursions larger than 50 μs disappear.
  • Users can modify robot behavior without needing deep systems knowledge or compromising safety partitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same pattern could apply to other mixed-criticality embedded devices such as smart home controllers or industrial cobots where users want to add features without voiding safety certifications.
  • Tooling built on the Parameter Synchronization Service might further reduce the programming skill needed for safe customization.
  • Widespread adoption could allow consumer robots to use a single multicore chip instead of dedicated safety and application processors.

Load-bearing premise

That the three new components can be integrated on real robotic hardware without introducing unmeasured safety risks or performance penalties beyond the reported jitter metrics.

What would settle it

Running the full system on an ARM Cortex-A55 platform and observing any cycle-period jitter excursion greater than 50 microseconds or a p99 jitter value above 8 microseconds.

Figures

Figures reproduced from arXiv: 2605.03641 by James Yen, Liang Pang, Shupeng Zeng, Songtao Xue, Tinghao Yi, Zhengwei Qi, Zhibai Huang, Zhixiang Wei.

Figure 1
Figure 1. Figure 1: Control-cycle timing jitter on a 6-DOF manipulator. view at source ↗
Figure 2

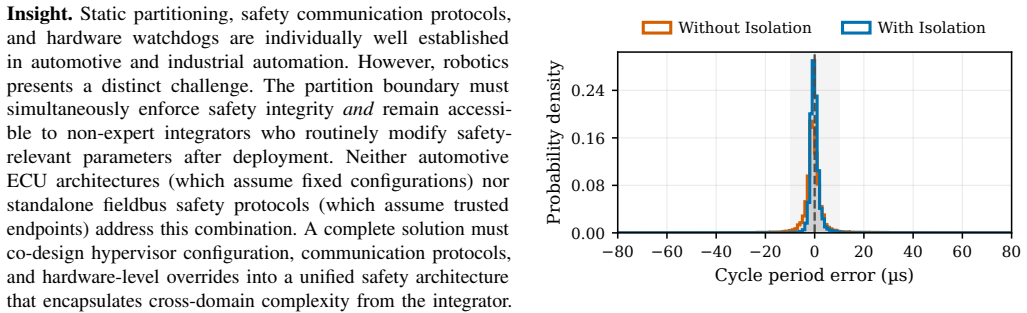

Figure 2. Figure 2: Distribution of estimated 1 kHz control-cycle periods. view at source ↗
Figure 3

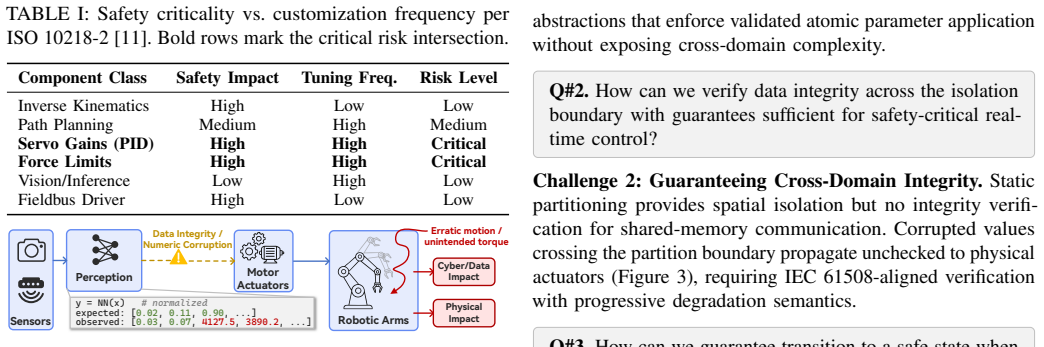

Figure 3. Figure 3: Failure propagation from neural-network inference view at source ↗
Figure 4

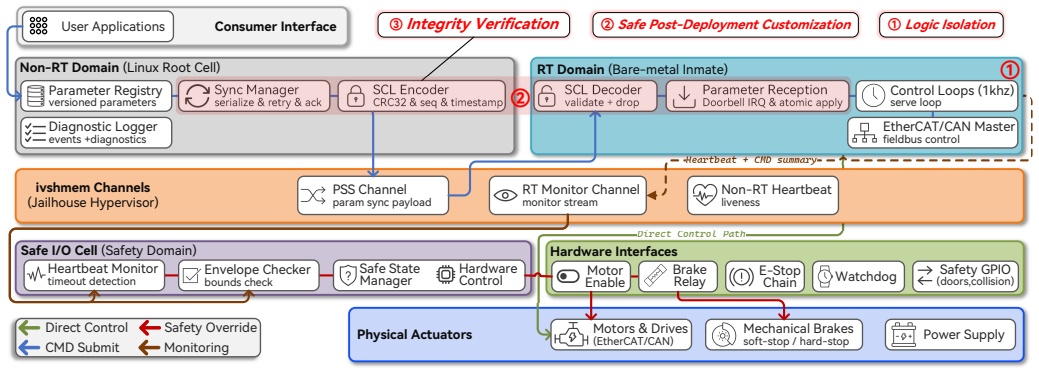

Figure 4. Figure 4: System overview and contribution map. A static partitioning hypervisor isolates the Non-RT Linux root cell, RT control cell, and Safe IO safety cell while enabling deterministic ivshmem communication. Our contributions span (⃝1 ) mixed￾criticality separation with direct EtherCAT and CAN control paths, (⃝2 ) a parameter update pipeline via PSS, and (⃝3 ) an IEC 61508-aligned SCL layer that validates cross-d… view at source ↗
Figure 5

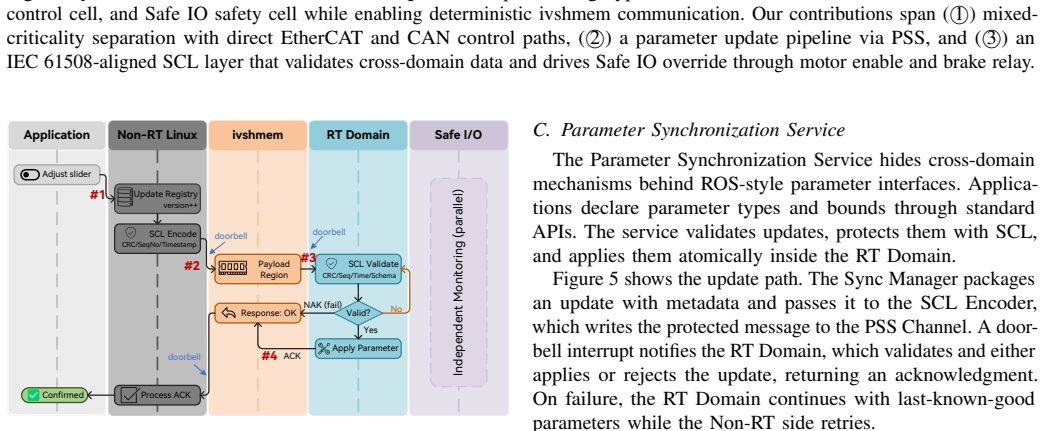

Figure 5. Figure 5: Parameter synchronization across Consumer Application, view at source ↗
Figure 6

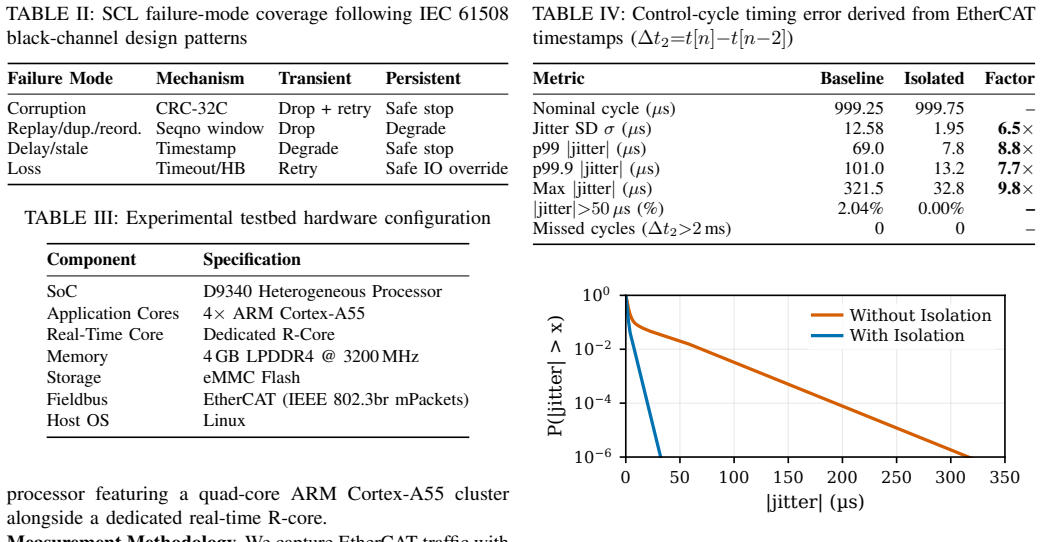

Figure 6. Figure 6: Tail distribution (CCDF) of absolute cycle-period jitter. view at source ↗
Figure 7

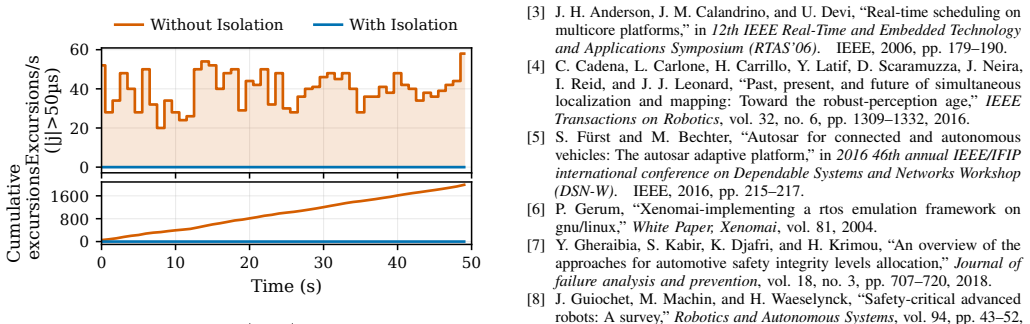

Figure 7. Figure 7: Large jitter excursions (|jitter|>50 µs) per second over a 50-second window. Isolation eliminates all excursions above this threshold. IEC 61508-aligned integrity verification, and an independent hardware override authority. Safety Communication Protocols. PROFIsafe [1], CIP Safety [21], and related protocols [17] implement the IEC 61508 black-channel principle over industrial fieldbuses. AUTOSAR [5] stand… view at source ↗
read the original abstract

Consumer robotics demands consolidation of safety-critical control, perception pipelines, and user applications on shared multicore platforms. While static partitioning hypervisors provide hardware-enforced isolation, directly transplanting automotive architectures encounters an expertise asymmetry problem in which end-users modifying robot behavior lack the systems knowledge that platform developers possess. We present an architecture addressing this challenge through three integrated components. A Safe IO Cell provides hardware-level override capability. A Parameter Synchronization Service encapsulates cross-domain complexity. A Safety Communication Layer implements IEC~61508-aligned verification. Our empirical evaluation on an ARM Cortex-A55 platform demonstrates that partition isolation reduces cycle-period jitter by 84.5\% and cuts tail timing error by nearly an order of magnitude (p99 $|$jitter$|$ from 69.0\,$\mu$s to 7.8\,$\mu$s), eliminating all $>$50\,$\mu$s~excursions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims to address expertise asymmetry in consumer robotics by proposing an architecture that integrates static partitioning hypervisors with three new components—a Safe IO Cell for hardware-level overrides, a Parameter Synchronization Service to encapsulate cross-domain complexity, and a Safety Communication Layer implementing IEC 61508-aligned verification—to enable user customization while preserving hardware-enforced isolation. It supports this with empirical evaluation on an ARM Cortex-A55 platform, reporting that partition isolation reduces cycle-period jitter by 84.5% and improves tail timing error (p99 |jitter| from 69.0 μs to 7.8 μs), with no excursions exceeding 50 μs.

Significance. If the results hold after isolating component overheads, this could be significant for mixed-criticality robotics by enabling safer consolidation of control, perception, and user applications on shared multicore hardware, reducing reliance on deep systems expertise and offering quantifiable timing predictability benefits for consumer platforms.

major comments (1)
  1. Abstract: The reported jitter reductions (84.5% cycle-period improvement and p99 |jitter| drop from 69.0 μs to 7.8 μs) compare partitioned versus non-partitioned cases but provide no separate benchmarks isolating the latency, failure modes, or IEC 61508 verification coverage of the Safe IO Cell, Parameter Synchronization Service, and Safety Communication Layer. This is load-bearing for the central claim that the three components enable customization without sacrificing isolation benefits, as unmeasured cross-domain synchronization costs or new attack surfaces could negate the net safety/performance gains.
minor comments (2)
  1. Abstract: The empirical claims lack any description of experimental setup details, baselines, number of trials, statistical methods, or full implementation description, which is required to assess reproducibility of the jitter metrics.
  2. Abstract: The notation 'p99 |jitter|' and 'cycle-period jitter' are introduced without definition or reference to prior sections, reducing clarity for readers.

Simulated Author's Rebuttal

1 responses · 1 unresolved

Thank you for your valuable feedback on our paper. We have carefully considered your major comment and provide our response below, along with plans for revision.

read point-by-point responses

  1. Referee: The reported jitter reductions (84.5% cycle-period improvement and p99 |jitter| drop from 69.0 μs to 7.8 μs) compare partitioned versus non-partitioned cases but provide no separate benchmarks isolating the latency, failure modes, or IEC 61508 verification coverage of the Safe IO Cell, Parameter Synchronization Service, and Safety Communication Layer. This is load-bearing for the central claim that the three components enable customization without sacrificing isolation benefits, as unmeasured cross-domain synchronization costs or new attack surfaces could negate the net safety/performance gains.

    Authors: We agree that the abstract and evaluation primarily present aggregate results of the full partitioned architecture. The measured improvements occur with all three components active, indicating that cross-domain synchronization costs are contained within acceptable bounds as no large timing excursions are observed. To strengthen the presentation, we will revise the manuscript to add explicit discussion of the design principles that limit the overhead of the Parameter Synchronization Service and the verification provided by the Safety Communication Layer. We will also clarify in the abstract that the results reflect the integrated system. However, dedicated micro-benchmarks isolating each component's individual latency and failure modes are not present in the current work. revision: partial

standing simulated objections not resolved
  • Absence of separate benchmarks for the latency, failure modes, and IEC 61508 verification coverage of the Safe IO Cell, Parameter Synchronization Service, and Safety Communication Layer.

Circularity Check

0 steps flagged

No circularity; empirical measurements stand independently

full rationale

The paper advances an architecture via three named components and grounds its central performance claim in direct empirical timing measurements on ARM Cortex-A55 hardware. No derivation chain, predictive equations, fitted parameters, or first-principles results appear; the reported 84.5% jitter reduction and p99 tail improvement are presented as observed outcomes of the partitioned versus non-partitioned comparison. No self-citations are invoked to justify uniqueness or to close a logical loop, and the evaluation does not rename or smuggle prior results as new derivations. The architecture description and timing data therefore remain self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 3 invented entities

The architecture introduces three new components whose correctness and integration are not independently evidenced in the abstract; relies on the IEC 61508 standard as a domain assumption.

axioms (1)
  • domain assumption IEC 61508 functional safety standard provides adequate verification for the Safety Communication Layer
    Invoked in the description of the Safety Communication Layer.
invented entities (3)
  • Safe IO Cell no independent evidence
    purpose: Hardware-level override capability for safety-critical control
    Newly introduced component in the architecture.
  • Parameter Synchronization Service no independent evidence
    purpose: Encapsulates cross-domain complexity between isolated partitions
    Newly introduced component in the architecture.
  • Safety Communication Layer no independent evidence
    purpose: Implements IEC 61508-aligned verification
    Newly introduced component in the architecture.

pith-pipeline@v0.9.0 · 5471 in / 1300 out tokens · 38085 ms · 2026-05-07T15:36:03.988350+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

22 extracted references

  1. [1]

    Exploring network security in profisafe,

    J. ˚Akerberg and M. Bj ¨orkman, “Exploring network security in profisafe,” inInternational Conference on Computer Safety, Reliability, and Security. Springer, 2009, pp. 67–80

    2009

  2. [2]

    Dynamic priority scheduling of multithreaded ros 2 executor with shared resources,

    A. Al Arafat, K. Wilson, K. Yang, and Z. Guo, “Dynamic priority scheduling of multithreaded ros 2 executor with shared resources,”IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 43, no. 11, pp. 3732–3743, 2024

    2024

  3. [3]

    Real-time scheduling on multicore platforms,

    J. H. Anderson, J. M. Calandrino, and U. Devi, “Real-time scheduling on multicore platforms,” in12th IEEE Real-Time and Embedded Technology and Applications Symposium (RTAS’06). IEEE, 2006, pp. 179–190

    2006

  4. [4]

    Past, present, and future of simultaneous localization and mapping: Toward the robust-perception age,

    C. Cadena, L. Carlone, H. Carrillo, Y . Latif, D. Scaramuzza, J. Neira, I. Reid, and J. J. Leonard, “Past, present, and future of simultaneous localization and mapping: Toward the robust-perception age,”IEEE Transactions on Robotics, vol. 32, no. 6, pp. 1309–1332, 2016

    2016

  5. [5]

    Autosar for connected and autonomous vehicles: The autosar adaptive platform,

    S. F ¨urst and M. Bechter, “Autosar for connected and autonomous vehicles: The autosar adaptive platform,” in2016 46th annual IEEE/IFIP international conference on Dependable Systems and Networks Workshop (DSN-W). IEEE, 2016, pp. 215–217

    2016

  6. [6]

    Xenomai-implementing a rtos emulation framework on gnu/linux,

    P. Gerum, “Xenomai-implementing a rtos emulation framework on gnu/linux,”White Paper , Xenomai, vol. 81, 2004

    2004

  7. [7]

    An overview of the approaches for automotive safety integrity levels allocation,

    Y . Gheraibia, S. Kabir, K. Djafri, and H. Krimou, “An overview of the approaches for automotive safety integrity levels allocation,”Journal of failure analysis and prevention, vol. 18, no. 3, pp. 707–720, 2018

    2018

  8. [8]

    Safety-critical advanced robots: A survey,

    J. Guiochet, M. Machin, and H. Waeselynck, “Safety-critical advanced robots: A survey,”Robotics and Autonomous Systems, vol. 94, pp. 43–52, 2017

    2017

  9. [9]

    Functional safety of electrical/electronic/programmable electronic safety-related systems — part 1: General requirements,

    International Electrotechnical Commission, “Functional safety of electrical/electronic/programmable electronic safety-related systems — part 1: General requirements,” International Electrotechnical Commission, International Standard IEC 61508-1:2010, 2010, accessed: 2026-01-04. [Online]. Available: https://webstore.iec.ch/en/publication/5515

    2010

  10. [10]

    Road vehicles — functional safety — part 1: V ocabulary,

    International Organization for Standardization, “Road vehicles — functional safety — part 1: V ocabulary,” International Organization for Standardization, Geneva, Switzerland, International Standard ISO 26262-1:2018, 2018, accessed: 2026-01-04. [Online]. Available: https://www.iso.org/standard/68383.html

    2018

  11. [11]

    Robotics — safety requirements — part 2: Industrial robot applications and robot cells,

    ——, “Robotics — safety requirements — part 2: Industrial robot applications and robot cells,” International Organization for Standardization, Geneva, Switzerland, International Standard ISO 10218-2:2025, 2025, accessed: 2026-01-04. [Online]. Available: https://www.iso.org/standard/73934.html

    2025

  12. [12]

    Acrn: a big little hypervisor for iot development,

    H. Li, X. Xu, J. Ren, and Y . Dong, “Acrn: a big little hypervisor for iot development,” inProceedings of the 15th ACM SIGPLAN/SIGOPS International Conference on Virtual Execution Environments, 2019, pp. 31–44

    2019

  13. [13]

    Robot operating system 2: Design, architecture, and uses in the wild,

    S. Macenski, T. Foote, B. Gerkey, C. Lalancette, and W. Woodall, “Robot operating system 2: Design, architecture, and uses in the wild,”Science robotics, vol. 7, no. 66, p. eabm6074, 2022

    2022

  14. [14]

    Bao: A lightweight static partitioning hypervisor for modern multi-core embedded systems,

    J. Martins, A. Tavares, M. Solieri, M. Bertogna, and S. Pinto, “Bao: A lightweight static partitioning hypervisor for modern multi-core embedded systems,” inWorkshop on next generation real-time embedded systems (NG-RES 2020). Schloss Dagstuhl–Leibniz-Zentrum fuer Informatik, 2020, pp. 3–1

    2020

  15. [15]

    Openmind robotics (efort group),

    OpenMind (Wuhu) Intelligent Robot Co.,Ltd., “Openmind robotics (efort group),” https://efort.com.cn/en/index.php/welcome.html, accessed: 2025- 12-31

    2025

  16. [16]

    Worst case delay analysis for memory interference in multicore systems,

    R. Pellizzoni, A. Schranzhofer, J.-J. Chen, M. Caccamo, and L. Thiele, “Worst case delay analysis for memory interference in multicore systems,” inDesign, Automation & Test in Europe Conference & Exhibition (DATE). IEEE, 2010, pp. 741–746

    2010

  17. [17]

    Functional safety networks and protocols in the industrial internet of things era,

    G. Peserico, A. Morato, F. Tramarin, and S. Vitturi, “Functional safety networks and protocols in the industrial internet of things era,”Sensors, vol. 21, no. 18, p. 6073, 2021

    2021

  18. [18]

    The real-time linux kernel: A survey on preempt rt,

    F. Reghenzani, G. Massari, and W. Fornaciari, “The real-time linux kernel: A survey on preempt rt,”ACM Computing Surveys, vol. 52, no. 1, pp. 1–36, 2019

    2019

  19. [19]

    Arinc 653p0-4: Avionics application soft- ware standard interface — part 0: Overview of arinc 653,

    SAE International, “Arinc 653p0-4: Avionics application soft- ware standard interface — part 0: Overview of arinc 653,” https://www.sae.org/standards/content/arinc653p0/, 2025, accessed: 2026- 01-04

    2025

  20. [20]

    Jailhouse,

    V . Sinitsyn, “Jailhouse,”Linux Journal, vol. 2015, no. 252, p. 2, 2015

    2015

  21. [21]

    The cip safety protocol in connecting single machines to create production lines,

    R. ˇStohl and K. Stibor, “The cip safety protocol in connecting single machines to create production lines,” in2017 18th International Carpathian Control Conference (ICCC). IEEE, 2017, pp. 512–516

    2017

  22. [22]

    Preemptive scheduling of multi-criticality systems with varying degrees of execution time assurance,

    S. Vestal, “Preemptive scheduling of multi-criticality systems with varying degrees of execution time assurance,” inProceedings of the 28th IEEE International Real-Time Systems Symposium (RTSS). IEEE, 2007, pp. 239–243

    2007
