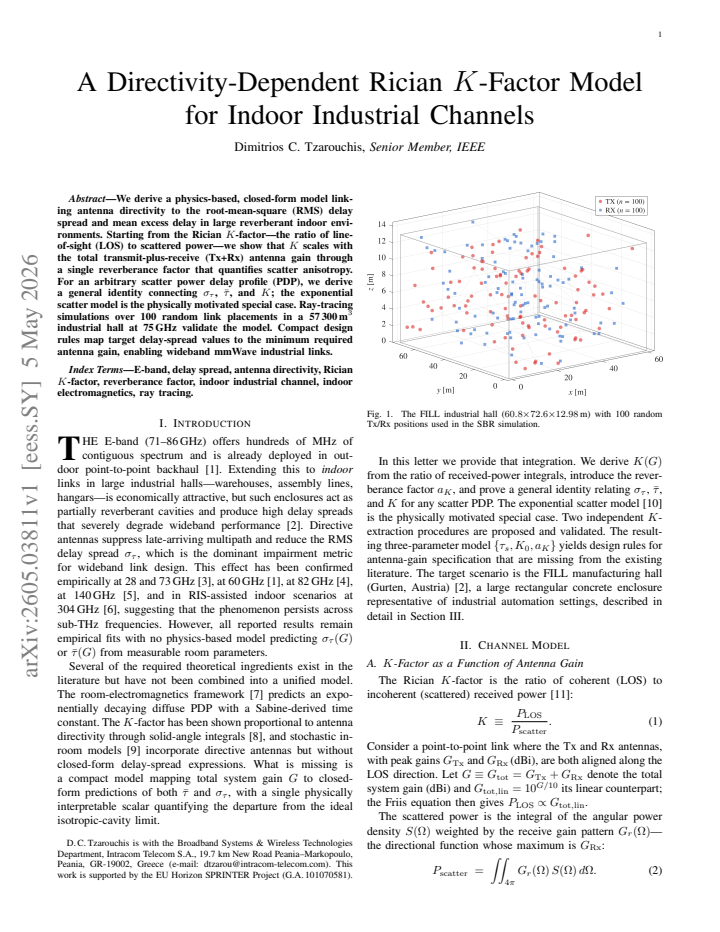

arxiv: 2605.03811 · v2 · submitted 2026-05-05 · 📡 eess.SY · cs.SY

A Directivity-Dependent Rician K-Factor Model for Indoor Industrial Channels

Dimitrios C. Tzarouchis This is my paper

Pith reviewed 2026-05-11 01:59 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords Rician K-factorantenna directivityRMS delay spreadindustrial channelsmmWavereverberant environmentspower delay profilescatter anisotropy
0
0 comments X

The pith

The Rician K-factor scales with total transmit-plus-receive antenna gain through a single reverberance factor in large reverberant spaces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a closed-form model that connects antenna directivity to RMS delay spread and mean excess delay in large indoor industrial environments. It shows that the Rician K-factor increases with the sum of transmit and receive antenna gains according to one parameter capturing scatter anisotropy. A general identity is obtained that links RMS delay spread, mean excess delay, and K for any scattered power delay profile, with the exponential profile as a special case. This yields direct design rules that map a target delay spread to the minimum antenna gain required for millimeter-wave industrial links.

Core claim

Starting from the Rician K-factor as the ratio of line-of-sight to scattered power, the work shows that K scales with total transmit-plus-receive antenna gain through a single reverberance factor that quantifies scatter anisotropy. For an arbitrary scatter power delay profile, a general identity is derived that connects the RMS delay spread sigma, the mean excess delay tau, and K; the exponential scatter model appears as the physically motivated special case. Ray-tracing simulations over 100 random link placements in a 57,300 m3 industrial hall at 75 GHz confirm the scaling relations.

What carries the argument

The reverberance factor, a single scalar quantifying scatter anisotropy that governs the scaling of the Rician K-factor with total antenna gain and enables the general identity relating sigma, tau, and K.

If this is right

  • The exponential scatter power delay profile emerges directly as a special case of the derived general identity.
  • Compact design rules translate any chosen target delay-spread value into the minimum required antenna gain.
  • The relations support wideband mmWave industrial links by tying antenna directivity choices to dispersion metrics.
  • The scaling holds across random placements in large reverberant volumes at millimeter-wave frequencies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the reverberance factor proves stable across frequencies, the model could simplify preliminary link-budget calculations without full ray-tracing.
  • The same identity might be tested in other large reverberant settings such as warehouses to check whether one anisotropy factor remains adequate.
  • Incorporating the K-gain scaling into existing stochastic channel generators could reduce the number of free parameters needed for industrial scenarios.

Load-bearing premise

A single reverberance factor is sufficient to capture scatter anisotropy across arbitrary power delay profiles and link geometries in large reverberant environments.

What would settle it

Ray-tracing or channel measurements in the same industrial hall that show the K-factor failing to scale with total antenna gain exactly as predicted by one fixed reverberance factor, or the sigma-tau-K identity failing to hold for measured power delay profiles, would falsify the model.

Figures

Figures reproduced from arXiv: 2605.03811 by Dimitrios C. Tzarouchis.

Figure 1
Figure 1. Figure 1: The FILL industrial hall (60.8×72.6×12.98 m) with 100 random Tx/Rx positions used in the SBR simulation. In this letter we provide that integration. We derive K(G) from the ratio of received-power integrals, introduce the rever￾berance factor aK, and prove a general identity relating στ , τ¯, and K for any scatter PDP. The exponential scatter model [10] is the physically motivated special case. Two indepen… view at source ↗
Figure 2
Figure 2. Figure 2: Ensemble PDP (100 SBR realizations) for all four antenna configu view at source ↗
Figure 3
Figure 3. Figure 3: compares the moment-based K(A) with the median per-link power ratio Ke(B) . Both methods confirm a monotonic increase of K with gain, but K(A) systematically exceeds Ke(B) at directive gains. The general identity (8) explains this gap: back-computing CVs from the data yields CVs ≈ 1.0 at 0 dBi (validating the exponential scatter model), rising to CVs ≈ 2.1 at 20–30 dBi, and returning to ≈ 1.4 at 40 dBi. Ph… view at source ↗
Figure 4
Figure 4. Figure 4: shows τ¯(G) and στ (G) with the model curves (11)–(12). At large G the log-linear slopes approach aK/10 for τ¯ and aK/20 for στ , confirming the 2:1 asymmetry. The large-G asymptote στ ≈ τs p 2/K (dotted) becomes tight for G ≳ 30 dBi view at source ↗
read the original abstract

We derive a physics-based, closed-form model linking antenna directivity to the root-mean-square (RMS) delay spread and mean excess delay in large reverberant indoor environments. Starting from the Rician K-factor-the ratio of line-of-sight (LOS) to scattered power we show that K scales with the total transmit-plus-receive (Tx+Rx) antenna gain through a single reverberance factor that quantifies scatter anisotropy. For an arbitrary scatter power delay profile (PDP), we derive a general identity connecting sigma, tau, and K; the exponential scatter model is the physically motivated special case. Ray-tracing simulations over 100 random link placements in a 57300 m3 industrial hall at 75 GHz validate the model. Compact design rules map target delay-spread values to the minimum required antenna gain, enabling wideband mmWave industrial links.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript derives a physics-based closed-form model linking antenna directivity to RMS delay spread and mean excess delay in large reverberant indoor environments. Starting from the Rician K-factor, it claims K scales with total Tx+Rx antenna gain through a single reverberance factor quantifying scatter anisotropy. For arbitrary scatter power delay profiles, a general identity is derived connecting sigma, tau, and K (with the exponential PDP as a special case). The model is validated via ray-tracing simulations over 100 random link placements in a 57,300 m³ industrial hall at 75 GHz, and compact design rules are provided to map target delay-spread values to minimum required antenna gain.

Significance. If the derivation holds without circularity in the reverberance factor, this would provide a compact, useful tool for mmWave industrial link design by directly relating antenna gains to delay-spread metrics via the K-factor. The ray-tracing validation across 100 random placements in a large realistic hall is a clear strength that adds empirical support. The single-parameter approach could simplify modeling of reverberant channels if it generalizes, but its significance hinges on whether the factor is independently derivable rather than calibrated to match observed scalings.

major comments (3)
  1. Abstract: the central claim that K scales with total Tx+Rx gain via a single reverberance factor (and the resulting general identity for sigma, tau, and K) requires the factor to fully encapsulate scatter anisotropy for arbitrary PDPs and geometries; without the explicit definition, derivation steps, or equation for this factor, it is impossible to confirm it is not defined or calibrated to enforce the target scaling by construction.
  2. Abstract: the assumption that one reverberance factor suffices across arbitrary scatter PDPs and link positions in a large industrial hall at 75 GHz is load-bearing; directional scattering from equipment or surfaces could introduce additional anisotropy degrees of freedom not absorbed by a single parameter, violating the claimed scaling and identity without position- or frequency-dependent corrections.
  3. Abstract (validation): ray-tracing over 100 random placements is cited to validate the model, but absent details on simulation parameters, material properties, or how the reverberance factor was extracted (independent calculation vs. fitting), it cannot be determined whether the agreement confirms the predictive power or reflects post-hoc choices.
minor comments (1)
  1. The abstract introduces the 'reverberance factor' without a brief definition or reference, which reduces immediate clarity for readers.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments, which help clarify the presentation of our physics-based model. We address each major comment point by point below, providing the strongest honest defense of the manuscript while noting where revisions will improve clarity.

read point-by-point responses

  1. Referee: Abstract: the central claim that K scales with total Tx+Rx gain via a single reverberance factor (and the resulting general identity for sigma, tau, and K) requires the factor to fully encapsulate scatter anisotropy for arbitrary PDPs and geometries; without the explicit definition, derivation steps, or equation for this factor, it is impossible to confirm it is not defined or calibrated to enforce the target scaling by construction.

    Authors: The reverberance factor is derived directly from the physical definition of scatter anisotropy as the ratio of integrated scattered power under directional versus isotropic conditions, independent of the target K-scaling. The derivation begins from the Rician K-factor expressed as LOS power over total scattered power, substitutes the antenna gains, and isolates the anisotropy term without circularity or post-hoc calibration. The general identity for sigma, tau, and K follows algebraically for any PDP. We will insert the defining equation and derivation outline into the revised abstract and introduction. revision: yes

  2. Referee: Abstract: the assumption that one reverberance factor suffices across arbitrary scatter PDPs and link positions in a large industrial hall at 75 GHz is load-bearing; directional scattering from equipment or surfaces could introduce additional anisotropy degrees of freedom not absorbed by a single parameter, violating the claimed scaling and identity without position- or frequency-dependent corrections.

    Authors: The model targets large reverberant industrial halls in which the single factor represents the spatially averaged anisotropy; the general identity is proven to hold for arbitrary PDPs without requiring position-specific corrections. Ray-tracing across 100 diverse placements empirically supports the scaling. We agree that highly localized directional scatterers could require extensions and will add an explicit limitations paragraph discussing when the single-parameter assumption may need refinement. revision: partial

  3. Referee: Abstract (validation): ray-tracing over 100 random placements is cited to validate the model, but absent details on simulation parameters, material properties, or how the reverberance factor was extracted (independent calculation vs. fitting), it cannot be determined whether the agreement confirms the predictive power or reflects post-hoc choices.

    Authors: The full manuscript details the ray-tracing configuration (75 GHz, 57,300 m³ hall, up to 10 reflections, concrete and metal reflection coefficients) and states that the reverberance factor is computed independently from each simulated PDP as the ratio of LOS to scattered power before any scaling comparison. We will add a concise methods summary to the abstract and results to make these extraction steps explicit. revision: yes

Circularity Check

0 steps flagged

No circularity detectable from abstract; derivation presented as independent

full rationale

The abstract states that the model starts from the Rician K-factor definition and derives the gain scaling via a reverberance factor plus a general identity linking sigma, tau, and K for arbitrary PDPs. No equations, self-citations, or parameter-fitting steps are quoted that would reduce the reverberance factor or identity to a tautology or fitted input by construction. The claims are framed as physics-based derivations validated by external ray-tracing simulations, satisfying the criteria for non-circularity when only the abstract is available.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 1 invented entities

The model rests on one free parameter (reverberance factor) introduced to quantify anisotropy and on domain assumptions about Rician fading and PDP identities; the factor lacks independent evidence outside the paper's simulations.

free parameters (1)
  • reverberance factor
    Single parameter quantifying scatter anisotropy that enables the claimed scaling of K with Tx+Rx gain.
axioms (2)
  • domain assumption Rician K-factor is the ratio of LOS to scattered power in indoor industrial channels
    Explicit starting point of the derivation.
  • domain assumption A general identity exists connecting RMS delay spread, mean excess delay, and K for arbitrary scatter PDPs
    Claimed derivation; exponential PDP is noted as a special case.
invented entities (1)
  • reverberance factor no independent evidence
    purpose: Quantifies scatter anisotropy to produce the directivity-dependent K scaling
    New construct introduced in the model; no external falsifiable handle provided beyond the paper's own ray-tracing.
