Recent Advances in Tabletop Kibble Balance -- KBmini

Nanjia Li , Weibo Liu , Kang Ma , Elsayed E.E. Qupasie , Wei Zhao , Songling Huang , Shisong Li
Authors on Pith no claims yet

Pith reviewed 2026-05-09 20:55 UTC · model grok-4.3

classification ⚛️ physics.ins-det
keywords Kibble balancemass calibrationtabletop metrologyvelocity profileinduced voltagemagnetic field characterizationspring constantE2 accuracy
0
0 comments X

The pith

A tabletop Kibble balance reaches near-constant velocity over 180 micrometers with an induced-voltage flat-top exceeding 1 volt.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper advances the KBmini, a compact Kibble balance intended for E2-accuracy mass calibration up to 1 kg. The authors map the Bl(z) interaction by manual magnet positioning, select the field extremum as the weighing location, and measure the local spring constant of the weighing cell. They then install a coil with more turns and apply multi-harmonic excitation to produce nearly constant coil speed across a 180-micrometer travel distance while generating a strong, flat induced-voltage signal above 1 V. These elements together are presented as the necessary preparation for subsequent force-balance experiments that compare electromagnetic and gravitational forces on a mass.

Core claim

With a coil having a larger number of turns and a multi-harmonic excitation technique, the KBmini produces a near-constant velocity profile across a 180 μm range, resulting in an induced-voltage flat-top region exceeding 1 V. The Bl(z) profile is characterized by manual magnet positioning to select the extremum as the weighing position, and the spring constant of the weighing cell is measured around this point. These developments lay the groundwork for upcoming experiments aimed at E2-accuracy mass calibration up to 1 kg.

What carries the argument

The multi-harmonic excitation technique applied to a coil with increased turns, which maintains constant velocity and high induced voltage over the required displacement range.

If this is right

  • The 180 μm constant-velocity range supplies sufficient travel for practical electromagnetic force measurements.
  • The induced voltage above 1 V improves signal strength and reduces the relative contribution of noise.
  • The pre-characterized weighing position and spring constant allow direct integration into force-balance procedures.
  • The overall setup provides the motion and signal stability required for repeated mass comparisons at the target accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • A successful demonstration of mass calibration with these components would show that short-range constant-velocity operation suffices for tabletop Kibble balances.
  • The multi-harmonic drive approach could be tested in other precision instruments that require smooth coil motion inside magnetic fields.
  • Automating the Bl(z) mapping step instead of manual positioning would reduce setup time and improve repeatability in future versions.
  • If the velocity profile remains stable under loaded conditions, the same hardware could support comparisons between multiple masses without mechanical readjustment.

Load-bearing premise

The measured Bl extremum position, spring constant, and demonstrated velocity and voltage profiles will combine to deliver E2-accuracy mass calibration when used in actual weighing experiments.

What would settle it

A full mass calibration experiment performed with the KBmini that yields an uncertainty larger than the E2 target when using the reported weighing position and motion profiles.

Figures

Figures reproduced from arXiv: 2605.04090 by Elsayed E.E. Qupasie, Kang Ma, Nanjia Li, Shisong Li, Songling Huang, Weibo Liu, Wei Zhao.

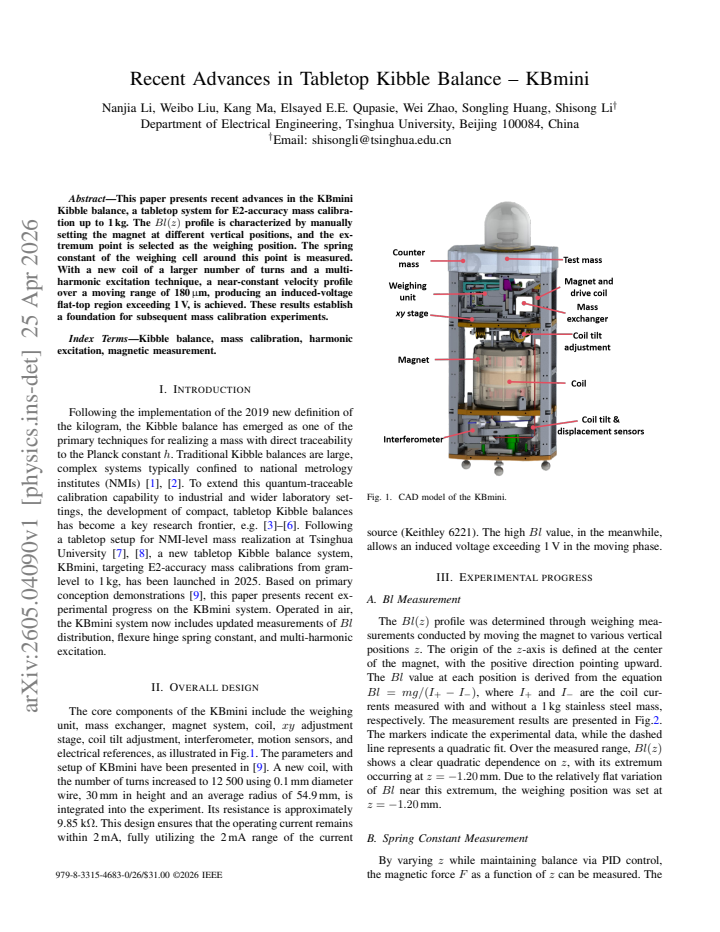

Figure 1
Figure 1. Figure 1: CAD model of the KBmini. source (Keithley 6221). The high Bl value, in the meanwhile, allows an induced voltage exceeding 1 V in the moving phase. III. EXPERIMENTAL PROGRESS A. Bl Measurement The Bl(z) profile was determined through weighing mea￾surements conducted by moving the magnet to various vertical positions z. The origin of the z-axis is defined at the center of the magnet, with the positive direct… view at source ↗
Figure 2
Figure 2. Figure 2: Measurement result of Bl(z) profile. 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0 0.01 0.02 0.03 z/mm F/ N measured data linear fit [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: F(z) curve of the weighing unit. resulting F(z) curve is shown in Fig.3. The linear fit indicates a good linearity, yielding a spring constant of the weighing unit k = 277.8 N/m. C. Multi-harmonic Excitation Measurement The multi-harmonic excitation method [9] is employed to generate a near-constant velocity profile by injecting odd-order harmonic currents into the drive coil. For the new coil, the optimiz… view at source ↗
read the original abstract

This paper presents recent advances in the KBmini Kibble balance, a tabletop system for E2-accuracy mass calibration up to 1 kg. The $Bl(z)$ profile is characterized by manually setting the magnet at different vertical positions, and the extremum point is selected as the weighing position. The spring constant of the weighing cell around this point is measured. With a new coil of a larger number of turns and a multi-harmonic excitation technique, a near-constant velocity profile over a moving range of 180 $\mu$m, producing an induced-voltage flat-top region exceeding 1 V, is achieved. These results establish a foundation for subsequent mass calibration experiments.
