arxiv: 2605.04172 · v1 · submitted 2026-05-05 · 💻 cs.AR · cs.LO

Recognition: 2 theorem links

· Lean Theorem

t\"{a}k\={o}Formal: Enabling Robust Software for Programmable Memory Hierarchies (Extended Version)

Pranav Srinivasan , Manos Kapritsos , Yatin A. Manerkar
Authors on Pith no claims yet

Pith reviewed 2026-05-08 18:25 UTC · model grok-4.3

classification 💻 cs.AR cs.LO
keywords memory consistency modelprogrammable memory hierarchyformal verificationISA-level semanticsaccelerator programmingmicroarchitectural modelinglitmus teststākō accelerator
0
0 comments X

The pith

An ISA-level memory consistency model for tākō defines the allowed behaviors of programs that use user-defined callbacks on cache events.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a high-level memory consistency model at the ISA level for the tākō programmable memory hierarchy. This model specifies the semantics of operations triggered by cache misses, evictions, and writebacks so that programmers can check their code formally. The authors prove the model is sound by creating a detailed implementation model of the hardware and confirming that every execution allowed by the implementation stays within the high-level rules. If correct, the model gives programmers a reliable way to reason about counterintuitive outcomes from custom data-movement logic. The extended version adds litmus tests that further map out safe and unsafe program behaviors.

Core claim

We develop an ISA-level memory consistency model (MCM) for tākō that captures the semantics of its operation, and we show how it enables programmers to formally reason about their tākō programs. We also prove the soundness of this ISA-level MCM by constructing a detailed tākō implementation model and verifying that all executions of the implementation model are allowed by our ISA-level MCM. Along the way, we discover useful insights about microarchitectural modeling and verification that are applicable to hardware in general.

What carries the argument

The ISA-level memory consistency model for tākō, which defines the ordering and visibility rules for memory operations in the presence of user-defined callback functions triggered by cache events.

If this is right

  • Programmers can use the model and associated litmus tests to check whether their tākō programs produce only allowed behaviors.
  • Any implementation that follows the detailed model is guaranteed to respect the high-level consistency rules.
  • The same modeling approach yields reusable insights for verifying other accelerators with complex data-movement logic.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Adoption of the model could let compiler writers or runtime systems automatically insert safe callback logic.
  • The verification method may scale to other programmable hardware features that alter the hardware-software interface.
  • Further litmus tests beyond those in the extended version could expose additional corner cases in real silicon.

Load-bearing premise

The constructed implementation model accurately represents the real tākō hardware behavior, and the verification process covers all relevant executions and litmus tests without gaps.

What would settle it

A single execution trace on actual tākō hardware that produces a memory ordering or visibility outcome forbidden by the ISA-level MCM.

Figures

Figures reproduced from arXiv: 2605.04172 by Manos Kapritsos, Pranav Srinivasan, Yatin A. Manerkar.

Figure 1

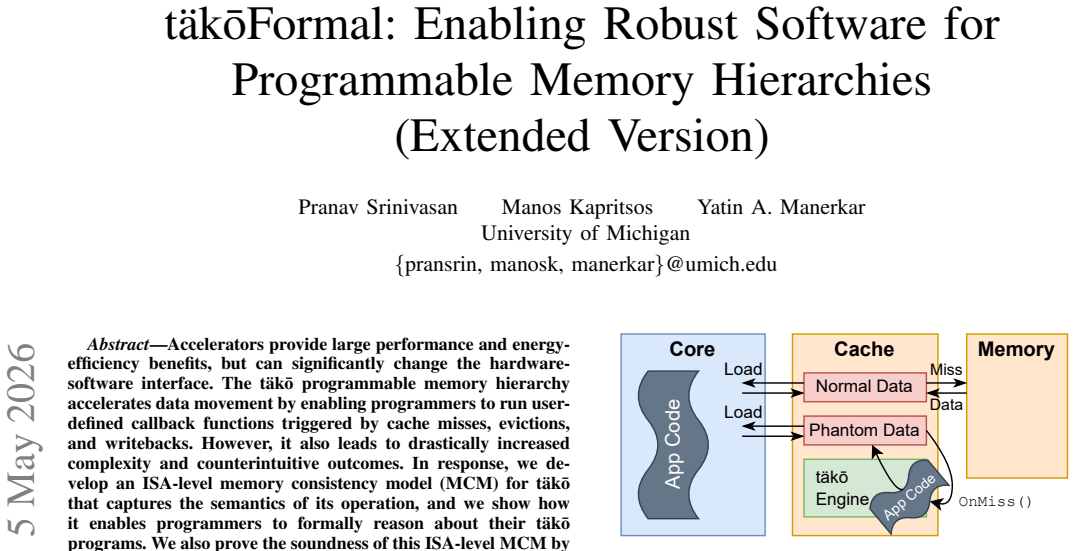

Figure 1. Figure 1: Image and caption from [55] showing the organization view at source ↗
Figure 2
Figure 2. Figure 2: (a) A sample tak¨ o program. (b) A possible execution ¯ of said program. The evictions and misses from the cache, which were previously hidden hardware details, now impact the outcome of the program. and non-volatile memory transactions. Thus, insights gained from modeling and verifying tak¨ o are likely to be more broadly ¯ applicable than those gained from modeling a more specialized accelerator. Finally… view at source ↗
Figure 3

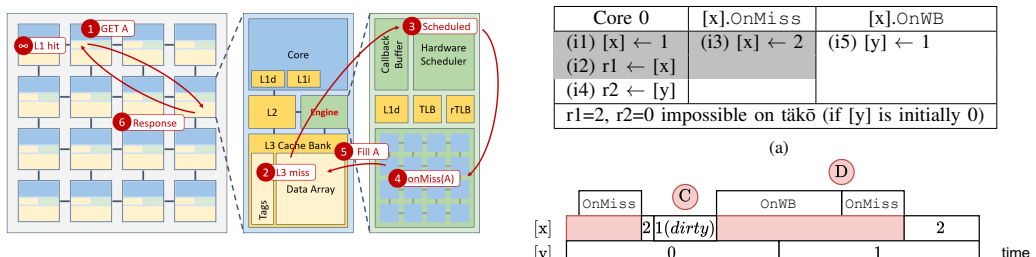

Figure 3. Figure 3: Image from [55] showing the order of events in t view at source ↗
Figure 5
Figure 5. Figure 5: (a) The mp (message passing) litmus test. All addresses are assumed to be 0 initially. (b) An execution graph of mp that is outlawed under sequential consistency (SC). Figure 4b explains this reasoning. If r1=2, the value for (i2) must have been generated as the result of an OnMiss A instead of by (i1). Thus, an interspersed OnMiss must have run between (i1) and (i2). However, since (i1) would have brought… view at source ↗
Figure 6
Figure 6. Figure 6: All axioms for our tak¨ o MCM. Executions must satisfy all axioms to be allowed. ¯ [A] is the elements of type A in relation form [59]. A × B are pairs of an element of type A and an element of type B. A \ B is the elements of A that are not in B. Semicolons (;) denote relational composition, e.g., e1; e2 is two relations e1 and e2 where the destination node of e1 is the source node of e2. R−1 is the inver… view at source ↗
Figure 7
Figure 7. Figure 7: (a-e) Faulty candidate execution graphs for Figure 4a’s t view at source ↗
Figure 8
Figure 8. Figure 8: A pattern forbidden by traditional happens-before ( view at source ↗
Figure 9
Figure 9. Figure 9: (a) The mprmw (no callback) and mpcb (OnMiss for [b]) litmus tests. (b) A forbidden execution of mprmw where the RMWs augment the hb relation to outlaw the reading of 0 for [a]. (c) An analogous forbidden execution of mpcb showing the same pattern when [b] is a phantom address. needing to understand the intricacies of a tak¨ o implementation. ¯ §V shows how to use our MCM to analyze tak¨ o programs. ¯ V. P… view at source ↗
Figure 10
Figure 10. Figure 10: (a) The icbsb litmus test. (b) An execution of icbsb that demonstrates the intra-callback instruction re￾ordering that is allowed by our MCM. designing the callback engine. In particular, tak¨ o designs that ¯ buffer and reorder memory operations in the engine can still use our MCM. D. FlushRange as a Synchronization Primitive While the use of an OnMiss-generated value (Me) by a Rcb or Wcb induces an hb e… view at source ↗
Figure 12
Figure 12. Figure 12: (a) The phiR (with OnWB (1)) and phiNR (with OnWB (2)) litmus tests. (b) Execution snippet showing phiR race due to OnWB from core 0’s write occurring after FlushRange on core 1. (c) Execution snippet showing how phiNR avoids the race by branching on evicted value in the OnWB. of a program (named phiR and phiNR) in which multiple cores concurrently write updates to a phantom address [x] and the OnWB of [x… view at source ↗
Figure 13
Figure 13. Figure 13: (a) hatsR and hatsNR litmus tests. (b) Execution snippet showing hatsR race due to OnEvict writing to the log post-traversal. (c) Snippet showing how hatsNR elimi￾nates the race by only logging valid edges in the OnEvict. graph traversal, which is more difficult to write correctly because it has writes in OnEvict callbacks that can run an arbitrary number of times. F. A tak¨ o Application Case Study: HATS… view at source ↗
Figure 14
Figure 14. Figure 14: Our hierarchical transition system instantiated with view at source ↗
Figure 16
Figure 16. Figure 16: A Venn diagram motivating inductive invariants. view at source ↗
Figure 17
Figure 17. Figure 17: Two formulations of an axiom restricting the number view at source ↗
Figure 18
Figure 18. Figure 18: The two components of our soundness proof. view at source ↗
read the original abstract

Accelerators provide large performance and energy-efficiency benefits, but can significantly change the hardware-software interface. The t\"{a}k\={o} programmable memory hierarchy accelerates data movement by enabling programmers to run user-defined callback functions triggered by cache misses, evictions, and writebacks. However, it also leads to drastically increased complexity and counterintuitive outcomes. In response, we develop an ISA-level memory consistency model (MCM) for t\"{a}k\={o} that captures the semantics of its operation, and we show how it enables programmers to formally reason about their t\"{a}k\={o} programs. We also prove the soundness of this ISA-level MCM by constructing a detailed t\"{a}k\={o} implementation model and verifying that all executions of the implementation model are allowed by our ISA-level MCM. Along the way, we discover useful insights about microarchitectural modeling and verification that are applicable to hardware in general. This is the extended version of the ISCA 2026 paper "t\"{a}k\={o}Formal: Enabling Robust Software for Programmable Memory Hierarchies". This version adds material on additional litmus tests to Section V to further explore the programmability of t\"{a}k\={o} using our ISA-level MCM.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper develops an ISA-level memory consistency model (MCM) for the tākō programmable memory hierarchy, which accelerates data movement via user-defined callbacks on cache misses, evictions, and writebacks. It demonstrates how the MCM enables formal reasoning about tākō programs and proves soundness by constructing a detailed implementation model and verifying that all executions of this model are permitted by the MCM. The extended version adds litmus tests in Section V to further explore programmability.

Significance. If the implementation model faithfully represents hardware, the work supplies a formal foundation for safe programming of complex programmable memory hierarchies, addressing counterintuitive behaviors that arise from custom callbacks and coherence. The explicit construction and verification of the implementation model against the MCM, plus the additional litmus tests, constitute a concrete contribution to microarchitectural modeling; the reported insights on verification techniques are broadly applicable beyond tākō.

major comments (2)
  1. [Abstract] Abstract and soundness argument: the claim that the ISA-level MCM 'captures the semantics of its operation' rests on consistency with the authors' constructed implementation model; no independent validation (comparison to RTL, cycle-accurate simulator, or silicon measurements of callback triggering, eviction timing, or coherence interactions) is supplied. This is load-bearing for the utility claim that programmers can rely on the MCM for real tākō programs.
  2. [Section V] Section V (additional litmus tests): the new tests examine MCM expressiveness and programmability but do not test alignment between the implementation model and observable hardware behavior. Because the central soundness result is internal to the two artifacts the authors define, this omission leaves open whether the MCM is too strong or too weak for actual executions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for acknowledging the significance of providing a formal foundation for programmable memory hierarchies. We address each major comment below, clarifying the intended scope of our contributions while offering targeted revisions to improve clarity.

read point-by-point responses

  1. Referee: [Abstract] Abstract and soundness argument: the claim that the ISA-level MCM 'captures the semantics of its operation' rests on consistency with the authors' constructed implementation model; no independent validation (comparison to RTL, cycle-accurate simulator, or silicon measurements of callback triggering, eviction timing, or coherence interactions) is supplied. This is load-bearing for the utility claim that programmers can rely on the MCM for real tākō programs.

    Authors: We thank the referee for this observation. The soundness proof establishes that every execution of the detailed implementation model is permitted by the ISA-level MCM, providing a rigorous guarantee that the MCM soundly abstracts the operational semantics encoded in the implementation model (including callback triggers, evictions, writebacks, and coherence). This enables programmers to reason about tākō programs at the ISA level without directly modeling microarchitectural details. While we agree that direct comparison to RTL, cycle-accurate simulation, or silicon measurements would provide additional empirical support for the implementation model's fidelity to hardware, such validation lies outside the scope of this work. Our focus is the development of the formal models, the verification methodology, and the resulting insights into microarchitectural modeling that apply more broadly. We will add a dedicated paragraph in the introduction (and reference it in the abstract) explicitly discussing the assumptions underlying the implementation model and noting the value of future hardware validation. revision: partial

  2. Referee: [Section V] Section V (additional litmus tests): the new tests examine MCM expressiveness and programmability but do not test alignment between the implementation model and observable hardware behavior. Because the central soundness result is internal to the two artifacts the authors define, this omission leaves open whether the MCM is too strong or too weak for actual executions.

    Authors: The litmus tests added to Section V of the extended version are intended to demonstrate the MCM's expressiveness and to show how it supports formal reasoning about tākō programmability, including counterintuitive outcomes from custom callbacks. They are not designed to validate alignment with hardware observations, as that would require access to concrete executions from RTL or silicon, which is not part of this paper's contribution. The soundness result is deliberately internal to the two models we define, as this provides a machine-checked guarantee that the MCM is neither too strong nor too weak relative to the implementation model. If the implementation model faithfully captures tākō hardware (as constructed from its specification), the MCM inherits that fidelity. We will revise Section V to more explicitly connect the litmus tests to the soundness theorem and to restate the internal nature of the proof. revision: partial

Circularity Check

0 steps flagged

No circularity: soundness is a standard refinement proof between separately defined models

full rationale

The paper defines an ISA-level MCM capturing tākō semantics, constructs a separate detailed implementation model, and proves that every execution of the implementation model is permitted by the MCM. This is a conventional refinement argument with no self-definitional loop, no fitted parameter renamed as prediction, and no load-bearing self-citation that reduces the central claim to its own inputs. The derivation remains self-contained once the two models are accepted as given; external fidelity of the implementation model to silicon is a separate validation question, not a circularity in the proof chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

With only the abstract available, no specific free parameters, axioms, or invented entities can be identified from the text; the work appears to rely on standard formal modeling techniques for memory consistency.
