arxiv: 2605.04382 · v1 · submitted 2026-05-06 · ⚛️ physics.optics

Fundamental Limitations of Terahertz Quarter-Wave Plates Based on High-Contrast Dielectric Gratings

Oleg Kameshkov , Rajour Tanyi Ako , Madhu Bhaskaran , Ilya Shadrivov This is my paper

Pith reviewed 2026-05-08 16:58 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords terahertzquarter-wave platedielectric gratingeffective medium theorybandwidth limitsingle-mode operationFabry-Perot resonancepolarization
0
0 comments X

The pith

One-dimensional high-contrast dielectric gratings impose a fundamental bandwidth limit on terahertz quarter-wave plates due to single-mode operation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies higher-order effective medium theory to rectangular high-contrast dielectric gratings operating as quarter-wave plates in the terahertz range. It identifies an achromatic regime in which phase retardation follows a parabolic frequency dependence. This dependence, combined with the need to stay below the cutoff of the first higher-order grating mode, creates an intrinsic upper bound on usable bandwidth. Fabry-Perot resonances within the grating thickness add further constraints on performance. The predictions are checked against full-wave simulations and terahertz time-domain spectroscopy measurements, yielding quantitative design rules for the geometry.

Core claim

Using higher-order effective medium theory, we identify an achromatic operating regime in one-dimensional rectangular high-contrast dielectric gratings characterized by a parabolic-like frequency dependence of the phase retardation. This framework reveals a fundamental bandwidth limit imposed by single-mode operation in one-dimensional rectangular gratings. We show that Fabry-Perot resonances and the higher-order modes set intrinsic constraints on achievable performance. The theoretical predictions are quantitatively validated by rigorous full-wave simulations and terahertz time-domain spectroscopy experiments.

What carries the argument

Higher-order effective medium theory for one-dimensional rectangular gratings, which predicts the birefringence and yields the parabolic phase-retardation curve bounded by the first higher-order mode cutoff.

If this is right

  • The maximum bandwidth for quarter-wave operation is strictly capped by the cutoff frequency of the first higher-order grating mode.
  • Within the single-mode window the retardation follows a parabolic curve, allowing direct calculation of the exact frequencies where 90-degree phase shift occurs.
  • Fabry-Perot resonances can be tuned via grating thickness but cannot remove the mode-cutoff bound.
  • Performance limits are intrinsic to the one-dimensional rectangular geometry and appear in both simulation and experiment.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Non-rectangular or two-dimensional grating profiles might evade the single-mode bandwidth ceiling.
  • The same effective-medium approach could be applied to half-wave plates or other polarization devices to extract analogous limits.
  • Varying the grating period while holding other parameters fixed would provide a direct experimental test of the predicted cutoff scaling.

Load-bearing premise

Higher-order effective medium theory remains quantitatively accurate up to the onset of the first higher-order grating mode without significant corrections from finite-size effects or fabrication imperfections.

What would settle it

An experimental grating that delivers quarter-wave retardation over a frequency span clearly larger than the interval from the lowest usable frequency to the calculated cutoff of the first higher-order mode, or a measured phase curve that deviates strongly from parabolic form before that cutoff, would falsify the claimed limit.

Figures

Figures reproduced from arXiv: 2605.04382 by Ilya Shadrivov, Madhu Bhaskaran, Oleg Kameshkov, Rajour Tanyi Ako.

Figure 1
Figure 1. Figure 1: Rectangular dielectric grating on a substrate and its representation as a layer of an effective medium on a view at source ↗
Figure 2

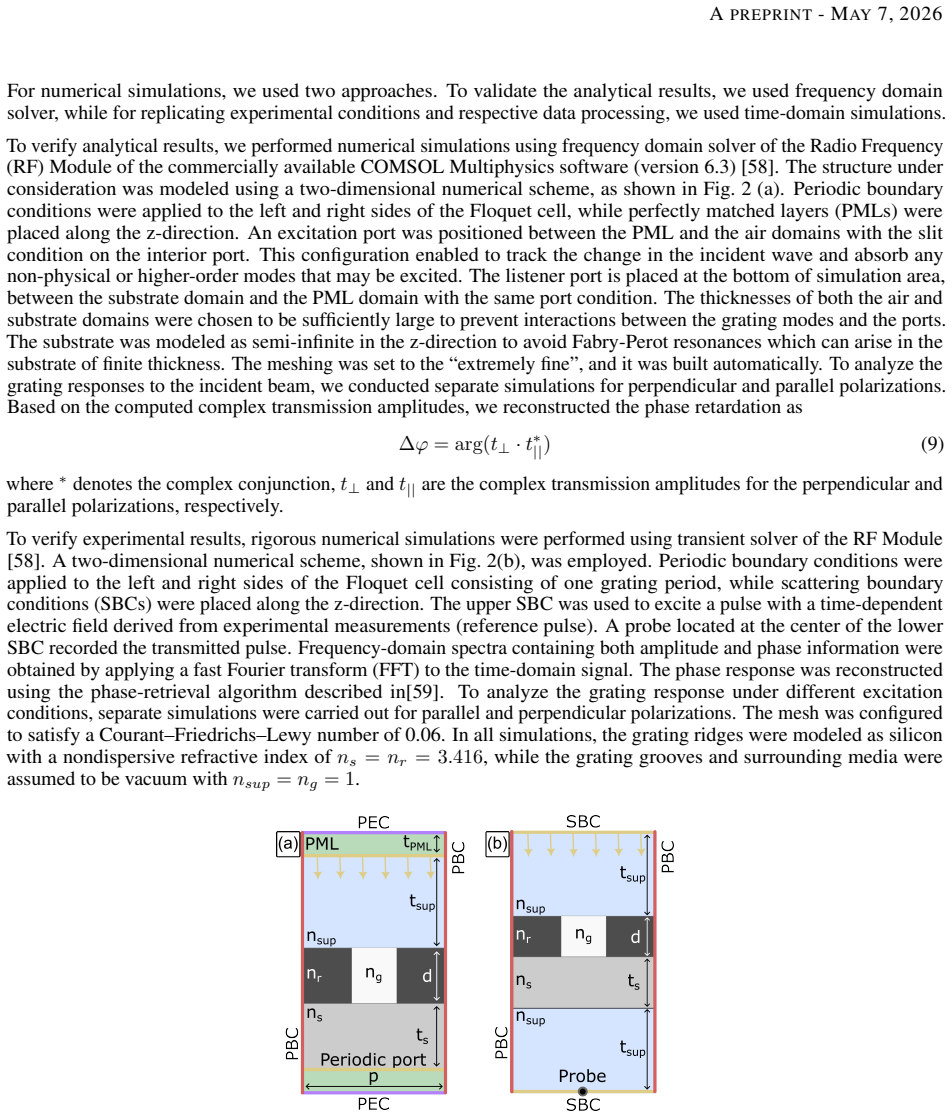

Figure 2. Figure 2: Simulation domains for the COMSOL numerical schemes: frequency domain simulation (a) and time-domain view at source ↗
Figure 3

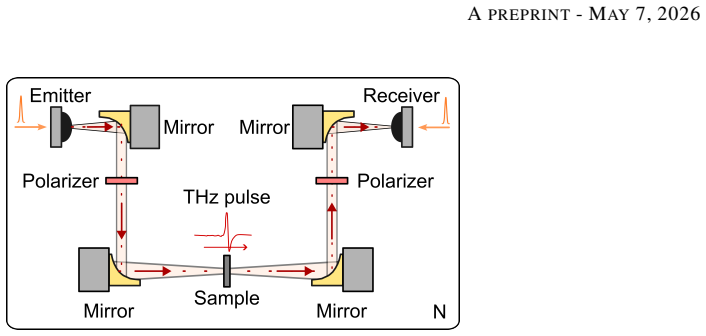

Figure 3. Figure 3: Schematics of the Terahertz part of the time-domain spectrometer. view at source ↗
Figure 4

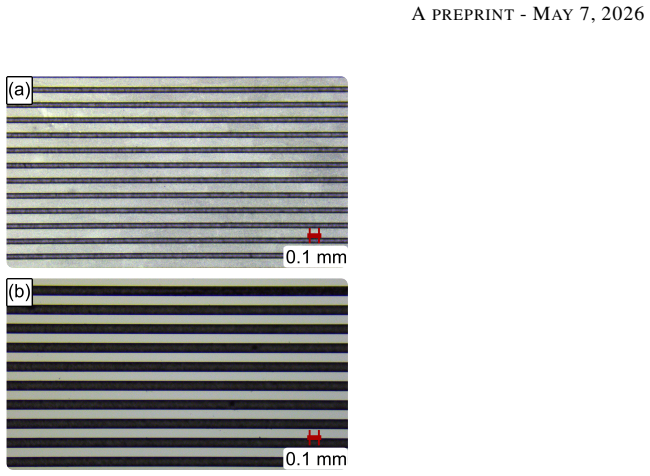

Figure 4. Figure 4: Microscope images of the fabricated gratings: (a) Sample I: p= view at source ↗
Figure 5

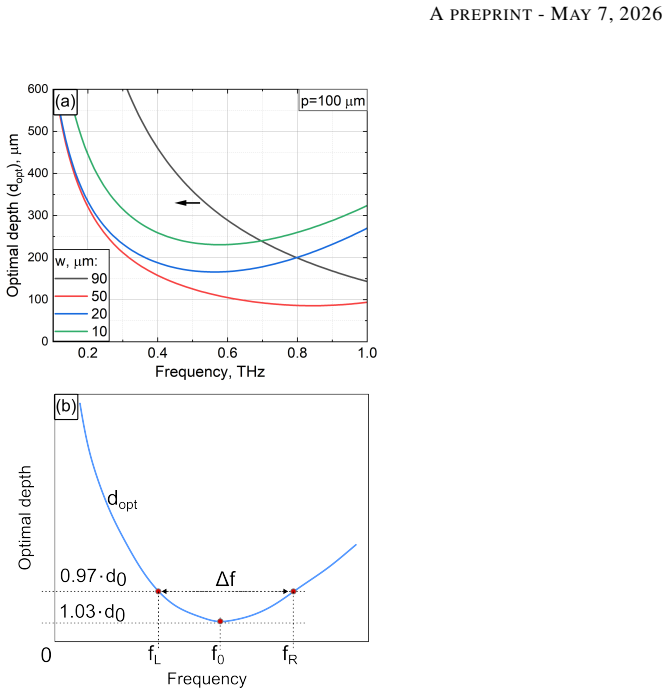

Figure 5. Figure 5: (a) Optimal depth of Si grating required to achieve view at source ↗
Figure 6

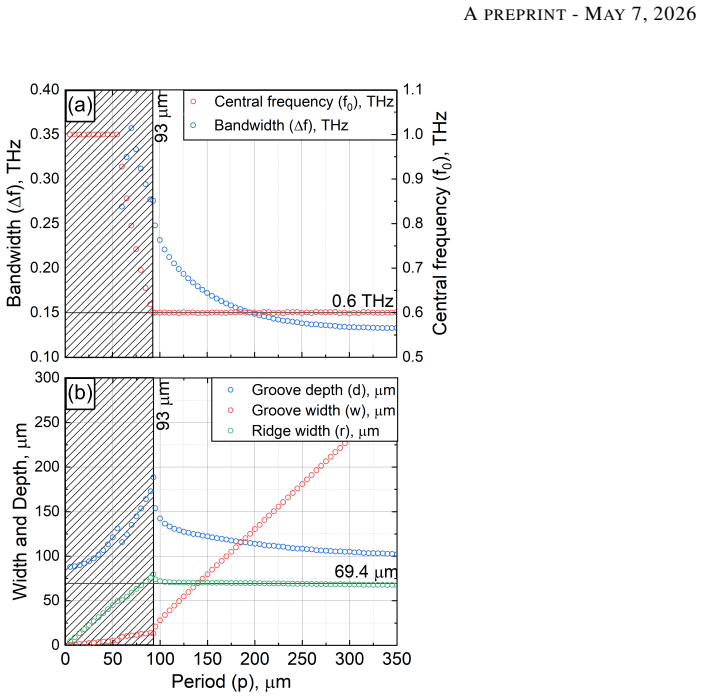

Figure 6. Figure 6: (a) Dependence of the optimized silicon grating bandwidth and central frequency on structure period; (b) view at source ↗
Figure 7

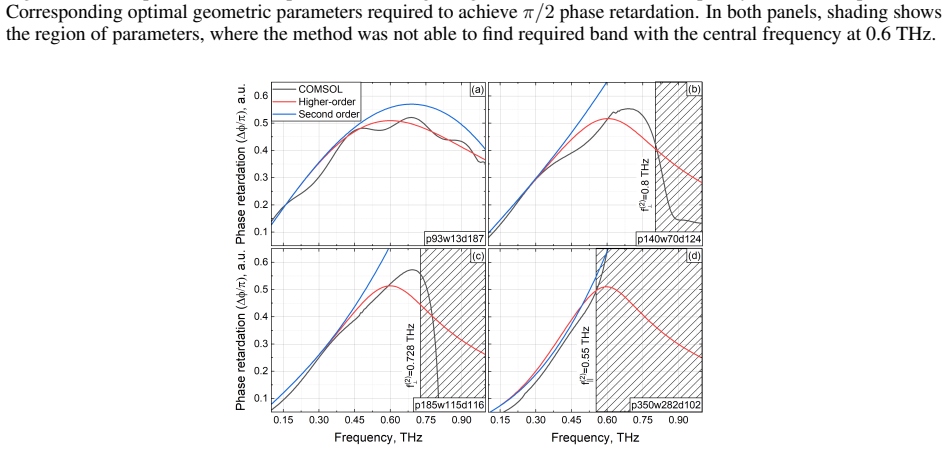

Figure 7. Figure 7: Comparison of the effective medium approximations with full wave numerical simulations for different view at source ↗
Figure 8

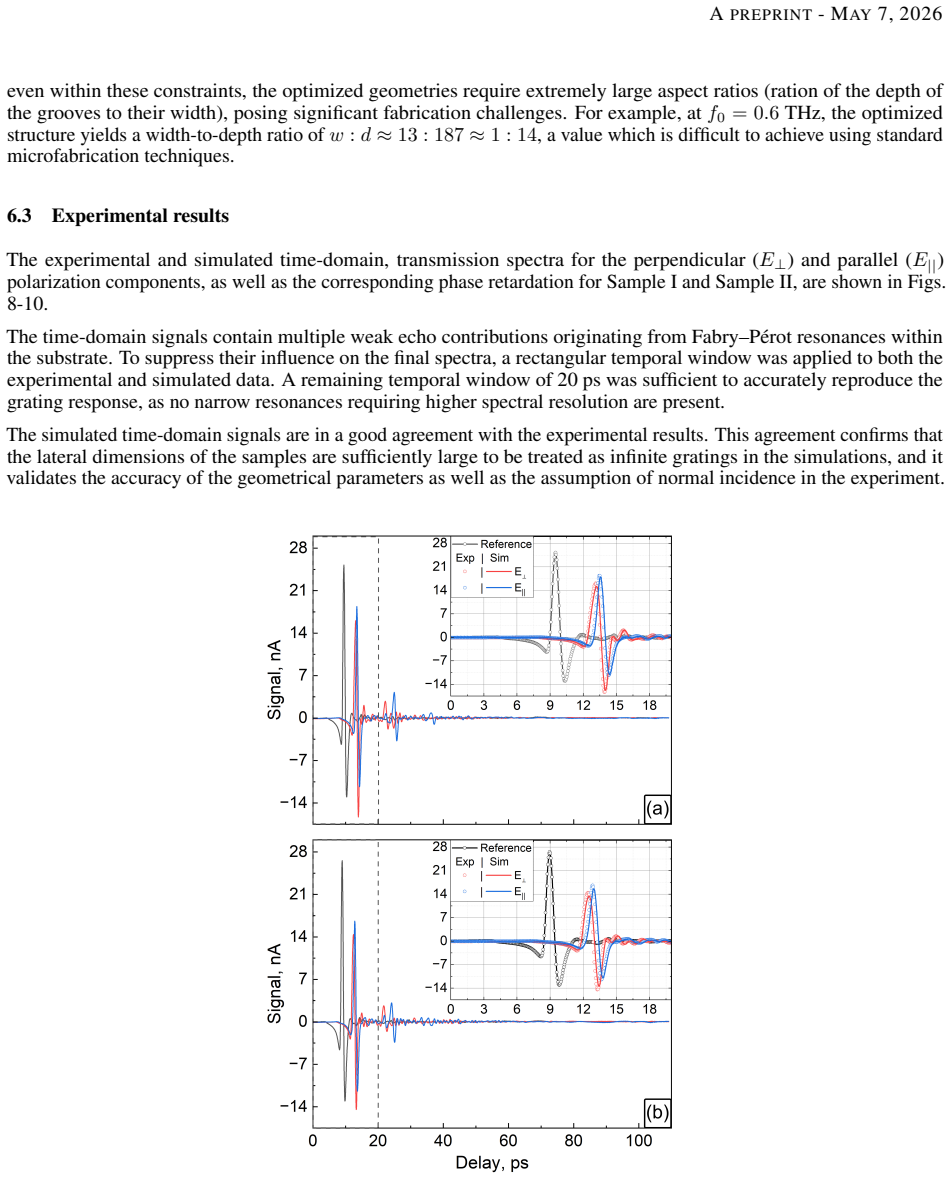

Figure 8. Figure 8: Time domain traces of the reference signal and the two transmitted signals for different polarizations. (a) view at source ↗
Figure 9
Figure 9. Figure 9: Comparison of the simulated and experimentally measured transmission spectra corresponding to (a) Sample view at source ↗
Figure 10
Figure 10. Figure 10: Experimentally measured, theoretically calculated and numerically simulated phase retardation for (a) view at source ↗
read the original abstract

We present a systematic study of high-contrast dielectric gratings operating as broadband quarter-wave plates in the terahertz range. Using higher-order effective medium theory, we identify an achromatic operating regime characterized by a parabolic-like frequency dependence of the phase retardation. This framework reveals a fundamental bandwidth limit imposed by single-mode operation in one-dimensional rectangular gratings. We show that Fabry-Perot resonances and the higher-order modes set intrinsic constraints on achievable performance. The theoretical predictions are quantitatively validated by rigorous full-wave simulations and terahertz time-domain spectroscopy experiments. Our results reveal clear physical design rules and intrinsic performance limits for broadband terahertz dielectric grating waveplates.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a systematic study of high-contrast dielectric gratings as terahertz quarter-wave plates. Using higher-order effective medium theory, the authors identify an achromatic operating regime with parabolic-like frequency dependence of the phase retardation. This leads to a claimed fundamental bandwidth limit imposed by single-mode operation in one-dimensional rectangular gratings, with additional constraints from Fabry-Perot resonances and the onset of higher-order modes. The predictions are stated to be quantitatively validated by rigorous full-wave simulations and terahertz time-domain spectroscopy experiments, yielding physical design rules and intrinsic performance limits.

Significance. If the central result holds, the work provides a clear theoretical framework and explicit performance bounds for broadband THz dielectric grating waveplates. This is significant for THz optics, where such devices are needed for polarization control, and the identification of single-mode-imposed limits offers falsifiable design guidance that could reduce trial-and-error in fabrication.

minor comments (3)
  1. [Abstract] The abstract states that predictions are 'quantitatively validated' by simulations and experiments, but the main text should include explicit metrics (e.g., RMS phase error or bandwidth agreement percentages) to support this claim.
  2. [Theory] Notation for the effective indices and phase retardation in the higher-order EMT derivation should be defined consistently when first introduced to avoid ambiguity for readers unfamiliar with grating EMT.
  3. [Experiments] Figure captions for the experimental THz-TDS results should explicitly state the number of independent measurements, error bars, and any post-processing applied, to allow direct comparison with the simulated curves.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary of our work and the recommendation for minor revision. No specific major comments were provided in the report, so there are no individual points requiring point-by-point rebuttal or revision.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central bandwidth limit is derived directly from the single-mode propagation condition of the 1D rectangular grating using higher-order effective medium theory, which follows from the grating's mode cutoff physics rather than any fitted parameter or self-referential definition. This is then cross-validated by independent full-wave simulations and THz time-domain spectroscopy experiments that test the phase retardation behavior up to higher-order mode onset. No load-bearing step reduces to a self-citation chain, ansatz smuggled via prior work, or renaming of a known result; the derivation remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on the applicability of higher-order effective medium theory to rectangular gratings near the single-mode cutoff and on the assumption that Fabry-Perot effects are the dominant ripple source.

axioms (1)
  • domain assumption Higher-order effective medium theory accurately captures the phase retardation of the fundamental grating modes up to the cutoff of the first higher-order mode
    Invoked to identify the achromatic parabolic regime and its bandwidth limit
