arxiv: 2605.04514 · v1 · submitted 2026-05-06 · 📡 eess.SP

Deep Learning-Based Computer Vision for Beam Selection and Proactive Blockage Prediction

Sachira Karunasena , Erfan Khordad , Tom Drummond , Rajitha Senanayake This is my paper

Pith reviewed 2026-05-08 16:28 UTC · model grok-4.3

classification 📡 eess.SP

keywords millimeter-wavebeam selectionblockage predictioncomputer visiondeep learningproactive predictionobject trackingmmWave

0 comments

The pith

RGB imagery fused with power profiles enables 98.96% beam prediction accuracy and over 98% blockage forecasting in mmWave systems

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper is trying to establish that deep learning models can use RGB camera images together with received power measurements to accurately select beams and predict upcoming blockages in millimeter-wave communications. A sympathetic reader would care because these links offer high data rates but are easily disrupted by misalignment or obstacles, and reliable prediction could keep connections active longer. The work shows strong results on new test data, including cases where both the signal source and blockers move independently at varying speeds.

Core claim

We address propagation loss through a novel vision-aided beam selection framework that integrates RGB imagery with received power profiles for efficient transmitter identification and beam prediction. This framework achieves 98.96% top-5 beam prediction accuracy, surpassing current state-of-the-art methods by at least 6% across all metrics. We address penetration loss through a proactive blockage prediction framework using a modified object tracker with weighted centroid-based depth estimation. This represents the first analysis of simultaneous non-uniform mobility of both transmitters and obstacles. Evaluated on completely unseen data, this framework achieves over 98% accuracy in predicting

What carries the argument

Vision-aided beam selection framework that integrates RGB imagery with received power profiles for transmitter identification and beam prediction, paired with a modified object tracker using weighted centroid-based depth estimation for proactive blockage forecasting

Load-bearing premise

RGB imagery combined with received power profiles will be available in real time at both transmitter and receiver and that models trained on the authors' datasets will generalize to arbitrary real-world mobility patterns and lighting conditions.

What would settle it

Testing the trained models on new outdoor data with sudden lighting changes and unpredictable simultaneous movements of transmitters and obstacles, then checking whether top-5 beam accuracy drops below 90% or blockage prediction accuracy falls below 90% for three-frame horizons.

Figures

Figures reproduced from arXiv: 2605.04514 by Erfan Khordad, Rajitha Senanayake, Sachira Karunasena, Tom Drummond.

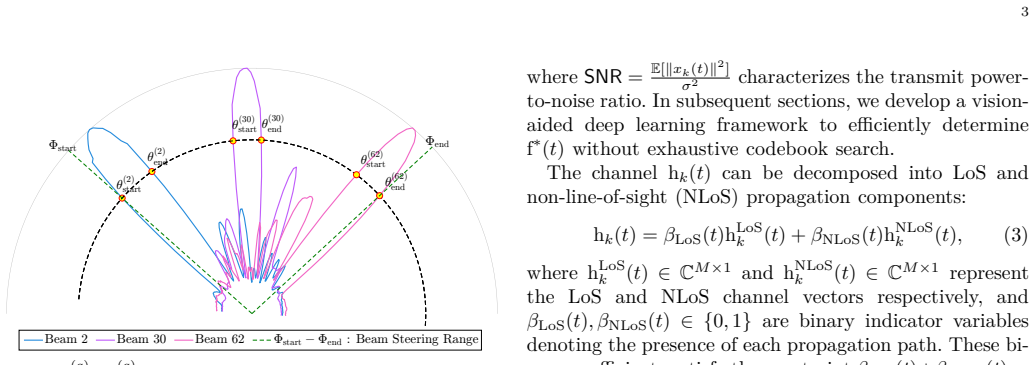

**Figure 1.** Figure 1: [θ (q) start, θ(q) end] of selected 3 beams and the beam steering range of the BS, [Φstart, Φend] from the DeepSense 6G [32] codebook. These values are used to define the corresponding x-region boundaries as defined in (5). Our propagation loss mitigation framework surpasses current state-of-the-art vision-aided beam selection methods [11], [12] by at least 6% across all evaluation metrics. Our penetration… view at source ↗

**Figure 2.** Figure 2: 1) Transmitter Identification (Section III-A): Precisely locating the TX amid multiple interfering objects within the surrounding environment. 2) Transmitter Tracking (Section III-B): Continuously monitoring the identified TX across consecutive frames while it remains within the beam steering range of the BS. 3) Beam Prediction (Section III-C): Estimating the top-N candidate beams for serving the monitored… view at source ↗

**Figure 2.** Figure 2: Proposed end-to-end Vision-aided Beamforming approach (Red box). The first view at source ↗

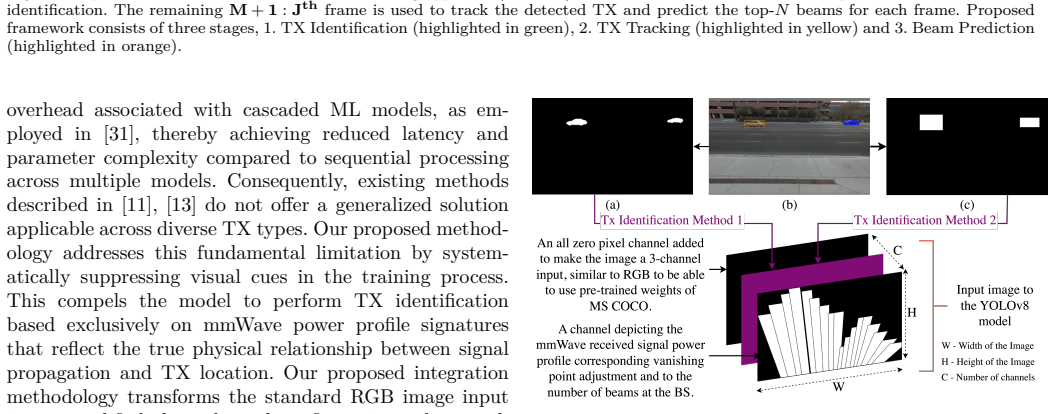

**Figure 3.** Figure 3: Structuring the input for the TX Identification methods. This view at source ↗

**Figure 4.** Figure 4: Beams given by the codebook of DeepSense6G dataset [32] view at source ↗

**Figure 5.** Figure 5: The process of mapping beams given by the codebook of view at source ↗

**Figure 6.** Figure 6: Beams given by the codebook of DeepSense6G dataset [32] view at source ↗

**Figure 7.** Figure 7: Proposed dual-branch neural network architecture for top- view at source ↗

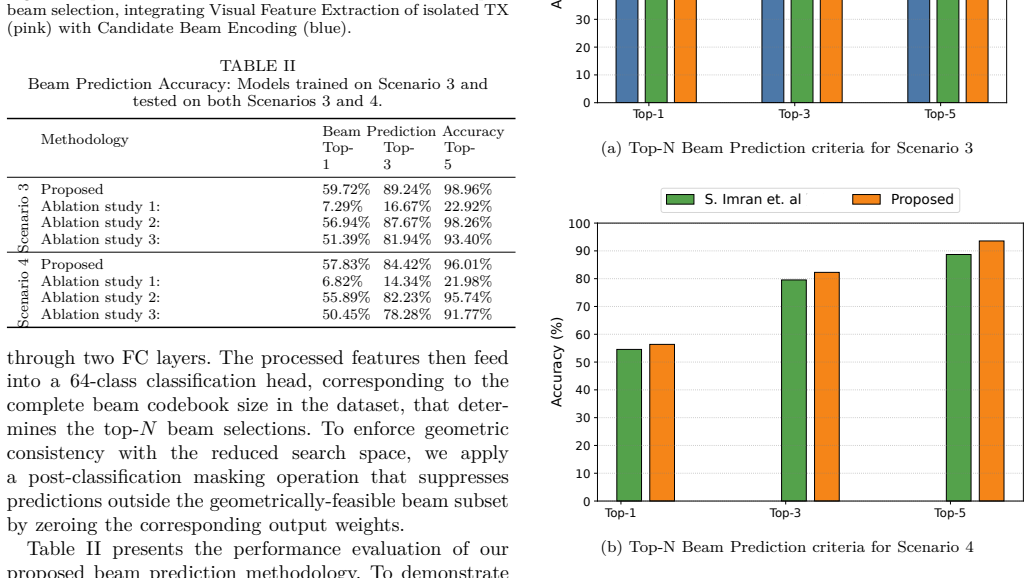

**Figure 8.** Figure 8: Comparison of Top-N Beam Prediction metrics with current view at source ↗

**Figure 9.** Figure 9: Proposed end-to-end vision-aided blockage prediction framework (red box). The first view at source ↗

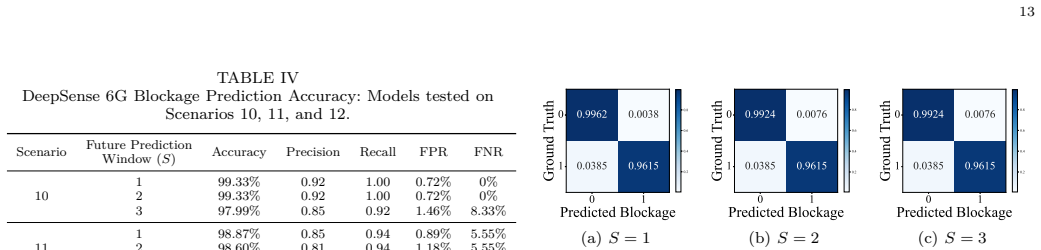

**Figure 12.** Figure 12: Ground truth normalized confusion matrices for scenario view at source ↗

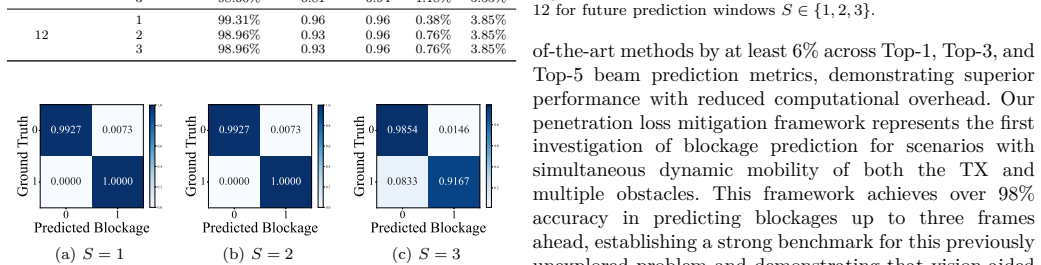

**Figure 10.** Figure 10: Ground truth normalized confusion matrices for scenario view at source ↗

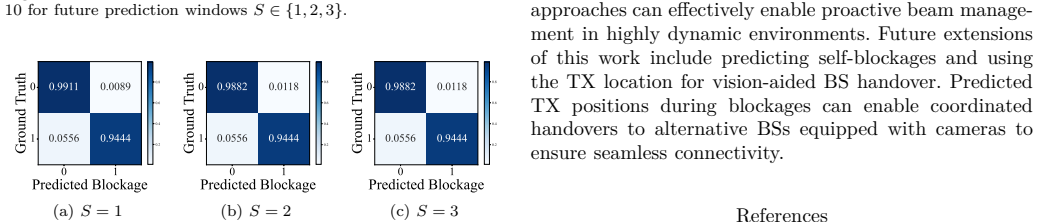

**Figure 11.** Figure 11: Ground truth normalized confusion matrices for scenario view at source ↗

read the original abstract

Millimeter-wave communication faces two critical challenges: propagation losses requiring costly narrow-beam alignment, and penetration losses causing link failures from blocked line-of-sight paths. We address propagation loss through a novel vision-aided beam selection framework that integrates RGB imagery with received power profiles for efficient transmitter identification and beam prediction. This framework achieves 98.96% top-5 beam prediction accuracy, surpassing current state-of-the-art methods by at least 6% across all metrics. We address penetration loss through a proactive blockage prediction framework using a modified object tracker with weighted centroid-based depth estimation. This represents the first analysis of simultaneous non-uniform mobility of both transmitters and obstacles. Evaluated on completely unseen data, this framework achieves over 98% accuracy in predicting blockages up to three frames ahead, establishing strong performance benchmarks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper backs up its vision-aided mmWave beam selection and blockage prediction claims with proper dataset splits and baseline comparisons, delivering usable accuracy numbers on the combined mobility case.

read the letter

The main thing to know is that the authors combine RGB images with received power profiles to select beams and use a modified tracker for early blockage warnings, even when the transmitter and obstacle both move irregularly. They report 98.96% top-5 beam accuracy (6% above prior work) and over 98% blockage prediction accuracy a few frames ahead on unseen data. The full manuscript supports these figures with explicit splits, architecture details, and re-run baselines on the same data, so the performance edge looks real rather than an artifact of uneven evaluation.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes two deep learning-based computer vision frameworks for millimeter-wave communications: a vision-aided beam selection method that fuses RGB imagery with received power profiles to achieve 98.96% top-5 beam prediction accuracy (outperforming prior SOTA by at least 6% across metrics), and a proactive blockage prediction system based on a modified object tracker with weighted centroid depth estimation that reaches over 98% accuracy on unseen data for up to three frames ahead, including the first reported analysis of simultaneous non-uniform mobility between transmitter and obstacles.

Significance. If the empirical results hold under the reported evaluation protocol, the work offers a practical contribution to mmWave system design by demonstrating how standard camera feeds can reduce beam alignment overhead and preempt link outages. Explicit dataset splits, re-implemented baselines on identical data, and architecture details strengthen the reproducibility of the performance claims. The focus on real-time mobility scenarios addresses a relevant deployment gap in 5G/6G networks.

minor comments (3)

Abstract: the statement that the beam selection framework 'surpasses current state-of-the-art methods by at least 6% across all metrics' would be clearer if the specific metrics (e.g., top-1, top-3) and the exact SOTA references being compared were named inline rather than left to the reader to locate in the results section.
§4 (blockage prediction): the description of the 'weighted centroid-based depth estimation' would benefit from an explicit equation or pseudocode step showing how the weights are computed from the tracker output, as the current prose leaves the weighting rule ambiguous for replication.
The manuscript would be strengthened by adding a short paragraph on inference latency and memory footprint of the two models on embedded hardware, given the real-time requirements implied by the proactive prediction task.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript, the recognition of its contributions to vision-aided beam selection and proactive blockage prediction, and the recommendation for minor revision. We appreciate the emphasis on reproducibility and the relevance to 5G/6G deployment scenarios.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper presents purely empirical results from supervised deep learning models trained on RGB imagery combined with received power profiles for beam selection and a modified object tracker for proactive blockage prediction. All headline metrics (98.96% top-5 beam accuracy and >98% blockage prediction on unseen data) are obtained via explicit dataset splits and held-out evaluation, with no equations, derivations, fitted parameters renamed as predictions, or self-citation chains that reduce any claim to its own inputs by construction. The work is self-contained against external benchmarks through re-implemented baselines and standard ML evaluation protocols.

Axiom & Free-Parameter Ledger

1 free parameters · 0 axioms · 0 invented entities

The central claims rest on the generalization performance of trained deep neural networks whose internal weights are fitted to proprietary or unreleased training data; no additional mathematical axioms or invented physical entities are introduced.

free parameters (1)

neural network weights and biases
Deep learning models contain millions of parameters whose values are determined by training on the authors' image and power-profile datasets.

pith-pipeline@v0.9.0 · 5442 in / 1269 out tokens · 37280 ms · 2026-05-08T16:28:27.089846+00:00 · methodology
