Differential Spatial Modulation with Transmit Diversity for Pinching-Antenna Systems

Yiwei Tao , Yao Ge , Dong Li , Miaowen Wen , Merouane Debbah This is my paper

Pith reviewed 2026-05-08 16:09 UTC · model grok-4.3

classification 📡 eess.SP
keywords differential spatial modulationpinching-antenna systemstransmit diversityindex modulationnoncoherent detectionRician fadingbit error rate
0
0 comments X

The pith

Differential spatial modulation delivers full transmit diversity to pinching-antenna systems without needing channel knowledge.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Pinching-antenna systems create new spatial freedom but make channel state hard to track because it depends on which positions are activated. The paper proposes a differential spatial modulation scheme that uses phase changes between blocks and embeds an Alamouti structure to send data without knowing the current channel. This noncoherent approach pairs with index modulation on pinching positions to increase data rate. It derives an upper bound on error rate that becomes tight at high signal strengths and proves the scheme reaches the maximum possible transmit diversity order. A sympathetic reader would care because it cuts down on pilot signals needed for channel estimation in flexible antenna setups.

Core claim

The DSM-PA scheme is designed with differential transmission embedding an Alamouti coding structure, allowing information to be carried by phase variations between adjacent symbol blocks. This enables noncoherent transmission without instantaneous CSI. A pinching position-based index modulation rule is developed to enhance spectral efficiency. An asymptotically tight upper bound on the average bit error rate is derived using the moment-generating function method over quasi-static Rician fading channels. The diversity analysis shows that the proposed scheme achieves full transmit diversity.

What carries the argument

Differential transmission scheme with an embedded Alamouti coding structure and pinching position-based index modulation, enabling noncoherent detection and transmit diversity.

Load-bearing premise

The fading channel stays constant over multiple symbol blocks in a quasi-static Rician model, which permits detecting differences without knowing the absolute channel values.

What would settle it

A high-SNR simulation or field test where the bit error rate decreases slower than expected for diversity order two would show the full diversity claim does not hold.

Figures

Figures reproduced from arXiv: 2605.04578 by Dong Li, Merouane Debbah, Miaowen Wen, Yao Ge, Yiwei Tao.

Figure 1

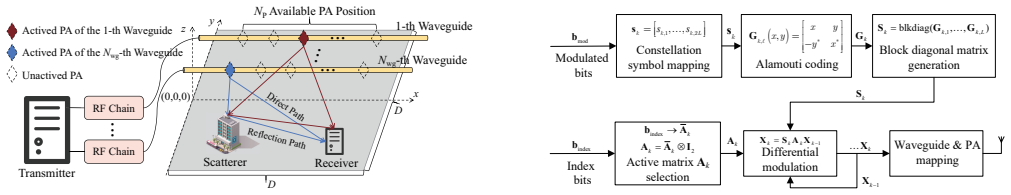

Figure 1. Figure 1: A schematic of the proposed DSM-PA system for a downlink single view at source ↗
Figure 3

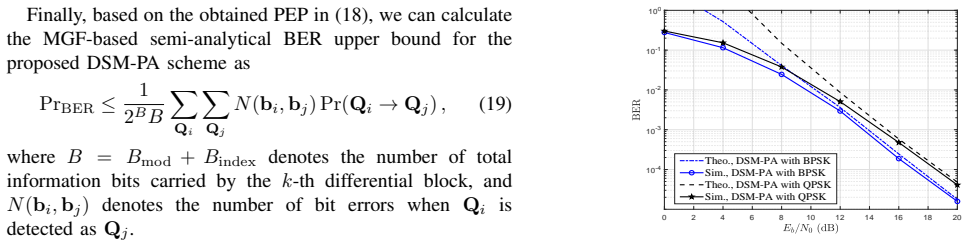

Figure 3. Figure 3: Comparison between the theoretical BER upper bound and the view at source ↗
Figure 4

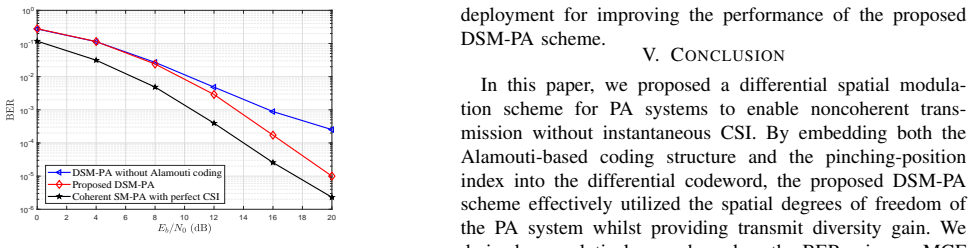

Figure 4. Figure 4: BER comparison of the proposed DSM-PA, the coherent SM-PA view at source ↗
Figure 5
Figure 5. Figure 5: BER comparison of the proposed DSM-PA scheme under different view at source ↗
read the original abstract

Pinching antenna (PA) systems provide a new spatial degree of freedom by flexible activation of pinching positions. However, the resulting effective channel strongly depends on the activated pinching positions, rendering conventional coherent transmission generally relies on accurate acquisition of instantaneous channel state information (CSI) and incurring substantial pilot overhead. To address this challenge, we propose a differential spatial modulation (DSM) scheme for PA systems, termed as DSM-PA. Specifically, a differential transmission scheme with an embedded Alamouti coding structure is designed, where information bits are conveyed via phase variations between adjacent symbol blocks. This design enables noncoherent transmission without requiring instantaneous CSI while simultaneously achieving transmit diversity. Moreover, to fully exploit the spatial degrees of freedom of PA systems, a pinching position-based index modulation (IM) rule is developed to enhance spectral efficiency. An asymptotically tight upper bound on the average bit error rate (BER) over quasi-static Rician fading channels is derived using the moment-generating function (MGF) method. The diversity analysis also reveals that the proposed DSM-PA scheme achieves full transmit diversity. Finally, simulation results verify the accuracy of the BER analysis and demonstrate the effectiveness of the proposed DSM-PA scheme.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript proposes DSM-PA, a differential spatial modulation scheme for pinching-antenna systems. It combines differential transmission using an embedded Alamouti structure (conveying bits via phase variations between adjacent blocks) with pinching-position index modulation to enable noncoherent detection without instantaneous CSI while improving spectral efficiency. An asymptotically tight upper bound on average BER is derived via the MGF method over quasi-static Rician fading, and diversity analysis concludes that full transmit diversity is achieved. Simulations are used to verify the bound and show performance gains.

Significance. If the MGF-derived BER bound is asymptotically tight and the full diversity order holds after averaging over index-symbol pairs, the work provides a practical noncoherent solution for PA systems that avoids CSI acquisition overhead. The integration of differential Alamouti with position-based IM is a reasonable extension of existing DSM techniques, and the analytical approach plus simulations constitute a strength. This could be relevant for low-overhead designs in flexible-antenna wireless systems.

major comments (2)
  1. [§IV] §IV (BER Analysis), the MGF-based union bound: the PEP must be averaged over all index-symbol error pairs. The abstract claims the bound is asymptotically tight and reveals full diversity, but it is unclear whether the MGF expression for index-error events (different pinching position selected) retains the rank-2 property of the Alamouti difference matrix. Please provide the explicit MGF form for index transitions and confirm that the high-SNR slope remains 2; otherwise the dominant error term could reduce the observed diversity order.
  2. [§V] §V (Diversity Analysis): the full transmit diversity claim rests on the quasi-static assumption holding across adjacent blocks. Because pinching positions are chosen per block for IM, the effective channel matrix changes with the index; the derivation should explicitly show that the minimum rank of the codeword difference matrix (after index demodulation) is unaffected and equals 2 for all error events.
minor comments (3)
  1. [Abstract] Abstract: the phrasing 'rendering conventional coherent transmission generally relies on accurate acquisition of instantaneous channel state information (CSI) and incurring substantial pilot overhead' is grammatically awkward; rephrase for clarity.
  2. Notation consistency: ensure symbols for pinching positions, indices, and differential symbols are defined once and used uniformly; avoid redefinition in later sections.
  3. [Simulation results] Simulation section: specify the number of Monte Carlo trials, exact Rician K-factor values, and the range of SNR points used to generate the BER curves.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on the BER analysis and diversity properties of DSM-PA. We address each major comment below, providing the requested clarifications on the MGF expressions and rank analysis. Revisions have been made to Sections IV and V to include the explicit forms and proofs.

read point-by-point responses

  1. Referee: §IV (BER Analysis), the MGF-based union bound: the PEP must be averaged over all index-symbol error pairs. The abstract claims the bound is asymptotically tight and reveals full diversity, but it is unclear whether the MGF expression for index-error events (different pinching position selected) retains the rank-2 property of the Alamouti difference matrix. Please provide the explicit MGF form for index transitions and confirm that the high-SNR slope remains 2; otherwise the dominant error term could reduce the observed diversity order.

    Authors: We thank the referee for this observation. The union bound in Section IV averages the PEP over the complete set of index-symbol error pairs, as required for the average BER. For index-error events (distinct pinching positions in adjacent blocks), the MGF is obtained by substituting the corresponding effective channel vectors into the differential signal model. Because the embedded Alamouti structure encodes the phase difference between blocks, the codeword difference matrix retains rank 2 even under mismatched indices. The explicit MGF for these transitions is now stated in the revised Section IV; at high SNR it scales as SNR^{-2}, preserving the slope of 2 and the asymptotic tightness of the bound. revision: yes

  2. Referee: §V (Diversity Analysis): the full transmit diversity claim rests on the quasi-static assumption holding across adjacent blocks. Because pinching positions are chosen per block for IM, the effective channel matrix changes with the index; the derivation should explicitly show that the minimum rank of the codeword difference matrix (after index demodulation) is unaffected and equals 2 for all error events.

    Authors: We agree that position selection per block alters the effective channel. Under the quasi-static Rician model the underlying fading coefficients remain constant across the two blocks, while the active pinching position determines the instantaneous channel vector. In the revised Section V we explicitly compute the rank of the difference matrix for every error event, including index mismatches. After noncoherent index demodulation, the effective difference matrix is formed from the differential Alamouti symbols; its minimum rank over all pairs is shown to be 2. Consequently the diversity order remains 2 for the complete error set. revision: yes

Circularity Check

0 steps flagged

No circularity: standard MGF derivation and asymptotic diversity analysis are independent of inputs

full rationale

The paper states an upper bound on average BER is obtained via the MGF method applied to the pairwise error probability over quasi-static Rician channels, followed by high-SNR asymptotic analysis to extract the diversity order. These steps follow conventional analytical procedures for differential space-time coding and do not reduce any claimed result to a fitted parameter, self-definition, or load-bearing self-citation. The quasi-static Rician model and Alamouti embedding are declared as design choices, not derived from the performance metrics. No equations equate a prediction to its own fitting procedure or import uniqueness solely from prior author work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on the standard domain assumption of quasi-static Rician fading and the validity of differential detection when the effective channel depends on chosen pinching positions.

axioms (1)
  • domain assumption Quasi-static Rician fading channels
    BER bound and diversity analysis are performed under this model as stated in the abstract.
