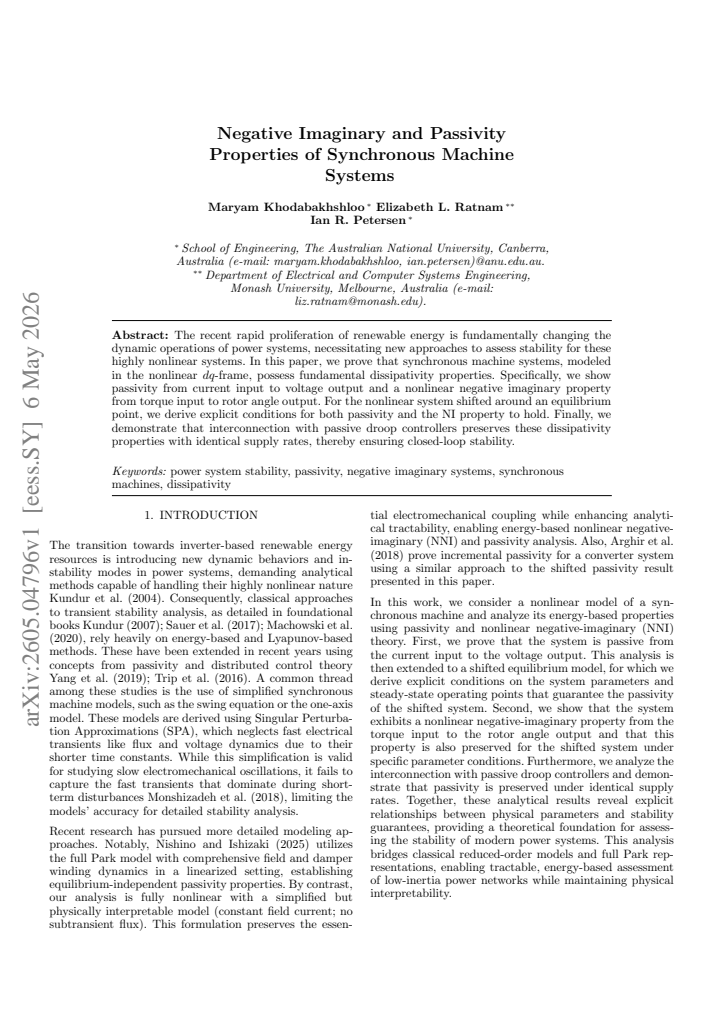

Negative Imaginary and Passivity Properties of Synchronous Machine Systems

Elizabeth L. Ratnam; Ian R. Petersen; Maryam Khodabakhshloo

arxiv: 2605.04796 · v1 · submitted 2026-05-06 · 📡 eess.SY · cs.SY

Negative Imaginary and Passivity Properties of Synchronous Machine Systems

Maryam Khodabakhshloo , Elizabeth L. Ratnam , Ian R. Petersen This is my paper

Pith reviewed 2026-05-08 16:56 UTC · model grok-4.3

classification 📡 eess.SY cs.SY

keywords synchronous machinespassivitynegative imaginary systemsdq-framedroop controlpower system stabilitydissipativityrenewable integration

0 comments

The pith

Synchronous machine systems in the nonlinear dq-frame are passive from current input to voltage output and negative imaginary from torque input to rotor angle output.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that synchronous machine systems modeled nonlinearly in the dq-frame exhibit passivity from current inputs to voltage outputs and a nonlinear negative imaginary property from torque inputs to rotor angle outputs. Shifting the equations around an equilibrium point yields explicit conditions under which both properties hold. The authors then show that these dissipativity traits are preserved with identical supply rates when the machine interconnects to a passive droop controller, which directly implies closed-loop stability. This matters for power systems because rising renewable penetration makes dynamics more nonlinear and demands stability certificates that survive controller interconnections.

Core claim

We prove that synchronous machine systems, modeled in the nonlinear dq-frame, possess fundamental dissipativity properties. Specifically, we show passivity from current input to voltage output and a nonlinear negative imaginary property from torque input to rotor angle output. For the nonlinear system shifted around an equilibrium point, we derive explicit conditions for both passivity and the NI property to hold. Finally, we demonstrate that interconnection with passive droop controllers preserves these dissipativity properties with identical supply rates, thereby ensuring closed-loop stability.

What carries the argument

The nonlinear dq-frame model of the synchronous machine, shifted around an equilibrium, which supplies the passivity and nonlinear negative imaginary supply rates used for stability proofs.

If this is right

Closed-loop stability follows directly when the machine is interconnected to any passive droop controller that uses the same supply rates.
Explicit algebraic conditions on machine parameters and equilibrium values certify both passivity and the nonlinear NI property.
The same dissipativity framework can be reused to certify stability of larger networks containing multiple synchronous machines and droop-controlled inverters.
Stability margins remain unchanged upon interconnection because the supply rates are identical before and after the connection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same passivity and NI arguments may extend to averaged models of inverter-based resources that share a similar dq-frame structure.
Real-time grid simulators could be used to check whether the derived equilibrium conditions remain satisfied under measured renewable variability.
Controller synthesis tools that enforce passivity or NI properties could be applied directly to the shifted machine model to enlarge the region of stable operation.

Load-bearing premise

The nonlinear dq-frame equations accurately represent the machine and the equilibrium shift yields conditions that remain valid for the operating points of interest.

What would settle it

A numerical simulation or hardware test in which the supply-rate inequality for passivity or the nonlinear NI property is violated for the shifted model under the stated conditions.

Figures

Figures reproduced from arXiv: 2605.04796 by Elizabeth L. Ratnam, Ian R. Petersen, Maryam Khodabakhshloo.

**Figure 1.** Figure 1: SM connected to an impedance load via transmis view at source ↗

**Figure 2.** Figure 2: Feedback interconnection of the SM (P) and a torque controller (C). The plant includes both an electrical port (˜ue, y˜e) and a mechanical port (˜um, y˜m) system is passive under the condition (15) for the inputoutput pair (˜ue, y˜e). Next, consider a torque controller that is passive, such as a droop-based PI controller, defined by T˜m = kpω˜ + kiz, ˜ ˜˙z = ˜ω, kp, ki ≥ 0. (18) This PI controller admits … view at source ↗

read the original abstract

The recent rapid proliferation of renewable energy is fundamentally changing the dynamic operations of power systems, necessitating new approaches to assess stability for these highly nonlinear systems. In this paper, we prove that synchronous machine systems, modeled in the nonlinear dq-frame, possess fundamental dissipativity properties. Specifically, we show passivity from current input to voltage output and a nonlinear negative imaginary property from torque input to rotor angle output. For the nonlinear system shifted around an equilibrium point, we derive explicit conditions for both passivity and the NI property to hold. Finally, we demonstrate that interconnection with passive droop controllers preserves these dissipativity properties with identical supply rates, thereby ensuring closed-loop stability.
