Offline-Online Hierarchical 3D Global Relocalization With Synthetic LiDAR Sensing and Descriptor-Space Retrieval

Pith reviewed 2026-05-11 02:48 UTC · model grok-4.3

classification 💻 cs.RO
keywords global relocalizationLiDAR3D localizationhierarchical frameworkdescriptor retrievalsynthetic sensingpose estimationrobot navigation
0
0 comments X

The pith

An offline-online hierarchy uses synthetic LiDAR descriptors to relocalize robots in large 3D spaces within seconds at 8 cm accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper targets the problem of slow global relocalization in expansive 3D environments, where exhaustive pose search creates high computational costs. It decouples this by precomputing candidate positions and geometric descriptors offline through simulated LiDAR scans inside a grid map, then retrieves a coarse match online before refining with point cloud registration. This produces precise 6-DoF estimates. Real-world tests show the approach delivers 3-second average times and 8 cm accuracy, yielding an order-of-magnitude efficiency boost over prior global methods while matching their precision levels.

Core claim

The offline-online hierarchical framework decouples the pose search space by generating candidate positions and their geometric descriptor indices offline via simulated LiDAR scans within the grid map, enabling online global retrieval of a coarse pose estimate that is then refined through point cloud registration to produce precise 6-DoF outputs. Experiments confirm average relocalization times of 3 seconds and localization accuracies of 8 cm in 3D settings, with an order-of-magnitude improvement in computational efficiency compared to existing global relocalization techniques at comparable accuracy.

What carries the argument

The offline generation of synthetic LiDAR scan descriptors from a grid map to support fast descriptor-space retrieval of candidate poses, followed by online registration for refinement.

If this is right

  • Robots operating in large 3D spaces can perform global relocalization frequently without prohibitive delays.
  • The separation of offline precomputation and online retrieval allows handling of massive pose spaces that defeat exhaustive search.
  • Localization accuracy stays at 8 cm while computational cost drops by roughly ten times relative to prior global methods.
  • The framework supports 6-DoF pose output by chaining descriptor retrieval with standard registration.
  • Prebuilt descriptor indices make repeated relocalizations in the same mapped area efficient after initial setup.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Shared descriptor databases across multiple robots could reduce per-robot setup time in team operations.
  • Periodic map updates would require regenerating the synthetic descriptor index to maintain retrieval reliability.
  • The method's efficiency gains suggest it could enable relocalization as a background service rather than a rare event.

Load-bearing premise

Synthetic LiDAR descriptors generated inside the grid map will reliably retrieve a candidate pose close enough to the true location for subsequent registration to converge successfully despite real sensor noise and map differences.

What would settle it

A series of real-world trials in which retrieved candidates lie more than 50 cm from the ground-truth pose on average, causing registration to fail or yield errors exceeding 20 cm.

Figures

Figures reproduced from arXiv: 2605.07741 by Jiahua Ren, Kai Shen, Lei Ma, Muhua Zhang.

Figure 1
Figure 1. Figure 1: Experimental UAV platform. A Livox MID360 LiDAR is mounted on top of the UAV for 3D perception, while an Intel NUC12 onboard computer handles real-time mapping and relocalization. difficult to obtain accurately, which limits the applicability of these local relocalization schemes. On the other hand, the data scale and computational burden in 3D environments are also major limiting factors. Whether using vi… view at source ↗
Figure 2

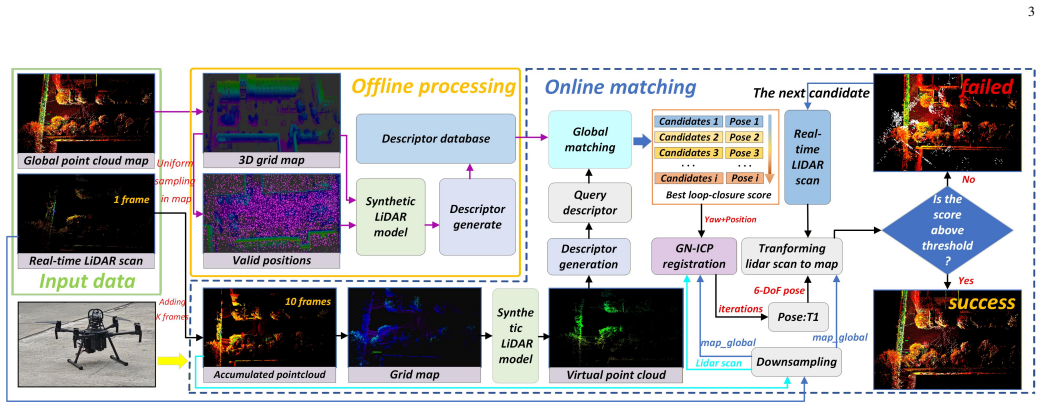

Figure 2. Figure 2: Overall pipeline of the proposed LiDAR-based global 3D relocalization framework. The system takes as input a prior global point cloud map and real-time LiDAR scans. In the offline processing stage (orange), valid robot poses are uniformly sampled in the prior 3D occupancy grid map, a virtual LiDAR model is used to generate synthetic scans, and a descriptor database is constructed from the resulting virtual… view at source ↗
Figure 3

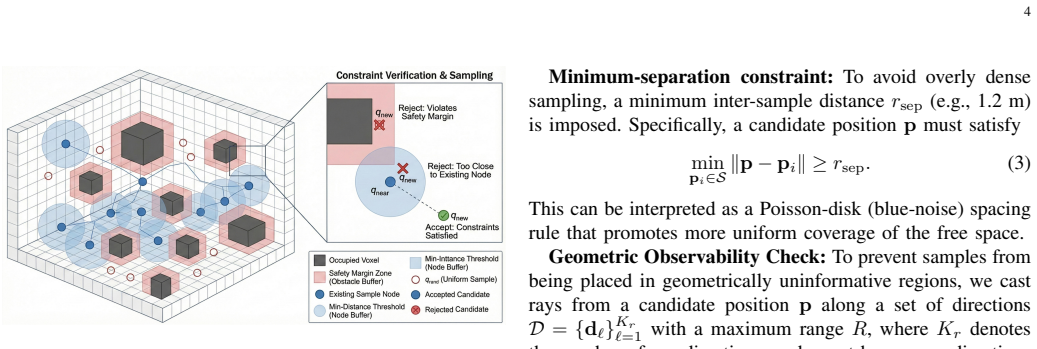

Figure 3. Figure 3: Constraint-aware uniform sampling in a 3D occupancy grid map. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

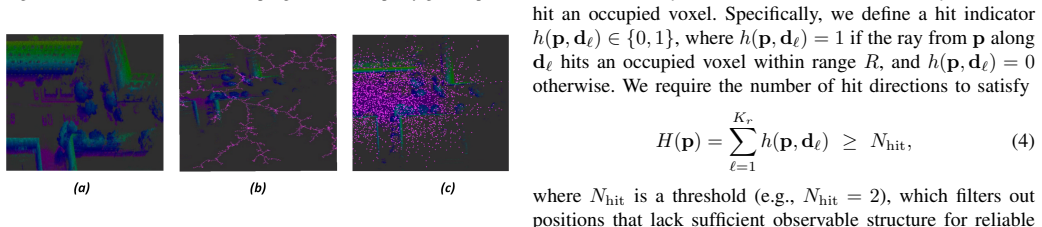

Figure 4. Figure 4: Sampling on the 3D occupancy grid map with the same number of [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

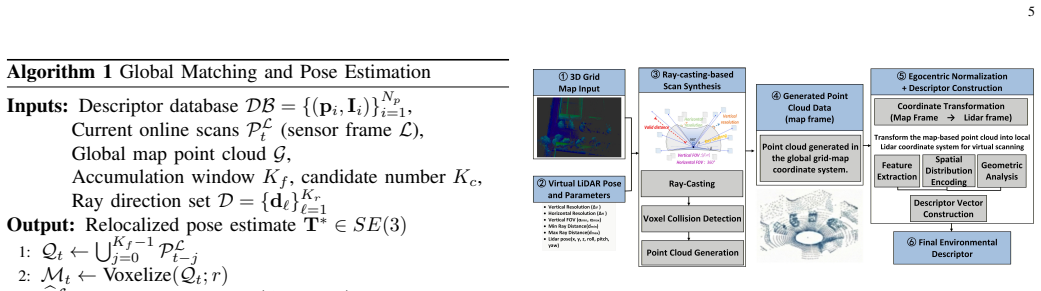

Figure 5. Figure 5: Pipeline of ray-casting-based scan synthesis and egocentric descriptor [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

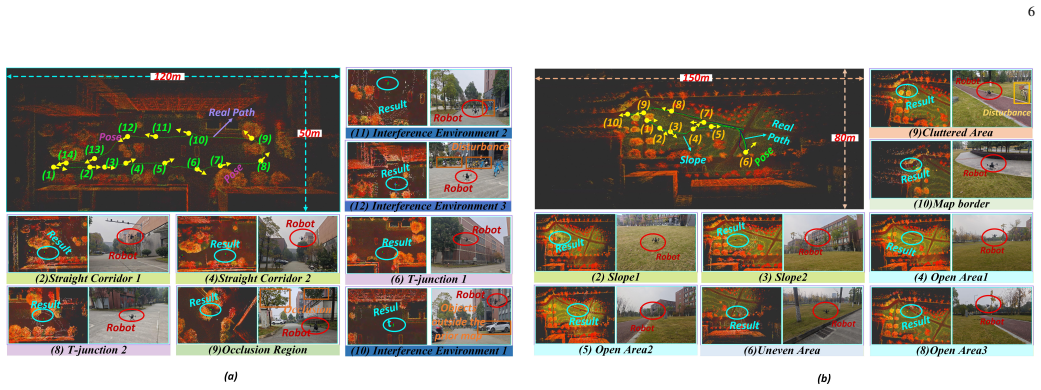

Figure 6. Figure 6: Two outdoor experimental scenarios and representative evaluation poses. (a) Wide corridor between buildings, approximately [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8

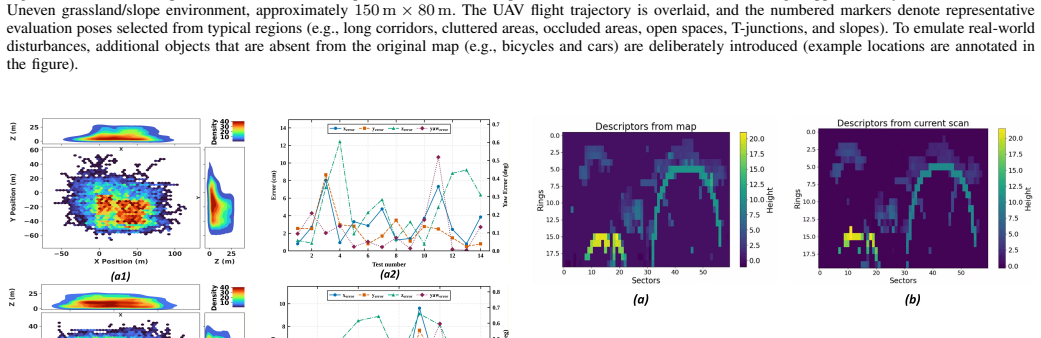

Figure 8. Figure 8: Qualitative comparison of Scan Context images produced by local [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

3D global relocalization is one of the key capabilities for mobile robots in practical applications. However, in large scale spaces, existing methods often suffer from prolonged online relocalization time due to factors such as the massive pose search space and high computational overhead. To address these issues, this paper proposes an offline-online hierarchical framework that decouples the search space. In the offline phase, candidate positions and their corresponding geometric descriptor indices are generated in the map by simulating LiDAR scans within the grid map. In the online phase, a coarse pose estimate is first obtained via global retrieval, followed by point cloud registration to output precise 6-DoF pose estimates. Real-world experiments demonstrate that the proposed method achieves an average relocalization time of 3 s and an average localization accuracy of 8 cm in 3D environments. Compared with existing global relocalization methods, the proposed method achieves an order-of-magnitude improvement in computational efficiency while delivering comparable relocalization accuracy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes an offline-online hierarchical framework for 3D global relocalization of mobile robots in large-scale environments. In the offline phase, synthetic LiDAR scans are simulated inside a grid map to precompute candidate positions and geometric descriptor indices. In the online phase, descriptor-space retrieval yields a coarse pose estimate that is refined via point cloud registration to produce precise 6-DoF localization. Real-world experiments are claimed to deliver an average relocalization time of 3 s and average accuracy of 8 cm, together with an order-of-magnitude improvement in computational efficiency relative to prior global relocalization methods.

Significance. If the reported performance numbers are shown to be robust across varied map sizes, sensor conditions, and failure modes, the hierarchical decoupling of search space via synthetic descriptors could meaningfully advance practical global relocalization for field robotics, where exhaustive online search remains prohibitive.

major comments (2)
  1. [Abstract] Abstract: the central performance claims (3 s average time, 8 cm accuracy, order-of-magnitude efficiency gain) are stated without any accompanying information on map sizes, number of trials, baseline methods, error distributions, or failure cases. Because these quantitative assertions constitute the primary evidence for the method's utility, their lack of supporting experimental context is load-bearing and prevents evaluation of whether the averages generalize.
  2. [Abstract] The method's success hinges on the offline synthetic LiDAR descriptors (generated inside the grid map) retrieving a candidate pose close enough for subsequent registration to converge. No retrieval recall rates, sensitivity tests to real-world LiDAR noise, beam effects, intensity variations, or grid-map discretization errors are reported; without these, it is impossible to determine whether the reported averages reflect reliable operation or only favorable trials.
minor comments (1)
  1. [Abstract] The abstract would be clearer if it briefly named the specific geometric descriptor and the registration algorithm employed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and indicate where revisions will be made to strengthen the manuscript.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the central performance claims (3 s average time, 8 cm accuracy, order-of-magnitude efficiency gain) are stated without any accompanying information on map sizes, number of trials, baseline methods, error distributions, or failure cases. Because these quantitative assertions constitute the primary evidence for the method's utility, their lack of supporting experimental context is load-bearing and prevents evaluation of whether the averages generalize.

    Authors: We agree that the abstract, owing to length constraints, omits key experimental context that supports the reported averages. The full manuscript (Section IV) provides these details, including the sizes of the grid maps used, the number of independent trials, the baseline methods, and error statistics. In the revised version we will expand the abstract with a concise clause noting the scale of the tested environments and that results are averaged over multiple runs, thereby making the central claims more self-contained while remaining within abstract length limits. revision: yes

  2. Referee: [Abstract] The method's success hinges on the offline synthetic LiDAR descriptors (generated inside the grid map) retrieving a candidate pose close enough for subsequent registration to converge. No retrieval recall rates, sensitivity tests to real-world LiDAR noise, beam effects, intensity variations, or grid-map discretization errors are reported; without these, it is impossible to determine whether the reported averages reflect reliable operation or only favorable trials.

    Authors: The referee correctly highlights that explicit retrieval recall rates and sensitivity analyses to sensor noise, beam effects, intensity, and discretization are not reported. While the end-to-end real-world results demonstrate practical success, these intermediate metrics would better substantiate the reliability of the hierarchical retrieval step. We will add a dedicated paragraph and table in the revised manuscript reporting top-K retrieval recall on the collected datasets together with ablation results on synthetic-scan fidelity under added noise and discretization variations. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical engineering framework

full rationale

The paper describes an offline-online hierarchical method that generates synthetic LiDAR descriptors in a grid map during an offline phase and performs descriptor retrieval plus registration online. No equations, derivations, parameter fittings, or uniqueness theorems appear in the abstract or summary. Claims rest on reported real-world experimental averages (3 s time, 8 cm accuracy) rather than any reduction of outputs to inputs by construction. The central premise is an engineering workflow whose success is evaluated externally via experiments, with no self-definitional steps, fitted predictions renamed as results, or load-bearing self-citations that collapse the argument.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central performance claims rest on the unstated premise that synthetic LiDAR data generated from a grid map will produce descriptors sufficiently similar to real sensor data for reliable coarse retrieval.

axioms (1)
  • domain assumption Synthetic LiDAR scans inside the grid map produce descriptors that match real-world scans closely enough for global retrieval to return a usable coarse pose.
    The offline candidate generation step depends on this fidelity assumption to decouple the search space.
