Representations of 3D Rotations: Mathematical Foundations and Comparative Analysis

Aizierjiang Aiersilan , Haochen Liu , James Hahn This is my paper

Pith reviewed 2026-05-16 22:04 UTC · model grok-4.3

classification 💻 cs.GR
keywords 3D rotationsquaternionsSO(3)rotation representationsEuler anglescomputer graphicspose estimation
0
0 comments X p. Extension

The pith

Quaternions provide the most compact and computationally efficient representation for 3D rotations among common alternatives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper surveys representations of rotations in SO(3) including Euler angles, axis-angle vectors, quaternions, rotation matrices, exponential maps, and newer continuous and probabilistic approaches. It evaluates each on mathematical formulation, continuity, gimbal lock susceptibility, computational cost, storage needs, interpolation behavior, and composition rules. The comparison integrates algebraic details with uses in animation, pose estimation, navigation, and neural networks. Quaternions stand out for compactness and speed while continuous representations like 6D vectors and matrix Fisher distributions improve smoothness and uncertainty handling. The work points to hybrid methods and larger-scale testing as next steps.

Core claim

The paper establishes through side-by-side analysis that quaternions dominate due to their compactness and computational efficiency, while alternatives like 6D continuous representations and matrix Fisher distributions provide enhanced continuity and uncertainty modeling.

What carries the argument

Comparative evaluation of SO(3) representations on continuity, efficiency, storage, interpolation, and composition.

If this is right

  • Quaternions reduce storage and computation time in real-time graphics pipelines.
  • 6D continuous representations avoid discontinuities that can disrupt gradient-based learning.
  • Matrix Fisher distributions enable explicit uncertainty estimates in inertial navigation.
  • Rotation matrices remain useful when direct access to the full linear transformation is required.
  • Exponential maps offer a compact vector form but require care near singularities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hybrid representations that switch between quaternion speed and continuous smoothness could reduce failures in long motion sequences.
  • Applications with sensor noise may benefit more from probabilistic models even when efficiency drops slightly.
  • Standardizing a small set of representations in libraries could simplify interoperability between graphics and learning systems.

Load-bearing premise

That comparing listed properties such as continuity and efficiency through qualitative review is sufficient to identify the best representation without large-scale quantitative benchmarks across applications.

What would settle it

A controlled benchmark measuring runtime, error rates, and failure frequency across animation, robotics, and neural pose tasks where a non-quaternion method shows clear overall superiority.

Figures

Figures reproduced from arXiv: 2605.08086 by Aizierjiang Aiersilan, Haochen Liu, James Hahn.

Figure 1
Figure 1. Figure 1: Comparison of storage requirements, composition time, and [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2

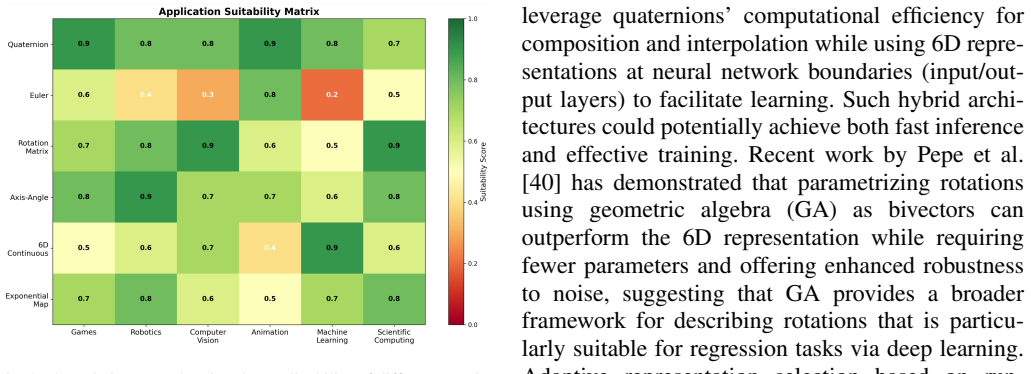

Figure 2. Figure 2: Correlation map showing the applicability of different rotation [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
read the original abstract

Rotation representations are foundational in fields such as computer graphics, robotics, and machine learning, where precise and efficient modeling of 3D orientations is critical. This paper comprehensively investigates diverse representations of the special orthogonal group $SO(3)$, such as Euler angles, axis-angle vectors, quaternions, rotation matrices, exponential maps, and emerging continuous and probabilistic methods, evaluating their mathematical formulations, continuity, susceptibility to gimbal lock, computational efficiency, storage requirements, interpolation properties, and composition operations, while integrating detailed algebraic insights with practical applications in fields like animation, pose estimation, inertial navigation, 3D shape registration, and neural networks. Empirical evidence highlights quaternions' dominance due to their compactness and computational efficiency, while alternatives like 6D continuous representations and matrix Fisher distributions provide enhanced continuity and uncertainty modeling. Future research could explore hybrid methods and thorough large-scale evaluations to help build a solid foundation for improving rotation representation techniques.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript reviews mathematical representations of 3D rotations from the special orthogonal group SO(3), covering Euler angles, axis-angle vectors, quaternions, rotation matrices, exponential maps, and emerging continuous and probabilistic methods. It evaluates these on criteria including continuity, gimbal lock, computational efficiency, storage, interpolation, and composition, integrating algebraic insights with applications in animation, pose estimation, navigation, registration, and neural networks. The paper concludes that empirical evidence supports quaternions as dominant for compactness and efficiency, while 6D continuous representations and matrix Fisher distributions offer advantages in continuity and uncertainty modeling.

Significance. If the comparative analysis holds, this work provides a valuable reference for researchers and practitioners in computer graphics, robotics, and machine learning by organizing the trade-offs among rotation representations. It highlights strengths of quaternions based on established literature and points to future directions like hybrid methods. However, the lack of new empirical data limits its novelty to synthesis rather than advancing the state of the art with quantitative evidence.

major comments (1)
  1. Abstract: The assertion that 'Empirical evidence highlights quaternions' dominance due to their compactness and computational efficiency' is not backed by original experiments or benchmarks in the paper; the discussion appears to rely on qualitative synthesis of prior citations without new runtime measurements or large-scale tests across applications such as neural pose estimators.
minor comments (1)
  1. The future research directions paragraph could benefit from more concrete suggestions for the proposed large-scale evaluations, such as specific metrics or application domains to test.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comment point by point below.

read point-by-point responses

  1. Referee: Abstract: The assertion that 'Empirical evidence highlights quaternions' dominance due to their compactness and computational efficiency' is not backed by original experiments or benchmarks in the paper; the discussion appears to rely on qualitative synthesis of prior citations without new runtime measurements or large-scale tests across applications such as neural pose estimators.

    Authors: We agree that the manuscript is a comparative review and does not present new runtime benchmarks or large-scale experiments. The phrase 'empirical evidence' refers to the synthesis of results reported in the cited literature, which includes multiple prior studies demonstrating the compactness and efficiency advantages of quaternions. To avoid any ambiguity, we will revise the abstract to clarify that the conclusion is drawn from a review of existing empirical studies rather than new experiments conducted here. A possible rephrasing is: 'A synthesis of the literature highlights quaternions' dominance due to their compactness and computational efficiency'. This revision will be made in the updated manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: review paper synthesizes external literature without self-referential derivations or fitted predictions

full rationale

This is a comparative survey of established SO(3) representations (Euler angles, quaternions, matrices, etc.). All algebraic properties, continuity arguments, and efficiency rankings are drawn from standard group theory and prior published results; the abstract explicitly attributes the 'quaternions' dominance' claim to 'empirical evidence' in the cited literature rather than any new derivation or internal fit performed in the paper. No equations are defined in terms of their own outputs, no parameters are fitted to a subset and then relabeled as predictions, and no load-bearing uniqueness theorem is imported from the authors' own prior work. The manuscript therefore contains no reduction of claims to self-constructed inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper rests on standard properties of the special orthogonal group SO(3) and algebraic operations on common representations without introducing fitted parameters or new entities.

axioms (1)
  • standard math SO(3) is the group of 3x3 orthogonal matrices with determinant 1 representing 3D rotations
    Invoked throughout the abstract and title as the mathematical foundation for all compared representations.
