QUANTAS 2 An Abstract, Concrete and Byzantine Simulator

Mikhail Nesterenko , Joseph Oglio
Authors on Pith no claims yet

Pith reviewed 2026-05-12 01:02 UTC · model grok-4.3

classification 💻 cs.DC
keywords distributed algorithmssimulatorByzantine faultsconsensusblockchainfault injectionabstract executionconcrete execution
0
0 comments X

The pith

QUANTAS 2 runs the same distributed algorithm code in both fast abstract round-based mode and concrete socket-based mode while allowing composable Byzantine fault injection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents QUANTAS 2 as a simulator that keeps a single compact implementation for researchers to study distributed algorithms. It extends an earlier round-based abstract simulator by adding a concrete execution mode that uses real network sockets on local or distributed machines. The same algorithm source files and JSON experiment descriptions work in both modes. A new interface encodes adversarial behaviors such as crashes, equivocation, or selfish mining as reusable strategies that replace normal sends, receives, and local steps. The authors show this setup applied to blockchain parasite-chain analysis, PBFT and Raft consensus experiments, and scale tests on Chord and Kademlia distributed hash tables.

Core claim

QUANTAS 2 supports fast abstract exploration, concrete validation, and adversarial fault injection while preserving a compact implementation model. The platform achieves this by allowing unmodified algorithm code and JSON experiment files to execute in either round-based abstract mode or socket-based concrete mode, and by providing a Byzantine-fault interface where adversarial actions are expressed as composable fault strategies that substitute correct behavior.

What carries the argument

The dual-mode execution engine together with the reusable Byzantine-fault interface that substitutes correct sends, receives, and local computation with adversarial strategies.

If this is right

  • Researchers can explore algorithm behavior rapidly in abstract mode then validate the same code on real networks without rewriting implementations.
  • Compos able fault strategies let users inject crash, equivocation, or selfish-mining behaviors into any simulated algorithm by swapping the fault module.
  • The same experiment files can be reused for both quick parameter sweeps and full-scale concrete runs on blockchains, consensus protocols, and distributed hash tables.
  • Comparative studies between abstract and concrete executions become straightforward for algorithms like PBFT, Raft, Chord, and Kademlia.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could shorten the path from theoretical algorithm design to deployment testing by eliminating separate code bases for simulation and real execution.
  • It opens the possibility of automatically porting abstract-scale results into concrete settings to check whether timing or network artifacts alter expected behavior.
  • Extending the fault interface to additional models such as asynchrony or partial synchrony would allow even broader adversarial testing with the same code.

Load-bearing premise

The same algorithm source code and JSON experiment files can execute without modification in both abstract round-based mode and concrete socket-based mode while still producing comparable results.

What would settle it

Take a simple algorithm such as Raft and run identical JSON experiments in abstract mode and concrete mode; if the observed message counts, termination rounds, or success rates diverge beyond what network timing differences alone would predict, the claim of seamless dual-mode execution is challenged.

Figures

Figures reproduced from arXiv: 2605.08547 by Joseph Oglio, Mikhail Nesterenko.

Figure 1
Figure 1. Figure 1: QUANTAS 2 architecture. Component uses the Configuration Component for processing user￾supplied configuration file containing network topology and size, parameters of the run, message delay discipline and parameters, computation length, etc. The network topology is specified as adja￾cency list and can be generated by hand or by a separate tool. Since the execution of the same round in the separate simulate… view at source ↗
Figure 3

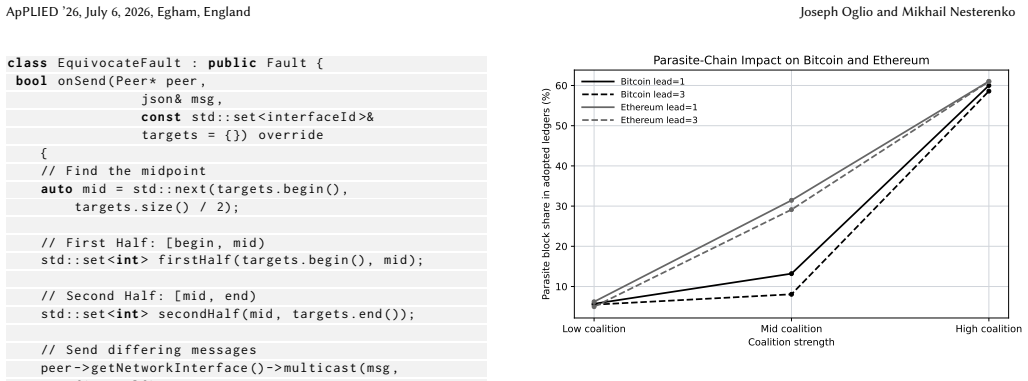

Figure 3. Figure 3: Parasite-chain Byzantine attack for Bitcoin and [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

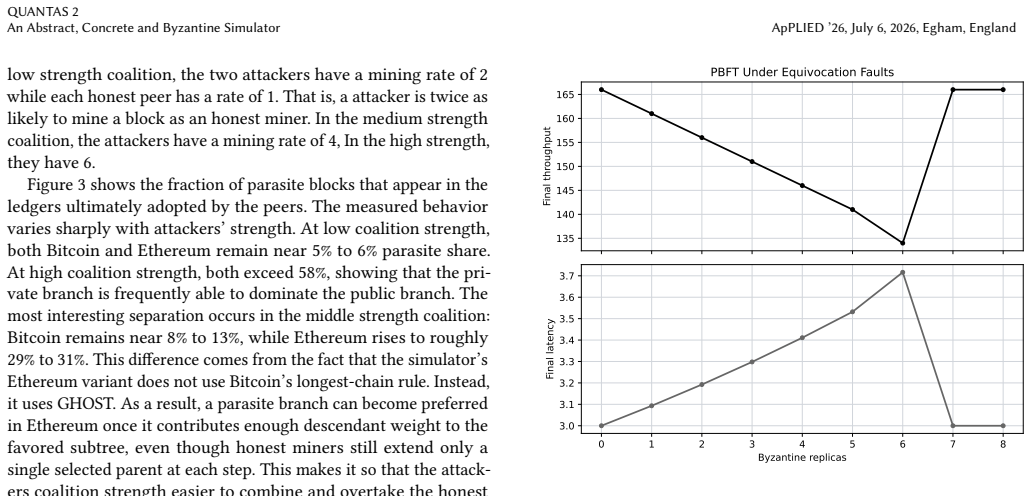

Figure 4. Figure 4: PBFT under equivocation faults. 0 2 4 6 8 10 11 Crashed replicas 0 50 100 150 200 250 300 350 400 Final throughput Raft Under Crash Faults [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Raft under crash faults and recovery [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Alternating-bit utility under FIFO channel faults. [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Stabilizing data link utility under channel faults. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Chord and Kademlia scale runtime in abstract and [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
read the original abstract

We present QUANTAS 2: a new distributed algorithm simulator and quantitative performance analysis tool. We use the original QUANTAS as a foundation. QUANTAS 2 can perform fast abstract exploration, concrete validation, and adversarial fault injection while preserving a compact implementation model for distributed algorithm researchers. The original QUANTAS was designed as an abstract, round-based simulator, which allows researchers to separate algorithmic behavior from the artifacts of a particular operating system, network stack, or physical deployment. QUANTAS 2 extends that design in two directions. First, QUANTAS 2 supports a concrete socket-based execution mode, allowing the same algorithm implementations and JSON experiment descriptions to run across local or distributed computers. Second, QUANTAS 2 adds a reusable Byzantine-fault interface in which Byzantine behavior is encoded as composable fault strategy that substitutes correct sends, receives, and local computation. This allows researchers to simulate crash, equivocation, selfish-mining, and other adversarial behaviors without rewriting the simulated algorithm. We demonstrate the resulting platform on blockchain, consensus, distributed hash table, and reliable data link algorithms. We perform parasite-chain sweeps for proof-of-work blockchains, PBFT equivocation experiments, Raft crash experiments, and Chord/Kademlia scale experiments over both abstract and concrete modes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents QUANTAS 2 as an extension of the original QUANTAS round-based simulator for distributed algorithms. It claims to support fast abstract exploration, concrete socket-based validation on local or distributed machines, and adversarial fault injection via a reusable Byzantine interface, all while preserving a single compact implementation model. The same algorithm sources and JSON experiment files are asserted to execute unmodified in both abstract (synchronous rounds) and concrete (asynchronous sockets) modes. Demonstrations cover parasite-chain sweeps for proof-of-work blockchains, PBFT equivocation, Raft crash faults, and Chord/Kademlia scalability experiments performed in both modes.

Significance. If the equivalence between modes and the composable fault interface can be substantiated with implementation details, QUANTAS 2 would provide a useful platform for distributed algorithm researchers, allowing a single code base to be used for rapid abstract exploration and realistic concrete validation while simplifying Byzantine strategy injection. This addresses a recurring practical challenge in the field.

major comments (2)
  1. [Abstract] The abstract asserts that 'the same algorithm implementations and JSON experiment descriptions to run across local or distributed computers' and that Byzantine strategies 'substitute correct sends, receives, and local computation' without rewriting the simulated algorithm. No mechanism, interface description, or equivalence argument is supplied showing how the synchronous round model is reconciled with asynchronous socket execution (including timing and ordering differences), which is load-bearing for the central claim of unmodified execution and comparable results across modes.
  2. [Demonstration and Experiments] The demonstration section describes parasite-chain sweeps, PBFT equivocation experiments, Raft crash experiments, and Chord/Kademlia scale experiments over both abstract and concrete modes, yet supplies no performance numbers, execution times, throughput metrics, or quantitative comparisons between the two modes. This prevents assessment of the claimed 'fast abstract exploration' and 'concrete validation'.
minor comments (1)
  1. [Title] The title is missing a colon or punctuation after 'QUANTAS 2'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and valuable suggestions. We address each major comment below and have revised the manuscript to strengthen the presentation of the core claims.

read point-by-point responses

  1. Referee: [Abstract] The abstract asserts that 'the same algorithm implementations and JSON experiment descriptions to run across local or distributed computers' and that Byzantine strategies 'substitute correct sends, receives, and local computation' without rewriting the simulated algorithm. No mechanism, interface description, or equivalence argument is supplied showing how the synchronous round model is reconciled with asynchronous socket execution (including timing and ordering differences), which is load-bearing for the central claim of unmodified execution and comparable results across modes.

    Authors: The body of the manuscript describes the Byzantine interface in Section 3 as a composable strategy object that overrides the send, receive, and compute primitives, and the concrete mode in Section 4 as a socket transport layer that batches messages and synchronizes at explicit round boundaries. This design allows the identical algorithm source to execute without modification. We agree, however, that the abstract is too terse and that an explicit reconciliation argument (addressing timing, ordering, and semantic equivalence) was not foregrounded. We have therefore revised the abstract to reference Sections 3 and 4, added a new subsection 4.3 containing a concise equivalence argument with pseudocode for the synchronization layer, and included a short discussion of how configurable delays and FIFO delivery preserve the round-based semantics. revision: yes

  2. Referee: [Demonstration and Experiments] The demonstration section describes parasite-chain sweeps, PBFT equivocation experiments, Raft crash experiments, and Chord/Kademlia scale experiments over both abstract and concrete modes, yet supplies no performance numbers, execution times, throughput metrics, or quantitative comparisons between the two modes. This prevents assessment of the claimed 'fast abstract exploration' and 'concrete validation'.

    Authors: We accept the referee's observation that the absence of quantitative metrics makes it difficult to evaluate the claimed performance advantages. The original demonstrations focused on showing functional equivalence and identical results from the same code and JSON files. We have now augmented the demonstration section with concrete performance data: wall-clock execution times for parasite-chain and Chord/Kademlia experiments in both modes, throughput figures for PBFT and Raft, and a direct comparison table. These additions appear as new Table 2, updated Table 3, and Figure 5. revision: yes

Circularity Check

0 steps flagged

No circularity: QUANTAS 2 is a software tool description with no derivation chain or equations

full rationale

The paper describes a simulator extending the original QUANTAS with concrete mode and Byzantine fault injection. It contains no equations, predictions, or mathematical derivations that could reduce to fitted parameters, self-definitions, or self-citation chains. Claims about unmodified execution across modes and demonstrations on blockchain/consensus algorithms are implementation and empirical statements, not circular reductions. The foundation on original QUANTAS is a straightforward extension, not load-bearing circularity. Per rules, a tool paper without derivation scores 0.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a software-tool paper; no free parameters, mathematical axioms, or new postulated entities are introduced.
