Bilateral breast gradient insert prototype for strong diffusion encoding at 3T

Gerrit Arends , Edwin Versteeg , Feng Jia , Dennis Klomp , Maxim Zaitsev , Sebastian Littin , Chantal Tax

Authors on Pith no claims yet

Pith reviewed 2026-05-12 02:35 UTC · model grok-4.3

classification ⚛️ physics.med-ph

keywords breast diffusion MRIgradient inserthigh b-valuebreast cancernon-contrast imagingprototype hardwareeddy current correction

0 comments

The pith

A prototype bilateral breast gradient insert delivers local strengths up to 1850 mT/m for diffusion MRI at 3 tesla.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs and tests a plug-and-play gradient coil insert that fits around both breasts to produce much stronger magnetic field gradients than standard whole-body MRI scanners. This stronger gradient performance allows diffusion-weighted images at high b-values like 10000 s/mm² to be acquired at shorter echo times, which improves signal quality. The design uses standard commercial parts for low cost and easy integration with existing scanners. Testing on a diffusion phantom and five volunteers confirmed the expected field strength, absence of peripheral nerve stimulation, and practical imaging results. If successful in patients, such hardware could support contrast-free methods for detecting and characterizing breast cancer.

Core claim

The central claim is that a dedicated bilateral breast gradient insert, built with optimized wiring for balanced forces and efficient field generation, reaches a gradient efficiency of 2.8 mT/m/A and local strengths up to 1850 mT/m. This enables diffusion MRI acquisitions at b = 10000 s/mm² with TE = 78 ms, compared to 161 ms using the scanner's own gradients, while eddy currents are characterizable for correction and no peripheral nerve stimulation occurs in volunteer tests.

What carries the argument

The bilateral breast gradient insert with its torque- and force-balanced wiring pattern, which generates the target magnetic field gradients while minimizing mechanical stresses and power dissipation.

Load-bearing premise

The observed gradient performance, safety, and imaging results from phantom tests and five healthy volunteers will translate directly to clinical scans of patients, including during extended examinations and after full in vivo eddy current corrections.

What would settle it

A clinical trial in which patients undergo scans with the insert and either experience peripheral nerve stimulation or fail to produce usable high-b-value images after eddy current correction would falsify the feasibility claim.

Figures

Figures reproduced from arXiv: 2605.08957 by Chantal Tax, Dennis Klomp, Edwin Versteeg, Feng Jia, Gerrit Arends, Maxim Zaitsev, Sebastian Littin.

**Figure 1.** Figure 1: Hardware design a) Top and side views of sketches of the breast gradient with dimensions indicated. b) Exploded view of the CAD model of the complete integrated system. c) Realization of the breast gradient. The top image shows the finalized breast gradient, and the bottom image shows the gradient before being cast into epoxy resin. d) Photograph of the integrated system mounted on the MRI scanner, replaci… view at source ↗

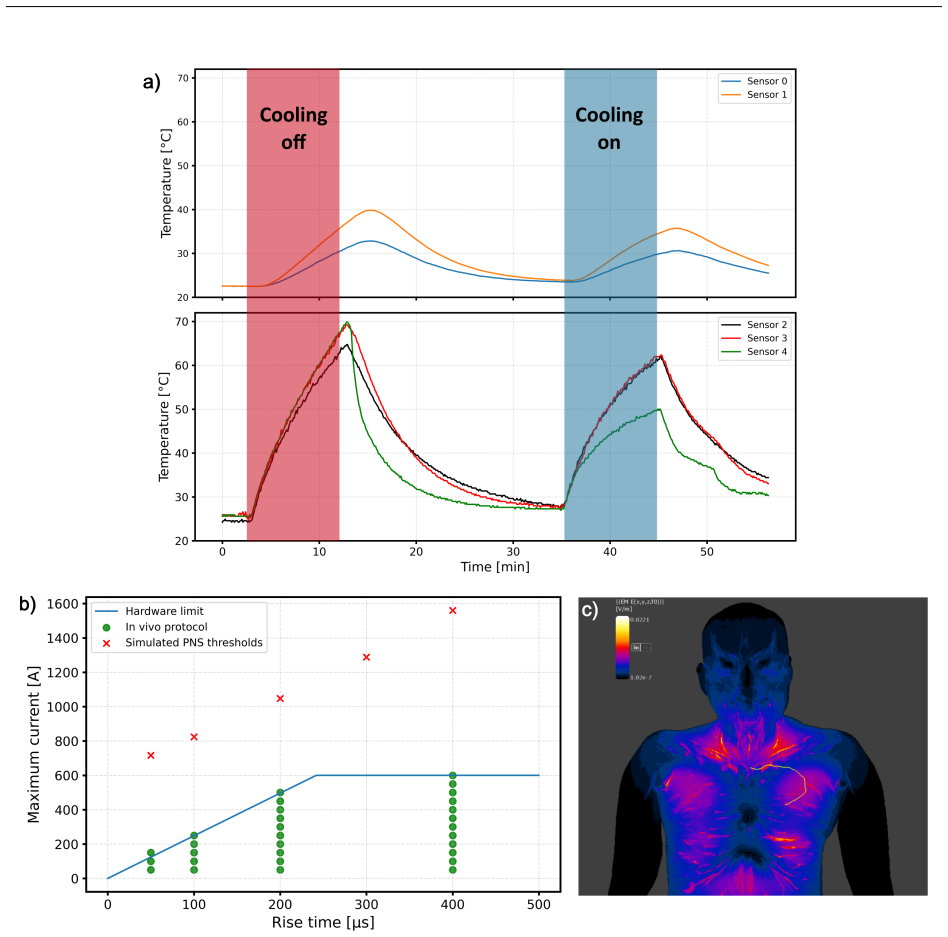

**Figure 2.** Figure 2: Safety assessment a) Temperature characterization of the breast gradient coil over time. The red-shaded regions indicate periods of current block pulses applied without cooling, while the blue-shaded regions correspond to operation with active cooling. See Fig.1e for sensor numbering. b) Hardware limit of the breast gradient, in vivo PNS test protocol and simulated PNS thresholds. No PNS was felt by all vo… view at source ↗

**Figure 3.** Figure 3: Gradient field characterization a) Difference between phase measurements with and without applied gradient blip. The slice nearest the chest is shown at the top left, while the lowest slice is shown at the bottom right. b) Resulting η from the phase measurements in a. c) Simulated η with location with respect to the wiring pattern d) Simulated η from c plotted versus measurements from c as a function of de… view at source ↗

**Figure 4.** Figure 4: Eddy current characterization a) Sagittal PCA maps corresponding to the first four components. b) Temporal evolution of the first four components corresponding to a. A bi-exponential decay fit is plotted for the first component. c) Coronal PCA maps corresponding to the first four components. Temporal evolution of the first four components corresponding to c. A bi-exponential decay fit is plotted for the fi… view at source ↗

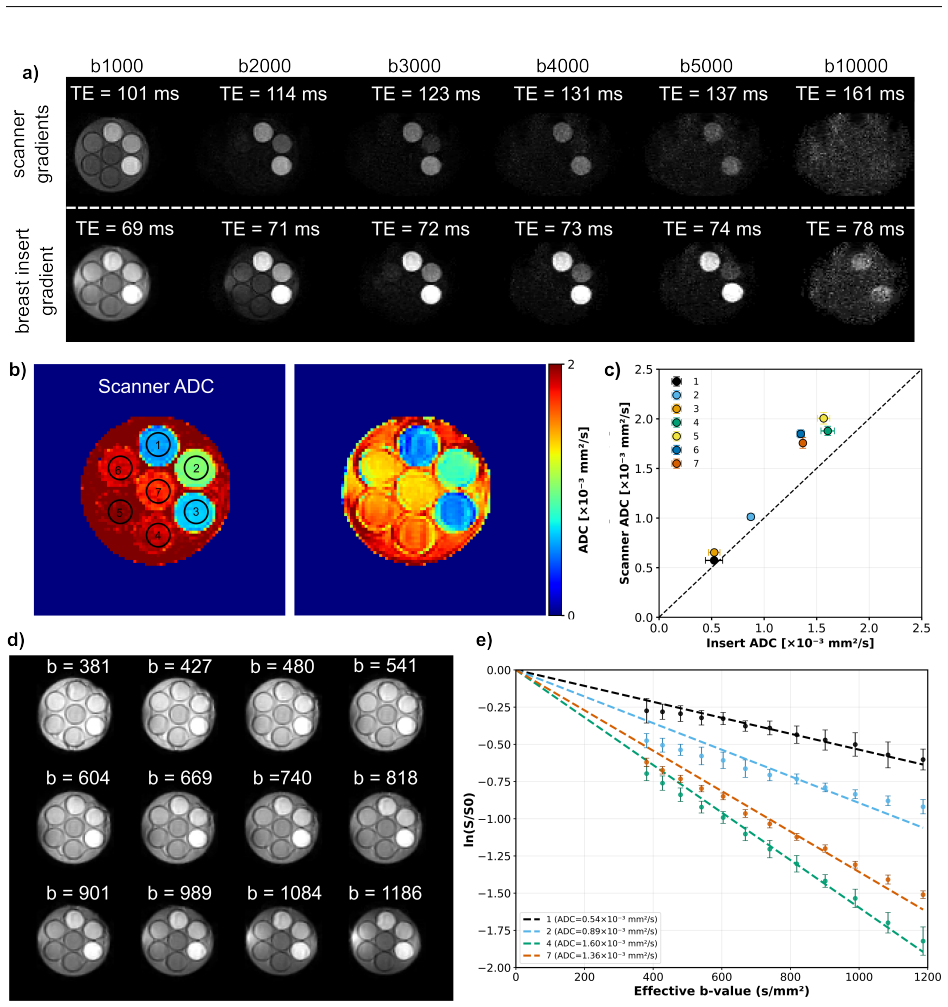

**Figure 5.** Figure 5: dMRI Acquisitions on a soy lecithin Phantom [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗

read the original abstract

Purpose: Diffusion MRI has shown promise for breast cancer screening, lesion characterization,and treatment response monitoring without contrast agents, but further translation is constraint by the gradient performance of conventional systems. The aim of this work is to develop a single-axis high performance bilateral plug-and-play breast gradient insert to enable strong-gradient diffusion MRI. Methods: An in-house breast gradient insert and bed-tabletop was constructed entirely from commercially available materials, providing a cost-effective solution compatible with existing MRI systems. Its wiring pattern was optimized for torque and force balancing, power dissipation, and target field performance. Evaluation included gradient field characterization, peripheral nerve stimulation simulation verification, and temperature and eddy current assessment. The setup was used for imaging of a diffusion phantom based on soy lecithin across a range of b-values. Results: Gradient efficiency reached 2.8 mT/m/A, enabling local strengths up to 1850 mT/m (660 A). No peripheral nerve stimulation was observed during tests on five healthy volunteers. Eddy currents were successfully characterized employed in standard correction methods. Imaging showed the feasibility of $b = 10 000 s/mm^2$ acquisitions at TE = 78 ms versus 161 ms with scanner gradients. Conclusion: This work demonstrates a dedicated bilateral breast gradient insert for safe and feasible strong-gradient breast diffusion MRI, and represents a first step toward dedicated hardware for breast cancer detection and characterization without contrast agents.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper delivers a working bilateral breast gradient insert prototype reaching 1850 mT/m with volunteer safety checks and shorter-TE high-b phantom imaging, but the clinical translation claim rests on untested assumptions about patients and stability.

read the letter

This paper shows a working prototype for a bilateral breast gradient insert that reaches 1850 mT/m on a 3T scanner and enables high b-value diffusion at shorter echo times, with basic safety confirmed in volunteers. They built it from commercial materials as a plug-and-play add-on, optimized the coil wiring for torque and force balance, and then characterized the gradient field, ran PNS simulations and tests on five volunteers with no stimulation observed, assessed eddy currents, and demonstrated phantom imaging at b=10000 s/mm2 with TE reduced from 161 to 78 ms. The practical construction and the measured performance numbers are the solid parts here. The soft spots are the limited scope of the human testing. Only healthy volunteers were scanned, with no data from breast cancer patients, no checks on long-term stability or performance across different body types, and incomplete details on temperature control or full in vivo eddy current correction for extended clinical protocols. Those gaps mean the translation to routine use is still an assumption. This work is for MRI physicists and hardware developers focused on breast imaging or strong-gradient diffusion. A reader in that area can pick up the design approach and the feasibility results. Broader clinical readers will see the potential but will need more evidence before considering it for practice. It deserves peer review. The prototype is real with supporting measurements, so referees can evaluate the methods and push for the missing clinical validation steps.

Referee Report

3 major / 3 minor

Summary. The manuscript describes the development and initial evaluation of a bilateral breast gradient insert prototype for high-performance diffusion MRI at 3T. The design uses commercially available materials for a cost-effective, plug-and-play solution; the wiring is optimized for torque/force balance, power dissipation, and field performance. Key results include a measured gradient efficiency of 2.8 mT/m/A (enabling local strengths up to 1850 mT/m), no observed peripheral nerve stimulation in five healthy volunteers, successful eddy-current characterization for standard corrections, and feasibility of b=10,000 s/mm² phantom imaging at TE=78 ms (versus 161 ms on scanner gradients).

Significance. If the reported performance and safety profile hold under broader testing, the work represents a practical advance toward dedicated hardware that could improve non-contrast breast diffusion MRI for cancer detection and treatment monitoring. The emphasis on off-the-shelf components and compatibility with existing 3T systems is a strength for potential accessibility and reproducibility. The experimental results in phantoms and volunteers provide direct evidence of feasibility at the prototype stage, though the absence of patient data and long-term metrics limits immediate clinical claims.

major comments (3)

[Results (gradient characterization)] Results section on gradient characterization: the efficiency value of 2.8 mT/m/A (and derived maximum strength of 1850 mT/m at 660 A) is presented without accompanying measurement details, calibration method, field-mapping protocol, or uncertainty estimates (e.g., standard deviation or repeated measurements). This information is load-bearing for validating the central performance claim.
[Methods/Results (PNS and volunteer tests)] Volunteer safety tests and PNS simulation: the statement of no peripheral nerve stimulation in five volunteers lacks quantitative details on tested gradient amplitudes, slew rates, waveform parameters, simulation-to-measurement comparison, or safety margins. These omissions weaken assessment of the safety profile for strong-gradient protocols.
[Results (phantom imaging)] Phantom imaging results: while b=10,000 s/mm² acquisitions at reduced TE are shown to be feasible, no quantitative metrics (SNR, ADC estimates, image quality scores) or side-by-side comparisons with scanner gradients are reported. This limits the strength of the feasibility conclusion for clinical diffusion protocols.

minor comments (3)

[Abstract] Abstract: 'further translation is constraint by' should read 'constrained by'.
[Abstract] Abstract: the sentence 'Eddy currents were successfully characterized employed in standard correction methods' is grammatically incomplete; insert 'and' before 'employed'.
[Abstract] Abstract and throughout: b-value notation uses a space ('10 000'); ensure consistent formatting with units (s/mm²) and check for similar spacing issues in tables or figures.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive review and positive assessment of our work. We have prepared point-by-point responses to the major comments and will revise the manuscript accordingly to improve transparency and completeness.

read point-by-point responses

Referee: Results section on gradient characterization: the efficiency value of 2.8 mT/m/A (and derived maximum strength of 1850 mT/m at 660 A) is presented without accompanying measurement details, calibration method, field-mapping protocol, or uncertainty estimates (e.g., standard deviation or repeated measurements). This information is load-bearing for validating the central performance claim.

Authors: We agree that the gradient characterization section requires additional methodological detail to support the reported efficiency. In the revised manuscript we will expand the Methods to describe the calibration protocol (field measurements performed with a calibrated Hall-effect probe at multiple positions along the insert axis), the linear regression used to obtain the 2.8 mT/m/A slope, and the uncertainty derived from repeated acquisitions. The maximum strength of 1850 mT/m is the extrapolated value at the 660 A amplifier limit, with linearity verified within the bilateral breast volume of interest. revision: yes
Referee: Volunteer safety tests and PNS simulation: the statement of no peripheral nerve stimulation in five volunteers lacks quantitative details on tested gradient amplitudes, slew rates, waveform parameters, simulation-to-measurement comparison, or safety margins. These omissions weaken assessment of the safety profile for strong-gradient protocols.

Authors: We acknowledge the need for quantitative context around the PNS evaluation. The revised Methods and Results will specify the gradient amplitudes and slew rates applied during volunteer testing, the diffusion waveform parameters, and the PNS simulation model employed. We will also add a direct comparison showing that the experimental conditions remained below the simulated thresholds, thereby documenting the safety margin observed in the five volunteers. revision: yes
Referee: Phantom imaging results: while b=10,000 s/mm² acquisitions at reduced TE are shown to be feasible, no quantitative metrics (SNR, ADC estimates, image quality scores) or side-by-side comparisons with scanner gradients are reported. This limits the strength of the feasibility conclusion for clinical diffusion protocols.

Authors: We agree that quantitative metrics would strengthen the phantom imaging results. In the revision we will report SNR values measured in the soy-lecithin phantom at b = 10 000 s/mm², the corresponding ADC estimates, and a direct comparison (both visual and metric) of image quality obtained with the insert versus the scanner gradients at matched b-value. These data exist in our analysis pipeline and will be added to better quantify the benefit of the shorter TE. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental hardware validation with direct measurements

full rationale

The paper reports construction of a bilateral breast gradient insert, its wiring optimization, and direct experimental characterization (gradient efficiency 2.8 mT/m/A, PNS testing on 5 volunteers, eddy-current mapping, phantom imaging at b=10000 s/mm²). No equations, models, or predictions are presented that reduce to fitted inputs or self-referential definitions. All central claims rest on measured data rather than any derivation chain. No self-citation load-bearing steps or ansatz smuggling occur in the reported results.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work rests on standard electromagnetic design principles and MRI safety thresholds from prior literature; no free parameters central to the claim, no invented entities, and no ad-hoc axioms beyond domain-standard assumptions.

axioms (2)

standard math Standard electromagnetic principles govern gradient coil field generation, torque, and power dissipation.
Invoked for wiring pattern optimization and efficiency calculation.
domain assumption Peripheral nerve stimulation thresholds established in prior MRI safety literature apply to this insert geometry.
Used to interpret volunteer testing and simulation results.
