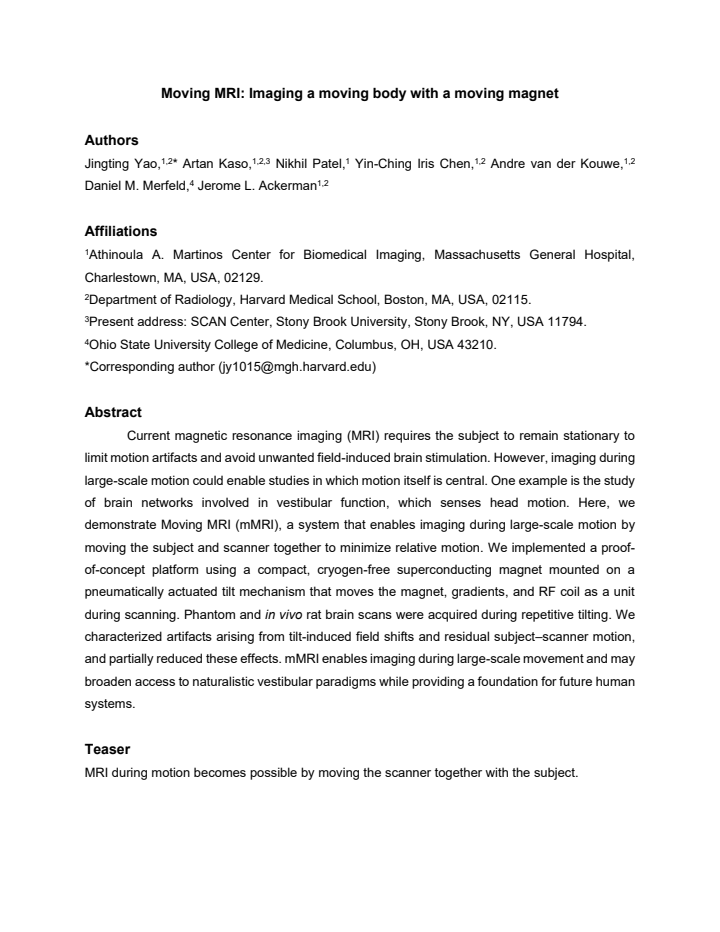

· Lean TheoremMoving MRI: Imaging a moving body with a moving magnet
Pith reviewed 2026-05-12 04:21 UTC · model grok-4.3
The pith
Moving the MRI scanner together with the subject enables imaging during large-scale motion by minimizing relative movement.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We demonstrate Moving MRI (mMRI), a system that enables imaging during large-scale motion by moving the subject and scanner together to minimize relative motion. Implemented as a proof-of-concept platform using a compact, cryogen-free superconducting magnet mounted on a pneumatically actuated tilt mechanism, the setup moves the magnet, gradients, and RF coil as a unit during scanning. Phantom and in vivo rat brain scans were acquired during repetitive tilting; artifacts arising from tilt-induced field shifts and residual subject-scanner motion were characterized and partially reduced.
What carries the argument
The mMRI platform in which the magnet, gradients, and RF coil move together with the subject on a pneumatically actuated tilt mechanism to keep relative motion near zero.
If this is right
- Studies of brain networks that respond to head motion, such as vestibular circuits, become feasible inside the scanner.
- Naturalistic motion paradigms replace the artificial stillness demanded by conventional MRI.
- The same synchronized-movement principle supplies a technical foundation for eventual human-scale systems.
- Phantom and small-animal data acquired while moving already demonstrate that the approach can produce interpretable images.
Where Pith is reading between the lines
- The method could be extended to other large-amplitude motions such as linear translation or rotation about different axes if the actuator and field-stabilization hardware are adapted accordingly.
- Integration with real-time prospective motion correction might further reduce the residual artifacts the current proof-of-concept only partially mitigates.
- If the approach reaches human use, it could lower the need for sedation in populations that cannot remain still, such as young children or patients with movement disorders.
Load-bearing premise
Tilt-induced field shifts and residual subject-scanner motion produce artifacts that can be characterized and at least partially mitigated to yield usable images.
What would settle it
If images acquired during repeated tilting remain too degraded by uncorrectable field shifts or motion to allow reliable anatomical or functional analysis even after the paper's mitigation steps, the central claim fails.
read the original abstract
Current magnetic resonance imaging (MRI) requires the subject to remain stationary to limit motion artifacts and avoid unwanted field-induced brain stimulation. However, imaging during large-scale motion could enable studies in which motion itself is central. One example is the study of brain networks involved in vestibular function, which senses head motion. Here, we demonstrate Moving MRI (mMRI), a system that enables imaging during large-scale motion by moving the subject and scanner together to minimize relative motion. We implemented a proof-of-concept platform using a compact, cryogen-free superconducting magnet mounted on a pneumatically actuated tilt mechanism that moves the magnet, gradients, and RF coil as a unit during scanning. Phantom and in vivo rat brain scans were acquired during repetitive tilting. We characterized artifacts arising from tilt-induced field shifts and residual subject-scanner motion, and partially reduced these effects. mMRI enables imaging during large-scale movement and may broaden access to naturalistic vestibular paradigms while providing a foundation for future human systems.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a proof-of-concept hardware demonstration of Moving MRI (mMRI), in which a compact cryogen-free superconducting magnet, gradients, and RF coil are mounted on a pneumatically actuated tilt platform and moved as a rigid unit with the subject. This minimizes relative motion during large-scale tilting, enabling phantom and in vivo rat brain scans during repetitive motion. The work characterizes tilt-induced B0 field shifts and residual subject-scanner motion artifacts and reports partial mitigation of these effects to produce usable images.
Significance. If the residual artifacts after partial correction are shown to be small enough to support reliable anatomical and functional contrast, the approach could enable new classes of MRI experiments on vestibular and motion-related brain networks under naturalistic conditions. The compact, cryogen-free platform also offers a potential route to broader access and future human-scale systems. The current manuscript, however, provides no quantitative image-quality metrics, so the practical significance remains difficult to assess.
major comments (2)
- [Results] Results section (phantom and in vivo rat data): The central claim that images remain 'usable' after partial artifact reduction is not supported by any quantitative metrics such as SNR, artifact power spectra, voxel displacement histograms, or direct comparison to stationary reference scans. Without these, it is impossible to determine whether residual ghosting, blurring, or signal dropout compromises the intended vestibular or functional applications.
- [Methods] Methods: The manuscript states that tilt-induced field shifts and residual motion were 'characterized and partially reduced' but provides no detailed description of the correction methods (e.g., specific B0 mapping sequences, shim adjustments, or retrospective motion-correction algorithms), their parameters, or validation against ground truth. This omission makes the mitigation strategy non-reproducible and prevents evaluation of whether the corrections are sufficient relative to voxel size or bandwidth.
minor comments (2)
- [Abstract] The abstract and introduction use the term 'usable images' without defining the criterion (e.g., sufficient contrast for anatomical segmentation or fMRI statistics).
- [Figures] Figure captions and legends should include scale bars, acquisition parameters (TE/TR, flip angle, tilt rate), and whether images are shown before or after correction.
Simulated Author's Rebuttal
We thank the referee for their constructive review of our manuscript on Moving MRI. We have addressed the concerns about quantitative support for image usability and the lack of methodological details by adding new analyses and expanded descriptions in the revised manuscript.
read point-by-point responses
-
Referee: [Results] Results section (phantom and in vivo rat data): The central claim that images remain 'usable' after partial artifact reduction is not supported by any quantitative metrics such as SNR, artifact power spectra, voxel displacement histograms, or direct comparison to stationary reference scans. Without these, it is impossible to determine whether residual ghosting, blurring, or signal dropout compromises the intended vestibular or functional applications.
Authors: We agree that quantitative metrics provide stronger evidence for the usability of the images. Although the original submission relied on visual inspection of the presented phantom and in vivo images to illustrate partial artifact reduction, the revised manuscript incorporates the suggested metrics. We have added SNR values, artifact power spectra, voxel displacement histograms, and comparisons to stationary reference scans. These demonstrate that the residual artifacts are limited and the images remain suitable for the proof-of-concept of mMRI in vestibular-related studies. revision: yes
-
Referee: [Methods] Methods: The manuscript states that tilt-induced field shifts and residual motion were 'characterized and partially reduced' but provides no detailed description of the correction methods (e.g., specific B0 mapping sequences, shim adjustments, or retrospective motion-correction algorithms), their parameters, or validation against ground truth. This omission makes the mitigation strategy non-reproducible and prevents evaluation of whether the corrections are sufficient relative to voxel size or bandwidth.
Authors: We recognize that the methods section in the original manuscript was concise and lacked the level of detail needed for full reproducibility. In the revision, we have substantially expanded this section to describe the specific B0 mapping sequences employed, the shim adjustment protocols, the retrospective motion-correction algorithms including their parameters, and the validation procedures against ground-truth stationary scans. This allows readers to assess the corrections relative to voxel size and acquisition bandwidth. revision: yes
Circularity Check
No circularity: hardware demonstration without derivations or self-referential predictions
full rationale
The paper is a proof-of-concept hardware implementation of a moving MRI scanner that tilts the magnet, gradients, and RF coil as a unit with the subject. No mathematical derivations, first-principles predictions, fitted parameters renamed as outputs, or uniqueness theorems appear in the abstract or described content. Artifact characterization and partial mitigation are experimental observations, not reductions to inputs by construction. No self-citation chains or ansatzes are invoked as load-bearing steps. The work is self-contained against external benchmarks as a standard engineering demonstration.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean, IndisputableMonolith/Cost/FunctionalEquation.leanreality_from_one_distinction, washburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We implemented a proof-of-concept platform using a compact, cryogen-free superconducting magnet mounted on a pneumatically actuated tilt mechanism that moves the magnet, gradients, and RF coil as a unit during scanning... characterized artifacts arising from tilt-induced field shifts and residual subject-scanner motion, and partially reduced these effects.
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Frontiers in Neurology 7 (2016). 9 Cohen, J. T. et al. Blast injury of the ear in a confined space explosion: auditory and vestibular evaluation. Isr Med Assoc J 4, 559-562 (2002). 10 Crowell, J. A., Banks, M. S., Shenoy, K. V. & Andersen, R. A. Visual self-motion perception during head turns. Nature Neuroscience 1, 732-737 (1998). 11 Davies, R. A. & Luxo...
work page 2016
-
[2]
+ 𝜃 = cos−1 (𝑥𝜃/√𝑥𝜃 2 + 𝑧𝜃
-
[3]
(3) With calculated 𝑥0 and 𝑥𝜃, the unknowns in Eqs. (3) are 𝑧0 and 𝑧𝜃. Introducing 𝜑 = cos−1(𝑥0/ √𝑥0 2 + 𝑧0
-
[4]
This simplifies to cos 𝜑 𝑥0 = cos(𝜑+𝜃) 𝑥𝜃
and 𝛿2 = 𝑥0 2 + 𝑧0 2 = 𝑥𝜃 2 + 𝑧𝜃 2 provides cos𝜑 = 𝑥0/𝛿 and cos(𝜑 + 𝜃) = 𝑥𝜃/𝛿 . This simplifies to cos 𝜑 𝑥0 = cos(𝜑+𝜃) 𝑥𝜃 . Let 𝑓(𝜑) = 𝑥𝜃 cos𝜑 − 𝑥0cos(𝜑 + 𝜃). Solving for 𝑓(𝜑) = 0 provides 𝑧0. While the analytical solution for 𝑧0 is intractable, a practical estimate of 𝑧0 was obtained by identifying the zero-crossing point φ0, yielding 𝑧0 = 69.9 cm. In su...
