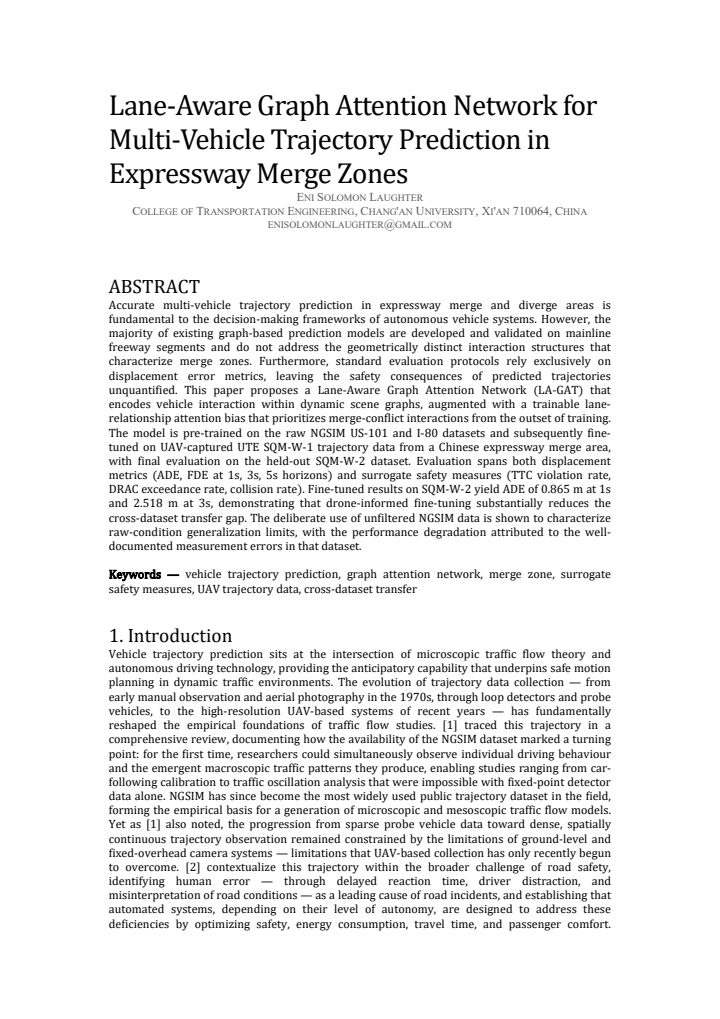

Lane-Aware Graph Attention Network for Multi-Vehicle Trajectory Prediction in Expressway Merge Zones

Eni Solomon Laughter This is my paper

Pith reviewed 2026-05-14 20:59 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords trajectory predictiongraph attention networksmerge zoneslane-aware attentionUAV fine-tuningsurrogate safety metricsautonomous drivingdynamic scene graphs
0
0 comments X

The pith

A lane-aware graph attention network with bias for merge conflicts predicts trajectories more accurately after drone-data fine-tuning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that adding a trainable lane-relationship attention bias to graph attention networks lets the model prioritize merge-conflict interactions from the start of training. Pre-training occurs on raw NGSIM freeway segments and fine-tuning uses UAV-captured trajectories from a Chinese expressway merge, with evaluation on held-out data from the same site. This matters because autonomous vehicles need reliable short-horizon forecasts in geometrically distinct merge zones to support safe lane-change decisions, and the work also tracks safety consequences through time-to-collision and deceleration-rate metrics rather than displacement error alone. Results show the fine-tuned model reaches 0.865 m ADE at the one-second horizon on the target merge dataset, narrowing the gap that appears when models trained only on mainline data are applied directly.

Core claim

The Lane-Aware Graph Attention Network encodes multi-vehicle interactions inside dynamic scene graphs and augments them with a trainable lane-relationship attention bias that prioritizes merge-conflict pairs. Pre-training on unfiltered NGSIM US-101 and I-80 data followed by fine-tuning on UAV SQM-W-1 trajectories yields an ADE of 0.865 m at 1 s and 2.518 m at 3 s on the held-out SQM-W-2 set, while also reporting TTC violation rates and DRAC exceedance rates to quantify safety implications.

What carries the argument

Trainable lane-relationship attention bias inside the Lane-Aware Graph Attention Network (LA-GAT), which adjusts attention weights on dynamic scene graphs to emphasize interactions between vehicles on merging lanes.

If this is right

  • Displacement errors drop measurably when the model is exposed to merge-specific geometry during fine-tuning.
  • Surrogate safety indicators such as TTC violation rate become quantifiable outputs alongside trajectory forecasts.
  • Unfiltered NGSIM data exposes the raw generalization ceiling imposed by sensor noise in legacy datasets.
  • Domain adaptation via UAV footage bridges the distribution shift between mainline freeways and merge zones.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same explicit lane-bias mechanism could be tested on intersections or weaving sections where lane conflicts also dominate.
  • Collecting UAV trajectories from additional merge geometries would allow direct checks on whether the fine-tuning benefit holds across countries or road standards.
  • If lane geometry is encoded as an attention bias rather than a hard constraint, the model may adapt more easily to temporary lane closures or construction zones.
  • The reported safety-metric improvements suggest the framework could be coupled with risk-aware planning modules that penalize high-TTC-violation forecasts.

Load-bearing premise

The lane-relationship attention bias reliably learns to focus on merge-conflict interactions and the UAV fine-tuning data forms a representative sample of the target merge-zone distribution without new biases absent from the NGSIM source.

What would settle it

If removing the lane-relationship attention bias or skipping the UAV fine-tuning step produces equal or lower ADE and safety-metric violation rates on SQM-W-2, the claimed benefit of the proposed components would be refuted.

read the original abstract

Accurate multi-vehicle trajectory prediction in expressway merge and diverge areas is fundamental to the decision-making frameworks of autonomous vehicle systems. However, the majority of existing graph-based prediction models are developed and validated on mainline freeway segments and do not address the geometrically distinct interaction structures that characterize merge zones. Furthermore, standard evaluation protocols rely exclusively on displacement error metrics, leaving the safety consequences of predicted trajectories unquantified. This paper proposes a Lane-Aware Graph Attention Network (LA-GAT) that encodes vehicle interaction within dynamic scene graphs, augmented with a trainable lane-relationship attention bias that prioritizes merge-conflict interactions from the outset of training. The model is pre-trained on the raw NGSIM US-101 and I-80 datasets and subsequently fine-tuned on UAV-captured UTE SQM-W-1 trajectory data from a Chinese expressway merge area, with final evaluation on the held-out SQM-W-2 dataset. Evaluation spans both displacement metrics (ADE, FDE at 1s, 3s, 5s horizons) and surrogate safety measures (TTC violation rate, DRAC exceedance rate, collision rate). Fine-tuned results on SQM-W-2 yield ADE of 0.865 m at 1s and 2.518 m at 3s, demonstrating that drone-informed fine-tuning substantially reduces the cross-dataset transfer gap. The deliberate use of unfiltered NGSIM data is shown to characterize raw-condition generalization limits, with the performance degradation attributed to the well-documented measurement errors in that dataset.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces the Lane-Aware Graph Attention Network (LA-GAT) for multi-vehicle trajectory prediction in expressway merge zones. It encodes interactions via dynamic scene graphs augmented by a trainable lane-relationship attention bias, pre-trains on raw NGSIM US-101 and I-80 data, fine-tunes on UAV-captured UTE SQM-W-1 trajectories, and evaluates on held-out SQM-W-2 using ADE/FDE at 1s/3s/5s horizons plus surrogate safety metrics (TTC violation rate, DRAC exceedance rate, collision rate). The central claim is that drone-informed fine-tuning substantially reduces the cross-dataset transfer gap, with reported fine-tuned ADE of 0.865 m at 1 s and 2.518 m at 3 s on SQM-W-2.

Significance. If the lane-aware bias demonstrably prioritizes merge-conflict edges and the fine-tuning distribution is representative, the work would provide a concrete advance in handling geometrically distinct merge-zone interactions that standard graph models overlook. The explicit use of unfiltered NGSIM data to expose raw-condition generalization limits is a methodological strength that aligns with realistic deployment constraints.

major comments (3)
  1. [Abstract] Abstract: the claim that the trainable lane-relationship attention bias 'prioritizes merge-conflict interactions from the outset of training' is not supported by any ablation (e.g., bias-ablated baseline) or attention-weight visualization on merge scenes; the reported ADE/FDE gains on SQM-W-2 could arise entirely from fine-tuning on UAV data rather than the bias mechanism.
  2. [Evaluation] Evaluation protocol: no comparison of pre-trained versus fine-tuned attention maps is shown to verify that the bias term up-weights merge-related edges rather than generic proximity; without this isolation, the central assertion that the bias reduces the transfer gap remains unverified.
  3. [Safety metrics] Safety metrics section: surrogate quantities (TTC violation rate, DRAC exceedance rate) are reported without any quantified correlation to actual collision events in the datasets, so the claim that the model improves safety consequences rests on untested surrogates.
minor comments (2)
  1. [Abstract] The abstract states that architecture diagrams, loss formulations, and ablation studies are absent; including them would improve reproducibility and allow readers to assess the exact form of the lane-relationship bias.
  2. [Introduction] The specific measurement errors in NGSIM that are invoked to explain performance degradation should be referenced to the original NGSIM documentation or prior quantification studies.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of our contributions. We address each major point below and indicate the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the trainable lane-relationship attention bias 'prioritizes merge-conflict interactions from the outset of training' is not supported by any ablation (e.g., bias-ablated baseline) or attention-weight visualization on merge scenes; the reported ADE/FDE gains on SQM-W-2 could arise entirely from fine-tuning on UAV data rather than the bias mechanism.

    Authors: We agree that the abstract claim requires explicit supporting evidence. In the revised manuscript we will add an ablation study that removes the lane-relationship attention bias while keeping all other components fixed, thereby isolating its contribution to the reported ADE/FDE improvements on SQM-W-2. We will also include attention-weight visualizations on representative merge scenes from the held-out SQM-W-2 data to show that the bias term preferentially weights merge-conflict edges rather than generic proximity. These additions will demonstrate that the performance gains are not attributable solely to fine-tuning. revision: yes

  2. Referee: [Evaluation] Evaluation protocol: no comparison of pre-trained versus fine-tuned attention maps is shown to verify that the bias term up-weights merge-related edges rather than generic proximity; without this isolation, the central assertion that the bias reduces the transfer gap remains unverified.

    Authors: We accept that a direct pre-trained versus fine-tuned comparison is necessary to substantiate the mechanism. The revised manuscript will contain a new subsection and accompanying figure that extracts and contrasts attention maps from the NGSIM-pre-trained model and the UTE-fine-tuned model on identical merge-zone scenes. This will illustrate how the lane-aware bias modulates edge weights specifically for merge-conflict interactions and thereby narrows the cross-dataset transfer gap. revision: yes

  3. Referee: [Safety metrics] Safety metrics section: surrogate quantities (TTC violation rate, DRAC exceedance rate) are reported without any quantified correlation to actual collision events in the datasets, so the claim that the model improves safety consequences rests on untested surrogates.

    Authors: The NGSIM and UTE datasets consist of naturalistic trajectories that contain no actual collision events; therefore a direct empirical correlation between the surrogate metrics and observed collisions cannot be computed within these data. TTC and DRAC are nevertheless standard, literature-validated proxies for collision risk in trajectory-prediction studies. In the revision we will expand the safety-metrics discussion to cite the relevant validation studies and to clarify that the reported reductions in violation rates are presented as improvements in surrogate safety indicators rather than as direct collision predictions. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper describes an architecture (LA-GAT with trainable lane-relationship attention bias) pre-trained on NGSIM then fine-tuned on SQM-W-1 and evaluated on held-out SQM-W-2. No equations, derivations, or self-citations are shown that reduce the reported ADE/FDE or safety metrics to fitted parameters by construction. The performance numbers are obtained via standard train/fine-tune/evaluate protocol on distinct datasets; no self-definitional, fitted-input-called-prediction, or ansatz-smuggling patterns appear. The central claim rests on empirical results rather than a closed logical loop.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the effectiveness of the lane-relationship attention bias and successful domain transfer from NGSIM to UAV data; no explicit free parameters, axioms, or invented entities are stated in the abstract.
