arxiv: 2605.14022 · v1 · submitted 2026-05-13 · ⚛️ physics.flu-dyn

Recognition: no theorem link

Policy-DRIFT: Dynamic Reward-Informed Flow Trajectory Steering

Atharva Mahajan , Abhijeet Vishwasrao , Yuning Wang , Ricardo Vinuesa

Authors on Pith no claims yet

Pith reviewed 2026-05-15 02:37 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn

keywords active flow controldrag reductionconditional flow matchingturbulent channel flowskin-friction dragreinforcement learninggenerative models

0 comments

The pith

A conditional flow matching model steers turbulent flow states to cut drag by 49 percent while using 37 times less energy than deep reinforcement learning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that reward information can be moved out of policy gradients and into generative inference. A conditional flow matching model first builds a manifold of physically valid flow states across control regimes. Terminal reward guidance then steers samples inside that manifold toward high-reward targets at inference time. A simple tracking policy follows the resulting full-field targets by minimising root-mean-square error. In direct numerical simulations of channel flow at Re_tau = 180 this produces 49 percent drag reduction, 16 percent above the prior DRL benchmark, at 37 times lower actuation cost.

Core claim

Policy-DRIFT achieves 49% drag reduction approaching the theoretical upper bound, which is approximately 16% higher than the DRL benchmark, while consuming 37 times less actuation energy. The method works by relocating reward information from policy gradients to generative model inference: a conditional flow matching model constructs a physically-grounded manifold of realisable flow states spanning multiple control regimes, Terminal Reward Guidance steers samples toward reward-maximising targets at inference, and a lightweight DRL policy tracks these full-field targets via root-mean-squared error minimisation.

What carries the argument

Conditional flow matching model that constructs a physically-grounded manifold of realisable flow states, steered at inference by Terminal Reward Guidance.

If this is right

49% drag reduction is reached in the Re_tau = 180 turbulent channel benchmark.
Actuation energy drops by a factor of 37 relative to standard DRL.
The policy is reduced to simple RMSE tracking, independent of reward design.
The approach combines generative sampling with active flow control for real-time application.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The manifold may allow control policies to handle changing Reynolds numbers or geometry without retraining the full policy.
Sensor-based tracking of the generated targets could reduce the need for full-field measurements in experiments.
Similar relocation of objectives into generative models may apply to other high-dimensional control problems such as combustion or aeroacoustics.

Load-bearing premise

The conditional flow matching model accurately spans only physically realisable flow states without introducing artifacts or omitting key dynamics.

What would settle it

Direct numerical simulation of the generated target fields that produces velocity fields violating the incompressible Navier-Stokes equations or unrealistic turbulence statistics would falsify the manifold construction.

Figures

Figures reproduced from arXiv: 2605.14022 by Abhijeet Vishwasrao, Atharva Mahajan, Ricardo Vinuesa, Yuning Wang.

**Figure 2.** Figure 2: Streamwise velocity fluctuations u ′ (x, y) in the x-y plane for three held-out uncontrolled (D1) snapshots. Columns show the conditioning snapshot u0, the unguided CFM terminal state u CFM 1 , the TRG-guided terminal state u TRG 1 , and the absolute difference u TRG 1 − u CFM 1 . TRG consistently improves drag reduction by ∆DR ≈ 0.026–0.030 with negligible change in actuation energy. Corrections concentra… view at source ↗

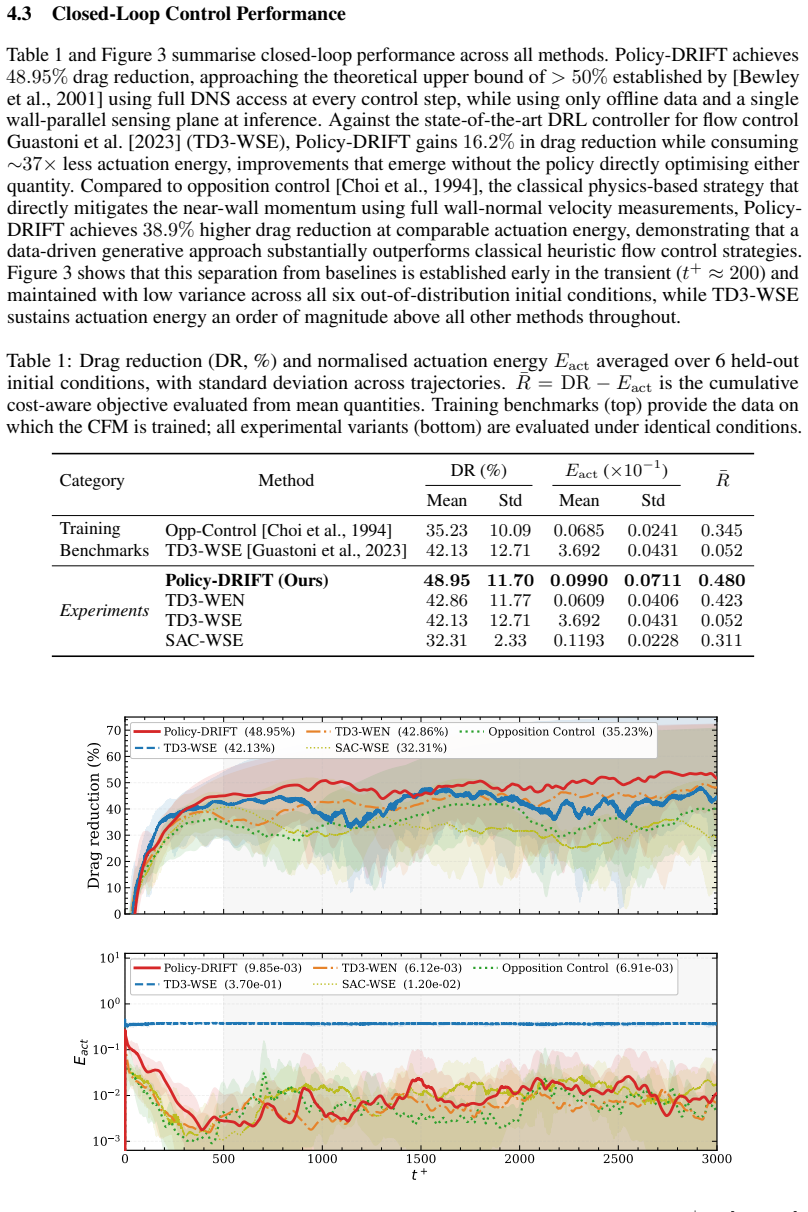

**Figure 3.** Figure 3: Drag reduction (top) and actuation energy [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

**Figure 4.** Figure 4: Joint PDFs of (u ′+, v′+) at y + ≈ 15 for the uncontrolled flow and all controlled methods. Dashed lines mark the ejection (u ′+ < 0, v′+ > 0) and sweep (u ′+ > 0, v′+ < 0) quadrants. PolicyDRIFT achieves the most compact distribution with the strongest attenuation of both quadrants. 5 Conclusions Policy-DRIFT demonstrates that relocating reward information from policy gradients to generative inference sy… view at source ↗

**Figure 5.** Figure 5: Streamwise velocity fluctuations u ′ (x, y) in the x-y plane for three held-out oppositioncontrolled (D2) snapshots. Columns show the conditioning snapshot u0, the unguided CFM terminal state u CFM 1 , the TRG-guided terminal state u TRG 1 , and the absolute difference u TRG 1 − u CFM 1 , with reward values (DR, Eact) annotated per panel. Guidance scale γ = 5. E DRL Training Details Training configuration… view at source ↗

**Figure 6.** Figure 6: Streamwise velocity fluctuations u ′ (x, y) in the x-y plane for three held-out TD3-WSE (D3) snapshots. Columns show the conditioning snapshot u0, the unguided CFM terminal state u CFM 1 , the TRG-guided terminal state u TRG 1 , and the absolute difference u TRG 1 −u CFM 1 , with reward values (DR, Eact) annotated per panel. The energy penalty is more pronounced than in D2, reflecting the higher baseline a… view at source ↗

read the original abstract

Skin-friction drag induced by wall-bounded turbulent flows accounts for a substantial fraction of energy consumption across commercial aerospace, wind energy, and marine transport. Its active reduction is one of the highest-value targets in engineering fluid dynamics. Deep reinforcement learning (DRL) has emerged as the leading approach for real-time flow control, yet its performance ceiling is set not by algorithmic capability but by reward structure, the naive scalar objective does not optimally reflect the underlying physics. Policy-DRIFT bypasses this ceiling by relocating reward information from policy gradients to generative model inference: a conditional flow matching model (CFM) constructs a physically-grounded manifold of realisable flow states spanning multiple control regimes, Terminal Reward Guidance (TRG) steers samples toward reward-maximising targets at inference, and a lightweight DRL policy, structurally decoupled from reward quality, tracks these full-field targets via root-mean-squared error (RMSE) minimisation. The test case is turbulent channel flow simulated using direct numerical simulation (DNS) at friction Reynolds number of $\mathrm{Re}_\tau = 180$, which is the canonical benchmark for wall-bounded turbulence. Policy-DRIFT achieves $49\%$ drag reduction approaching the theoretical upper bound, which is $\approx 16\%$ higher than the DRL benchmark, while consuming 37$\times$ less actuation energy. Our approach combines generative methods with active flow control, marking a paradigm shift towards controlling complex physical systems efficiently.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Policy-DRIFT moves reward guidance into conditional flow matching at inference with a decoupled tracker, but the physical consistency of the generated fields is not shown.

read the letter

Colleague, the main thing to know is that this paper relocates the reward signal from policy gradients into a generative step. A conditional flow matching model builds a manifold of flow states, terminal reward guidance steers samples toward high-reward targets at inference, and a lightweight DRL policy then tracks those targets via RMSE. That decoupling from the reward structure is the substantive architectural change from prior DRL flow-control work. The test case is standard turbulent channel flow at Re_tau=180, which helps with comparability. They report 49% drag reduction, roughly 16% above their DRL benchmark, and 37 times lower actuation energy. If those numbers hold, the efficiency angle is useful for applications where power matters. The paper does a reasonable job framing the limitation of scalar rewards in DRL and sketching a pipeline that separates manifold construction from tracking. The idea of using generative models to handle the physics-informed part while keeping the controller simple is a clear departure worth examining. The soft spots are in the supporting evidence. The abstract supplies performance claims without error bars, statistical tests, ablation results, or details on how the drag and energy figures were computed. More importantly, there is no description of how the conditional flow matching enforces divergence-free velocity fields or momentum balance. Standard flow-matching losses on DNS data can produce fields with large residuals, and nothing in the given text indicates physics-informed constraints or post-processing to remove them. If the steered targets contain unphysical artifacts, the downstream reductions would not correspond to realizable actuation. The stress-test note on NS consistency therefore lands as a central open question rather than a minor detail. This work is for people at the intersection of generative modeling and active flow control. A reader looking for new architectures that combine learned manifolds with simple trackers would find the concept worth reading, even before the numbers are fully vetted. It deserves a serious referee because the core proposal is distinct and the benchmark is canonical; the manuscript would benefit from detailed feedback on the training procedure, loss terms, and physical fidelity checks rather than a desk rejection.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Policy-DRIFT, which relocates reward information from policy gradients to inference-time guidance in a conditional flow matching (CFM) model. The CFM is trained to construct a manifold of realizable flow states for turbulent channel flow at Re_τ=180; Terminal Reward Guidance (TRG) steers samples toward reward-maximizing targets; and a lightweight DRL policy tracks the resulting full-field targets via RMSE minimization. The central empirical claim is a 49% drag reduction (≈16% above a DRL benchmark) achieved with 37× lower actuation energy.

Significance. If the CFM-generated fields are demonstrably divergence-free and satisfy the incompressible Navier-Stokes equations to within DNS tolerances, the decoupling of reward optimization from policy training would constitute a meaningful methodological advance for active flow control. The reported energy savings and proximity to the theoretical drag-reduction bound would be of high practical interest for aerospace and marine applications. However, the absence of any reported verification of physical consistency or statistical rigor on the performance numbers currently prevents this significance from being realized.

major comments (2)

[Abstract] Abstract: the 49% drag reduction and 37× energy-reduction figures are stated without error bars, confidence intervals, number of independent DNS runs, or any description of how the metrics were extracted from the controlled trajectories. This directly affects the load-bearing claim that Policy-DRIFT outperforms the DRL baseline.
[Methods / CFM training] CFM model description (implicit in the abstract and methods): the assertion that the conditional flow matching model produces a 'physically-grounded manifold of realisable flow states' is unsupported. No evidence is supplied that the training loss, architecture, or data augmentation enforces ∇·u=0 or the momentum residual to within the tolerance of the original DNS; standard flow-matching objectives on raw velocity snapshots routinely yield non-zero divergence and momentum errors orders of magnitude larger than the training data, which would invalidate downstream drag-reduction measurements.

minor comments (1)

[Abstract] The abstract refers to 'the theoretical upper bound' without citing the specific value or derivation used for the 49% figure.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough and constructive review. The comments highlight important aspects of statistical rigor and physical consistency that we will address in the revision. We respond to each major comment below.

read point-by-point responses

Referee: [Abstract] Abstract: the 49% drag reduction and 37× energy-reduction figures are stated without error bars, confidence intervals, number of independent DNS runs, or any description of how the metrics were extracted from the controlled trajectories. This directly affects the load-bearing claim that Policy-DRIFT outperforms the DRL baseline.

Authors: We agree that the performance metrics require statistical support to substantiate the claimed improvements over the DRL baseline. In the revised manuscript we will report error bars and confidence intervals computed across multiple independent DNS realizations, explicitly state the number of runs, and add a methods subsection detailing the extraction of drag-reduction and actuation-energy values from the controlled trajectories. revision: yes
Referee: [Methods / CFM training] CFM model description (implicit in the abstract and methods): the assertion that the conditional flow matching model produces a 'physically-grounded manifold of realisable flow states' is unsupported. No evidence is supplied that the training loss, architecture, or data augmentation enforces ∇·u=0 or the momentum residual to within the tolerance of the original DNS; standard flow-matching objectives on raw velocity snapshots routinely yield non-zero divergence and momentum errors orders of magnitude larger than the training data, which would invalidate downstream drag-reduction measurements.

Authors: We acknowledge that the current manuscript does not include explicit post-generation diagnostics verifying that sampled fields remain divergence-free and satisfy the momentum equation to DNS tolerances. The CFM was trained solely on divergence-free DNS snapshots, and the flow-matching objective is conditioned on these data; however, we accept that this does not automatically guarantee preservation of the constraints at inference. In the revision we will add quantitative verification—divergence norms and momentum-residual statistics—comparing generated fields against the original DNS data, thereby confirming the physical consistency of the learned manifold. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation relies on empirical simulation results rather than self-referential definitions or fitted inputs renamed as predictions

full rationale

The paper presents Policy-DRIFT as a method that trains a conditional flow matching model on DNS data to generate flow states, applies terminal reward guidance at inference, and uses a decoupled DRL policy for tracking. No equations or steps in the provided text reduce by construction to the inputs (e.g., no self-definitional loop where a manifold is defined via the reward it later optimizes, no fitted parameter called a prediction, and no load-bearing self-citation chain). The 49% drag reduction is reported as an empirical outcome from Re_tau=180 DNS benchmarks, not a mathematical identity. The physically-grounded manifold claim is an assumption about training data fidelity rather than a circular derivation. This is the common case of a self-contained empirical pipeline.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the standard assumption that DNS at Re_tau=180 captures essential wall-bounded turbulence physics and that the generative model can faithfully represent realizable states; no explicit free parameters or invented entities are named in the abstract.

axioms (1)

domain assumption Direct numerical simulation at friction Reynolds number 180 is representative of canonical wall-bounded turbulent flows
Invoked by choosing this specific benchmark case as the testbed.
