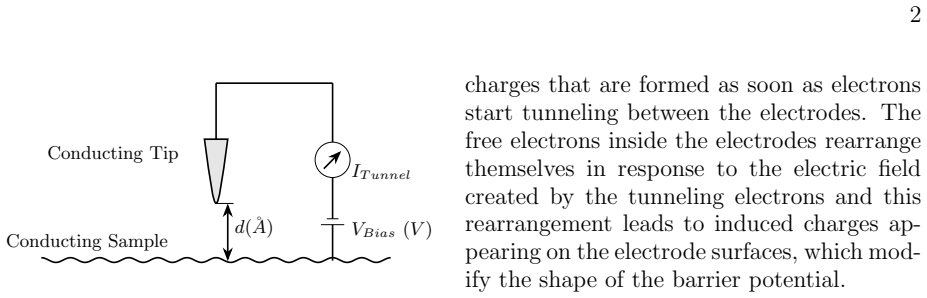

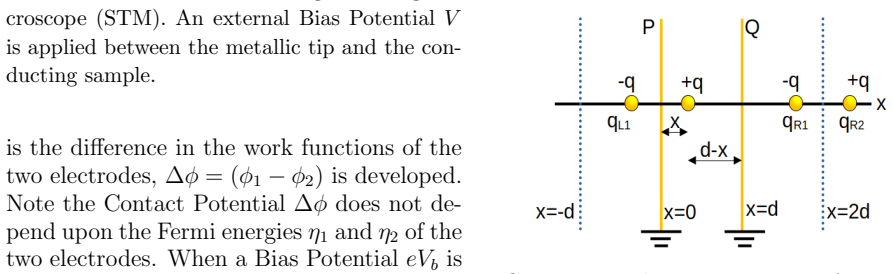

**Figure 2.** Figure 2: FIG. 2: Image-charge construction for a point [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3: Plot of Trapezoid + Simmons Image [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4: Plot of the WKB tunneling current den [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5: Plot of the WKB tunneling current den [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

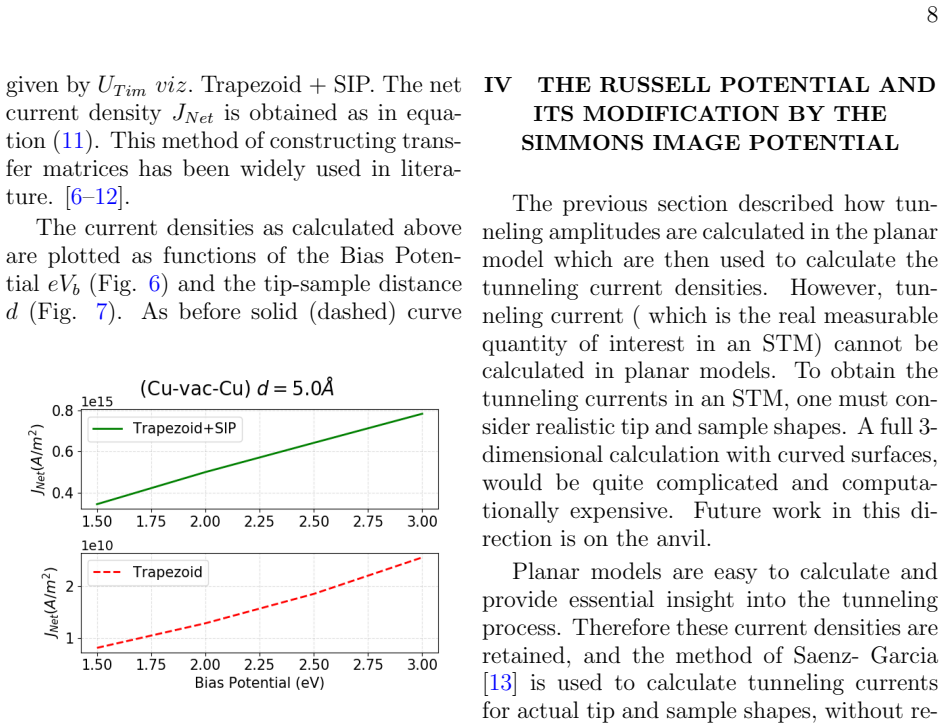

**Figure 6.** Figure 6: FIG. 6: Plot of current density [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7: Plot of [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗

**Figure 9.** Figure 9: FIG. 9: Division of the Spatial Region between [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8: Plots of the Russell Potential and its lin [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10: Plot of [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗

**Figure 11.** Figure 11: FIG. 11: Plot of [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗

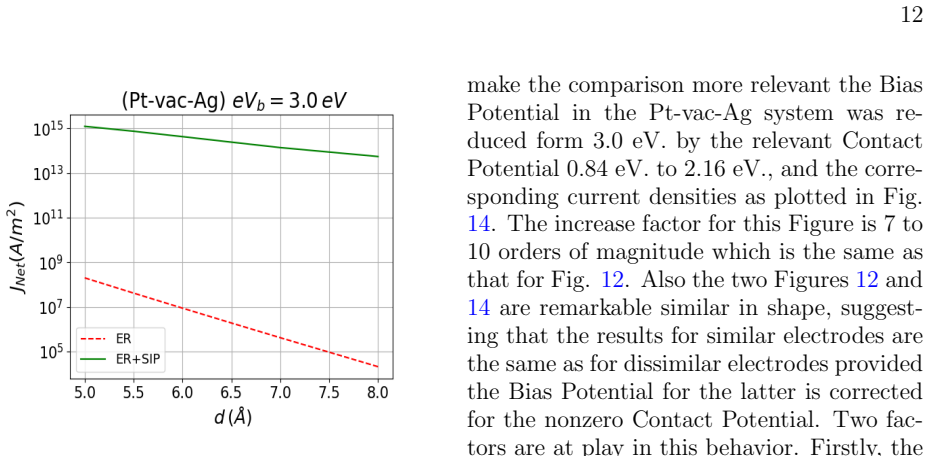

**Figure 13.** Figure 13: FIG. 13: Plot of [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗

**Figure 14.** Figure 14: FIG. 14: Plot of [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗

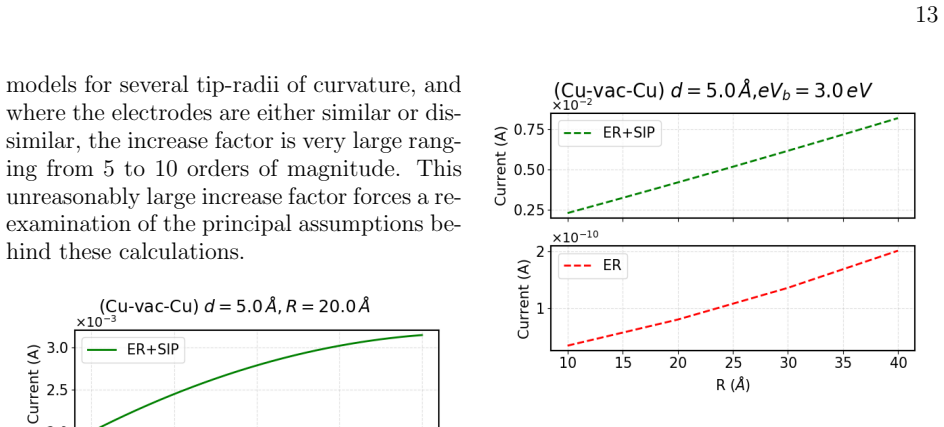

**Figure 17.** Figure 17: FIG. 17: Plot of current [PITH_FULL_IMAGE:figures/full_fig_p013_17.png] view at source ↗

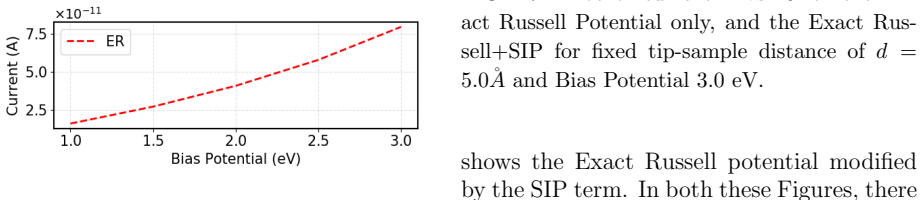

**Figure 15.** Figure 15: FIG. 15: Plot of current [PITH_FULL_IMAGE:figures/full_fig_p013_15.png] view at source ↗

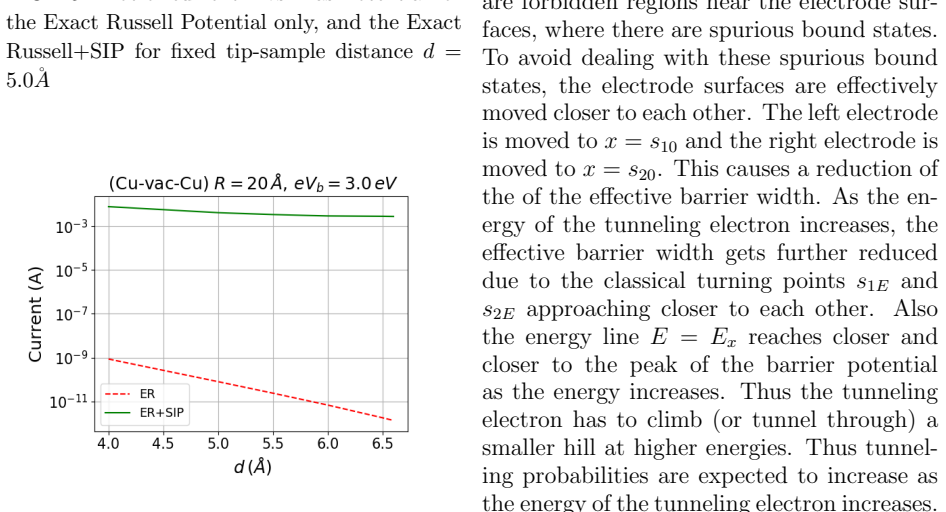

**Figure 16.** Figure 16: FIG. 16: Plot of current [PITH_FULL_IMAGE:figures/full_fig_p013_16.png] view at source ↗

read the original abstract

In a Scanning Tunneling Microscope (STM), when a tunneling electron treated as a point charge enters the barrier region between the tip and the sample, it induces image charges on the conducting surfaces, which modifies the shape of the potential barrier it sees. In this paper, the effect of the modification in the barrier potential due to these induced charges on the tunneling current density and currents in an STM,is studied as a function of the tip-sample distance $d$ and the Bias Potential $eV_b$. The image potential is found to reduce the height and the effective width of the potential barrier, leading to a huge increase in the tunneling current densities. This huge increase (by several order of magnitudes) is however unreasonable, prompting a revisit of the assumption that the electron in the barrier region is a point particle.
