arxiv: 2605.26916 · v1 · pith:YDWOBNWP · submitted 2026-05-26 · math.CO

Polytopes and posets associated to preorders

Fr\'ed\'eric Chapoton (IRMA) , Christos A. Athanasiadis This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-06-29 17:11 UTCgrok-4.3pith:YDWOBNWPrecord.jsonopen to challenge →

classification math.CO
keywords preorder polytopeslattice polytopesEhrhart polynomialszeta polynomialsposets of lattice pointsarbor polytopesnormalized volumeh*-polynomials
0
0 comments X

The pith

Preorder polytopes from preorders on finite sets are lattice polytopes with a duality linking Ehrhart polynomials to zeta polynomials of their lattice point posets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors introduce preorder polytopes defined from preorders on finite sets. These generalize arbor polytopes and turn out to be lattice polytopes. A duality is proven that relates the Ehrhart polynomial of the polytope to the zeta polynomial of the poset of its lattice points. This leads to proven formulas for the Ehrhart polynomial, the h*-polynomial, and a combinatorial interpretation of the normalized volume, while a combinatorial meaning for the h*-polynomial is conjectured.

Core claim

Preorder polytopes, defined from preorders on finite sets, are lattice polytopes satisfying a duality that relates their Ehrhart polynomials to the zeta polynomials of their posets of lattice points. The normalized volume has a combinatorial interpretation, and formulas for the Ehrhart and h*-polynomials are given, with a conjecture on the h* interpretation. These results extend previous work on arbor polytopes to the broader setting of preorders.

What carries the argument

The preorder polytope constructed from a preorder on a finite set and the poset formed by its lattice points, which together enable the duality between Ehrhart and zeta polynomials.

Load-bearing premise

The specific construction of the preorder polytope from a preorder on a finite set produces a poset of lattice points whose zeta polynomial relates to the Ehrhart polynomial through the claimed duality.

What would settle it

Computing the Ehrhart polynomial and the zeta polynomial for the poset of lattice points of a small preorder polytope, such as for a preorder with three elements, and checking if they satisfy the duality relation.

Figures

Figures reproduced from arXiv: 2605.26916 by Christos A. Athanasiadis, Fr\'ed\'eric Chapoton (IRMA).

Figure 1
Figure 1. Figure 1: The Hasse diagram of a preorder on the set {a, b, c, d, e}. This paper generalizes arbor polytopes by replacing arbors on finite sets by arbitrary pre￾orders. A preorder on a finite set E can be viewed as a partial order on the set of blocks of a partition of E, called vertices (see Section 2.2). The example shown in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

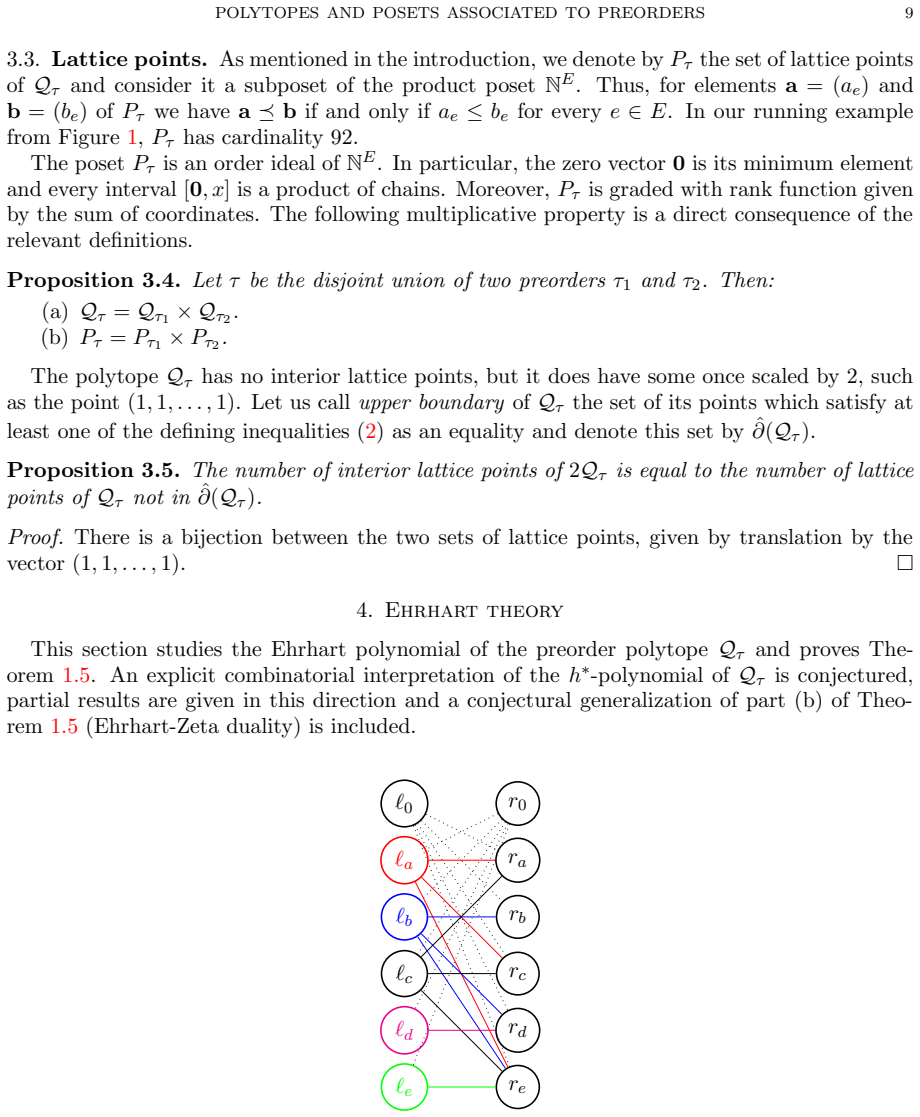

Figure 2. Figure 2: Example of bipartite graph Gτ . 4.1. Ehrhart-Zeta duality. Let us define a bipartite graph Gτ with n + 1 left and n + 1 right vertices as follows. There are vertices ℓe on the left side and re on the right side, for e ∈ E ⊔ {0} [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
read the original abstract

Preorder polytopes, defined from preorders on finite sets, are introduced and studied from a lattice point enumeration point of view. They naturally generalize arbor polytopes, recently introduced and studied by the second named author. Preorder polytopes are shown to be lattice polytopes which satisfy a certain duality relating their Ehrhart polynomials with the zeta polynomials of their posets of lattice points. A combinatorial interpretation of the normalized volume of a preorder polytope is proven, together with formulas for the Ehrhart polynomial and the $h^\ast$-polynomial, and a combinatorial interpretation of the latter is conjectured. Several conjectures and results on the lattice point enumeration of arbor polytopes are generalized to preorder polytopes, new conjectures are proposed and new interesting examples of preorder polytopes are studied.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript introduces preorder polytopes associated to preorders on finite sets, generalizing arbor polytopes. It proves that these polytopes are lattice polytopes satisfying a duality relating their Ehrhart polynomials to the zeta polynomials of the posets formed by their lattice points. A combinatorial interpretation of the normalized volume is established, explicit formulas are derived for the Ehrhart polynomial and the h*-polynomial, and a combinatorial interpretation of the h*-polynomial is conjectured. Several results and conjectures from the arbor polytope literature are generalized, with additional conjectures proposed and new examples examined.

Significance. If the central claims hold, the work supplies a broad new family of lattice polytopes in which Ehrhart theory is explicitly connected to poset combinatorics via an order-preserving bijection between lattice points and chains. The resulting volume formula (via maximal chains) and the substitution of known zeta polynomials into the Ehrhart series constitute concrete combinatorial contributions that extend the arbor-polytope results without additional restrictions.

minor comments (2)
  1. [Introduction] The abstract states that the duality, volume interpretation, and polynomial formulas are proven, yet the introduction would benefit from an explicit statement of the order-preserving bijection used to equate the Ehrhart series with the zeta generating function.
  2. [Section 2] A small concrete example (e.g., the preorder polytope for a two-element chain or antichain) placed immediately after the definition would help readers verify the lattice-point poset construction before the general proofs.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful reading and positive evaluation of the manuscript. The recommendation for minor revision is noted, though no specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivations rely on explicit bijections and standard identities

full rationale

The paper defines preorder polytopes from preorders on finite sets and derives the Ehrhart-zeta duality via an explicit order-preserving bijection between lattice points and chains in the associated poset, combined with the standard Ehrhart series generating-function identity. Normalized volume follows by evaluating at t=1 and counting maximal chains. Ehrhart and h*-polynomial formulas substitute the known zeta polynomial of the chain poset into the general duality. All steps are carried out directly from the definitions for arbitrary finite preorders, without reducing to fitted parameters, self-definitional loops, or load-bearing self-citations. Generalizations from prior arbor polytope work by one author are non-load-bearing extensions of the same explicit constructions. The central claims remain independent of their inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The paper introduces new combinatorial objects but relies on standard background from order theory and polytope theory without introducing fitted parameters or ad hoc axioms.

axioms (1)
  • standard math Standard definitions and properties of preorders, posets, lattice polytopes, Ehrhart polynomials, and zeta polynomials hold.
    The abstract invokes these established concepts to define and study the new polytopes.
invented entities (1)
  • preorder polytope no independent evidence
    purpose: To generalize arbor polytopes and enable study of lattice point enumeration and duality properties.
    New object constructed in the paper from preorders on finite sets.

pith-pipeline@v0.9.1-grok · 5665 in / 1169 out tokens · 49546 ms · 2026-06-29T17:11:58.995633+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

32 extracted references · 7 canonical work pages · 1 internal anchor

  1. [1]

    Almeter, P -graph associahedra and hypercube graph associahedra, Ph.D thesis, North Carolina State University, 2022, arXiv:2211.02113

    J. Almeter, P -graph associahedra and hypercube graph associahedra, Ph.D thesis, North Carolina State University, 2022, arXiv:2211.02113

    work page arXiv 2022

  2. [2]

    Athanasiadis, Lattice point enumeration of polytopes associated to integer compositions, Ann

    C.A. Athanasiadis, Lattice point enumeration of polytopes associated to integer compositions, Ann. Comb. (to appear), arXiv:2510.23903

    work page arXiv

  3. [3]

    Luck and magic for Pitman-Stanley polytopes and parking functions

    N. Avila, L. Ferroni and A.H. Morales, Luck and magic for Pitman--Stanley polytopes and parking functions, arXiv:2603.19194

    work page internal anchor Pith review Pith/arXiv arXiv

  4. [4]

    Athanasiadis, Q

    C.A. Athanasiadis, Q. Xiao and X. Yan, Lattice point enumeration of some arbor polytopes, arXiv: 2603.11654

    work page arXiv

  5. [5]

    Bayer, R

    M. Bayer, R. Danner, T. Holleben, M. Kramer and Y. Yang, Planar ternary graphs, flag spheres, and Delannoy polynomials, arXiv:2509.21705

    work page arXiv

  6. [6]

    Bergeron, G

    F. Bergeron, G. Labelle and P. Leroux, Combinatorial species and tree-like structures, Transl. from the French by Margaret Readdy, Encyclopedia of Mathematics and its Applications 67 , Cambridge University Press, 1998

    1998

  7. [7]

    Bossinger, M.L

    L. Bossinger, M.L. Telek and H. Tillmann-Morris, Binary geometries from pellytopes, Mathematische 80 (2025), 189--209

    2025

  8. [8]

    Br\"and\'en, On linear transformations preserving the P\'olya frequency property, Trans

    P. Br\"and\'en, On linear transformations preserving the P\'olya frequency property, Trans. Amer. Math. Soc. 358 (2006), 3697--3716

    2006

  9. [9]

    Chapoton, On a q -analogue of the Zeta polynomial of posets, arXiv:2402.11979v2

    F. Chapoton, On a q -analogue of the Zeta polynomial of posets, arXiv:2402.11979v2

    work page arXiv

  10. [10]

    Chapoton, On posets and polytopes attached to arbors, Math

    F. Chapoton, On posets and polytopes attached to arbors, Math. Scand. 131 (2025), 401--449

    2025

  11. [11]

    Ferroni and A

    L. Ferroni and A. Higashitani, Examples and counterexamples in Ehrhart theory, EMS Surv. Math. Sci. (to appear), arXiv:2307.10852

    work page arXiv

  12. [12]

    Fulkerson, Blocking and anti-blocking pairs of polyhedra, Math

    D.R. Fulkerson, Blocking and anti-blocking pairs of polyhedra, Math. Program. 1 (1971), 168--194

    1971

  13. [13]

    Gal, Real root conjecture fails for five- and higher-dimensional spheres, Discrete Comput

    S.R. Gal, Real root conjecture fails for five- and higher-dimensional spheres, Discrete Comput. Geom. 34 (2005), 269--284

    2005

  14. [14]

    Gessel and S

    I.M. Gessel and S. Seo, A refinement of Cayley's formula for trees, Electron. J. Combin. 11 (2006), Paper no. R27, 23pp (electronic)

    2006

  15. [15]

    Greene, Posets of shuffles, J

    C. Greene, Posets of shuffles, J. Combin. Theory Series A 47 (1988), 191--206

    1988

  16. [16]

    Gr\"uber, Convex and Discrete Geometry, Grundlehren der Mathematischen Wissenschaften 336 , Springer, 2007

    P.M. Gr\"uber, Convex and Discrete Geometry, Grundlehren der Mathematischen Wissenschaften 336 , Springer, 2007

    2007

  17. [17]

    S. He, Z. Li, P. Raman and C. Zhang, Stringy canonical forms and binary geometries from associahedra, cyclohedra and generalized permutohedra, J. High Energy Phys. 2020 (2020), Paper No. 54, 35pp

    2020

  18. [18]

    Hibi, Algebraic Combinatorics on Convex Polytopes, Carslaw Publications, Australia, 1992

    T. Hibi, Algebraic Combinatorics on Convex Polytopes, Carslaw Publications, Australia, 1992

    1992

  19. [19]

    Law, Combinatorial realization of certain Hopf algebras of pattern-avoiding permutations, Ph.D thesis, University of Michigan, 2013

    S. Law, Combinatorial realization of certain Hopf algebras of pattern-avoiding permutations, Ph.D thesis, University of Michigan, 2013

    2013

  20. [20]

    S. Law, Combinatorial realization of the Hopf algebra of shashes, in Proceedings of the 26th International Conference on Formal Power Series and Algebraic Combinatorics (FPSAC 2014), Chicago, IL, USA, June 29 -- July 3, 2014, pp. 621--632, Discrete Mathematics and Theoretical Computer Science, Nancy, 2014

    2014

  21. [21]

    Liu, On positivity of Ehrhart polynomials, in Recent Trends in Algebraic Combinatorics, pp

    F. Liu, On positivity of Ehrhart polynomials, in Recent Trends in Algebraic Combinatorics, pp. 189--237, Association for Women in Mathematics Series 16 , Springer, 2019

    2019

  22. [22]

    MacMahon, Combinatorial analysis, Vol

    P.A. MacMahon, Combinatorial analysis, Vol. II, Dover Publications, 2004

    2004

  23. [23]

    McConville and H

    T. McConville and H. M\"uhle, Shuffle lattices and bubble lattices, S\'em. Lothar. Combin. 86B (2022), Article 63, 12pp (electronic)

    2022

  24. [24]

    McConville and H

    T. McConville and H. M\"uhle, Bubble lattices I: Structure, Algebra Univers. 85 (2024), Paper No. 12, 31pp

    2024

  25. [25]

    McConville and H

    T. McConville and H. M\"uhle, Bubble lattices II: Combinatorics, Ann. Comb. 29 (2025), 657--690

    2025

  26. [26]

    P\'olya and G

    G. P\'olya and G. Szego, Problems and Theorems in Analysis, vol. 2, Springer--Verlag, 1972

    1972

  27. [27]

    Postnikov, Permutohedra, associahedra, and beyond, Int

    A. Postnikov, Permutohedra, associahedra, and beyond, Int. Math. Res. Not. 2009 (2009), 1026--1106

    2009

  28. [28]

    Schrijver, Theory of Integer and Linear Programming, Wiley-Intersc

    A. Schrijver, Theory of Integer and Linear Programming, Wiley-Intersc. Ser. Discrete Math., Wiley, 1986

    1986

  29. [29]

    Stanley and J

    R.P. Stanley and J. Pitman, A polytope related to empirical distributions, plane trees, parking functions and the associahedron, Discrete Comput. Geom. 27 (2002), 603--634

    2002

  30. [30]

    Stanley, Combinatorics and Commutative Algebra, Progress in Mathematics 41 , Birkh\"auser, second edition, 1996

    R.P. Stanley, Combinatorics and Commutative Algebra, Progress in Mathematics 41 , Birkh\"auser, second edition, 1996

    1996

  31. [31]

    Stanley, Enumerative Combinatorics, vol

    R.P. Stanley, Enumerative Combinatorics, vol. 1, Cambridge Studies in Advanced Mathematics 49 , Cambridge University Press, second edition, Cambridge, 2011

    2011

  32. [32]

    Wang, S-N

    Y. Wang, S-N. Zheng and X. Chen, Analytic aspects of Delannoy numbers, Discrete Math. 342 (2019), 2270--2277

    2019
