Efficient Computation of Distance Functions for Navigation Vector Fields in Lie Groups

T0 review · 0 major / 3 minor · reviewed 2026-06-28 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Distance to G-polynomial curves on Lie groups reduces to polynomial root-finding.

desk verdict The paper reduces distance-to-curve queries on G-polynomial curves in Lie groups to a small number of polynomial root finds, with explicit SE(3) formulas and a manipulator test. read the letter →

arxiv 2606.05372 v1 pith:DCJPZ2XP submitted 2026-06-03 cs.RO cs.CG

Vinicius M. Gonçalves , João Baião , Felipe Bartelt , Douglas G. Macharet , Gustavo M. Freitas , Héctor Azpúrua , Luciano C. A. Pimenta This is my paper · ORCID
classification cs.ROcs.CG
keywords LiegroupsG-polynomialcurvesdistancefunctionsvectorfieldsrobotnavigationSE(3)polynomialrootspathtracking
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper sets out to prove that the distance from a configuration to a curve in a matrix Lie group, when the curve is a G-polynomial, can be computed by solving a handful of polynomial equations instead of running general optimization routines. The motivation is that vector-field navigation for robots requires this distance at every control step, and the cost becomes prohibitive at high frequencies on embedded hardware. A sympathetic reader would expect this reduction to cut run time substantially while preserving the accuracy needed for stable control, as the simulations and SE(3) manipulator experiment indicate.

What carries the argument

The G-polynomial curve, whose algebraic structure permits the squared-distance expression to become a polynomial whose critical points are located by root-finding.

What would settle it

Running the method and an optimization solver on the same set of G-polynomial curves and finding that the resulting distances differ by more than a few percent, or that the vector field using the fast method produces visibly worse tracking.

Watch

Extended reading notes

Core claim

The paper claims that the distance function associated with a G-polynomial curve in a Lie group can be reduced to the problem of finding roots of a small number of univariate polynomials, which is far cheaper than the optimization-based methods previously used for the same task in Lie-group vector fields.

Load-bearing premise

Navigation curves of interest can be expressed or closely approximated by G-polynomial curves so that the root-finding solution remains sufficiently accurate for the vector field.

Editorial extensions

If this is right

  • The distance and closest-point calculations become fast enough for high-rate control loops.
  • Accuracy remains comparable to optimization approaches in simulations.
  • Explicit practical formulas exist for the special Euclidean group SE(3).
  • Experimental validation on a robotic manipulator confirms the method's utility.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Similar algebraic reductions might apply to other distance-related problems on Lie groups if the curves admit analogous representations.
  • Adoption could allow vector-field methods to be deployed on cheaper embedded controllers that previously could not sustain the required update rate.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a method for efficient distance computation between a configuration and a G-polynomial curve in matrix Lie groups for use in navigation vector fields. It exploits the algebraic structure of these curves to reduce the closest-point problem to a small number of polynomial root-finding operations, supplies explicit SE(3) formulas, reports simulation speed-ups versus optimization baselines while preserving accuracy, and includes hardware validation on a robotic manipulator together with an open-source implementation.

Significance. If the reduction is exact for the stated class of curves, the work removes a recurring computational bottleneck in Lie-group vector-field controllers, enabling higher control rates on embedded hardware without sacrificing the geometric fidelity of the underlying manifold formulation.

minor comments (3)
  1. Abstract: the phrase 'G-polynomial curve' is used without a one-sentence definition or citation; a brief parenthetical characterization would improve accessibility for readers outside the immediate subfield.
  2. The simulation section should include a table or plot that reports both mean and worst-case timing together with the number of root-finding iterations required, so that the claimed speed-up can be reproduced from the stated polynomial degree.
  3. The experimental validation paragraph mentions 'maintaining accuracy' but does not state the quantitative error metric (e.g., geodesic distance or orientation error) or the number of trials; adding these numbers would strengthen the hardware claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript, the recognition of its significance for Lie-group vector-field controllers, and the recommendation for minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; derivation is self-contained structural reduction

full rationale

The paper defines G-polynomial curves and derives an exact reduction of the distance-to-curve problem to a finite number of polynomial root findings by algebraic exploitation of the matrix Lie-group representation. This reduction is presented as a direct consequence of the curve parametrization itself rather than a fit or self-citation. Validation consists of timing and accuracy comparisons against independent optimization baselines on SE(3) examples and a manipulator experiment; no load-bearing premise collapses to a prior result by the same authors or to a parameter fitted to the target metric. The representability assumption is stated explicitly as a scope condition, not smuggled in as a derived claim.

Assumptions & free parameters 0 free parameters · 2 assumptions · 0 invented entities

The method rests on the definition and algebraic closure properties of G-polynomial curves together with the assumption that the distance function inherits a polynomial structure; no free parameters or new entities are introduced.

assumptions (2)
  • domain assumption G-polynomial curves generalize ordinary polynomials to matrix Lie groups and preserve sufficient algebraic structure for distance reduction
    Invoked as the enabling representation for the efficiency claim.
  • domain assumption The closest-point distance on such curves reduces to finding roots of low-degree polynomials
    Central premise that replaces general optimization.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Efficient Computation of Distance Functions for Navigation Vector Fields in Lie Groups." pith.science (2026). https://pith.science/paper/DCJPZ2XP

@misc{pith2026260605372,
  author       = {Pith},
  title        = {Pith review of: Efficient Computation of Distance Functions for Navigation Vector Fields in Lie Groups},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DCJPZ2XP}},
  note         = {Machine review of arXiv:2606.05372}
}
read the original abstract

Vector-field-based methods are widely used for robot control and are often applied to the path-tracking problem. Some vector field approaches require repeatedly computing the distance between the robot configuration and the curve, as well as the corresponding closest point. Recently, vector fields have been extended to Lie Groups. In this case, this computation can be expensive, especially when performed at high control frequencies on embedded platforms. This paper proposes a method for efficiently computing the distance between a point and a curve represented as what is called a G-polynomial curve, which is a curve representation that generalizes polynomial curves to matrix Lie groups. The proposed approach exploits the structure of these curves to reduce the problem to a small number of polynomial root-finding computations. Simulation results show that the method significantly reduces computation time while maintaining accuracy compared to existing optimization-based approaches. Practical formulas are also provided for the case of the group SE(3), and the method is validated experimentally on a robotic manipulator. The methodology is implemented in a computational package, available online.

Figures

Figures reproduced from arXiv: 2606.05372 by the authors.

Figure 1
Figure 1. Closed-loop path tracking (cyan curve) experiment using a 7-DOF [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. The baseline synthetic topologies in SE(3) used for evaluation. The dashed line represents the translational path, while the RGB axes denote the orientation frames varying continuously along the parameter s. were implemented in C++ and evaluated under identical environment. We will now present the relative computational time of our algorithm compared to the Piyavskii–Shubert method. The absolute computational time o… view at source ↗
Figure 4
Figure 4. Interquartile range of the computational speedup relative to the spatial [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figures from the paper (2 more)
Figure 3

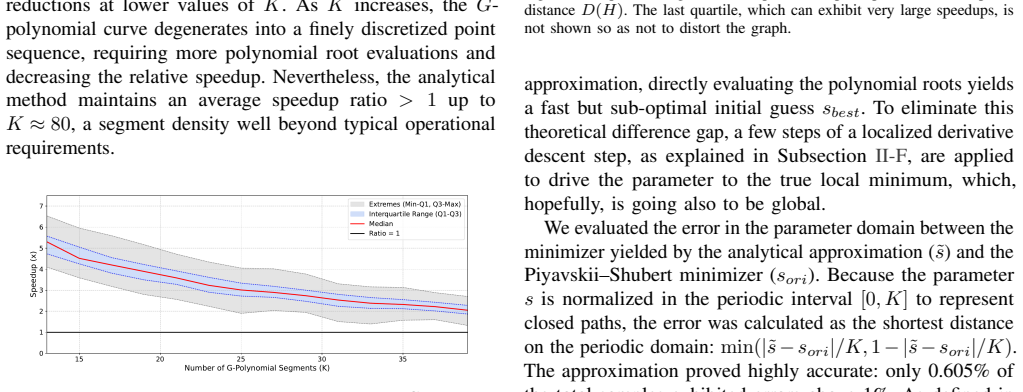

Figure 3. Figure 3: Distribution of analytical speedup by the number of [PITH_FULL_IMAGE:figures/full_fig_p007_3.png]
Figure 5
Figure 5. Figure 5: Snapshots of the experiment, featuring the reconstruction of the manipulator’s configuration and the interpolated target curve (left), paired with the [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

17 extracted references · 3 canonical work pages

  1. [1]

    Vector fields for robot navigation along time-varying curves in n -dimensions,

    V . M. Goncalves, L. C. A. Pimenta, C. A. Maia, B. C. O. Dutra, and G. A. S. Pereira, “Vector fields for robot navigation along time-varying curves in n -dimensions,”IEEE Transactions on Robotics, vol. 26, no. 4, pp. 647–659, 2010

    2010

  2. [2]

    Construc- tive time-varying vector fields for robot navigation,

    A. M. C. Rezende, V . M. Goncalves, and L. C. A. Pimenta, “Construc- tive time-varying vector fields for robot navigation,”IEEE Transactions on Robotics, vol. 38, no. 2, pp. 852–867, 2022

    2022

  3. [3]

    Singularity-free guiding vector field for robot navigation,

    W. Yao, H. G. de Marina, B. Lin, and M. Cao, “Singularity-free guiding vector field for robot navigation,”IEEE Transactions on Robotics, vol. 37, no. 4, pp. 1206–1221, 2021

    2021

  4. [4]

    Topological Analysis of Vector-Field Guided Path Following on Manifolds,

    W. Yao, B. Lin, B. D. O. Anderson, and M. Cao, “Topological Analysis of Vector-Field Guided Path Following on Manifolds,”IEEE Transactions on Automatic Control, vol. 68, no. 3, pp. 1353–1368, 2023

    2023

  5. [5]

    Non-singular cooperative guiding vector field under a homotopy equivalence transformation,

    Z. Chen and Z. Zuo, “Non-singular cooperative guiding vector field under a homotopy equivalence transformation,”Automatica, vol. 171, p. 111962, 2025

    2025

  6. [6]

    Inverse kinematics on guiding vector fields for robot path following,

    Y . Zhou, J. Bautista, W. Yao, and H. Garc ´ıa de Marina, “Inverse kinematics on guiding vector fields for robot path following,” in Proceedings of the 2025 IEEE International Conference on Robotics and Automation (ICRA), pp. 8635–8641, IEEE, 2025

    2025

  7. [7]

    Vector Fields for Path Following on Lie Groups with Application in Robot Control

    F. Bartelt, L. C. A. Pimenta, W. Yao, and V . M. Gon c ¸alves, “Vector fields for path following on Lie groups with application in robot control,” arXiv preprint arXiv:2602.21450, 2026

    work page Pith review arXiv 2026

  8. [8]

    Safe Vector Field for Robot Navigation in n-Dimensions,

    A. H. D. Nunes, V . M. Gonc ¸alves, and L. C. A. Pimenta, “Safe Vector Field for Robot Navigation in n-Dimensions,”IEEE Robotics and Automation Letters, 2026

    2026

Show all 17 references
  1. [9]

    Mechatronic design of an omnidirectional octorotor UA V,

    M. Hamandi, A. M. Ali, N. Evangeliou, D. Chaikalis, A. Tzes, K. Kyriakopoulos, and F. Khorrami, “Mechatronic design of an omnidirectional octorotor UA V,” in2024 10th International Conference on Automation, Robotics and Applications (ICARA), pp. 300–304, 2024

    2024

  2. [10]

    Making Space for Time: The Special Galilean Group and Its Application to Some Robotics Problems,

    J. Kelly, “Making Space for Time: The Special Galilean Group and Its Application to Some Robotics Problems,” inProceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) Workshop: From Geometry to General Autonomy of Robotic Systems, (Abu Dha...

    2024

  3. [11]

    Galilean Symmetry in Robotics,

    R. E. Mahony, J. Kelly, and S. Weiss, “Galilean Symmetry in Robotics,” arXiv preprint arXiv:2510.10468, 2025

    2025

  4. [12]

    A sequential method seeking the global maximum of a function,

    B. O. Shubert, “A sequential method seeking the global maximum of a function,”SIAM Journal on Numerical Analysis, vol. 9, no. 3, pp. 379–388, 1972

    1972

  5. [13]

    Interpolation schemes for rigid body motions,

    M. Sefrant and V . Kumar, “Interpolation schemes for rigid body motions,”Computer-Aided Design, vol. 30, no. 3, pp. 179–189, 1998

    1998

  6. [14]

    Smooth trajectory generation on SE(3) for a free flying space robot,

    M. Watterson, T. Smith, and V . Kumar, “Smooth trajectory generation on SE(3) for a free flying space robot,” in2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 1–8, 2016

    2016

  7. [15]

    Product Of Exponentials (POE) Splines on Lie-Groups: Limitations, Extensions, and Application to SO(3) and SE(3),

    A. Mueller, “Product Of Exponentials (POE) Splines on Lie-Groups: Limitations, Extensions, and Application to SO(3) and SE(3),”arXiv preprint arXiv:2508.10513, August 2025

    2025

  8. [16]

    N. J. Higham,Functions of Matrices: Theory and Computation. Philadelphia, PA: Society for Industrial and Applied Mathematics (SIAM), 2008

    2008

  9. [17]

    T. D. Barfoot,State Estimation for Robotics. Cambridge, UK: Cambridge University Press, 2017

    2017
