One construction for the Miura-ori flip-graph degree sequence

T0 review · 2 major / 5 minor · reviewed 2026-07-14 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read One construction turns every degree count of the Miura-ori flip graph into a single symmetric polynomial in the grid size for all large enough grids.

desk verdict Uniform lattice-point construction that turns the Miura-ori degree sequence into explicit bivariate polynomials for every d, with the only open piece cleanly isolated. read the letter →

arxiv 2607.05567 v2 pith:MGA5YVJV submitted 2026-07-06 math.CO cs.CGcs.DM

Chakshu Gupta This is my paper · ORCID
classification math.COcs.CGcs.DM MSC 05A1505C0705C3052C07
keywords Miura-oriorigamiflipgraphdegreesequenceheightfunctionsenvelopeencodinglattice-pointenumerationBaxternumbersquasi-polynomial
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The flip graph of the m-by-n Miura-ori records every flat-foldable mountain-valley assignment as a vertex and connects two assignments when a single face flip turns one into the other. The paper supplies one uniform construction that, for every fixed degree d, expresses the number of vertices of that degree as a single symmetric polynomial p_d(m,n) once both dimensions are at least max(d-1,2). Subject only to a degree bound on the “remainder” configurations that are not confined to one side of the grid, the polynomial has total degree d-2 and, for d at least 5, grows exactly like the explicit multiple 4/(d-2)! of m^{d-2}+n^{d-2}. The polynomials are written out in closed form through d=10, the bound is proved whenever the count factors into independent row and column walks, and it is verified by direct enumeration through d=7. Below the high region the count departs from the polynomial by a correction whose leading coefficient, through degree eleven, is minus four times a Baxter number. The result therefore gives, for every d, an exact asymptotic census of the foldable states that admit exactly d single-face reconfigurations.

What carries the argument

The Envelope Structure Theorem: every height function on the grid is the lower envelope of a unique admissible configuration of cones, one cone per strict local minimum. Vertex degree equals the number of strict local extrema, so counting degree-d vertices becomes a parametric lattice-point count of admissible configurations with exactly d extrema; on the high region that count collapses to the single polynomial p_d.

What would settle it

Enumerate all non-separable admissible configurations for d=8 on grids large enough to read the total degree by finite differences; if any family produces a positive coefficient of total degree 6, the degree-bound conjecture fails.

Watch

Extended reading notes

Core claim

For every d greater than or equal to 2 the number E_d(m,n) of degree-d vertices of the m-by-n Miura-ori flip graph coincides, on the rectangle m,n greater than or equal to max(d-1,2), with a single symmetric bivariate polynomial p_d(m,n) whose degree in each variable is exactly d-2. Existence, symmetry, the high region, and the per-axis degree are unconditional; the total degree equals d-2 for all d once a single remainder-degree bound holds, and that bound is already proved for every separable family.

Load-bearing premise

The claim that every configuration whose apexes are not all lined up on one boundary side contributes only total degree at most d-3 (the non-separable half of that statement is still open for d at least 8).

Editorial extensions

If this is right

  • Closed-form polynomials through d=10 give the exact number of flat-foldable states admitting exactly d single face flips once both grid dimensions exceed d-1.
  • The leading growth is always the pure single-side term 4/(d-2)! (m^{d-2}+n^{d-2}) for d greater than or equal to 5, provided the remainder bound holds.
  • Below threshold the first correction is forced by Baxter numbers, so the high-region threshold d-1 is sharp for every d.
  • The same envelope encoding yields a uniform Presburger description, so piecewise quasi-polynomiality holds for every d without case-by-case arguments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the non-separable residual can be shown to drop degree for the same geometric reason that a diagonal ridge costs a free parameter when there are only two apexes, the total-degree statement becomes unconditional for all d.
  • The appearance of Baxter numbers at the boundary suggests a sign-reversing involution or lattice-path model that would simultaneously prove the correction formula and explain why the threshold is sharp.
  • Because vertex degree counts available single-face reconfigurations, the polynomials give the exact distribution of local reconfigurability over the design space of any Miura-based metamaterial once the grid is large enough.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 5 minor

Summary. The paper gives a uniform envelope/height-function construction that identifies vertices of the m×n Miura-ori flip graph with admissible integer configurations, converts the degree-d count E_d(m,n) into a Presburger lattice-point problem, and proves that for every fixed d≥2 the count agrees on the high region m,n≥max(d−1,2) with a single symmetric bivariate polynomial p_d of exact per-axis degree d−2 (Theorem 8.9). Existence, symmetry, region, and per-axis degree are unconditional; total degree equals d−2 under Conjecture 7.2 (proved for separable configurations in Theorem 10.3 and verified by enumeration through d=7). Explicit closed forms are given through d=10, and boundary corrections below threshold are linked, through d=11, to Baxter numbers.

Significance. The work replaces a sequence of ad-hoc small-d arguments with one construction that yields polynomiality for every degree, supplies the first closed forms for d=6–10, and cleanly isolates the remaining total-degree gap. Strengths include: the Envelope Structure Theorem and Maxima Criterion converting the combinatorial count into a standard Barvinok–Woods setting; a transfer-matrix argument with colour-rotation quotient that forces period 1 and a uniform onset; an explicit positive single-side leading coefficient C(d)=4/(d−2)! that pins per-axis degree; a complete separable case of the degree bound; and a public codebase used for finite-difference verification through d=7. The Baxter-number appearance at the boundary is a genuine, falsifiable prediction. These are substantial contributions to origami combinatorics and lattice-point enumeration.

major comments (2)
  1. Theorem 8.9 and Proposition 7.3 correctly flag that total degree d−2 for d≥5 rests on Conjecture 7.2. The abstract and introduction lead with that total-degree law; a short, explicit sentence in both places stating that the unconditional content is polynomiality + per-axis degree d−2, while total degree is conditional on the non-separable residual, would prevent over-reading. The separable proof (Theorem 10.3) and d≤7 verification already make the gap precise; the framing only needs to match that precision at first mention.
  2. Section 10.2 asserts that finite-difference enumeration through d=7 shows no non-separable family reaches degree d−2, and cites a GitHub repository. For a journal record, the paper itself should state the exact grids, the finite-difference order used, and that nonnegativity of counts precludes cancellation of top-degree terms. A short appendix table (or a one-paragraph methods note) would make the verification self-contained without requiring the reader to run external code.
minor comments (5)
  1. In Lemma 6.2 and Figure 3, the convention that endpoints of a ±1 walk are always counted as extrema should be stated once in the lemma statement itself, not only in the surrounding prose.
  2. Table 1 and the displayed polynomials for p_8–p_10 are dense; a brief note that coefficients were cross-checked on held-out nodes (already mentioned in §9.1) could be repeated next to the table for readers who skip the text.
  3. The phrase “quasi-polynomial” appears in the keywords and early sections; after Theorem 8.9 the period is 1, so a single clarifying sentence that the high-region object is an ordinary polynomial (period 1) would help non-specialists.
  4. References [Gup26] and [CHO+25] are central; ensure final arXiv/journal versions are cited once they exist, and that the self-citation is limited to comparison as currently done.
  5. Minor typography: occasional missing spaces after commas in math mode (e.g., “m,n≥max(d−1,2)”) and inconsistent use of “degree-d” vs “degree d” can be cleaned in copy-editing.

Circularity Check

1 steps flagged · score 1.0 of 10

Minor self-citation of the height-function/degree identification from the author's prior work; the uniform lattice-point and transfer-matrix derivation of the polynomials is independent and non-circular.

  1. self citation load bearing [Section 2 (after Definition 2.1) and Introduction]
    "Formn≥3, the degree of a vertex equals the number of these extrema [Gup26], so a degree-dvertex is a height function with exactlydextrema. ... By the Ginepro–Hull bijection [GH14] and the bipartite height-function lift [CvdHJ09], applied to Mm,n in [Gup26]"

    The equality that lets E_d count OFG degrees (rather than merely height functions with d extrema) is taken entirely from the author's prior paper [Gup26]. This is load-bearing for the paper's title claim and abstract interpretation, but the subsequent lattice-point, transfer-matrix and interpolation arguments never feed the target polynomials back into that identification; they count configurations independently. Hence only a minor, non-forcing self-citation.

full rationale

The paper's core derivation chain (Envelope Structure Theorem 3.6 + Maxima Criterion 4.1 converting height functions to admissible configurations; Presburger encoding yielding piecewise quasi-polynomiality via Barvinok–Woods; single-side reduction to walks; column transfer matrix with colour-rotation quotient isolating the sole pole at z=1; frozen-run contraction + boundary shaving for uniform onset/degree; bivariate Lagrange interpolation) is self-contained and does not reduce any claimed polynomial or coefficient to its own inputs by construction. No parameters are fitted and then re-presented as predictions; no uniqueness theorem is imported to force the form; no ansatz is smuggled; the explicit p_d through d=10 are obtained by enumeration/interpolation and held-out checks. The sole self-citation that touches the interpretation of the count as the OFG degree sequence is the identification (degree = #extrema) taken from the author's earlier [Gup26]; that identification is load-bearing for the title claim but is not used inside the counting arguments themselves, which stand independently as a count of height functions with d extrema. Conjectures 7.2 and 9.6 are openly left open and do not circularly support the unconditional statements. Score 1 reflects only that minor foundational self-citation; the mathematical content of the polynomials is not circular.

Assumptions & free parameters 0 free parameters · 3 assumptions · 2 invented entities

The paper rests on standard combinatorial and geometric facts (height-function bijections, Barvinok–Woods quasi-polynomiality, transfer-matrix generating functions) plus two domain-specific bijections already published. No free parameters are fitted; the only open statements are explicitly labeled conjectures. Invented entities are purely definitional encodings, not new physical or combinatorial objects requiring independent evidence.

assumptions (3)
  • domain assumption Ginepro–Hull bijection and bipartite height-function lift identify OFG(M_{m,n}) vertices with integer height functions on the m imes n grid whose degree equals the number of strict local extrema.
    Invoked in Section 2; taken from [GH14] and [CvdHJ09] as applied in the author’s prior work.
  • standard math Counting functions of Presburger families are piecewise quasi-polynomial (Barvinok–Woods theory).
    Theorem 5.1 cites [BW03,BW22,Woo15] for the quasi-polynomiality of N_{(a,b)}.
  • standard math A height function on a path is a ±1 walk; its extrema alternate and endpoints count as extrema.
    Used in the walk-count Lemma 6.2 and the side-reduction Lemma 6.1.
invented entities (2)
  • Admissible configuration / envelope encoding independent evidence
    purpose: Represents each height function by a finite integer tuple of apexes and offsets so that extrema become lattice-point conditions.
    Definitional device introduced in Section 3; the Envelope Structure Theorem proves it is a bijection, so it carries no extra ontological burden.
  • Separable versus non-separable configurations independent evidence
    purpose: Splits the degree-bound conjecture into a proved case (product-grid apex sets) and an open residual.
    Definitional partition used in Section 10; the separable case is completely characterized by Lemma 10.1.

how reviews work

0 comments
Cite this review

Pith. "Pith review of One construction for the Miura-ori flip-graph degree sequence." pith.science (2026). https://pith.science/paper/MGA5YVJV

@misc{pith2026260705567,
  author       = {Pith},
  title        = {Pith review of: One construction for the Miura-ori flip-graph degree sequence},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MGA5YVJV}},
  note         = {Machine review of arXiv:2607.05567}
}
abstract

The flip graph of an origami crease pattern has the flat-foldable mountain-valley assignments as vertices, and an edge joins two of them that differ by a single face flip. A basic invariant of this graph is the degree sequence, which counts the vertices of each degree. On the $m\times n$ Miura-ori, this sequence is known as a bivariate polynomial only for small degrees, each count obtained by a separate argument. This paper gives one uniform construction that expresses, for every degree $d$, the number of degree-$d$ vertices as a single symmetric polynomial in $(m,n)$ for all sufficiently large $m,n$. Subject to a single degree bound, this polynomial has total degree $d-2$, growing for $d\ge5$ as an explicit multiple of $m^{d-2}+n^{d-2}$; the bound is proved here when the count splits into independent row and column factors, and open otherwise. The region is $m,n\ge\max(d-1,2)$; the polynomials are computed in closed form through $d=10$, and the bound is verified in every case through $d=7$. Below this region, the count departs from the polynomial by a correction whose leading coefficient, through degree eleven, is $-4$ times a Baxter number. Each such polynomial thus counts the Miura-ori's flat-foldable assignments admitting exactly $d$ single face flips.

Figures

Figures reproduced from arXiv: 2607.05567 by the authors.

Figure 1
Figure 1. A 3-cone envelope on G5,5 with apexes p1 = (1, 1), p2 = (1, 5), p3 = (5, 1) at offset 0, so (1) reads h(v) = mini d1(pi , v). The strict local minima (shaded) are the apexes; the strict local maxima (boxed) sit where cones meet at equal distance: meetings of all three cones at (3, 3), and of p2 and p3 alone at (4, 4) and (5, 5). Section 4 characterises such cells in general. Definition 2.1 (Vertex counts). For integ… view at source ↗
Figure 1
Figure 1. A 3-cone envelope on G5,5 with apexes p1 = (1, 1), p2 = (1, 5), p3 = (5, 1) at offset 0, so (1) reads h(v) = mini d1(pi , v). The strict local minima (shaded) are the apexes; the strict local maxima (boxed) sit where cones meet at equal distance. All three cones meet at (3, 3), and p2 and p3 alone at (4, 4) and (5, 5). Section 4 characterises such cells in general. 3 The Envelope Structure Theorem Equation (1) expre… view at source ↗
Figure 2
Figure 2. Lemma 4.1 at v = (3, 3) from [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figures from the paper (3 more)
Figure 2
Figure 2. Figure 2: Lemma 4.1 at v = (3, 3) from [PITH_FULL_IMAGE:figures/full_fig_p007_2.png]
Figure 3

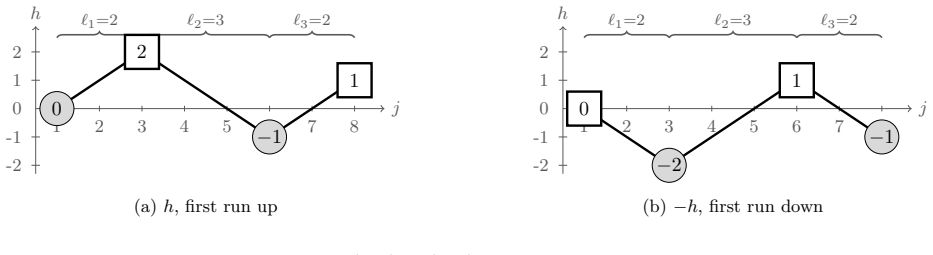

Figure 3. Figure 3: Two ±1 walks on P8 with (a, b) = (2, 2), related by h 7→ −h. Both share the run-length composition (ℓ1, ℓ2, ℓ3) = (2, 3, 2) summing to n − 1 = 7 (r = d − 1 = 3 monotone runs). The reflection swaps the extremum pattern from min–max–min–max in (a) to max–min–max–min in (…
Figure 3
Figure 3. Figure 3: Two ±1 walks on P8 with (a, b) = (2, 2), related by h 7→ −h. Both share the run-length composition (ℓ1, ℓ2, ℓ3) = (2, 3, 2) summing to n − 1 = 7, with r = d − 1 = 3 monotone runs. The reflection swaps the extremum pattern from min–max–min–max in (a) to max–min–max–min …

Review history (2 revisions) →

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

21 extracted references · 1 linked inside Pith

  1. [1]

    Akitaya, Vida Dujmovi\'c, David Eppstein, Thomas C

    Hugo A. Akitaya, Vida Dujmovi\'c, David Eppstein, Thomas C. Hull, Kshitij Jain, and Anna Lubiw. Face flips in origami tessellations. Journal of Computational Geometry , 11(1), 2020. Preliminary version: arXiv:1910.05667

    arXiv 2020

  2. [2]

    Voronoi diagrams: A survey of a fundamental geometric data structure

    Franz Aurenhammer. Voronoi diagrams: A survey of a fundamental geometric data structure. ACM Computing Surveys , 23(3):345--405, 1991

    1991

  3. [3]

    Plane bipolar orientations and quadrant walks

    Mireille Bousquet-M \'e lou, \'E ric Fusy, and Kilian Raschel. Plane bipolar orientations and quadrant walks. S\'eminaire Lotharingien de Combinatoire , 81:Article B81l, 2020

    2020

  4. [4]

    Short rational generating functions for lattice point problems

    Alexander Barvinok and Kevin Woods. Short rational generating functions for lattice point problems. Journal of the American Mathematical Society , 16(4):957--979, 2003

    2003

  5. [5]

    A plethora of polynomials: A toolbox for counting problems

    Tristram Bogart and Kevin Woods. A plethora of polynomials: A toolbox for counting problems. The American Mathematical Monthly , 129(3):203--222, 2022

    2022

  6. [6]

    Hull, Emma O'Neil, Valentina Pappano, Natalya Ter-Saakov, and Kacey Yang

    Lumi Christensen, Thomas C. Hull, Emma O'Neil, Valentina Pappano, Natalya Ter-Saakov, and Kacey Yang. The origami flip graph of the 2 n Miura -ori, 2025

    2025

  7. [7]

    Tropical bisectors and voronoi diagrams

    Francisco Criado, Michael Joswig, and Francisco Santos. Tropical bisectors and voronoi diagrams. Foundations of Computational Mathematics , 22(6):1923--1960, 2022

    1923

  8. [8]

    Mixing 3-colourings in bipartite graphs

    Luis Cereceda, Jan van den Heuvel, and Matthew Johnson. Mixing 3-colourings in bipartite graphs. European Journal of Combinatorics , 30(7):1593--1606, 2009

    2009

Show all 21 references
  1. [9]

    Tropical convexity

    Mike Develin and Bernd Sturmfels. Tropical convexity. Documenta Mathematica , 9:1--27, 2004

    2004

  2. [10]

    On the rank of a tropical matrix

    Mike Develin, Francisco Santos, and Bernd Sturmfels. On the rank of a tropical matrix. In Jacob E. Goodman, J \'a nos Pach, and Emo Welzl, editors, Combinatorial and Computational Geometry , volume 52 of MSRI Publications , pages 213--242. Cambridge University Press, 2005

    2005

  3. [11]

    Bijections for Baxter families and related objects

    Stefan Felsner, \'E ric Fusy, Marc Noy, and David Orden. Bijections for Baxter families and related objects. Journal of Combinatorial Theory, Series A , 118(3):993--1020, 2011

    2011

  4. [12]

    Jessica Ginepro and Thomas C. Hull. Counting Miura -ori foldings. Journal of Integer Sequences , 17(10):Article 14.10.8, 2014

    2014

  5. [13]

    Height functions on the m n Miura -ori flip graph: degree sequence and diameter, 2026

    Chakshu Gupta. Height functions on the m n Miura -ori flip graph: degree sequence and diameter, 2026

    2026

  6. [14]

    Hull, Manuel Morales, Sarah Nash, and Natalya Ter-Saakov

    Thomas C. Hull, Manuel Morales, Sarah Nash, and Natalya Ter-Saakov. Maximal origami flip graphs of flat-foldable vertices: Properties and algorithms. Journal of Graph Algorithms and Applications , 26(4):503--517, 2022

    2022

  7. [15]

    Rigidly flat-foldable class of lockable origami-inspired metamaterials with topological stiff states

    Amin Jamalimehr, Morad Mirzajanzadeh, Abdolhamid Akbarzadeh, and Damiano Pasini. Rigidly flat-foldable class of lockable origami-inspired metamaterials with topological stiff states. Nature Communications , 13:1816, 2022

    2022

  8. [16]

    Zuolin Liu, Hongbin Fang, Jian Xu, and K. W. Wang. A novel origami mechanical metamaterial based on Miura -variant designs: exceptional multistability and shape reconfigurability. Smart Materials and Structures , 30(8):085029, 2021

    2021

  9. [17]

    Zuolin Liu, Hongbin Fang, Jian Xu, and K. W. Wang. Cellular automata inspired multistable origami metamaterials for mechanical learning. Advanced Science , 10(34):2305146, 2023

    2023

  10. [18]

    Map fold a la Miura style, its physical characteristics and application to the space science

    Koryo Miura. Map fold a la Miura style, its physical characteristics and application to the space science. In R. Takaki, editor, Research of Pattern Formation , pages 77--90. KTK Scientific Publishers, Tokyo, Japan, 1994

    1994

  11. [19]

    Pratapa, Ke Liu, Siva P

    Phanisri P. Pratapa, Ke Liu, Siva P. Vasudevan, and Glaucio H. Paulino. Reprogrammable kinematic branches in tessellated origami structures. Journal of Mechanisms and Robotics , 13(3):031004, 2021

    2021

  12. [20]

    Presburger arithmetic, rational generating functions, and quasi-polynomials

    Kevin Woods. Presburger arithmetic, rational generating functions, and quasi-polynomials. The Journal of Symbolic Logic , 80(2):433--449, 2015

    2015

  13. [21]

    Mechanical metamaterials based on origami and kirigami

    Zirui Zhai, Lingling Wu, and Hanqing Jiang. Mechanical metamaterials based on origami and kirigami. Applied Physics Reviews , 8(4):041319, 2021

    2021
