Sparsity-Assisted Signal Denoising and Pattern Recognition in Time-Series Data

G.V. Prateek , Yo-El Ju , Arye Nehorai This is my paper

Pith reviewed 2026-05-25 14:58 UTC · model grok-4.3

classification 📡 eess.SP
keywords signal denoisingpattern recognitionzero-phase IIR filterssparsityproximal gradienttime-series analysisEEGwavelets
0
0 comments X

The pith

Matrix forms of zero-phase IIR filters and proximal-gradient factorization enable signal models that denoise time-series data while recognizing embedded patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a matrix representation for higher-order zero-phase infinite impulse response filters through spectral transformation of their state-space descriptions. It introduces a proximal gradient factorization for high-pass and band-pass cases that keeps the zero-phase property and adds a sparse-derivative term to the signal model. These constructions support three new models: sparsity-assisted signal denoising, sparsity-assisted pattern recognition that adds wavelets, and a combined version of both tasks. The models are applied to sleep electroencephalography to locate K-complexes and sleep spindles.

Core claim

We propose designing higher-order zero-phase low-pass, high-pass, and band-pass IIR filters as matrices using spectral transformation of the state-space representation, and a proximal gradient technique to factorize special classes of the high-pass and band-pass filters so the product preserves zero phase while incorporating a sparse-derivative component. These designs yield the SASD model that augments existing LTI-plus-sparsity denoising, the SAPR model that adds orthogonal multiresolution representations for pattern detection, and the SASDPR model that performs both tasks together, all demonstrated on batch-mode time-series data including sleep EEG.

What carries the argument

Spectral transformation of state-space representations to obtain matrix forms of zero-phase IIR filters, together with proximal gradient factorization that preserves zero phase and includes a sparse-derivative term.

If this is right

  • The new matrix filter designs can be substituted into existing LTI-plus-sparsity signal models to produce the SASD formulation.
  • The SAPR model simultaneously applies LTI band-pass filtering, sparsity, and wavelet representations to isolate specific patterns.
  • The SASDPR model performs joint denoising and pattern recognition within a single optimization framework.
  • The methods produce concrete detections of K-complexes and sleep spindles when run on sleep electroencephalography recordings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The matrix representation may allow direct embedding of the filters into batch linear-algebra routines without recursive implementation.
  • The same factorization approach could be tested on other orthogonal bases beyond wavelets for different pattern-recognition tasks.
  • If the sparse-derivative term improves separation of transient events, the models may extend to non-stationary sensor streams in engineering applications.
  • Computational cost of the proximal step could be compared against direct filter application to assess practicality for long recordings.

Load-bearing premise

The proximal gradient factorization of the zero-phase high-pass and band-pass filters preserves the original zero-phase property while successfully adding the sparse-derivative component.

What would settle it

Apply the SAPR model to a set of sleep EEG recordings with expert-labeled K-complex locations and test whether the detected events match the labels at rates no higher than those obtained by standard band-pass filtering without the sparsity or factorization steps.

Figures

Figures reproduced from arXiv: 1906.11330 by Arye Nehorai, G.V. Prateek, Yo-El Ju.

Figure 1

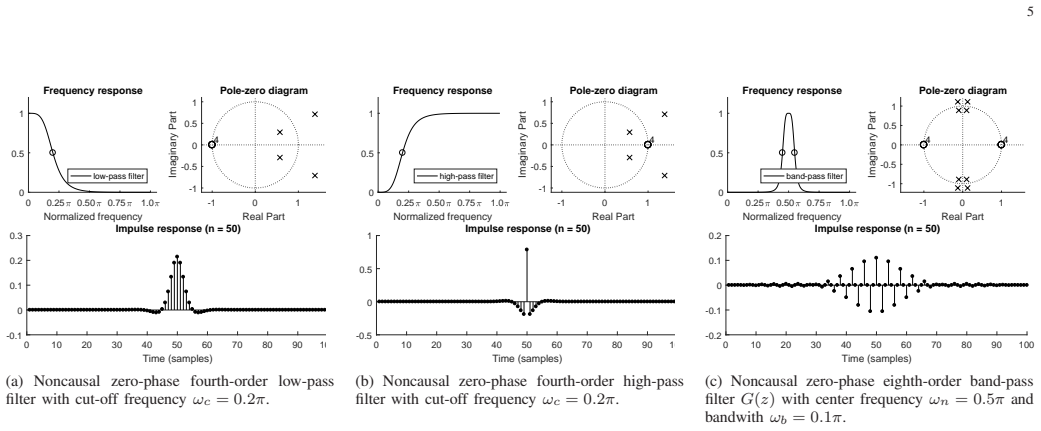

Figure 1. Figure 1: The composite filter G(z) is designed using a prototype generalized digital low-pass Butterworth filter H(z) with cut-off frequency at ωc = 0.1π and filter order M = 2. The half-power point or 3dB points are denoted with circle in the frequency response plots. Poles are denoted with crosses whereas zeros are denoted with circles. Example: We first begin by designing a prototype digital IIR Butterworth low-… view at source ↗
Figure 2

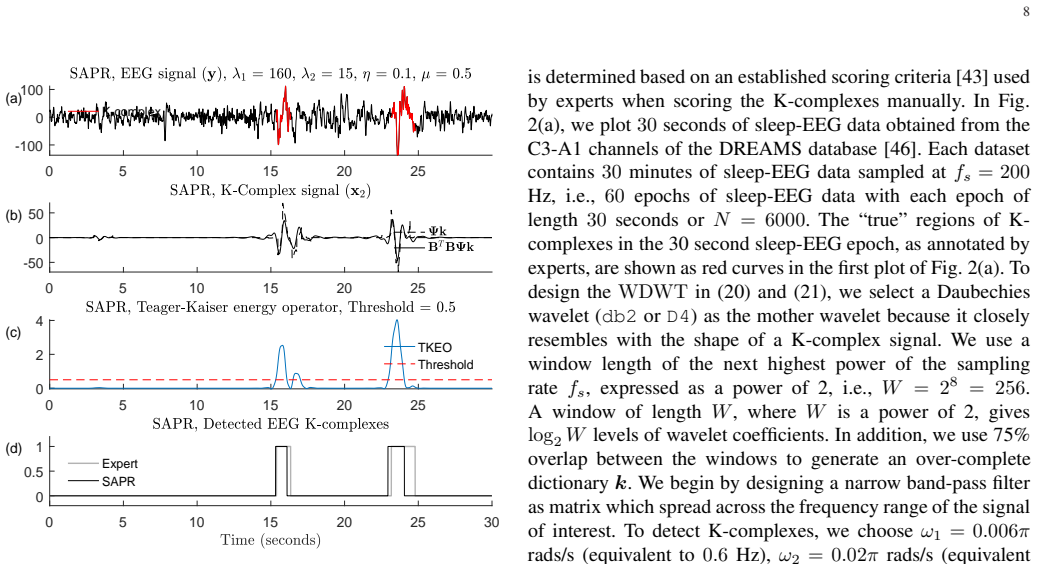

Figure 2. Figure 2: Pattern recognition. (a) 30 second epoch of sleep [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

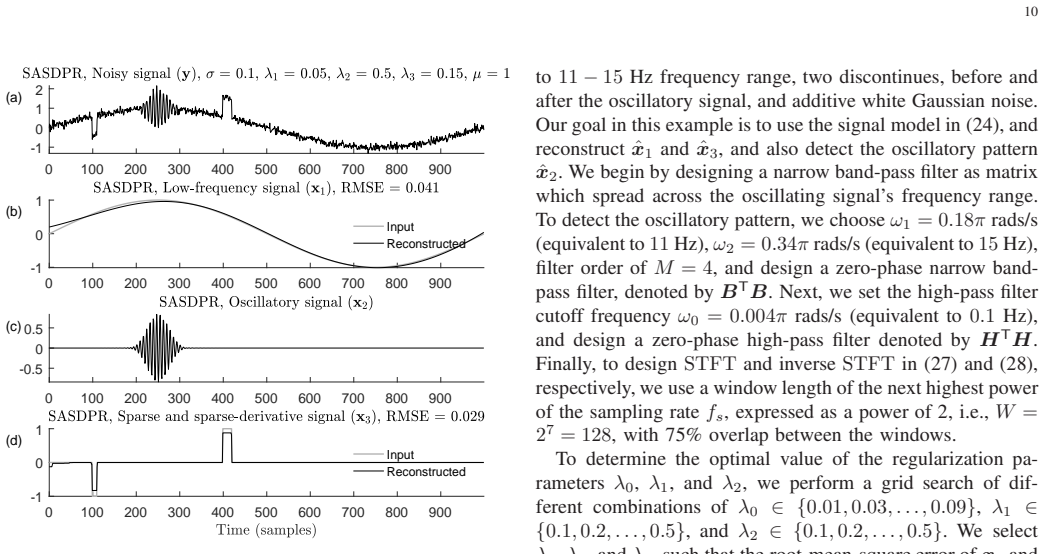

Figure 3. Figure 3: Signal denoising and pattern recognition. (a) Input [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Spindle detection. (a) 30 second epoch of sleep-EEG [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 1

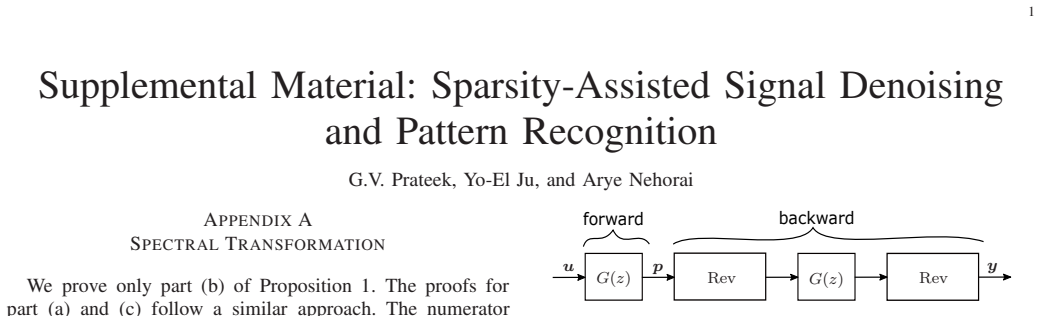

Figure 1. Figure 1: A block diagram illustration of the forward-backwar [PITH_FULL_IMAGE:figures/full_fig_p014_1.png] view at source ↗
Figure 2

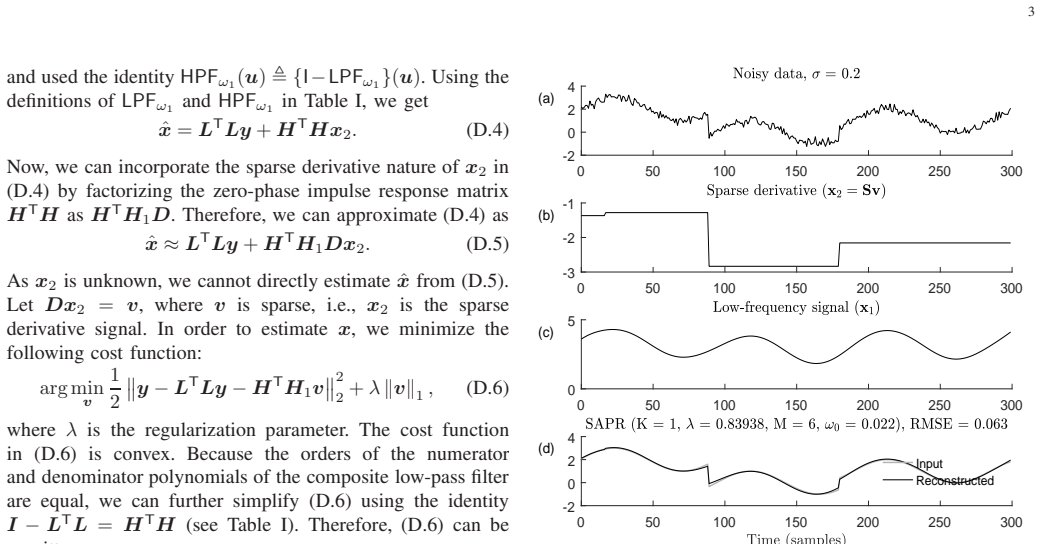

Figure 2. Figure 2: Signal denoising. (a) Input signal with additive whi [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3

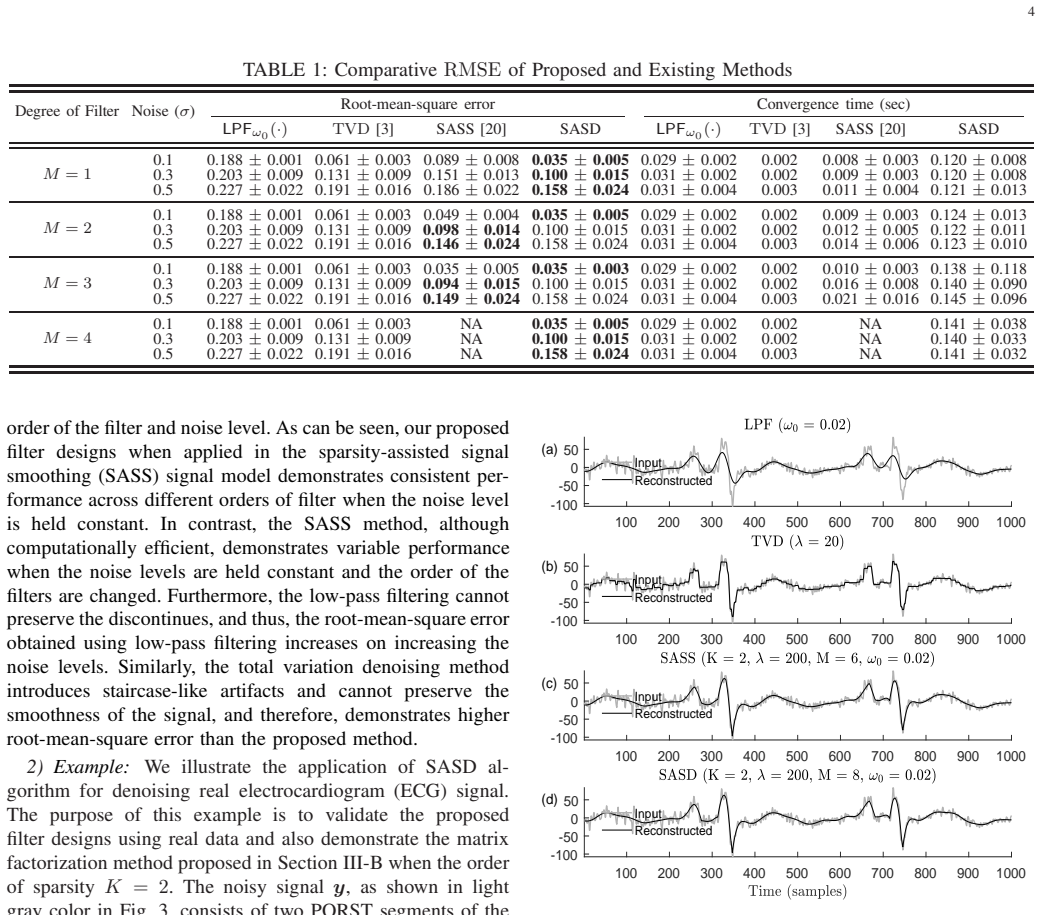

Figure 3. Figure 3: ECG denoising. (a) Low-pass filtering with normalize [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 5

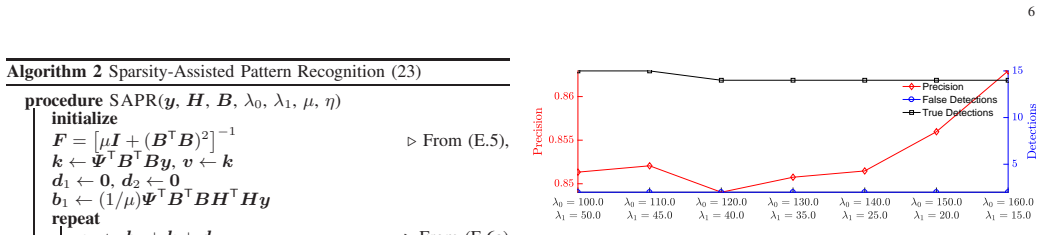

Figure 5. Figure 5: Precision, false detections, and true detections ac [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 4

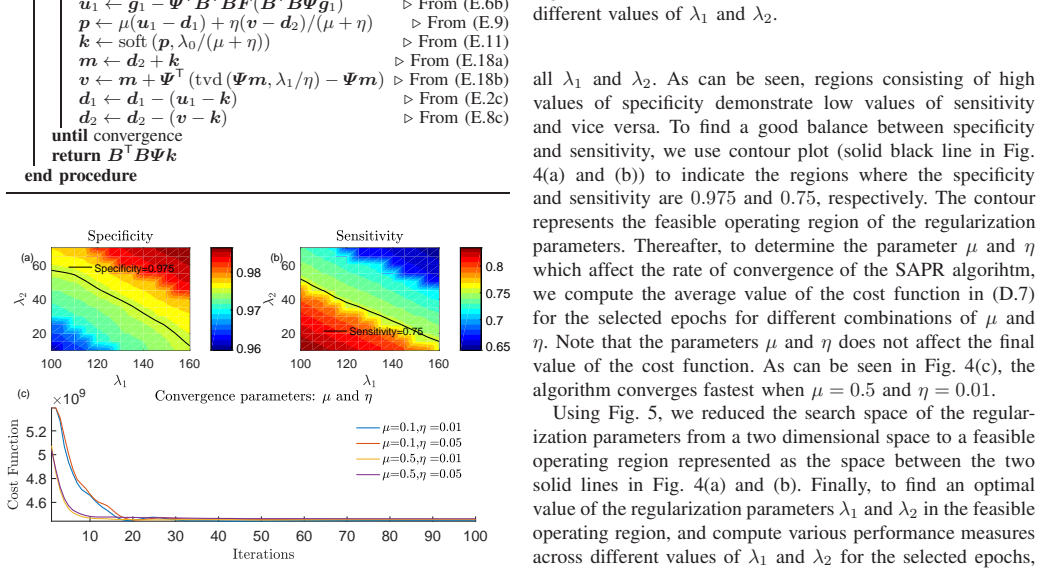

Figure 4. Figure 4: Regularization parameters for SAPR algorithm. (a) [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 6

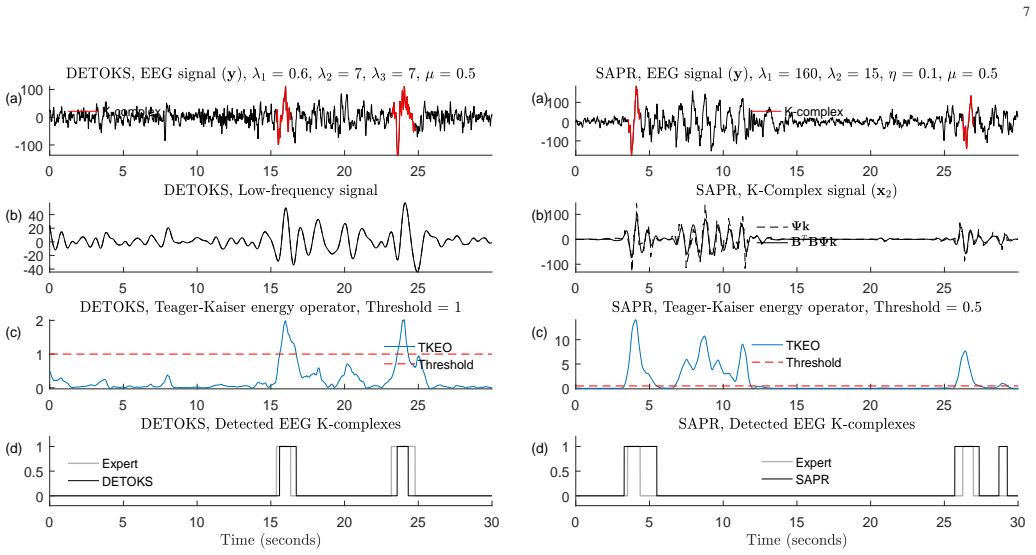

Figure 6. Figure 6: DETOKS for K-complex detection. (a) 30 second [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 8

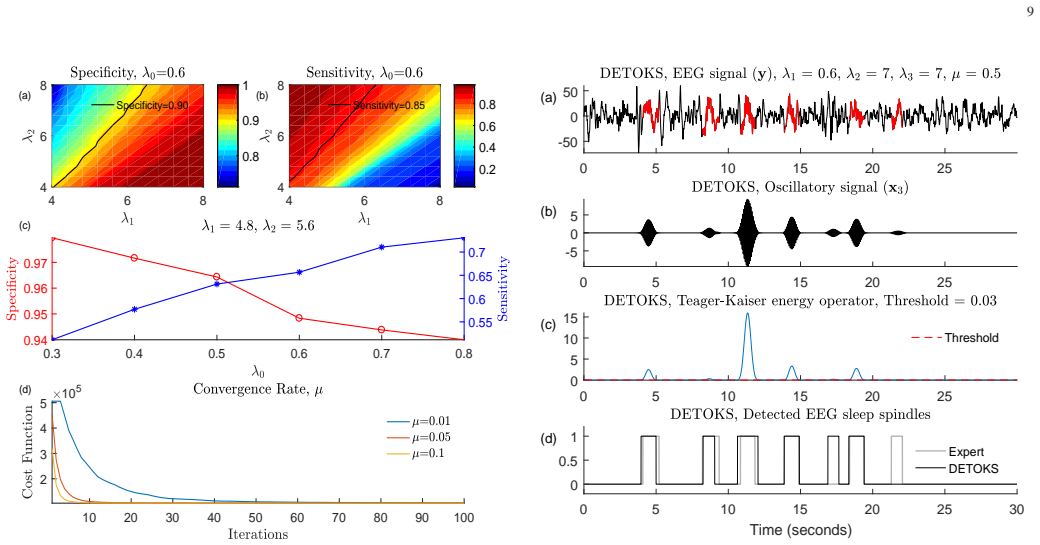

Figure 8. Figure 8: Regularization parameters for SASDPR algorithm. (a [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9

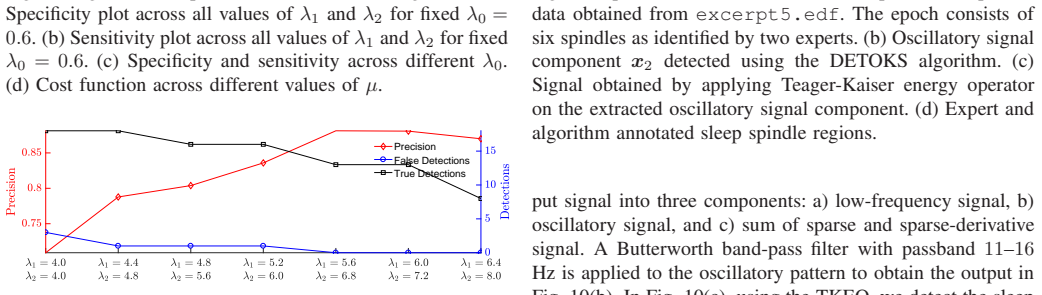

Figure 9. Figure 9: Precision, false detections, and true detections ac [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
read the original abstract

We address the problem of signal denoising and pattern recognition in processing batch-mode time-series data by combining linear time-invariant filters, orthogonal multiresolution representations, and sparsity-based methods. We propose a novel approach to designing higher-order zero-phase low-pass, high-pass, and band-pass infinite impulse response filters as matrices, using spectral transformation of the state-space representation of digital filters. We also propose a proximal gradient-based technique to factorize a special class of zero-phase high-pass and band-pass digital filters so that the factorization product preserves the zero-phase property of the filter and also incorporates a sparse-derivative component of the input in the signal model. To demonstrate applications of our novel filter designs, we validate and propose new signal models to simultaneously denoise and identify patterns of interest. We begin by using our proposed filter design to test an existing signal model that simultaneously combines linear time invariant (LTI) filters and sparsity-based methods. We develop a new signal model called sparsity-assisted signal denoising (SASD) by combining our proposed filter designs with the existing signal model. Thereafter, we propose and derive a new signal model called sparsity-assisted pattern recognition (SAPR). In SAPR, we combine LTI band-pass filters and sparsity-based methods with orthogonal multiresolution representations, such as wavelets, to detect specific patterns in the input signal. Finally, we combine the signal denoising and pattern recognition tasks, and derive a new signal model called the sparsity-assisted signal denoising and pattern recognition (SASDPR). We illustrate the capabilities of the SAPR and SASDPR frameworks using sleep-electroencephalography data to detect K-complexes and sleep spindles, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims to introduce a state-space spectral transformation method for constructing higher-order zero-phase IIR low-pass, high-pass, and band-pass filters as matrices, together with a proximal-gradient factorization procedure for a special class of zero-phase HP/BP filters. The factorization is asserted to preserve exact zero-phase while embedding a sparse-derivative penalty. These building blocks are used to define three new signal models (SASD, SAPR, SASDPR) that combine LTI filtering, sparsity, and wavelets; the models are illustrated on sleep-EEG recordings for K-complex and spindle detection.

Significance. If the proximal factorization rigorously preserves zero-phase, the framework supplies a principled route for jointly enforcing band-limited behavior and sparse-derivative structure inside a single linear operator, which could simplify certain multiresolution denoising and detection tasks in biomedical time series. The matrix formulation and explicit EEG demonstrations are concrete strengths.

major comments (1)
  1. [proximal gradient factorization section] The central technical claim—that the proximal-gradient factorization of the zero-phase HP/BP filters yields a product that remains exactly zero-phase while incorporating the sparse-derivative term—is load-bearing for all subsequent models (SASD, SAPR, SASDPR) and the EEG results. No explicit verification (phase-response comparison of the composite operator, proof that the proximal step commutes with the zero-phase constraint, or numerical check on the factored matrix) is supplied in the sections describing the factorization procedure.
minor comments (2)
  1. [filter design section] Notation for the state-space matrices and the spectral transformation operator should be introduced with explicit dimension statements and a short example for a first-order prototype.
  2. [EEG demonstration section] The EEG experiments would benefit from quantitative metrics (e.g., F1 scores, ROC areas) alongside the visual detections to allow direct comparison with existing K-complex and spindle detectors.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the importance of rigorous verification for the proximal-gradient factorization. We address the single major comment below and will revise the manuscript to incorporate the requested verification.

read point-by-point responses

  1. Referee: [proximal gradient factorization section] The central technical claim—that the proximal-gradient factorization of the zero-phase HP/BP filters yields a product that remains exactly zero-phase while incorporating the sparse-derivative term—is load-bearing for all subsequent models (SASD, SAPR, SASDPR) and the EEG results. No explicit verification (phase-response comparison of the composite operator, proof that the proximal step commutes with the zero-phase constraint, or numerical check on the factored matrix) is supplied in the sections describing the factorization procedure.

    Authors: We agree that the manuscript does not supply the explicit verification requested. In the revised version we will add: (i) a short proof that the proximal step preserves the zero-phase property for the special class of filters considered, (ii) phase-response plots of the original and factored composite operators, and (iii) a numerical check (e.g., maximum imaginary-part deviation of the frequency response) confirming that the product matrix remains exactly zero-phase within machine precision. These additions will be placed in the proximal-gradient factorization section and will directly support the subsequent SASD, SAPR, and SASDPR derivations. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations are self-contained proposals

full rationale

The paper proposes novel state-space spectral transformations for zero-phase IIR filter matrices and a proximal-gradient factorization for HP/BP filters that is claimed to preserve zero-phase while adding a sparse-derivative term. No load-bearing step reduces by construction to fitted inputs, self-citations, or renamed known results; the SASD/SAPR/SASDPR models are explicitly derived from these new components, and EEG examples function as external validation rather than tautological fits. The central claims rest on the technical correctness of the proposed operators, not on any definitional equivalence or self-referential premise.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities can be extracted beyond the general modeling assumptions implicit in any LTI-plus-sparsity formulation.
