A Simulation Framework for Ramsey Interferometry

T0 review · 0 major / 5 minor · reviewed 2026-07-13 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A new spin-dynamics code shows that time-shaped RF pulses can cut flip-angle spread fourfold and raise Ramsey phase sensitivity by a factor of four on a pulsed neutron beam.

desk verdict Solid methods paper that ships open-source RamseyProp and shows a clean ~4 imes sensitivity gain from 1/t RF modulation on the full ESS spectrum under stated analytic fields. read the letter →

arxiv 2603.24049 v2 pith:2HFJLQZQ submitted 2026-03-25 physics.ins-det

Linus B. Persson , Peter Fierlinger , Matthias Holl , Valentina Santoro This is my paper
classification physics.ins-det
keywords Ramseyinterferometryneutronspindynamicstime-dependentamplitudemodulationaxion-likeparticlespulsedsourceBlochequationsimulationphasesensitivity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Ramsey interferometry measures tiny frequency shifts by letting polarised spins precess freely between two radio-frequency pulses; its precision is set by how cleanly the beam’s velocity spread and the magnetic fields combine. This paper presents a simulation chain that joins realistic neutron optics, field maps and a new Bloch-equation solver so designers can quantify flip-angle distributions, adiabaticity and fringe contrast before building hardware. Applied to a proposed axion-like-particle search at a pulsed spallation source, the same framework shows that a simple 1/t amplitude envelope on the RF coils can compensate for the broad velocity spectrum without choppers. The result is a fourfold tighter phase measurement on a ten-metre apparatus that starts fifteen metres from the moderator, demonstrating that the source’s natural time structure can be turned into an experimental advantage rather than a limitation.

What carries the argument

RamseyProp: a Python/Numba solver of the Bloch equation that takes Monte-Carlo particle lists and analytic or COMSOL field maps, applies optional time-dependent coil envelopes, and returns flip-angle distributions, adiabaticity maps and Ramsey fringes.

What would settle it

Repeat the same Monte-Carlo trajectories with realistic dual-layer mu-metal and coil field maps from COMSOL; if the steepest-slope phase uncertainty no longer improves by a factor near four, the claim fails for the planned hardware.

Watch

Extended reading notes

Core claim

When the full velocity spectrum of a pulsed neutron beam is accepted without choppers, a time-dependent RF amplitude proportional to 1/t reduces the standard deviation of the spin flip angle at zero detuning from 0.67 rad to 0.17 rad and improves the extracted phase sensitivity by a factor of approximately four for a ten-metre free-precession region beginning fifteen metres from the source.

Load-bearing premise

The quoted factor-of-four gain is calculated with ideal constant B0 and circularly polarised B1 rather than the full inhomogeneous shield and coil maps that the real apparatus will use.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 5 minor

Summary. The manuscript presents RamseyProp, a Python-based spin-dynamics code that couples McStas neutron phase-space distributions (via MCPL) with analytic or COMSOL magnetic-field maps and integrates the Bloch equation along individual trajectories. The framework is validated against the analytic Ramsey formula for a monochromatic test case (RMSE 5e-4). It is then applied to a conceptual ALP search at ESS/HIBEAM: with the full pulsed spectrum and no velocity cuts, a 1/t RF amplitude envelope reduces the zero-detuning flip-angle standard deviation from 0.67 to 0.17 rad and improves the steepest-slope phase uncertainty by a factor of approximately 4 for a ~10 m setup starting 15 m from the moderator. Additional chopper gating further tightens the distributions. The authors release the source under GPL and note that the same tools are already being used for magnetics/optics optimisation of the real experiment.

Significance. A publicly available, trajectory-level Ramsey simulator that consistently treats optics, magnetostatics and spin dynamics fills a genuine gap for precision neutron experiments. The open-source release, analytic validation, and explicit demonstration that ESS pulse structure can be exploited via simple amplitude modulation are concrete strengths. Even under the idealised constant-B0/circular-B1 fields used here, the quantitative gains (factor ~4 without choppers) supply a useful design benchmark and a clear path for subsequent COMSOL-based optimisation. The work is therefore of direct practical value to the ESS/HIBEAM ALP programme and to other pulsed-source Ramsey experiments.

minor comments (5)
  1. Methodology, Simulation inputs: the authors correctly flag that analytic B0/B1 are used to decouple the methodological study from geometry. A short quantitative estimate (or one additional figure) of how residual inhomogeneities from a dual-layer mu-metal shield would degrade the reported contrast would strengthen the bridge to the real experiment.
  2. Eq. (12) and surrounding text: the half-pulse-width shift t0 = 1.5 ms is stated as approximate; a brief sensitivity scan of t0 would clarify how robust the 0.17 rad width is to this choice.
  3. Fig. 6 caption and Results: the relative phase of the second coil is shifted by pi/2 to place the working point on the steepest slope; this is clear in the text but could be restated in the figure caption for readers who start with the plots.
  4. Introduction and Conclusions: intermediate pi pulses for partial T2 recovery are mentioned only briefly; a sentence on whether RamseyProp already supports them (or will) would help readers planning multi-pulse sequences.
  5. Typographical: THEORY heading is split as THEOR Y; abstract and body use both ~4 and factor of 4 consistently enough, but a single style would be cleaner.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: numerical simulation results from independent inputs, not forced by definition or self-citation.

full rationale

The paper presents a simulation framework (McStas + COMSOL + RamseyProp) and reports numerical outcomes for flip-angle distributions and Ramsey fringe slopes under analytic B0/B1 and the ESS pulse. The sensitivity relations (Eqs. 7–9) are standard error propagation from the linearised polarisation slope b = ∓CT; they do not encode the reported factor-of-4 gain. The amplitude envelope f(t) ∝ 1/t (Eq. 12) is derived from the requirement that the integrated pulse area equal π/2 for every velocity (Eq. 11); it is not fitted to the final fringe contrast or phase uncertainty. The quantitative claims (std 0.67 → 0.17 rad; phase uncertainty 0.6 → 0.14 Hz) are outputs of Monte-Carlo trajectories through that fixed envelope, validated against the analytic Ramsey formula (RMSE 5×10−4). Self-citations point to the authors’ experimental proposal and to open tools; none is load-bearing for a uniqueness claim or for the numerical gains. The derivation chain is therefore self-contained and non-circular.

Assumptions & free parameters 4 free parameters · 4 assumptions · 0 invented entities

The central numerical claims rest on standard spin dynamics (Bloch equation), the classical Rabi/Ramsey formulae, a published McStas model of the ESS E5 extraction system, and a set of hand-chosen but explicitly stated field and geometry parameters. No new physical entities are postulated; the only free choices are simulation inputs that the authors vary systematically.

free parameters (4)
  • B0 (static field) = 100 µT
    Set to 100 µT throughout the free-precession region and coils for all production runs; chosen for convenience rather than measured.
  • B1 (RF amplitude) = 34.4 µT
    Set to 34.4 µT (B1/B0≈0.3) so that a 1200 m/s neutron receives a nominal π/2 flip; the value is tuned to the spectrum, not derived from first principles.
  • envelope time offset t0 = 1.5 ms (or 7.08 ms with chopper)
    Shift of the 1/t envelope by half the ESS pulse width (≈1.5 ms, or 7.08 ms when a chopper is present) is chosen by hand to centre the modulation on the pulse.
  • coil length and free-precession length = 0.3 m / 7.7 m
    0.3 m coils and 7.7 m free-precession interval are design choices for the simulated 10 m setup; they are not fitted but directly affect the reported sensitivity factor.
assumptions (4)
  • domain assumption Spin evolution obeys the classical Bloch equation dS/dt = γ S × B(r(t),t) with no decoherence or quantum corrections.
    Used throughout RamseyProp (Eq. 13); standard for neutron Ramsey work but neglects possible T2 processes that the authors themselves note can be added later.
  • domain assumption The McStas model of the ESS E5/HIBEAM extraction system (elliptical m=3 guide, slits at 11.5 m) faithfully represents the phase-space distribution at 15 m.
    All production trajectories are drawn from this MCPL file (Fig. 4); accuracy of the beam model is taken from prior literature [10].
  • domain assumption A circularly polarised RF field of constant amplitude (or 1/t envelope) can be realised inside the coils without significant higher harmonics or phase jitter.
    Stated in Methodology; rotating-wave approximation is deliberately avoided, but ideal polarisation is assumed.
  • domain assumption Statistical polarisation uncertainty scales as 1/√N and the axion-induced field remains coherent over the integration time.
    Used to convert fringe slope into σ_δB (Eqs. 8–9); standard for pulsed Ramsey searches.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Simulation Framework for Ramsey Interferometry." pith.science (2026). https://pith.science/paper/2HFJLQZQ

@misc{pith2026260324049,
  author       = {Pith},
  title        = {Pith review of: A Simulation Framework for Ramsey Interferometry},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2HFJLQZQ}},
  note         = {Machine review of arXiv:2603.24049}
}
read the original abstract

The sensitivity of Ramsey interferometry experiments is governed by the interplay between the beam phase-space distribution and the magnetic field environment through which the spins propagate. Quantitative optimisation thus requires a consistent treatment of optics, magnetics and spin dynamics. We present a simulation framework that enables such an analysis by combining neutron optics simulations in McStas, magnetic field modelling in COMSOL and spin-dynamics simulation in the new RamseyProp program. We describe how important experimental parameters such as adiabaticity, flip angle distributions and Ramsey fringe contrast can be studied. The code is being applied to design an experiment to search for axion-like particles at the European Spallation Source (ESS). We examine how the pulsed time structure of the ESS can be exploited to perform Ramsey interferometry on a broad neutron velocity spectrum. In the absence of velocity or timing restrictions, the standard deviation of the spin flip angle at zero detuning can be reduced from 0.67 to 0.17 radians using time-dependent amplitude modulation. Similarly, the phase sensitivity can be improved by a factor of 4 for a 10 m long setup starting 15 m from the ESS moderator.

Figures

Figures reproduced from arXiv: 2603.24049 by the authors.

Figure 1
Figure 1. Conceptual sketch of an experiment to search for axion-like particles at the European Spallation Source. Neutrons [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

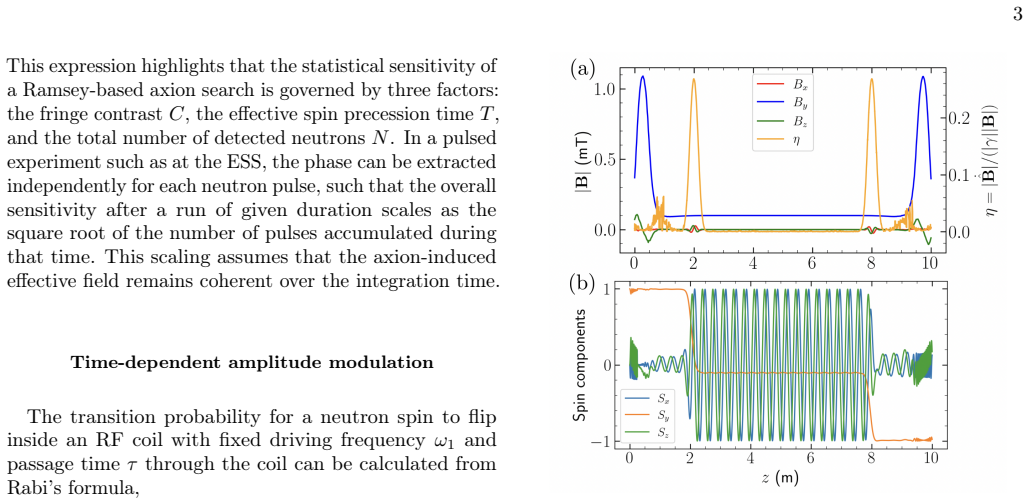

Figure 2. Example outputs from RamseyProp. In this simu￾lation, the magnetic field distributions are interpolated from COMSOL, with an applied B0 = 100 µT in the central re￾gion, higher fields exceeding 1 mT close to the edges and an effective B1 = 28.6 µT from two coils located at z = 2 m and z = 8 m. This particular trajectory has zero detuning, hence an outgoing polarisation of −1 is achieved after the second coil. Panel (… view at source ↗
Figure 3
Figure 3. The Ramsey fringes obtained for an interferometry [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Spectral distributions of the HIBEAM beamline at the ESS E5 beam port as used for simulation in [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

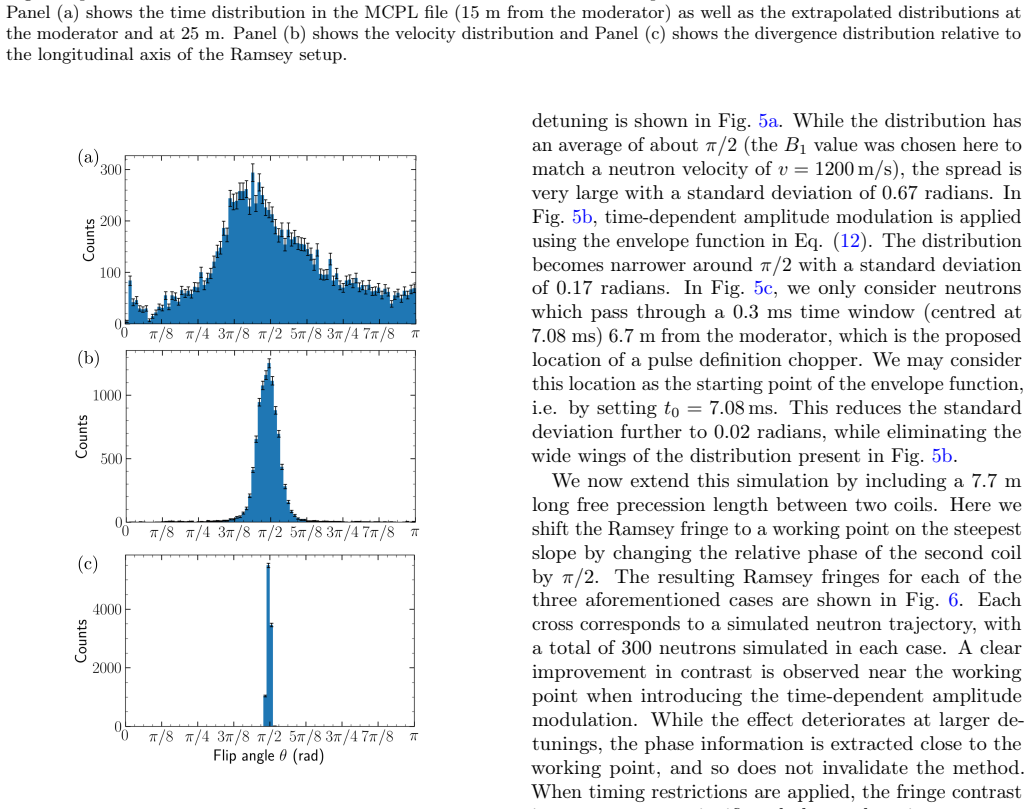

Figure 5. Figure 5: The distribution of flip angles, defined as the arccosine [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Ramsey fringes obtained for neutrons from the proposed HIBEAM beamline at the E5 beam port. Each mark corresponds [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Linear fits to the steepest slope of the Ramsey fringes. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
