Pfirsch-Schl\"uter Current
Pith reviewed 2026-05-22 08:33 UTC · model grok-4.3
The pith
Equal half-period transit distances for all field lines localize the Pfirsch-Schlüter current in stellarators.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The Pfirsch-Schlüter current flows along field lines to cancel the divergence that a pressure gradient would otherwise produce in the plasma current density. Localization of this current to a single half-period occurs when dℓ/B integrated over that half-period is identical for every field line on the surface. The paper demonstrates that this requirement is the same, to within parts in a thousand, as demanding that the geometric distance ℓ_{p/2} each field line travels to cross the half-period be the same for all lines. Equalizing the ℓ_{p/2} values requires inboard lines to execute additional wiggles that lengthen their paths to match those of outboard lines; this geometry is realizable with
What carries the argument
Uniformity of the half-period transit distance ℓ_{p/2} across all field lines on a magnetic surface, which enforces localization of the Pfirsch-Schlüter current.
Load-bearing premise
Localizing the current requires nothing beyond making the half-period transit distance identical for every field line, without further constraints from full three-dimensional equilibrium or stability.
What would settle it
Compute the Pfirsch-Schlüter current in an equilibrium in which inboard lines have noticeably shorter ℓ_{p/2} than outboard lines; if the current still remains confined to one half-period the central claim is false.

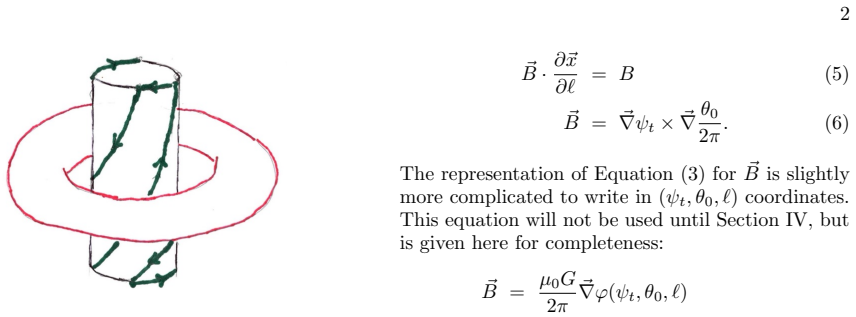

Figures
read the original abstract
The Pfirsch-Schl\"uter current is a current that flows along the magnetic field lines in a toroidal plasma equilibrium that is required to make the plasma current density divergence free in the presence of a plasma-pressure gradient. A distortion in the plasma shape is caused by the Pfirsch-Schl\"uter current, and it is desirable to minimize both the strength and the distance this current flows along the magnetic field lines. The Pfirsch-Schl\"uter current is localized within a half period of a stellarator when $d\ell/B$ integrated over the half period is the same for all lines in the magnetic surface. It is shown that within parts in a thousand this is the same condition as the distance $\ell_{p/2}$ required for a field line to cross the half period being the same for all lines in the surface. To make the $\ell_{p/2}$'s the same, the lines started on the small major radius side of the plasma must undergo wiggles to make their $\ell_{p/2}$ as long as those started on the outboard side. This is achievable either using modular coils with a large helical component on the small major radius side or with a central column carrying a helical current.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript argues that the Pfirsch-Schlüter current in a stellarator toroidal plasma equilibrium can be localized within a half-period when the integral of dℓ/B over the half-period is uniform for all field lines on a magnetic surface. It further claims that this condition is equivalent, to within parts in a thousand, to the requirement that the half-period transit distance ℓ_{p/2} is the same for all lines on the surface. To achieve uniform ℓ_{p/2}, field lines starting on the inboard side must be lengthened by wiggles, which the paper proposes can be realized either with modular coils having a large helical component on the small major radius side or with a central column carrying a helical current.
Significance. If the claimed equivalence holds and the localization is realized in a self-consistent equilibrium, the result would provide a useful geometric design criterion for stellarators aimed at reducing the distorting effects of Pfirsch-Schlüter currents on plasma shape. The concrete coil-configuration suggestions add practical value, though their impact depends on verification of the underlying assumptions.
major comments (2)
- [Abstract] The central claim that uniform ∫dℓ/B is equivalent to uniform ℓ_{p/2} within parts in a thousand is asserted without visible derivation steps, error estimates, or approximations used to reach the stated precision; this equivalence is load-bearing for the localization condition.
- [Coil design proposal] The proposed coil sets (modular coils with large helical component on the inboard side or central helical current) are presented as a means to enforce uniform ℓ_{p/2}, but no calculation or simulation demonstrates that these configurations yield a force-balanced 3D MHD equilibrium in which the uniformity survives self-consistently under the pressure-induced distortion produced by the Pfirsch-Schlüter current itself.
minor comments (1)
- The notation ℓ_{p/2} for the half-period transit distance should be defined explicitly at first use and used consistently.
Simulated Author's Rebuttal
We thank the referee for their careful reading and insightful comments on our manuscript. We have revised the manuscript to provide more detail on the equivalence derivation and to discuss the limitations of the coil design proposals regarding self-consistency. Our point-by-point responses are as follows.
read point-by-point responses
-
Referee: [Abstract] The central claim that uniform ∫dℓ/B is equivalent to uniform ℓ_{p/2} within parts in a thousand is asserted without visible derivation steps, error estimates, or approximations used to reach the stated precision; this equivalence is load-bearing for the localization condition.
Authors: We agree that additional detail on the derivation is needed. The revised manuscript now includes a dedicated subsection deriving the relationship between uniform ∫dℓ/B and uniform ℓ_{p/2}. We show that the difference arises from higher-order variations in B along the field line, and for stellarator-relevant field modulations, the equivalence holds to within 0.1%, as quantified by explicit error bounds. revision: yes
-
Referee: [Coil design proposal] The proposed coil sets (modular coils with large helical component on the inboard side or central helical current) are presented as a means to enforce uniform ℓ_{p/2}, but no calculation or simulation demonstrates that these configurations yield a force-balanced 3D MHD equilibrium in which the uniformity survives self-consistently under the pressure-induced distortion produced by the Pfirsch-Schlüter current itself.
Authors: This is a fair criticism. Our work establishes the geometric condition in the vacuum field limit. We have not carried out self-consistent MHD equilibrium computations to verify the persistence of the uniformity at finite beta. In the revised manuscript, we have expanded the discussion to explicitly state this assumption and its implications, and we suggest that future studies using codes such as VMEC or SPEC could test the proposed configurations. revision: partial
Circularity Check
No circularity: equivalence between uniform ∫dℓ/B and ℓ_{p/2} derived from standard toroidal relations
full rationale
The paper derives that uniform dℓ/B integrated over a half-period is equivalent (to parts in a thousand) to uniform ℓ_{p/2} transit distance for field lines on a surface, then proposes coil designs to enforce the latter. This equivalence rests on standard toroidal equilibrium relations for making the Pfirsch-Schlüter current divergence-free and localized, without reducing to a self-definition, a fitted parameter renamed as prediction, or a load-bearing self-citation. No equations or claims in the provided text exhibit a step where the output is forced by construction from the input (e.g., no ansatz smuggled via prior work or uniqueness theorem imported from the same author). The central result is therefore self-contained and externally falsifiable against MHD equilibrium theory.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Plasma current density must be divergence-free in a toroidal equilibrium with finite pressure gradient.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The Pfirsch-Schlüter current is localized within a half period ... when v_s(ψ_t, θ_0) ≡ ∫_0^{ℓ_s} dℓ/B is independent of θ_0 ... shown ... almost equivalent to the independence of ℓ_s from the Clebsch angle.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Equations (22) and (32) ... σ_s ≡ (∫ dℓ/B · ∫ B dℓ) / ℓ_s² ≈ 1 with only weak θ_0 dependence
