Poincar\'e Beta Balls: Radial Laws, Shell Transforms, and Phase Diagram

Shigeaki Yokota

Poincar\'e Beta Balls: Radial Laws, Shell Transforms, and Phase Diagram

T0 review · 0 major / 4 minor · reviewed 2026-07-30 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read High-dimensional Poincaré beta balls have four pyramid limits, including finite star trees, set by the balance of radial width and hyperbolic angular amplification.

desk verdict Solid four-phase pyramid classification for Poincaré beta balls; the star-tree limit is genuinely new and the proofs hold up. read the letter →

arxiv 2607.26979 v1 pith:2PX6X3OY submitted 2026-07-29 math.MG math.PR

Shigeaki Yokota This is my paper · ORCID

classification math.MGmath.PR MSC 53C2360D0528A33

keywords metricmeasurespacepyramidPoincaréballconcentrationofseparationdistancestartreeGaussianphasetransition

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Usual high-dimensional concentration freezes a radial measure onto a sphere and keeps only the angular geometry. On the Poincaré ball the hyperbolic metric stretches leftover radial width, so that freeze throws away part of the limit. This paper tracks the competition between that surviving radial width and the amplified angular separation through two explicit scale parameters. Rescaling each space at the critical order between concentration and dissipation, it identifies four mutually exclusive weak pyramid limits: a pyramid generated by finite star trees with shifted-exponential branches and through-center paths; the pyramid of all spaces of diameter at most one; metric transforms of the Gaussian pyramid; and the Gaussian pyramid itself. It also proves a sharp if-and-only-if criterion for the diameter-at-most-one limit. The result gives a complete phase diagram for how hyperbolic geometry and Euclidean radial laws interact in high dimension.

What carries the argument

The pair A_{n,β}=√(n+2β)/β and L_{n,β}=2 log A_{n,β}, together with the finite star trees T_{m,λ}(p): half-lines from a center, radial law λ+Exp(1), same-branch distance |s−t| and cross-branch distance s+t−λ. These objects encode the surviving radial width versus hyperbolic angular stretch and generate the four critical pyramids.

What would settle it

Pick β_n so that A_n→∞ and β_n L_n→λ finite, compute (N,R)-measurements of β_n times the Poincaré beta ball for large n, and check whether their Prokhorov limits all lie in the measurement sets of the star-tree pyramid P⋆_λ; a measurement outside those sets falsifies the upper inclusion.

Watch

Extended reading notes

Core claim

When A_{n,β_n}→∞ and β_n L_{n,β_n}→λ∈[0,∞), the pyramids of the critically rescaled Poincaré beta balls converge weakly to the box-closed pyramid generated by all finite star trees whose branches carry the shifted exponential law ν_λ and meet only through a common center. The other three regimes of (A,βL) yield P_{≤1}, F_a(P_{Γ_∞}), or P_{Γ_∞}, and convergence to P_{≤1} holds if and only if βL→∞ under A→∞.

Load-bearing premise

Every limiting one-Lipschitz angular profile on a radial window must obey the through-center cross-branch distance bound and extend to a map on a finite star tree; if that constraint fails, the star-tree identification collapses.

Editorial extensions

If this is right

Under A→∞ and βL→λ the critical scale is exactly β_n and the sequence has the phase-transition property between Lévy concentration and infinite dissipation.
Convergence of the L^{-1}-rescaled balls to the diameter-at-most-one pyramid is equivalent to βL→∞ whenever A→∞.
When A→a∈(0,∞) the unscaled balls converge to the metric transform F_a of the Gaussian pyramid; when A→0 the A^{-1}-rescaled balls converge to the Gaussian pyramid itself.
Every positive sequence β_n has a subsequence falling into exactly one of the four regimes, so the phase diagram is exhaustive.
For λ>0 the star-tree pyramid is not the pyramid of any single mm-space.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The same radial-versus-angular competition should produce star-tree or diameter-bounded limits for other negatively curved model spaces once a Euclidean-type radial density is imposed.
The sharp βL boundary suggests a practical diagnostic: estimate βL from samples on a high-dimensional hyperbolic ball to decide whether the geometry has collapsed to diameter one or still retains tree-like branches.
Metric-transform continuity used in the crossover and Gaussian phases indicates that other shell transforms of spheres will inherit the same four-phase skeleton whenever the radial law concentrates at a comparable rate.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The thing worth knowing is that Yokota gets a clean four-regime phase diagram for high-dimensional Poincaré balls with Euclidean beta radial measures, and one of the regimes is new: weak pyramid convergence to a box-closed family of finite star trees with shifted-exponential branches and through-center distances.

What is actually new is the competition between hyperbolic amplification of residual radial width and angular separation. The parameters A and L organize the regimes cleanly (star trees when A→∞ and βL→λ finite; P≤1 when βL→∞; Fa(PΓ∞) when A→a finite; Gaussian when A→0). Theorem 1.1 and the sharp necessity statement in Theorem 5.1 are the main additions beyond the Shioya–Kazukawa sphere/ellipsoid and Esaki–Kazukawa–Mitsuishi cone results. The lower inclusion via spherical blocks, the radial gamma limits, the shell-transform continuity, and the warped-product comparison for the Gaussian phase are all done carefully. Citations sit where they should; the pyramid toolkit is used as infrastructure, not as a black box that hides the geometry.

The load-bearing step is the upper inclusion for the star-tree phase: profile compactness of (N,R)-measurements plus quantization and McShane extension off the radial window. That is the usual delicate point in these arguments. On a close read of the appendix it is complete—Arzelà–Ascoli, cross-branch asymptotics from the hyperbolic law of cosines, finite net, 1-Lipschitz extension. Minor presentational looseness about centers of covering balls is easily fixed and does not break the estimate. Everything else (lower inclusion, pyramid axioms, the other three phases, sharpness) stands independently.

This is for people already working in mm-space pyramids and high-dimensional concentration. A serious referee in the Shioya school will get value from it; outsiders will find the setup heavy. I would send it to peer review without hesitation. Engage if you care about non-Euclidean concentration limits; the star-tree object is worth having on the shelf.

Referee Report

0 major / 4 minor

Summary. The paper studies high-dimensional Poincaré balls equipped with hyperbolic distance and Euclidean beta-type radial measures μ_{n,β_n}. It identifies four regimes, governed by the shell parameters A_{n,β} and L_{n,β}, in which the mm-spaces rescaled at the critical concentration–dissipation scale converge weakly in the pyramid topology. The regimes yield, respectively, the box-closed pyramid P^⋆_λ generated by finite star trees with shifted-exponential branch laws and through-center cross distances (Theorem 1.1), the diameter-at-most-one pyramid P_{≤1} (Theorem 4.12), metric transforms F_a(P_{Γ_∞}) of the Gaussian pyramid (Theorem 4.20), and the Gaussian pyramid itself (Theorem 4.26). A sharp equivalence (Theorem 5.1) characterises convergence to P_{≤1} under A→∞ by the condition βL→∞, and each phase is shown to satisfy the phase-transition property at its critical scale.

Significance. The work supplies a complete four-regime phase diagram for a natural family of hyperbolic mm-spaces whose limiting geometry is not captured by ordinary shell reduction. The appearance of finite star trees as pyramid generators is new and geometrically transparent; the sharp boundary criterion for P_{≤1} and the uniform treatment via (N,R)-measurements, shell transforms and warped-product comparisons place the results firmly inside the modern pyramid framework of Gromov–Shioya–Ozawa–Kazukawa. The arguments are self-contained once the standard black-box tools (spherical Gaussian convergence, metric-transform continuity, box/observable distances) are granted, and the appendix supplies the technically heaviest steps (profile compactness, radial CLT, truncated warped-product comparison). If correct, the paper becomes a reference example of hyperbolic concentration and of non-Gaussian pyramid limits.

minor comments (4)

[§6.3, proof of Lemma 3.30] In the proof of Lemma 3.30 / §6.3 the ε-net centres g_i are described as centres of open balls covering supp q; it would be clearer to state explicitly that the centres may be chosen inside supp q (or that the cross-branch constraint extends by continuity to the closure) so that the representatives themselves satisfy ∥g_i(s)−g_j(t)∥_∞≤s+t−λ.
[Table 1] Table 1 is helpful but the representative sequences β_n are listed only in the caption; placing a short column of examples inside the table would improve readability.
[§6.4–6.5] Several appendix proofs (radial CLT, warped-product comparison) are long and dense; a one-sentence roadmap at the start of each would help the reader track the case divisions.
Minor typographical inconsistencies appear (e.g., “Poincar´e” vs “Poincaré”, occasional missing spaces before punctuation). A final copy-edit pass is recommended.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: phase limits are derived from hyperbolic asymptotics and radial laws, not forced by definition or self-citation.

full rationale

This is a pure mm-geometry paper. The four critical regimes and their pyramids are obtained from explicit competition between Euclidean beta radial width and hyperbolic angular amplification (parameters A_n,β_n and L_n,β_n defined from the model, not fitted). Radial limits (Prop. 3.4, Lemmas 3.1–3.6), cross-branch distance asymptotics (Lemma 3.13 from the hyperbolic law of cosines), lower inclusion of star trees (Lemma 3.22), upper inclusion via profile compactness and McShane extension (Lemmas 3.28/3.30, App. 6.2–6.3), shell transforms to Gaussian/P≤1 limits (Theorems 4.12, 4.20, 4.26), and the sharp P≤1 boundary (Theorem 5.1) are self-contained arguments. Citations to Shioya, Ozawa–Shioya, Nakajima, and Kazukawa supply standard pyramid/box/observable-distance machinery used as black-box tools with stated hypotheses independent of the target limits. The single self-citation [10] only supplies a limit formula for observable diameter and is not load-bearing for the geometric identification. No self-definitional loop, fitted-as-prediction step, uniqueness import, or renamed empirical pattern appears.

Assumptions & free parameters 0 free parameters · 6 assumptions · 2 invented entities

The work sits inside the established mm-space pyramid compactification. It imports standard measure-theoretic and geometric facts plus prior pyramid-convergence theorems, then adds the hyperbolic radial analysis and the star-tree generators. No numerical free parameters are fitted; λ is a regime label read off from the sequence β_n.

assumptions (6)

domain assumption Gromov–Shioya pyramid compactification of mm-spaces is Hausdorff and compact under d_Π / weak Painlevé–Kuratowski convergence of box-closed pyramids.
Used throughout to turn box and measurement convergence into pyramid limits (Defs. 2.8–2.10, Thm. 2.10).
domain assumption High-dimensional spheres with √n-scaled chordal metric converge weakly to the Gaussian pyramid P_Γ∞.
Invoked for angular limits in crossover and Gaussian phases (Remark 3.12, citing Shioya Thm. 7.40).
domain assumption Metric-transform continuity: pointwise convergence of continuous nondecreasing metric-preserving maps preserves weak pyramid convergence.
Used for shell transforms F_a and H_a (Lemma 4.15, citing Kazukawa).
standard math Gamma laws of large numbers / CLTs and the beta–gamma algebra for the radial coordinate of µ_n,β.
Lemma 3.1 and Lemma 4.1 supply the radial input to every phase.
standard math Hyperbolic law of cosines in the Poincaré ball (identity H1).
Converts radial and chordal data into d_H asymptotics (Remark 3.12).
domain assumption Box and observable distances admit the coupling / Ky-Fan formulations of Nakajima; additive-error domination controls (N,R)-measurements.
Defs. 2.5–2.7 and Lemma 3.10 are the technical engine for pyramid identification.

invented entities (2)

Finite star tree T_m,λ(p_1,…,p_m) and its pyramid P^igstar_λ
purpose: Serve as the explicit generators of the weak limit in the regime where radial width survives at scale β_n.
Defined ad hoc from the hyperbolic through-center distance and the exponential radial limit; not previously standard mm-spaces in the cited literature.
Shell parameters A_n,β and L_n,β independent evidence
purpose: Organize the four-phase diagram by comparing angular amplification to radial width.
Derived from sinh R̄ / √n and 2 log A, but elevated to the controlling coordinates of the classification.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Poincar\'e Beta Balls: Radial Laws, Shell Transforms, and Phase Diagram." pith.science (2026). https://pith.science/paper/2PX6X3OY

@misc{pith2026260726979,
  author       = {Pith},
  title        = {Pith review of: Poincar\'e Beta Balls: Radial Laws, Shell Transforms, and Phase Diagram},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2PX6X3OY}},
  note         = {Machine review of arXiv:2607.26979}
}

read the original abstract

On a high-dimensional Poincar\'e ball, a Euclidean beta-type radial measure concentrates near a sphere, but hyperbolic distance amplifies the surviving radial spread, so the usual shell reduction loses part of the limiting metric. In each regime of the balance between this radial width and amplified angular separation, we determine the weak pyramid limit of the spaces rescaled at the order at which the transition between concentration and dissipation occurs. The four possibilities are a pyramid generated by finite star trees, the pyramid of spaces of diameter at most one, metric transforms of the Gaussian pyramid, and the Gaussian pyramid. Each star tree has branches from a common center, a shifted exponential distribution along them, and paths between different branches through the center. We also give a sharp criterion for convergence to the diameter-at-most-one pyramid.

Figures

Figures reproduced from arXiv: 2607.26979 by the authors.

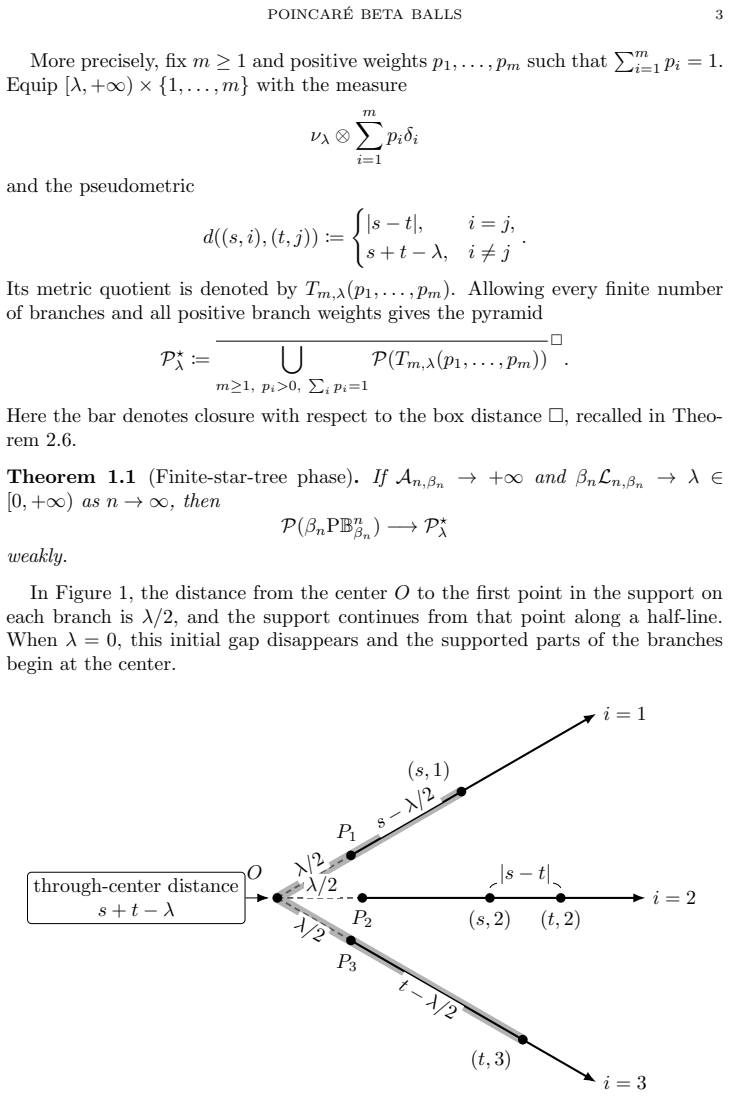

**Figure 1.** The finite star tree T3,λ as three half-line branches arranged around the common center O. The dashed initial segments connect O to the supported part of each branch, and the highlighted path between two branches passes through O [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
