Intrinsic Meshing of Closed Surfaces Using Geodesic Distances

T0 review · 2 major / 4 minor · reviewed 2026-07-11 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Local geodesic operations build intrinsic meshes that keep the original surface exact and support both coarsening and refinement.

desk verdict Working open-source intrinsic mesher that finally coarsens non-developable discrete surfaces; angle-quality claim is only partially realized but openly reported. read the letter →

arxiv 2607.04989 v1 pith:2QDYZTSZ submitted 2026-07-06 cs.CG

Tim Gabriel , Jean-François Remacle , Christophe Geuzaine This is my paper · ORCID
classification cs.CG
keywords intrinsicmeshdiscreteisogeometrictriangulationgeodesicshortestpathA*searchcoarseningdirecthigh-ordermeshing
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper shows how to remesh a closed discrete surface so that every edge is a shortest geodesic path and every face is a union of original input triangles, without ever changing the geometry. Starting from a watertight triangulation, the algorithm applies ordinary local operations—edge swaps, splits, collapses and triangle splits—but evaluates lengths, angles and intersections intrinsically on the surface. Size is controlled by a characteristic-length field and quality by intrinsic-angle bounds. Exact geodesic distances come from a continuous Dijkstra method sped up by an A* heuristic that cuts cost to roughly three percent of ordinary propagation. Because the triangles need not be developable, the same framework can coarsen as well as refine, removing a central restriction of earlier intrinsic methods. The resulting mesh is therefore an exact, isogeometric representation that can be handed directly to high-order polynomial fitting, skipping the usual “linear mesh then curve” pipeline. Nearly five thousand filtered models from Thingi10K succeed under these rules.

What carries the argument

Intrinsic local operators (edge swap/split/collapse and triangle split) whose decisions rest on exact shortest-path geodesics computed by continuous Dijkstra with A* guidance, plus a simple opposite-angle swap heuristic that replaces the classical empty-circumcircle test.

What would settle it

On a closed manifold from the filtered Thingi10K suite, run the algorithm with prescribed angle bounds and check whether the final intrinsic mesh still contains intersecting geodesics, violates the size field, or leaves angles outside the requested range on more than a few percent of models after the iteration limit.

Watch

Extended reading notes

Core claim

A complete intrinsic meshing pipeline exists: repeated local geodesic operations driven by a characteristic-length field and an opposite-angle heuristic produce triangulations whose edges are shortest geodesics, whose faces inherit the input geometry, that obey size and angle constraints wherever feasible, and that support both refinement and coarsening on closed discrete surfaces.

Load-bearing premise

The opposite-angle swap heuristic plus occasional circumcenter insertion is enough to reach a usable Delaunay-like mesh even when true geodesic circumcenters are missing or non-unique.

Editorial extensions

If this is right

  • Coarsening and refinement of discrete surfaces can be performed while preserving the exact input geometry.
  • High-order finite-element meshes can be generated directly from geodesic edges without first building and then curving a linear mesh.
  • Size- and angle-controlled remeshing becomes available for any watertight closed triangulation, independent of parametrization.
  • Exact geodesic distances need only be computed locally and can be accelerated by simple Euclidean lower bounds.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same local geodesic operators could be adapted to open surfaces once boundary and feature edges are treated as constrained non-geodesic paths.
  • Because each intrinsic triangle is already a piecewise-linear patch of the original mesh, it supplies an exact domain for integration or for fitting non-polynomial bases without geometric error.
  • Parallel execution of independent cavities would be the natural next performance step once sequential geodesic queries dominate runtime.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper presents a constructive algorithm for intrinsic triangulations of closed watertight discrete surfaces: edges are shortest geodesic paths and faces are unions of input primitives. Starting from an input triangulation, local operations (edge swaps, splits, collapses, and triangle splits) are performed intrinsically, driven by a characteristic-length field and angle-based quality criteria derived from exact geodesic distances. Distances use continuous Dijkstra (MMP/ICH) accelerated by an A* Euclidean lower-bound heuristic that reduces cost to roughly 3% of standard propagation. The framework supports both refinement and coarsening (overcoming a limitation of developable-triangle methods) and yields a foundation for direct high-order meshing. Validation on a filtered Thingi10K subset reports 99.6% success (4943/4963 models) under explicit time/memory limits, with open implementation in Gmsh.

Significance. If the claims hold, the work is a solid practical advance in discrete differential geometry and mesh generation: it produces isogeometric intrinsic meshes without parametrization or geometry alteration, enables coarsening (unlike prior developable intrinsic Delaunay schemes), and supplies a direct route to high-order elements that bypasses the classical linear-then-curve pipeline. The A* acceleration, fully specified pseudo-code, large-scale public-dataset validation, and open Gmsh code are concrete strengths that make the method usable rather than purely theoretical. The contribution is primarily algorithmic/engineering rather than a new existence theorem, but it fills a clear gap for closed organic surfaces.

major comments (2)
  1. [Sec. 5.2, Table 1] Sec. 5.2 and Table 1: under the experimental bounds (20°–140°), only 27.5% of the 4943 successful runs strictly satisfy the prescribed angles. The abstract and introduction claim that “quality is enforced through angle-based criteria,” yet the text itself attributes the shortfall to non-existence or numerical failure of geodesic circumcenters (Sec. 4.4, Fig. 6) and the heuristic opposite-angle test (Alg. 2). Residual statistics—histograms of min/max angles, fraction of violating triangles, or maximum violation magnitude—for the remaining 72.5% are needed to quantify how well quality is actually controlled; without them the enforcement claim remains only partially evidenced.
  2. [Sec. 3.1.4, Alg. 2] Sec. 3.1.4 / Alg. 2 and Sec. 3.2.4 / Fig. 10: the opposite-angle-sum heuristic is adopted because true geodesic circumcenters need not exist or be unique. While it recovers the planar Delaunay criterion for developable triangles, no convergence guarantee is supplied for non-developable surfaces, and the paper itself exhibits unstable swap cycles that must be aborted by iteration limits. Empirical counts of residual non-locally-Delaunay edges after the main loop (or after each local operation) would clarify how often the heuristic leaves the mesh short of a usable Delaunay-like state.
minor comments (4)
  1. [Fig. 20] Fig. 20 color bars are labeled “0 1800 180”; the middle value appears to be a typographical artifact and should be clarified or removed.
  2. [Sec. 4.3] The A* speed-up is stated as “roughly 3%” both in the abstract and Sec. 4.3; a short table or plot of wall-clock ratios versus model size (or versus classical MMP) would make the claim more precise and reproducible.
  3. [Sec. 3.2] Notation for characteristic length occasionally switches between cl_min / cl_max and the integral form R dl/cl; a single consistent definition early in Sec. 3.2 would improve readability.
  4. [Appendix A] Appendix A solutions for the circumcenter system are useful, but a brief numerical-stability note (conditioning when D_B or Y_C approach zero) would help implementers.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: constructive local-optimization algorithm whose success metrics are measured on an external public dataset, with no fitted parameters presented as predictions and no load-bearing self-citation chain.

full rationale

The paper describes a self-contained algorithmic pipeline (edge swaps via opposite-angle heuristic Alg. 2, splits/collapses driven by characteristic-length integrals Algs. 4-5, triangle splits via geodesic circumcenters Sec. 4.4/App. A, all using exact continuous-Dijkstra geodesics accelerated by A*). Every claimed property (shortest-path edges, size control, angle-based quality, refinement+coarsening) is realized by explicit local operations whose correctness is checked by intersection and quality predicates (Algs. 1, 6, 15-17). Validation consists of success rates, element counts and run-times on the filtered Thingi10K corpus (Table 1, Fig. 21); these numbers are not forced by any parameter fitted to the same data. Self-citations ([19], [31]) appear only for parallel-meshing context and classical high-order curving; none supply a uniqueness theorem or ansatz that the present construction relies upon. The acknowledged incompleteness of angle enforcement (only 27.5 % of runs meet the 20°-140° bounds) is an empirical limitation, not a circular reduction of claim to input. Hence the derivation chain contains no self-definitional, fitted-prediction, or self-citation circularity.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The central claim rests on standard discrete-geometry facts plus a small set of algorithmic heuristics and user-chosen tolerances. No new physical entities are postulated; free parameters are the usual meshing knobs (angle bounds, length margins) whose values are reported and whose effect is measured.

free parameters (3)
  • min/max intrinsic angle bounds = 20°–140° (default)
    User-chosen thresholds (default 20°–140°) that decide which triangles are split; only 27.5 % of runs meet them strictly.
  • characteristic-length margins
    Interval around target length (e.g. [0.5 lc, 2 lc]) that prevents oscillation of split/collapse; chosen by hand for robustness.
  • A* Euclidean lower-bound weight = 1.0 (implicit)
    Implicit unit weight on Euclidean distance used to order window propagation; affects speed but not correctness.
assumptions (4)
  • standard math Shortest geodesic paths on a polyhedral surface can be computed exactly by continuous Dijkstra (MMP/ICH) algorithms.
    Invoked throughout Sec. 4; classical result of Mitchell–Mount–Papadimitriou and Chen–Han.
  • domain assumption Input is a closed, manifold, consistently oriented triangulation.
    Stated in abstract and Sec. 5.2; required for orientation of intrinsic angles and for cavity topology checks.
  • ad hoc to paper Opposite-angle sum heuristic is a sufficient proxy for the local intrinsic Delaunay criterion on non-developable triangles.
    Alg. 2; adopted because true geodesic circumcenters may not exist or be unique (Fig. 6).
  • standard math A geodesic circumcenter, when it exists, can be recovered by intersecting hyperbolic bisectors of three pseudo-source windows.
    Appendix A derives the closed-form solution used in triangle-split refinement.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Intrinsic Meshing of Closed Surfaces Using Geodesic Distances." pith.science (2026). https://pith.science/paper/2QDYZTSZ

@misc{pith2026260704989,
  author       = {Pith},
  title        = {Pith review of: Intrinsic Meshing of Closed Surfaces Using Geodesic Distances},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/2QDYZTSZ}},
  note         = {Machine review of arXiv:2607.04989}
}
abstract

We present a method for constructing intrinsic triangulations of closed discrete surfaces, in which edges correspond to shortest geodesic paths and faces decompose into geometric primitives inherited from the underlying mesh. Starting from a watertight input triangulation, the method progressively builds an intrinsic mesh through local optimization operations -- edge swaps, edge splits, edge collapses, and triangle splits -- performed directly on the surface without modifying the original geometry. Element size is controlled via a characteristic length field, and quality is enforced through angle-based criteria derived from intrinsic distances. Geodesic distances are computed exactly using a continuous Dijkstra approach, accelerated by an A* search strategy that reduces computation to roughly $3\%$ of the cost of standard propagation. The framework supports both refinement and coarsening, overcoming a key limitation of prior intrinsic methods based on developable triangles. As a by-product, the intrinsic triangulation provides a natural foundation for direct high-order mesh generation, bypassing the classical pipeline of first constructing a linear mesh and subsequently curving it. The method is validated on the Thingi10K dataset across nearly 5,000 geometrically complex models.

Figures

Figures reproduced from arXiv: 2607.04989 by the authors.

Figure 1
Figure 1. Intrinsic meshing of a surface triangulation from the Thingi10K dataset (ID: 90736), re [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Intrinsic triangle on the sphere (left) and [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Example illustrating the meshing capabilities of the proposed method. Starting from the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (18 more)
Figure 4
Figure 4. Figure 4: Intrinsic and extrinsic edge swap. from one of the authors of [30], and because perfor￾mance differences between the MMP and ICH algo￾rithms are minor, the experimental results will be based on this implementation of MMP. Adapting the approach to the ICH algorithm woul…
Figure 5
Figure 5. Figure 5: Example of an edge that cannot be swapped because the candidate edge does not lie within the cavity of the adjacent triangles. paths imposes constraints on the admissible trian￾gulations, as discussed in Sec. 3.1.3 and 3.1.5. 3.1.3 Edge Swapping Feasibility In the plan…
Figure 7
Figure 7. Figure 7: Delaunay criterion in the plane given as [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Intrinsic edge swaps of a box with a hole [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
Figure 6
Figure 6. Figure 6: Example of an intrinsic triangle with no [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 9
Figure 9. Figure 9: Intrinsic and extrinsic edge collapse. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10
Figure 10. Figure 10: Configurations where the heuristic swap condition does not lead to a stable configuration. oversampling and may affect convergence, whereas uncontrolled collapsing can prevent further oper￾ations, limiting the method’s coarsening capabili￾ties. To address this, edge s…
Figure 11
Figure 11. Figure 11: For some applications, this mesh may be sufficient, but additional control may be required to constrain other mesh properties. Some triangles remain challenging to approxi￾mate in regions with concentrated geometric de￾tails. Even when edges meet the target lengths, t…
Figure 12
Figure 12. Figure 12: Example of intrinsic mesh (Thingi10k [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13
Figure 13. Figure 13: Geodesic shortest paths from a point to an interval on the surface and the unfolded faces. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: Two approaches to handle interval inter [PITH_FULL_IMAGE:figures/full_fig_p013_14.png]
Figure 15
Figure 15. Figure 15: Interval shadow propagation at the boundary and saddle points. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_15.png]
Figure 16
Figure 16. Figure 16: Representation of an interval and all associated information with respect to the source s and the pseudo-source p. 4.1.5 Performance Considerations In the worst case, the number of windows is O(n 2 ), as each vertex may split a window into two. Since windows are proce…
Figure 17
Figure 17. Figure 17: Representation of candidate edges and shortest paths through a window. 4.2.3 Performance Considerations The backtracing cost is proportional to the num￾ber of windows, bounded by O(n), and more im￾portantly to the number of points k in the path. Its worst-case complex…
Figure 18
Figure 18. Figure 18: Geodesic shortest path computed by sorting intervals with respect to the distance to the source (left) and the A* heuristic distance to the destination (right). window. This estimate is obtained by reusing the point-to-source distance computation introduced for backtr…

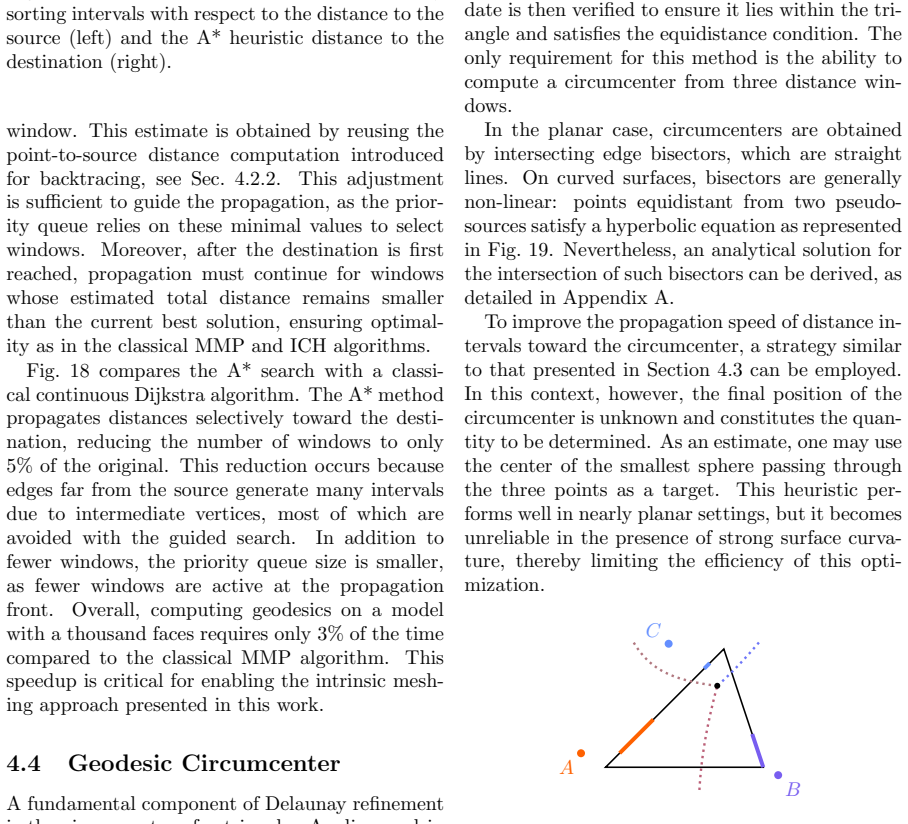

Figure 19
Figure 19. Figure 19: Representation of the circumcenter as the intersection of geodesic bisectors for three in￾tervals with the three associated pseudo-sources. 5 Experimental Results 5.1 Effect of constraints [PITH_FULL_IMAGE:figures/full_fig_p015_19.png]
Figure 20
Figure 20. Figure 20: Intrinsic meshing of three models from the Thingi10K data set (ID: 37278, 39878 and 44374) [PITH_FULL_IMAGE:figures/full_fig_p017_20.png]

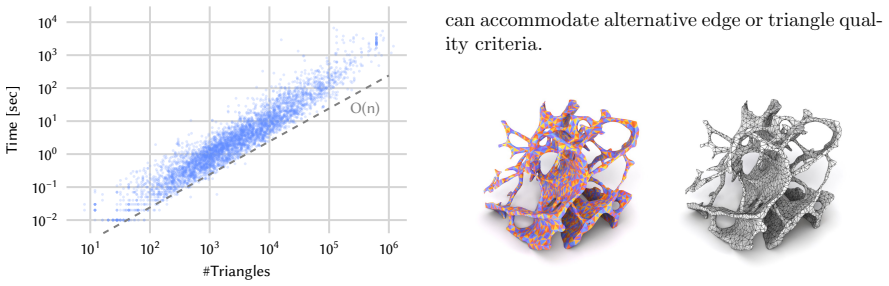

Figure 22
Figure 22. Figure 22: Intrinsic remeshing of a trabecular bone [PITH_FULL_IMAGE:figures/full_fig_p018_22.png]
