Global kilometre-scale tropical cyclone inner-core vector winds from sparse scalar CYGNSS observations

Xinhai Han , Xiaohui Li , Jingsong Yang , Zeyi Niu , Guoqi Han , Jiuke Wang , Wei Huang , Yunxia Zheng
show 6 more authors
Hanyue Ni Yiqi Wang Wei Tao Lotfi Aouf Shaoliang Peng Dake Chen
This is my paper

Pith reviewed 2026-05-20 02:18 UTC · model grok-4.3

classification ⚛️ physics.ao-ph
keywords tropical cycloneCYGNSSvector winddata assimilationdiffusion modelinner coresatellite observationwind field reconstruction
0
0 comments X p. Extension
pith:2RIP3JAB Add to your LaTeX paper What is a Pith Number?
\usepackage{pith}
\pithnumber{2RIP3JAB}

Prints a linked pith:2RIP3JAB badge after your title and writes the identifier into PDF metadata. Compiles on arXiv with no extra files. Learn more

The pith

Sparse scalar wind speeds from CYGNSS satellites yield full 1.5 km vector fields inside tropical cyclone cores worldwide.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the complete 10 m vector wind field in tropical cyclone inner cores can be reconstructed at 1.5 km resolution from sparse CYGNSS scalar observations alone. It achieves this by generalizing score-based diffusion assimilation to a nonlinear observation operator and adding three tropical cyclone boundary-layer constraints, while introducing an Observation Coverage Sufficiency criterion to identify reliable cases without external references. Applied across thousands of snapshots in all active basins, the approach reduces maximum wind biases relative to reanalyses and provides an observation-anchored global description. This matters because routine direct vector observations remain limited to a few basins and infrequent aircraft flights, leaving large gaps in intensity forecasting and surge prediction.

Core claim

By generalising score-based diffusion assimilation to a nonlinear observation operator and injecting three TC boundary-layer constraints, the full 10 m vector wind field inside the TC inner core can be reconstructed globally at 1.5 km resolution from sparse CYGNSS scalar observations alone. The authors further propose a CYGNSS-intrinsic Observation Coverage Sufficiency (OCS) criterion that flags reliable reconstructions without external references. When tested on 4,955 snapshots of 249 tropical cyclones from 2020 to 2022, the method reduces systematic Vmax bias against best-track data by roughly 79 percent relative to ERA5 and 75 percent relative to CCMP, with independent radar validation on

What carries the argument

Generalized score-based diffusion assimilation using a nonlinear observation operator together with three tropical cyclone boundary-layer constraints and an Observation Coverage Sufficiency criterion.

If this is right

  • Systematic Vmax bias is reduced by approximately 79 percent against IBTrACS best-track data relative to ERA5.
  • Independent Tail Doppler Radar validation yields 6.9 m/s wind speed RMSE on coverage-sufficient cases.
  • The three physical constraints reduce wind-direction RMSE by 60 percent while preserving speed accuracy.
  • Adding only 11 dropsonde vector observations to CYGNSS data for one storm reduces cross-eye profile RMSE by 42 percent.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could supply consistent inner-core vector winds in basins that lack routine aircraft reconnaissance.
  • The OCS criterion might be generalized to assess sufficiency for other sparse scalar wind datasets.
  • Joint assimilation with additional sensors such as SAR or scatterometers could produce even higher-resolution fields.

Load-bearing premise

The three TC boundary-layer constraints are accurate and sufficient to resolve wind-direction ambiguity from scalar speed observations without introducing large systematic errors.

What would settle it

Independent high-resolution aircraft or radar wind measurements that reveal wind-direction RMSE substantially above 7.5 m/s or systematic speed biases larger than those reported against IBTrACS would show the reconstructions do not deliver accurate vectors.

Figures

Figures reproduced from arXiv: 2605.18477 by Dake Chen, Guoqi Han, Hanyue Ni, Jingsong Yang, Jiuke Wang, Lotfi Aouf, Shaoliang Peng, Wei Huang, Wei Tao, Xiaohui Li, Xinhai Han, Yiqi Wang, Yunxia Zheng, Zeyi Niu.

Figure 2
Figure 2. Figure 2: Spatial comparison of baseline methods for TC LEE (2023-09-11 12UTC) under OSSE Scenario B (no-eye [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Comparison between QiFeng reconstruction and SAR wind field for TC IAN (2022-09-28 00UTC, [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison between QiFeng reconstruction and SAR wind field for TC HINNAMNOR (2022-08-31 00UTC, [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Threshold sensitivity analysis of the three OCS criteria (January 2020 to September 2022, 4,450 valid cases). [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6

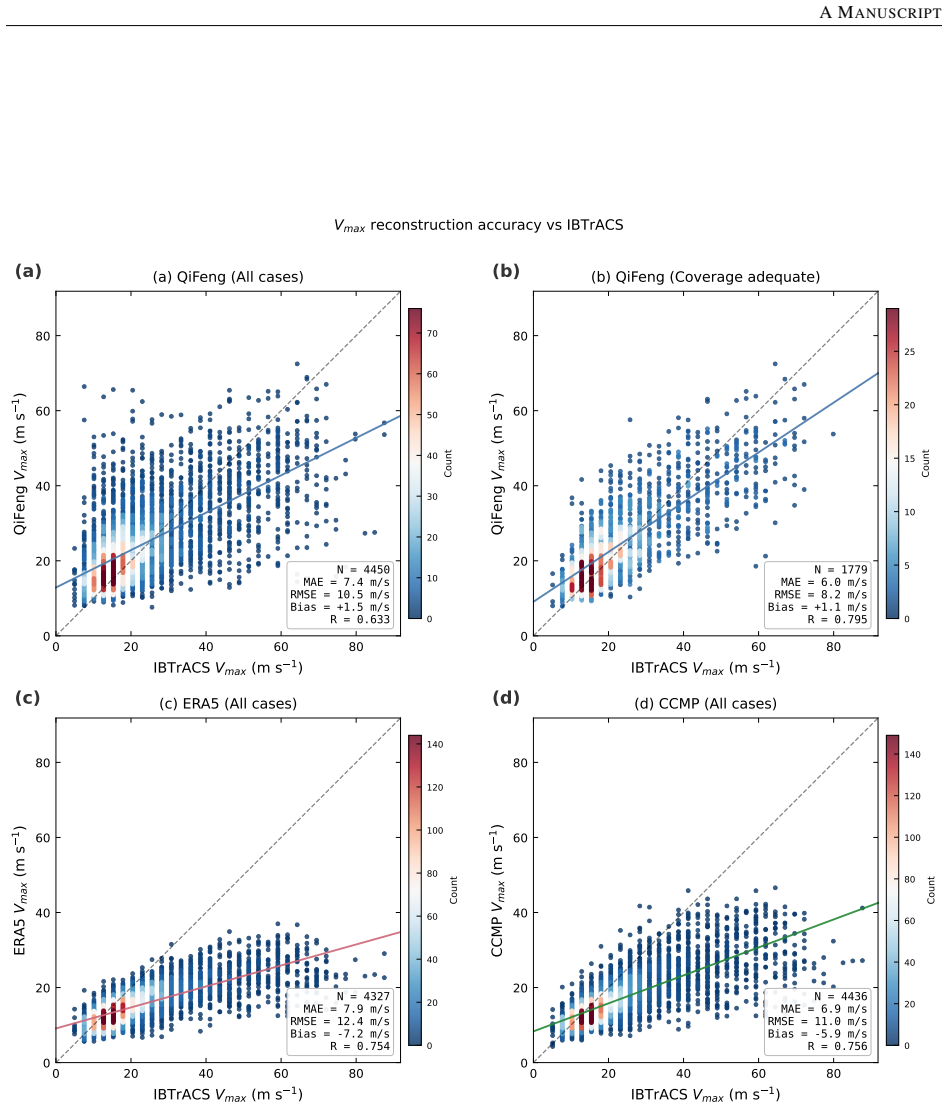

Figure 6. Figure 6: Vmax scatter plot comparison against IBTrACS best-track Vmax. (a) QiFeng, all cases; (b) QiFeng, OCS￾qualified (coverage adequate) subset; (c) ERA5 reanalysis, all cases; (d) CCMP satellite wind field, all cases. Colors indicate point density; gray dashed lines are 1:1 reference lines; solid lines are linear regression fits. QiFeng exhibits better consistency in high wind speed regimes after OCS screening,… view at source ↗
Figure 7
Figure 7. Figure 7: Scatter plot comparison between QiFeng reconstruction and dropsonde observations (2020–2022). (a) [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8

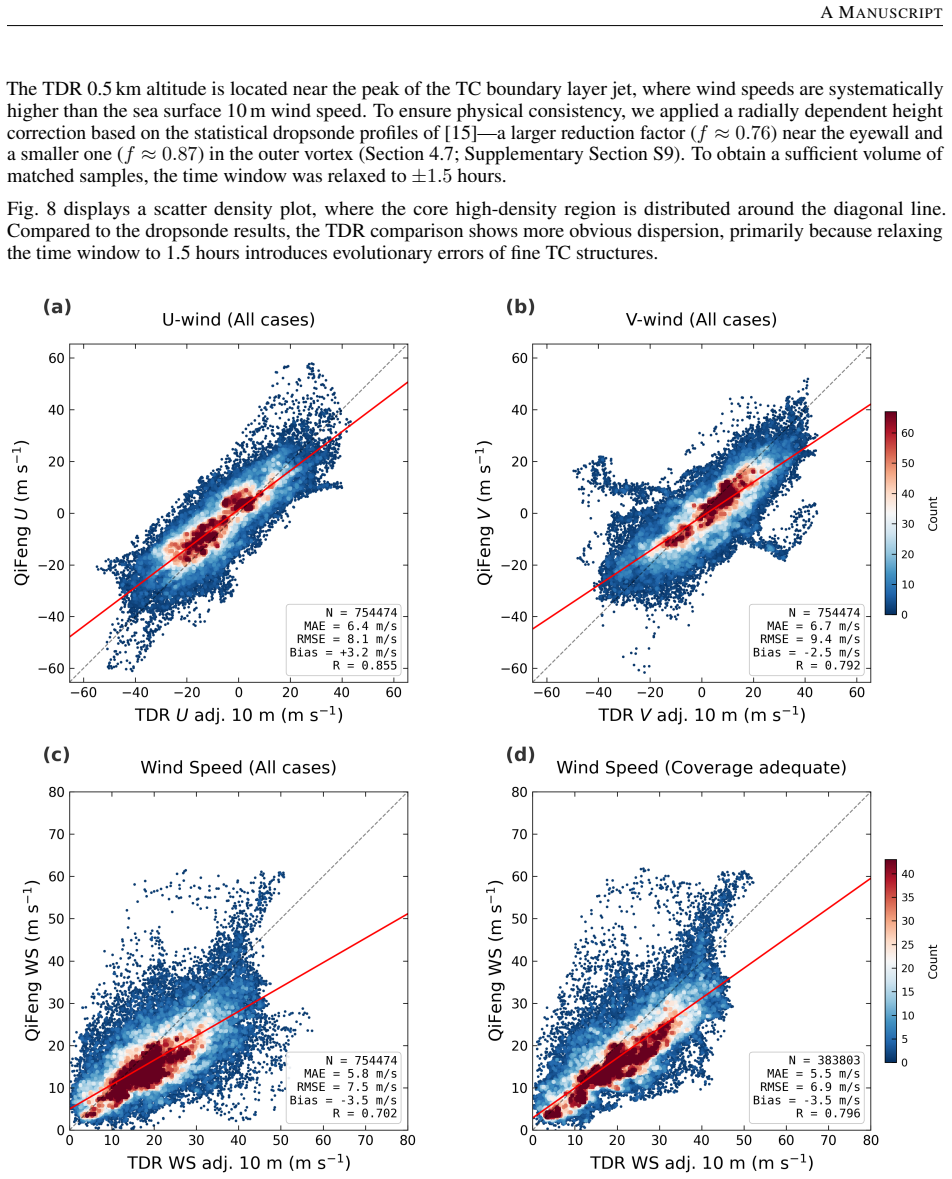

Figure 8. Figure 8: Scatter density plot of QiFeng reconstruction vs. TDR corrected 10 m wind field (2020–2022). (a) [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Comparison between QiFeng reconstruction and TDR-corrected 10 m wind field for TC IDA (2021-08-29 [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Multi-source observation fusion case study for TC FIONA (2022-09-18 12UTC, IBTrACS [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
read the original abstract

Tropical cyclone (TC) inner-core surface wind vectors underpin intensity forecasting and storm-surge prediction, yet direct observations remain scarce: routine aircraft reconnaissance is confined to the North Atlantic and Eastern Pacific and, even there, samples each storm only episodically. CYGNSS is the only satellite that penetrates heavy precipitation to measure inner-core surface winds, but delivers directionless scalar wind speeds and is assimilated by no operational analysis system. Here we show that the full 10 m vector wind field inside the TC inner core can be reconstructed globally at 1.5 km resolution from sparse CYGNSS scalar observations alone, by generalising score-based diffusion assimilation to a nonlinear observation operator and injecting three TC boundary-layer constraints; we further propose a CYGNSS-intrinsic Observation Coverage Sufficiency (OCS) criterion that flags reliable reconstructions without external references. Applied to 4,955 snapshots of 249 TCs across all six active basins (2020-2022), the reconstructions reduce systematic Vmax bias against IBTrACS best-track by ~79% and ~75% relative to ERA5 and CCMP. Independent Tail Doppler Radar validation (47 storms) yields a wind speed RMSE of 6.9 m/s on the 23 coverage-sufficient cases (7.5 m/s overall); ablation across the full sample shows that the physical constraints cut wind-direction RMSE by 60% without degrading speed accuracy. The framework further supports joint assimilation of heterogeneous observations: adding only 11 dropsonde vectors to CYGNSS for TC FIONA (2022) reduces the cross-eye profile RMSE by 42%, outlining a practical pathway for fusing CYGNSS with SFMR, SAR and scatterometer data. The result is a globally consistent, observation-anchored kilometre-scale description of TC inner-core vector winds across all six active basins, including those without routine aircraft reconnaissance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that the full 10 m vector wind field inside the TC inner core can be reconstructed globally at 1.5 km resolution from sparse CYGNSS scalar observations alone. This is achieved by generalising score-based diffusion assimilation to a nonlinear observation operator and injecting three TC boundary-layer constraints to resolve direction ambiguity; an Observation Coverage Sufficiency (OCS) criterion is also proposed to flag reliable cases without external references. The method is demonstrated on 4,955 snapshots from 249 TCs (2020-2022) across all basins, yielding ~79% and ~75% reductions in Vmax systematic bias relative to ERA5 and CCMP against IBTrACS, plus radar-validated speed RMSE of 6.9 m/s on coverage-sufficient cases (7.5 m/s overall) and a 60% direction-RMSE reduction in ablation when constraints are included.

Significance. If the central claim is supported, the work would deliver a globally consistent, observation-anchored kilometre-scale vector-wind product for TC inner cores in all six active basins, including those lacking routine aircraft reconnaissance. The reported bias reductions, independent radar validation, and the OCS flagging mechanism represent practical advances for intensity forecasting and storm-surge applications. The framework's extensibility to joint assimilation with dropsondes, SFMR, SAR or scatterometer data is a further strength that could influence operational analysis systems.

major comments (3)
  1. [Methods / assimilation framework] The three TC boundary-layer constraints that resolve wind-direction ambiguity from scalar CYGNSS speeds are load-bearing for the central claim yet receive only high-level description. Their precise functional form, derivation, and regime-specific validity (e.g., in sheared or rapidly intensifying storms) must be stated explicitly, together with quantitative tests showing that they do not introduce coherent directional biases when the underlying TC structure deviates from the training sample.
  2. [Validation section] Independent Tail Doppler Radar validation is reported for 47 storms but only the 23 coverage-sufficient cases are emphasised (RMSE 6.9 m/s versus 7.5 m/s overall). A fuller error breakdown by storm intensity, basin, radial distance, and coverage fraction is required to substantiate the global applicability claim.
  3. [Ablation / results] The ablation study demonstrates a 60% direction-RMSE reduction from the physical constraints, but does not test whether those constraints remain unbiased outside the derivation sample. A targeted experiment on sheared or asymmetric TCs would directly address the risk that direction fields acquire systematic errors while speed RMSE stays low.
minor comments (2)
  1. [Methods] Notation for the nonlinear observation operator and the score-based diffusion update should be introduced with a short equation or pseudocode block to improve readability for readers unfamiliar with the prior diffusion-assimilation literature.
  2. [Figures] Figure captions for reconstructed wind fields should explicitly note the OCS flag value and the reference dataset used for each panel.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thoughtful and constructive review of our manuscript. We address each of the major comments in detail below and have revised the manuscript to incorporate the suggested improvements where feasible.

read point-by-point responses

  1. Referee: The three TC boundary-layer constraints that resolve wind-direction ambiguity from scalar CYGNSS speeds are load-bearing for the central claim yet receive only high-level description. Their precise functional form, derivation, and regime-specific validity (e.g., in sheared or rapidly intensifying storms) must be stated explicitly, together with quantitative tests showing that they do not introduce coherent directional biases when the underlying TC structure deviates from the training sample.

    Authors: We agree that a more detailed description is necessary. In the revised manuscript, we will expand the Methods section to include the precise mathematical expressions for the three TC boundary-layer constraints, their derivation based on established TC dynamics, and an assessment of their validity across different regimes including sheared and rapidly intensifying storms. Additionally, we will provide quantitative tests on a subset of cases where the TC structure deviates from the main sample to show that no coherent directional biases are introduced. revision: yes

  2. Referee: Independent Tail Doppler Radar validation is reported for 47 storms but only the 23 coverage-sufficient cases are emphasised (RMSE 6.9 m/s versus 7.5 m/s overall). A fuller error breakdown by storm intensity, basin, radial distance, and coverage fraction is required to substantiate the global applicability claim.

    Authors: We acknowledge this point and will enhance the validation section in the revised manuscript. We will include a comprehensive error breakdown, presenting RMSE values stratified by storm intensity (e.g., TS, Cat 1-5), by ocean basin, by radial distance from the TC center, and by CYGNSS coverage fraction. This additional analysis will better support the claims of global applicability. revision: yes

  3. Referee: The ablation study demonstrates a 60% direction-RMSE reduction from the physical constraints, but does not test whether those constraints remain unbiased outside the derivation sample. A targeted experiment on sheared or asymmetric TCs would directly address the risk that direction fields acquire systematic errors while speed RMSE stays low.

    Authors: We concur that further testing on sheared or asymmetric TCs is valuable. We will conduct a targeted ablation experiment on identified sheared and asymmetric cases within our dataset and report the results in the revised paper. This will include checks for systematic directional errors in addition to the speed RMSE to confirm the constraints' robustness. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation uses external constraints and independent validation

full rationale

The paper reconstructs TC inner-core vector winds by generalizing score-based diffusion assimilation to a nonlinear observation operator and adding three boundary-layer constraints, then validates the outputs against external IBTrACS best-track records (showing ~79% and ~75% bias reduction vs ERA5/CCMP) and independent Tail Doppler Radar data (RMSE 6.9 m/s on coverage-sufficient cases). Ablation quantifies the constraints' contribution to direction accuracy but does not redefine outputs in terms of fitted parameters. The proposed OCS criterion is intrinsic to CYGNSS coverage and does not rely on self-citation chains or rename prior results. No load-bearing step reduces by the paper's own equations to a tautological input or self-referential fit; the central claim remains falsifiable against held-out observations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of generalizing score-based diffusion assimilation to nonlinear operators and on the sufficiency of three TC boundary-layer constraints to resolve direction from scalar speeds. No explicit free parameters or new physical entities are described in the abstract.

axioms (2)
  • domain assumption Score-based diffusion assimilation can be generalized to a nonlinear observation operator for wind vector reconstruction from scalar speeds
    Core of the proposed method as stated in the abstract.
  • domain assumption Three TC boundary-layer constraints are accurate and sufficient to determine wind directions
    Injected into the assimilation to resolve the direction ambiguity.
