LCL Resonance Analysis and Damping in Single-Loop Grid-Forming Wind Turbines

Meng Chen , Yufei Xi , Frede Blaabjerg , Lin Cheng , Ioannis Lestas This is my paper

Pith reviewed 2026-05-22 20:24 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords grid-forming controlLCL filteropen-loop stabilitydroop controlactive dampingwind turbinesresonance analysisreactive power control
0
0 comments X

The pith

Single-loop grid-forming controls with droop-I reactive power can produce open-loop unstable poles near LCL resonances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper challenges the standard assumption that grid-forming and grid-following controls remain open-loop stable near high-frequency resonances. It shows that single-loop grid-forming schemes paired with droop-I reactive power control generate unstable open-loop poles around LCL filter resonances. This creates a previously unrecognized instability mechanism that shrinks high-frequency stability margins and robustness. The analysis traces how reactive power and electrical parameters affect the poles and proposes an active damping method designed around the new mechanism. Experiments validate the results and note distinctly different resonance behavior compared with grid-following schemes.

Core claim

Single-loop grid-forming control schemes that incorporate droop-I reactive power control can produce open-loop unstable poles in the vicinity of LCL filter resonances. This finding contradicts the usual premise that such systems are open-loop stable near resonances and directly reduces stability margins and robustness at high frequencies. The paper derives the result from the control structure, examines parameter sensitivity, and supplies an active damping design that accounts for the instability, together with a comparison to grid-following resonance features.

What carries the argument

The droop-I reactive power control loop inside the single-loop grid-forming structure interacting with LCL filter dynamics to place poles in the right half-plane of the open-loop transfer function.

If this is right

  • Stability margins for single-loop GFM systems must be evaluated with possible open-loop unstable poles in view.
  • Active damping designs need to be constructed explicitly around the identified open-loop instability.
  • Resonance features and required damping differ between single-loop GFM and conventional grid-following schemes.
  • The instability depends on both reactive power control gains and electrical parameters of the LCL filter.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Classical loop-shaping methods may require modification when applied to single-loop GFM inverters.
  • The finding could guide selection between single-loop and multi-loop GFM architectures in wind turbine fleets.
  • Similar open-loop instability risks may appear in other converter topologies that combine droop-style power control with LCL filters.

Load-bearing premise

The small-signal model of the single-loop GFM with droop-I control and LCL filter correctly identifies the open-loop poles from the control structure and parameters.

What would settle it

Hardware measurement of the open-loop transfer function on a physical single-loop GFM inverter with droop-I control that shows no right-half-plane poles near the LCL resonance frequency.

Figures

Figures reproduced from arXiv: 2504.06981 by Frede Blaabjerg, Ioannis Lestas, Lin Cheng, Meng Chen, Yufei Xi.

Figure 1
Figure 1. Figure 1: Structure of a PMSG-WT system with LCL filter controlled by SL-GFM control strategy. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

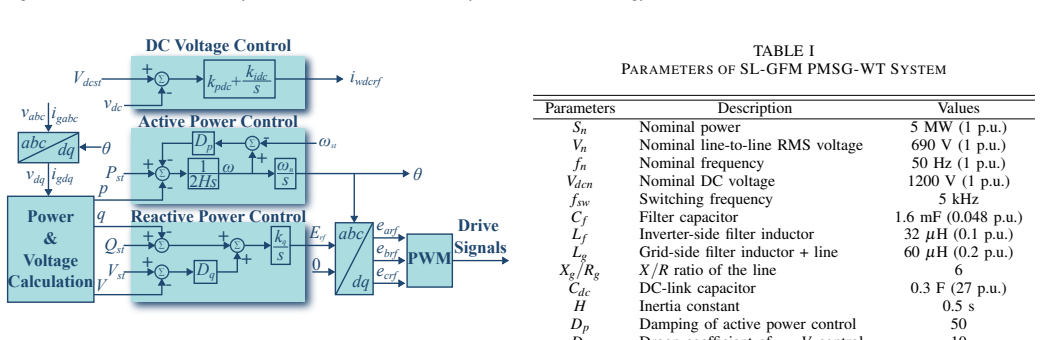

Figure 2. Figure 2: Detailed control block diagram of PMSG-WT system with droop-I [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

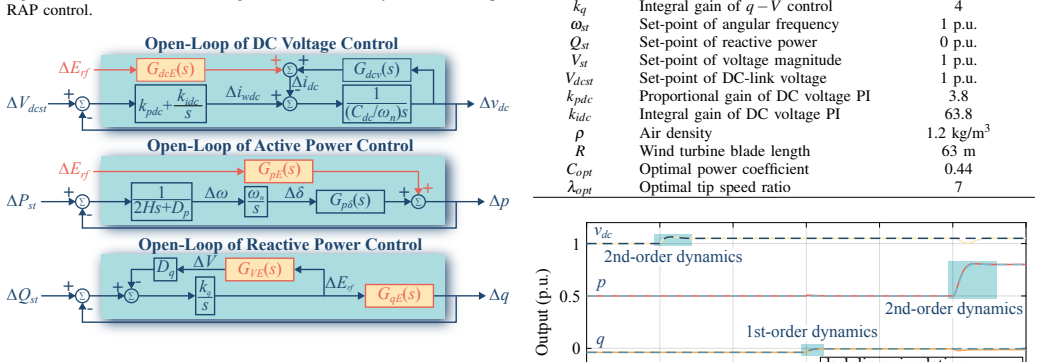

Figure 3. Figure 3: Small-signal block diagram of SL-GFM PMSG-WT system. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
