arxiv: 1907.02245 · v1 · pith:2YEV67CRnew · submitted 2019-07-04 · 💻 cs.CG · cs.NA· math.NA

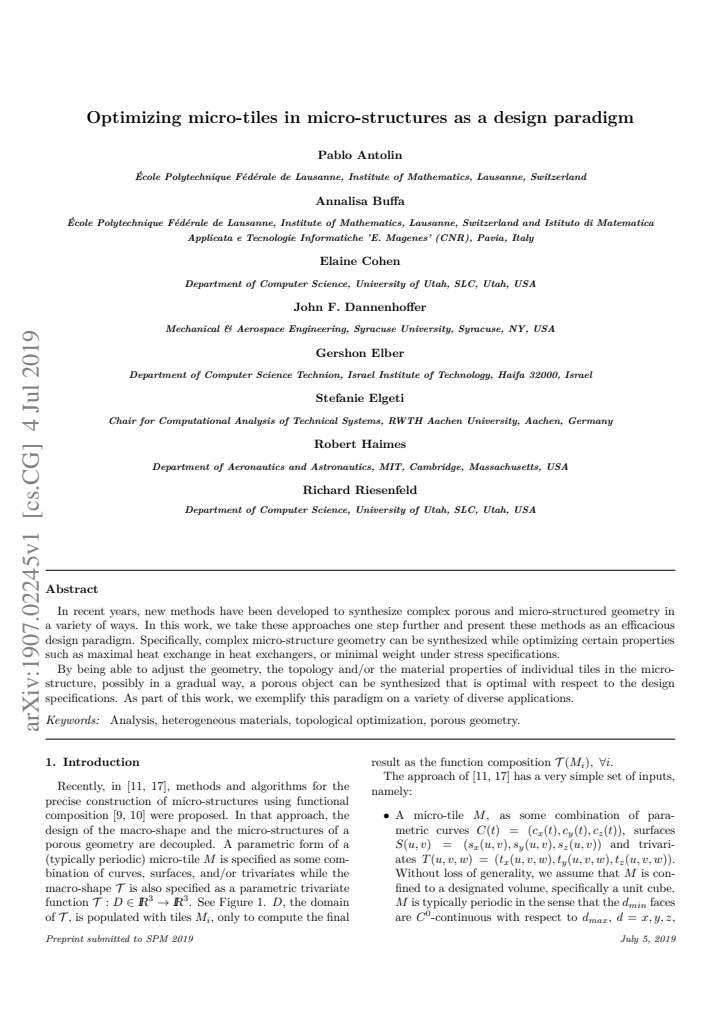

Optimizing micro-tiles in micro-structures as a design paradigm

Pablo Antolin , Annalisa Buffa , Elaine Cohen , John F. Dannenhoffer , Gershon Elber , Stefanie Elgeti , Robert Haimes , Richard Riesenfeld This is my paper

Pith reviewed 2026-05-25 02:40 UTC · model grok-4.3

classification 💻 cs.CG cs.NAmath.NA
keywords micro-structuresporous geometrydesign optimizationheat exchangerstile-based synthesistopology optimizationadditive manufacturing
0
0 comments X

The pith

Adjusting the geometry, topology, or material properties of individual micro-tiles allows synthesis of optimal porous objects for given design specifications.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that micro-structure synthesis can move beyond creating complex porous shapes to actively optimizing them by varying properties at the scale of single tiles. This matters because it converts additive fabrication techniques into a systematic way to meet concrete targets such as maximum heat exchange or minimum weight under load. A sympathetic reader would see value in the ability to introduce gradual property changes across an object while preserving overall structural integrity. The approach is illustrated through several different applications that demonstrate the paradigm in practice.

Core claim

Complex micro-structure geometry can be synthesized while optimizing certain properties such as maximal heat exchange in heat exchangers, or minimal weight under stress specifications. By being able to adjust the geometry, the topology and/or the material properties of individual tiles in the micro-structure, possibly in a gradual way, a porous object can be synthesized that is optimal with respect to the design specifications.

What carries the argument

The individual micro-tile as the adjustable unit whose geometry, topology, or material properties are varied to drive global optimization of the porous object.

If this is right

  • Porous objects can be designed for maximal heat exchange by varying tile properties individually.
  • Minimal-weight structures that still satisfy stress specifications become achievable.
  • Gradual transitions in tile geometry or material across the object enable smooth property gradients.
  • The same synthesis pipeline can be applied to multiple distinct engineering goals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same per-tile control could be used to optimize secondary properties such as acoustic absorption or permeability that the paper does not explicitly address.
  • Integration with existing simulation tools would be needed to evaluate candidate tile configurations before fabrication.
  • If manufacturing precision limits per-tile variation, the achievable performance gains would be bounded by fabrication tolerances.

Load-bearing premise

Existing synthesis methods for micro-structures can be extended to support per-tile optimization of geometry, topology, and material properties while remaining computationally tractable and preserving global structural validity.

What would settle it

A side-by-side test in which a structure built from per-tile optimized micro-tiles shows no measurable improvement in heat exchange rate or load-bearing capacity over a comparable structure with uniform tiles would falsify the central claim.

Figures

Figures reproduced from arXiv: 1907.02245 by Annalisa Buffa, Elaine Cohen, Gershon Elber, John F. Dannenhoffer, Pablo Antolin, Richard Riesenfeld, Robert Haimes, Stefanie Elgeti.

Figure 1

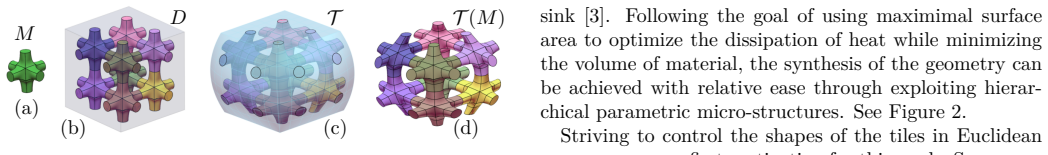

Figure 1. Figure 1: The micro-tile M in (a) populates the domain D, in (b), (2 × 2 × 2) times. D is the domain of trivariate T shown in (c). Also presented in (c) are the (2 × 2 × 2) composed tiles T (M). Finally, (d) shows only the composed tiles T (M) and may even be C k -continuous, k > 0. • A trivariate parametric deformation macro-function T (x, y, z) : D ∈ IR3 → IR3 . • (nx, ny, nz): the dimensions of enumerations in T … view at source ↗
Figure 2

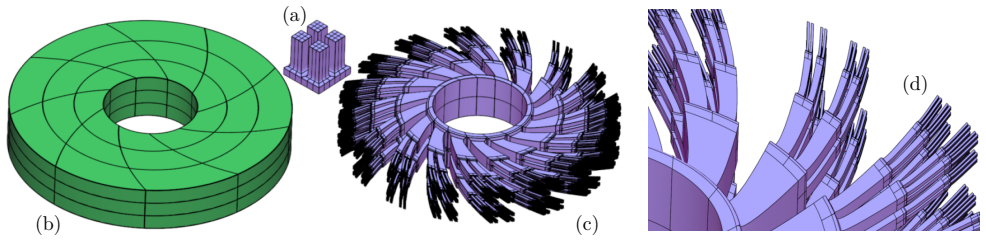

Figure 2. Figure 2: A heat sink design using a hierarchical micro-tile (a) and a macro-shaped twisted ring (b), yielding the heat sink in (c), with large [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

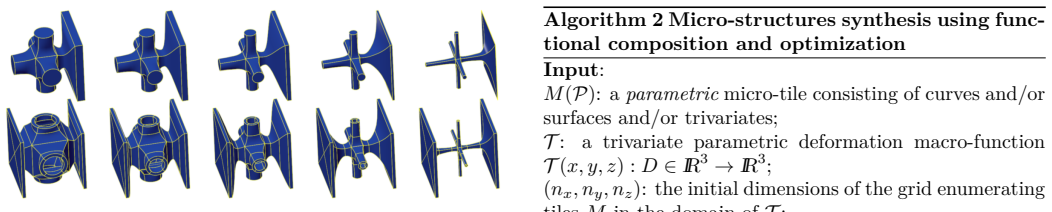

Figure 3. Figure 3: Parametrically varying wall thicknesses/tubes diameters [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

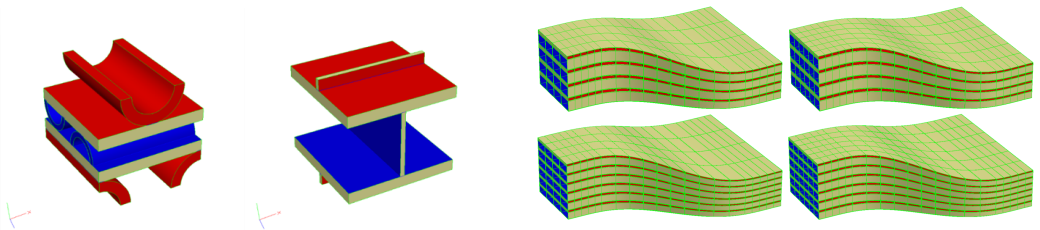

Figure 5. Figure 5: This sequence of images illustrates the flexibility afforded [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

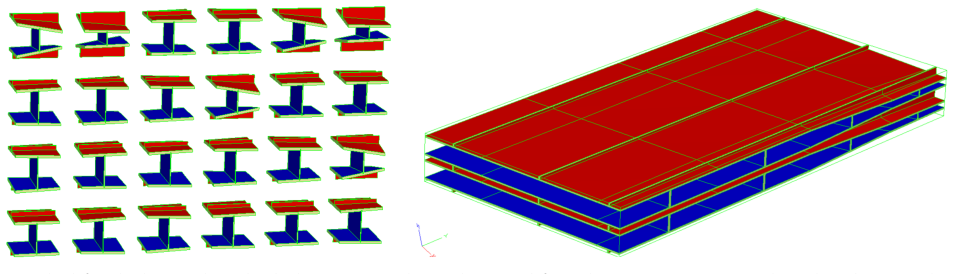

Figure 6. Figure 6: The left side depicts the individual parametric tiles in their pre-deformed unit representation. The right side image shows the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

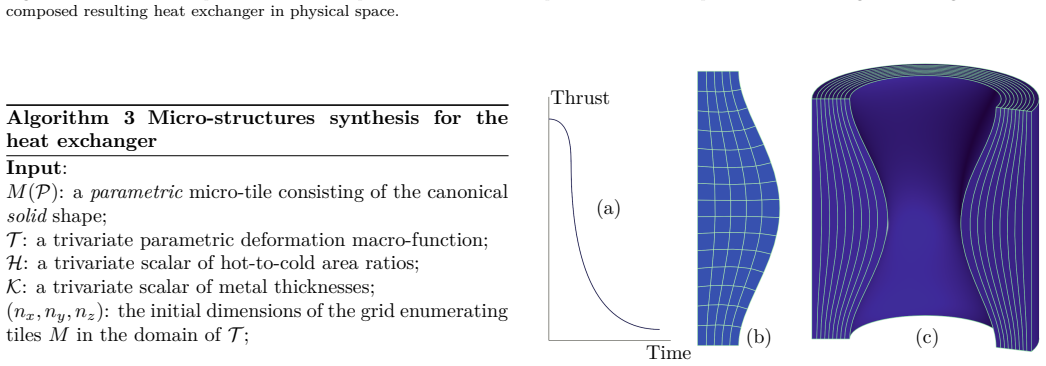

Figure 7. Figure 7: The thrust profile (a) is provided along with the rocket [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8

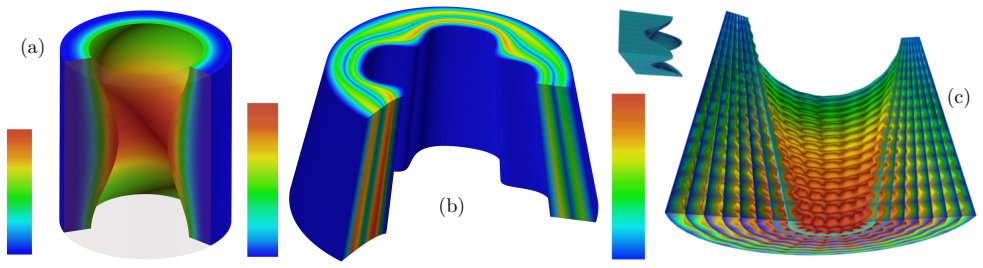

Figure 8. Figure 8: The thrust profile and geometry from Figure 7 yields the (sliced) result shown in (a), and using Algorithm 4. Red denotes [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

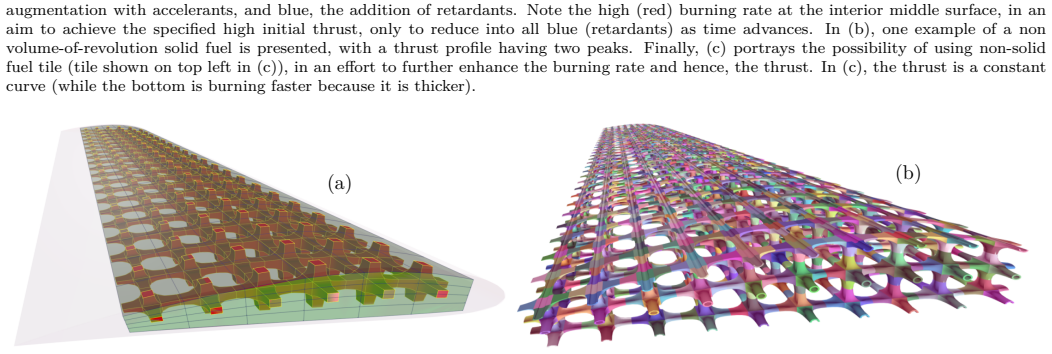

Figure 9. Figure 9: One can model the interior of a wing, shown transparently in (a), as a trivariate (also shown transparently in (a)), in order to [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10

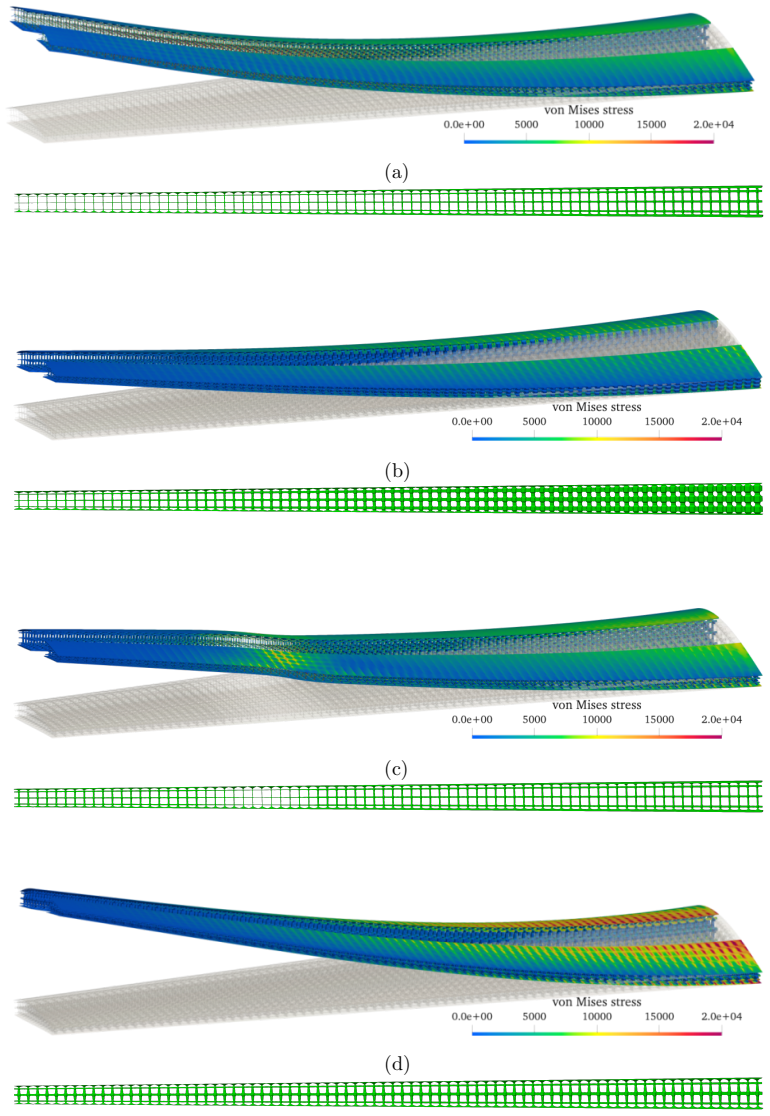

Figure 10. Figure 10: Structural analyses of different porous wing configurations, fixed at the root. For each case, a magnified elastic deformation is [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Local control over heating in an extruder (in magenta). Red tiles are insulators (for both heat and electricity). Yellow tiles are [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12

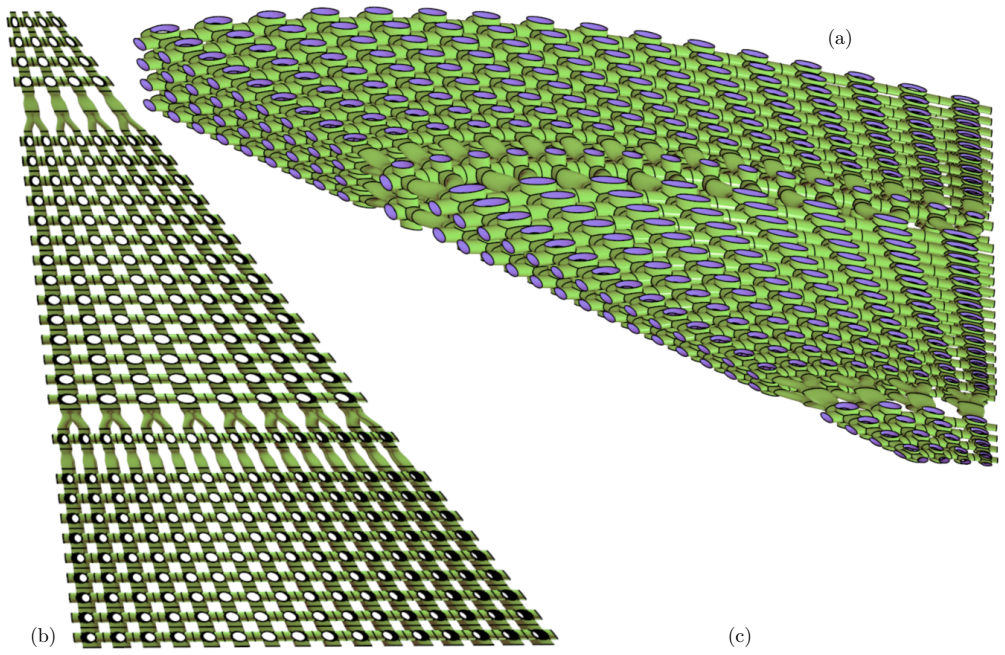

Figure 12. Figure 12: Two views on a B-spline surface micro-structure in the shape of a delta wing with macro-tiles’ surfaces that employs bifurcations [PITH_FULL_IMAGE:figures/full_fig_p012_12.png] view at source ↗
Figure 13

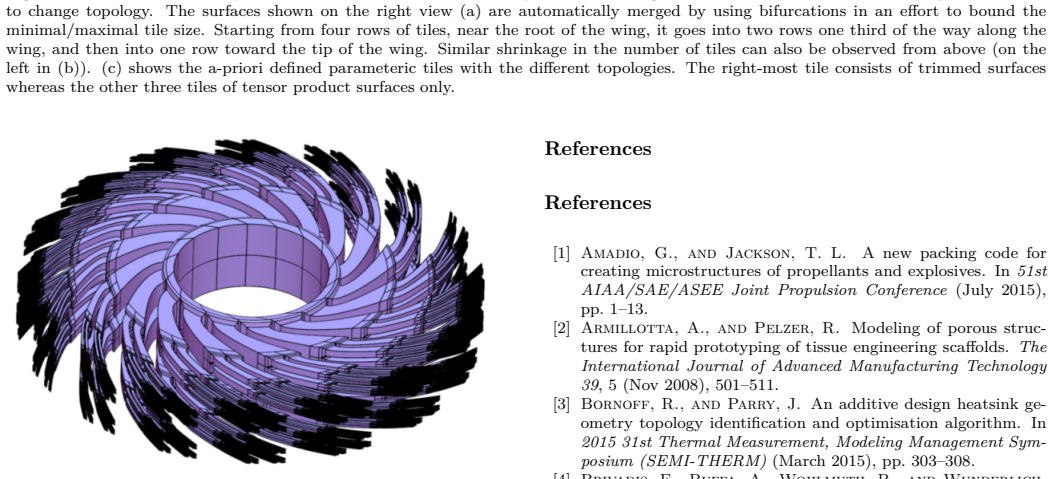

Figure 13. Figure 13: Another degree of freedom that can be exploited is the [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
read the original abstract

In recent years, new methods have been developed to synthesize complex porous and micro-structured geometry in a variety of ways. In this work, we take these approaches one step further and present these methods as an efficacious design paradigm. Specifically, complex micro-structure geometry can be synthesized while optimizing certain properties such as maximal heat exchange in heat exchangers, or minimal weight under stress specifications. By being able to adjust the geometry, the topology and/or the material properties of individual tiles in the micro-structure, possibly in a gradual way, a porous object can be synthesized that is optimal with respect to the design specifications. As part of this work, we exemplify this paradigm on a variety of diverse applications.
